Delphi dnt04, non-isolated point of load dc/dc power modules: 2.4~5.5vin, 0.75~3.63vo, 3a out

Table of Contents

ELECTRICAL CHARACTERISTICS CURVES (CON.)

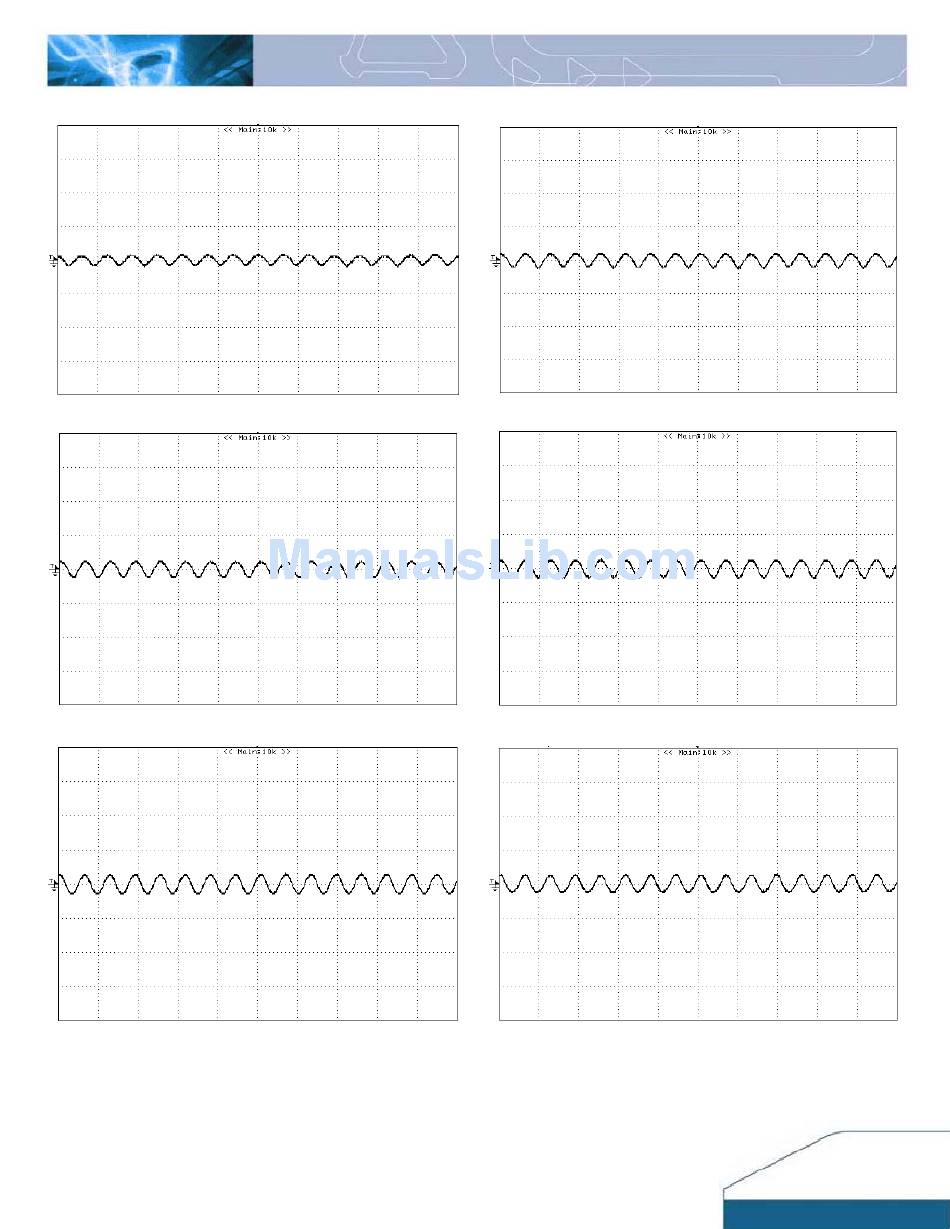

Figure 7: Output ripple & noise at 5Vin, 3.3V/3A out, 50mV/div

Figure 9: Output ripple & noise at 5Vin, 1.8V/3A out, 50mV/div

Figure 11: Output ripple & noise at 5Vin, 1.2V/3A out, 50mV/div

DS_DNT04SIP3A_09262007

Figure 8: Output ripple & noise at 5Vin, 2.5V/3A out, 50mV/div

Figure 10: Output ripple & noise at 5Vin, 1.5V/3A out, 50mV/div

Figure 12: Output ripple & noise at 5Vin, 0.75V/3A out, 50mV/div
