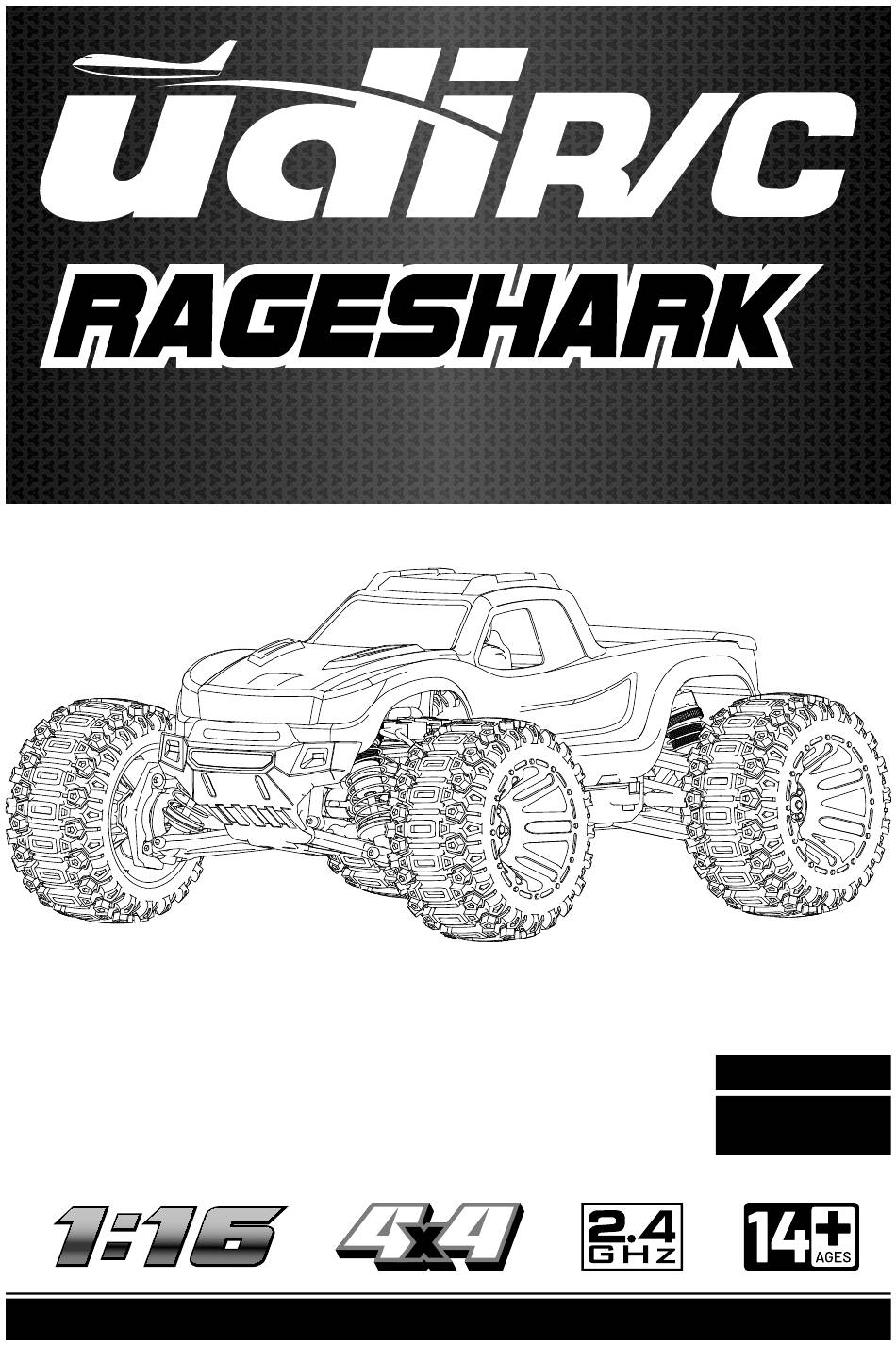

  • Page 1 OPERATING INSTRUCTIONS Applicable to the 1611 model. V1.0 25602 IMPORTANT! If any problem with the product, EVEN IF return period has ended, feel free to reach out to us directly via the retailer WARRANTY which the consumer purchased the product from. GUARANTEE For more technical issues, please consult our customer service team...
  • Page 2 THANK YOU & WHY CHOOSE UD1611 Thank You for Choosing UD1611! UD1611 RC Monster Truck - A entry-level model but bulit-in hobby grade design! Your UD1611 isn't just another toy-grade remote-controlled vehicle—it's a hobby-grade machine for who demand more. With its strong upgrade system, this beast grows with you—from your first speed run at kid age to professional-level bashing decades later.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 01 - WARNING & PRECAUTION & POLICY STATEMENT .......... 04 01-01 Important Notice ..................04 01-02 Warning Statement ..................04 01-03 Use Sequential .................... 05 01-04 Attention Statement ................... 05 01-05 Battery Safety Statement ................06 01-06 WEEE Compliance ..................06 01-07 FCC Note .....................

  • Page 4: Warning & Precaution & Policy Statement

    01 - WARNING & PRECAUTION & POLICY STATEMENT Remark: Including Section 01-01 to 01-07. 01-01 IMPORTANT NOTICE (1) The package or instruction manual contains important information and must be RETAINED. (2) Our company's products are improving all the time, design and specifications are subject to change without notice.

  • Page 5: Use Sequential

    01-03 USE SEQUENTIAL (1) Read the instruction manual in detail, or ask for the person with experience in operation, and read with the guardian if necessary. Before (2) Make sure all screws and nuts are properly tightened. Operation (3) The transmitter and the vehicle should always use the battery with saturated power to avoid losing control of the model.

  • Page 6: Battery Safety Statement

    01-05 BATTERY SAFETY STATEMENT ● Please read and observe all precautions before use. Improper use of battery may cause danger. ● It is normal for the battery to heat up after operation. Please be careful when handling the battery. If the wire is worn, it is easy to short circuit and cause fire. 1) Pay attention to the polarity of the battery when installing or replacing the battery;...

  • Page 7: Fcc Note

    01-07 FCC NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferencein a residential installation.

  • Page 8: Vehicle Specification

    02 - VEHICLE SPECIFICATION Remark: Including Section 02-01 to 02-04. 02-01 VEHICLE DATA Model No. UD1611 Vehicle Scale 1:16 Vehicle Size L292×W225×H133mm Vehicle Weight 1021g (without battery) Wheelbase 180mm 24mm Ground Clearance Battery Compartment Size L110×W34×H25mm Wheel Size ø85×45mm 02-02 ELECTONIC SYSTEM SPEC.

  • Page 9: Quick Start

    03 - QUICK START Remark: Including Section 03-01 to 03-09. 03-01 STEP 1 - CHARGE THE LI-BATTERY BEFORE PLAYING ● The battery contains less power when leaving the factory, so it must be fully charged before use. ● When charging the battery, it must be disconnected from the SCR and separated from the model.

  • Page 10: Step 2 - Open The Truck Body

    03-02 STEP 2 - OPEN THE TRUCK BODY Step 2-1 Step 2-2 ❶ Rear Buckle Rear Clip ❷ Front Hook Step 2-3 Step 2-4 ❹ Rear Hook ❸ Front Shock Tower Rear Shock Tower ❺ ❻ ❸ ❹ Rear Hook Front Hook Step 2-1: Push ❶Rear Buckle towards the tail to release ❷Rear Clip;...

  • Page 11: Step 3 - Check The Connecting On Electronic Parts

    03-03 STEP 3 - CHECK THE CONNECTING ON ELECTRONIC PARTS ● After removing the truck body, check the connecting among SCR and other electric parts per the instruction of “Section 04-01-02”. 03-04 STEP 4 - CONNECT THE BATTERY TO SCR ●...

  • Page 12: Step 6 - Power On Transmitter & Scr For Frequency Pairing

    03-06 STEP 6 - POWER ON TRANSMITTER & SCR FOR FREQUENCY PAIRING (1) Always power ON your transmitter first, and then power on the SCR. (2) The device automatically frequency pairing successfull. If all the lights keep bright, it indicates that the frequency pairing is successful. Otherwise, frequency pairing fails and needs to be done again.

  • Page 13: Step 8 - Power Off The Scr & Transmitter

    Step 7-1: Insert ❹Front Hook into ❺ Step 7-3 Front Shock Tower; Step 7-2: Lift ❷Rear Clip at its ❶ Rear Buckle max-throw so that ❸Rear Hook inserts into ❻Rear Shock Tower. Step 7-3: Press down the truck body downward to secure ❷Rear Clip into ❶ Rear Buckle.

  • Page 14: Transmitter & Scr Instuctions

    04 - TRANSMITTER & SCR INSTRUCTIONS Remark: Including Section 04-01 to 04-02. SCR INSTRUCTIONS 04-01 04-01-01 SCR DATA Model: SCR1 RF Standard: 2.4GHz Input Power: 2S (7.4V) Rated current: Size: 39.6×17×41.5mm Power Connector: T-type Motor Limit: Motor Connector: 3.5mm banana connector 04-01-02 SCR INSTALLATION Antenna...

  • Page 15: Transmitter Instructions

    TRANSMITTER INSTRUCTIONS 04-02 Before installing and operating your transmitter, please take a few minutes to familiarize yourself with the various features of the system by reading this instruction manual thoroughly. 04-02-01 TRANSMITTER DATA Model UA42-C Control Type Proportional Frequency Band 2.4GHz Channels Control Distance...

  • Page 16: Battery Installation

    ① ST. TRIM: Steering Trim, refer to ”Section 04-02-04“ for detail. ② ST. D/R: Steering Dual Rate, refer to “Section 04-02-05” for detail. ③ Transmitter Indicator: Refer to “Section 04-02-06” for detail. ④ TH. REV: Reverse the throttle function. ⑤ ST.

  • Page 17: St.trim

    04-02-04 ST. TRIM Steering Trim: Trim adjustment allows you to finely tune the inputs from your transmitter. It's the dial you reach for when your RC car isn't tracking straight. The steering trim is what helps navigate the RC car in a straight line. Transmitter Vehicle If your vehicle veers to...

  • Page 18: Transmitter Indicator Light

    04-02-06 TRANSMITTER INDICATOR LIGHT Situation 1: When the signal is weak or interrupted, the indicator will flash quickly. Situation 2: When the power of the transmitter is low, the indicator light will flash slowly. Indicator light The above situation should be handled as soon as possible to avoid accidents.

  • Page 19: Ch2, Throttle Trigger

    04-02-10 CH2, THROTTLE TRIGGER Note: Backward When using the transmitter in /Speed down electric powered vehicles, the /Brake throttle trigger should always remain in the neutral position. Otherwise the vehicle may suffer erratic operation Forward of the throttle trigger functions. /Speed up Neutral 04-02-11...

  • Page 20: Buyable Accessories List

    05 - BUYABLE ACCESSORIES LIST Remark: Including Section 05-01 to 05-03. 05-01 CHASSIS & TRANSMISSION PART LIST Part# Name P16-040A/B Body assembly P16-002A Wheel P16-003A Wheel anti slip gasket P16-004A Wheel adapters P16-005 Front & Rear wheel carriers P16-006A Steering linkage (Not adjustable) P16-007A Universal drive shaft (Plastics) P16-008...

  • Page 21: Electronic Part List

    05-02 ELECTRONIC PART LIST Part# Name S1701 Steering sevro (Plastics gear) SCR1 2 in 1 Speed control & Receiver (Brushed) UA42-C Transmitter M390 Brushed motor LAM16-01 Lamp group FUN16-3010 Cooling fans (30×30×10mm) MBO-TT1274 T-type Model battery (1200mAh) UCX24-E005 Charger (For 7.4V battery) 05-03 FITTING PART LIST Name...

  • Page 22: Troubleshooting

    06 - TROUBLESHOOTING PROBLEM POSSIBLE REASON SOLUTION Batteries are incorrectly assembled Check transmitter batteries, refer in remote controller. to 04-02-03 for detail. Weak or damage battery in the car. Install fully charged batteries. Worn or broken ESC/SCR wires or motor. Check condition, reconnect and insulate.
  • Page 23 PROBLEM POSSIBLE REASON SOLUTION Steering trim set out. Adjust steering trim. Vehicle wanders Check and replace components. Steering components are damaged. left / right Clean, check, or replace. Drivetrain is dirty or damaged. “TH.REV” or “ST-REV” on the Adjust the “TH.REV” or “ST-REV” on transmitter is set reversely.
  • Page 24 Copyright © UDIRC , All rights reserved. Made in China ® Manufacturer: SHANTOU CITY UDIRC TECHNOLOGY COMPANY LIMITED Address: Guangfeng Industrial Zone,Guangyi street, Chenghai District, Shantou City, Guangdong Province, China...

  • Page 25: Explosion View (Refer To The "Appendix" For Details)

    APPENDIX EXPLOSION VIEW Refer to (05 - BUYABLE Accessories LIST) for detail list.
  • Page 26 VIEW-1 BODY ASSEMBLY 视图-1 车壳组装 P16-040A P16-040B M01-001 M01-053 ×13pcs Copyright © UDIRC®...
  • Page 27 M01-001 ×6pcs Copyright © UDIRC®...
  • Page 28 VIEW-2 FRONT ASSEMBLY (The left and right installation is the same) 视图-2 前轮组装 (左右安装方法一样) M05--041 P16-006A M03-007 M02-004 M05--041 P16-005 M01-005 P16-003A M01-052 M01-052 P16-002A M03-007 P16-009A P16-007A P16-004A P16-005 M01-053 P16-008 P16-009A P16-010 M01-053 M05--042 M05--041 M01-005 Copyright © UDIRC®...
  • Page 29 VIEW-3 REAR ASSEMBLY (The left and right installation is the same) 视图-3 后轮组装 (左右安装方法一样) M02-004 P16-003A M03-007 P16-005 P16-002A M03-007 P16-011 P16-004A M01-053 P16-008 P16-009A P16-010 M01-053 M01-005 Copyright © UDIRC®...
  • Page 30 VIEW-4 CHASSIS ASSEMBLY 视图-4 底盘组装 P16-020A P16-018C P16-019A M03-012 P16-020A M03-012 M03-012 P16-019A SCR1 M390 M01-054 M01-004 P16-022A M01-056 ×2pcs P16-021A SCR1 M390 P16-017A Copyright © UDIRC®...
  • Page 31 S1701 M06-015 P16-015 M06-015 P16-016 M05--041 M01-004 M01-052 P16-016 M01-003 M05--041 M01-016 P16-016 M01-005 P16-017A S1701 M01-016 P16-015 P16-023A 1601-022 M06-017 M03-012 M01-058 P16-031A P16-030A ×4pcs P16-032A Copyright © UDIRC®...
  • Page 32 P16-012 M01-004 ×4pcs M01-004 M01-004 ×4pcs P16-014 P16-019A M390 P16-013 P16-016 M01-052 P16-012 M01-003 M01-012 M01-003 P16-013 Copyright © UDIRC®...
  • Page 33 VIEW-5 FRONT BUMPER ASSEMBLY (The left and right installation is the same) 视图-5 前保险组装 (左右安装方法一样) P16-012 M01-005 P16-006A P16-008 P16-010 P16-024 P16-009A M06-016 M01-006 M01-003 M06-015 P16-023A P16-025 M01-004 ×6pcs M01-012 ×4pcs M01-003 M01-012 P16-037 P16-027 Copyright © UDIRC®...
  • Page 34 VIEW-6 REAR BUMPER ASSEMBLY (The left and right installation is the same) 视图-6 后保险组装 (左右安装方法一样) P16-008 P16-009A P16-010 M06-016 P16-024 M01-006 M01-003 M06-015 P16-023A P16-025 M01-004 ×6pcs M01-012 ×4pcs M01-003 P16-038 M01-012 P16-027 Copyright © UDIRC®...
  • Page 35 P16-038 M01-003 视图-7 顶视 VIEW-7 TOP VIEW P16-038 P16-024 P16-009A P16-005 P16-020A P16-008 P16-012 P16-021A M390 P16-018C P16-013 P16-033 SCR1 P16-015 P16-016 P16-006A P16-005 P16-009A P16-010 P16-037 Copyright © UDIRC®...
  • Page 36 VIEW-8 LAMP GROUP ASSEMBLY LAM16-01 视图-8 灯组安装 LED light bead ❶ ❷ ❸ Bumper ❷ Lamp hole ❸ DuPont ❶ ❹ (1) Insert (the LED ❶ light bead) into (the ❸ lamp hole) position on (the bumper), ❷ ensuring that the bead is completely inside the limit buckle.
