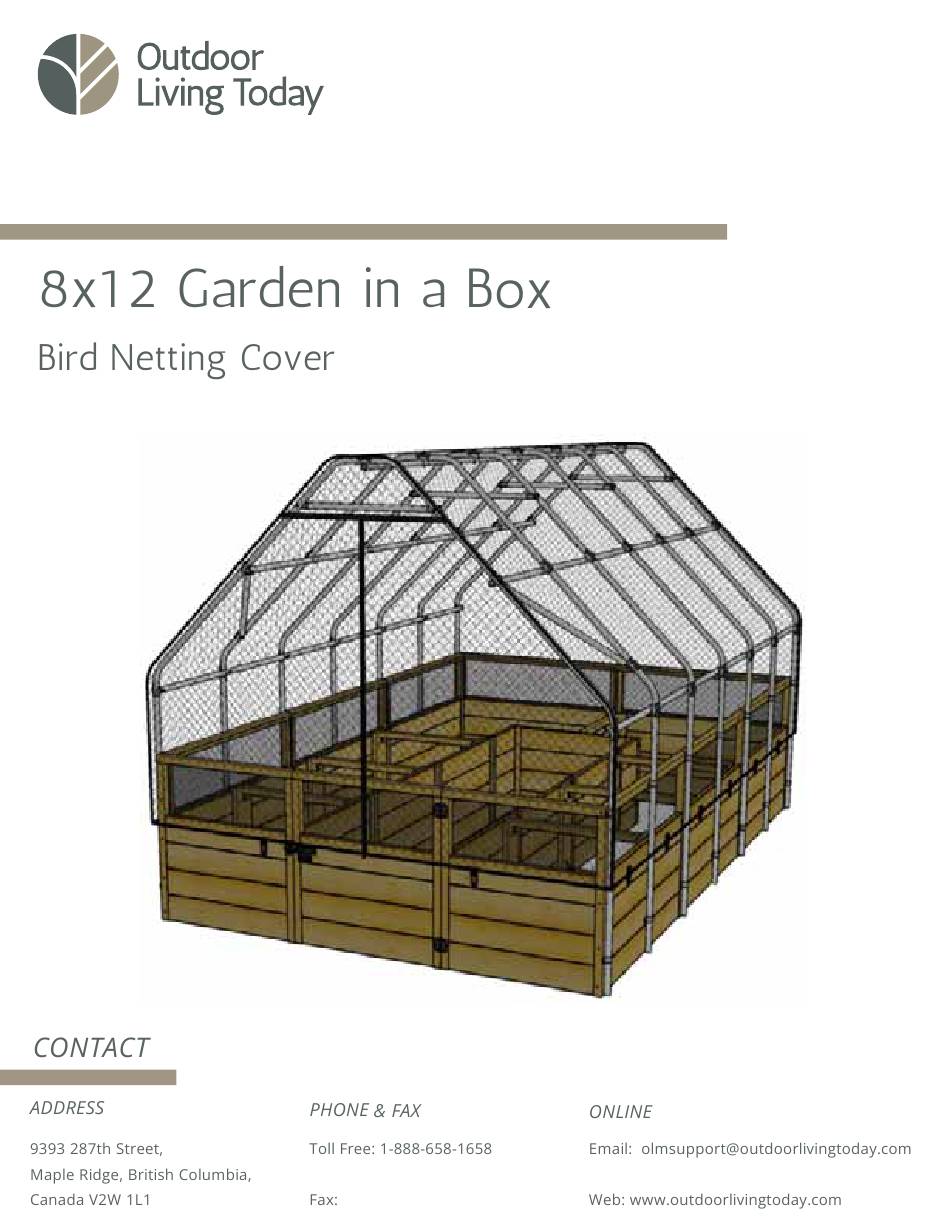

- Page 1 ASSEMBLY MANUAL Stock Code: RB812-BNO Version #1.3 April 15, 2025...
-
Page 2: What You Need To Know
Have a regular maintenance plan to ensure screws, doors, parts are tightly affixed. All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing and workmanship. Costs incurred for customer installations are not included. - Page 3 Thank you for purchasing our 8x12 Garden in a Box with Bird Netting Cover. Please take the time to identify all the parts prior to assembly. Part 1 x 14 Part 2 x 20 Part 3 Part 4 Part 5 Part 6 x 12 Part 7...
-
Page 4: Exploded View
Exploded View... - Page 5 Parts & Hardware Step 1 x Part 4 1 x Part 11 1 x Part 9 1 x M6x55 M6x55 Start with top rear connection. Tighten until snug.
- Page 6 Parts & Hardware Step 2 x M6x35 1 x Part 5 M6x35 M6x35 Tighten until snug. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 6...
- Page 7 Parts & Hardware Step 1 x Part 3 1 x Part 10 1 x Part 8 1 x M6x55 M6x55 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 7...
- Page 8 Parts & Hardware Step 2 x Part 8 2 x Part 10 1 x Part 2 3 x Part 3 3 x Part 11 3 x Part 9 5 x M6x55 3 x Part 5 6 x M6x35 M6x55 M6x55 M6x35 Part 11 Part 10...
- Page 9 Parts & Hardware Step 6 x Part 6 1 x Part 7 1 x Part 4 4 x Part 3 1 x Part 5 1 x Part 2 1 x M6x35 6 x M6x55 1 x M6x60 Start with rear connection and work towards front.
- Page 10 Parts & Hardware Step 6 x Part 6 1 x Part 7 4 x Part 3 1 x Part 4 1 x Part 2 1 x Part 5 6 x M6x55 1 x M6x35 1 x M6x60 M6x55 M6x55 M6x55 M6x55 M6x55 M6x55...
- Page 11 Parts & Hardware Step 14 x Part 1 Part 1 Part 1 Part 1 Part 1 Note: You may find it easier to complete Step 11 (optional) before beginning Step 7 since the top of the frame will be difficult to reach after installing Part 1’s.
- Page 12 Parts & Hardware Step 14 x M6x55 8 x Part 3 2 x Part 2 2 x Part 4 M6x55 Complete step 8 for both M6x55 sides. M6x55 M6x55 M6x55 M6x55 M6x55 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 12...
- Page 13 Step Rear Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 13...
- Page 14 Parts & Hardware Step 28 x Pipe Clamps 56 x 5/8” Screws Attach clamps on left and right side of garden bed. Note: Pre-drill pilot holes to prevent splitting. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 14...
- Page 15 Parts & Hardware Step Note: You may want to cover each exposed 1 x Tape Roll bolt head on the exterior of the frame with a short strip of black tape (included). This will make the next step easier by preventing the - Optional Bird Netting from getting caught on the bolts when you put it onto the frame.
- Page 16 Note: To fit the Bird Netting Cover Step on the frame, it will help to open the doorway before putting it on. *Bird Netting Cover is not actually rigid. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 16...
- Page 17 Parts & Hardware Step 2 x Clips 2 x 1” Screws 2 x Washers Front of Unit Note: Do not pull the Bird Netting Cover down too tight when attaching the clips. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 17...
- Page 18 Parts & Hardware Step 14 x Clips 14 x 1” Screws 14 x Washers Right Side Left Side Rear Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 18...
- Page 19 Congratulations on assembling your 8x12 Garden in a Box with Netting Covers! We hope your experience constructing our 8x12 Garden in a Box with Bird Netting Cover has been both positive and rewarding. We value your feedback and would like to hear back from you on how well we are doing in the following areas: 1.
