Thank you for purchasing a Garden Chalet. Please take
the time to identify all the parts prior to assembly.
Safety Points and Other Considerations
Our products are built for use based on proper installation and
normal residential use, on level ground. Please follow the
instruction manual when building your Garden Chalet and retain
the manual for future maintenance purposes.
Some of the safety and usage measures you may wish to consider
include:
-snow load ratings vary by geographical location. If heavy or wet
snowfall occurs, it is advisable to sweep the snow off the roof.
-if the product is elevated, any structural and building code
requirements are solely the customer's responsibility, and should
be abided by.
-in high or gusty wind conditions it is advisable to keep the
structure securely grounded.
-have a regular maintenance plan to ensure screws, doors, roof
and parts are tight.
Parts Lists:
2 - Backwall Panels -68" l x 22" w
2 - Sidewall Panels - 68" l x 20" w
2 - pcs. Rear Sidewall Frame Plate - 1x2" x 67 1/2" l
2 - pcs. Front Sidewall Frame Plate - 1x2" x 65 1/2" l
1 - Backwall Frame Plate - 1x3" x 68" l
2 - Doors - 63 1/8" l x 21 1/4" w
1 - Door Flange 11/16"x 1 3/4"x 63 1/8"l
1 - Floor Panel - 45 1/4" l x 20 3/4" w
1 - Roof Panel - 47 1/2" l x 22" w
2 - Storage Shelves
2 - Vertical Door Trim - 1x3" x 61 1/2"
1 - Horizontal Door Trim - 1x4" x 45 1/2"
4 - Legs 2x4-4" l
4 - Horizontal Storage Shelf Frame 1x2
1 - Vertical Storage Shelf Frame 1x2
2 - Pull Handles
4 - Door Hinges
1 - Large Barrel Bolt (black for outside door)
1 - Small Barrel Bolt (inside door for locking)
1 - Package of Hardware
You Will Need:
Drill, Drill Bits: 1/8" , 3/8"
Phillips (star) Bit, Tape Measure, Level
Note: We recommend you drill a 1/8" pilot hole for each
screw, to avoid splitting wood.
The hole depth should be equal to 3/4 the length of screw.
Outdoor Living Today
Garden Chalet
Assembly Manual
2" Screws
Barrel Bolt
&
Hardware
(Door)
1 1/2" &
1 1/4"
Screws
4 Hinges with
Hardware
www.outdoorlivingtoday.com
Page 1
Revision #3
May 2007

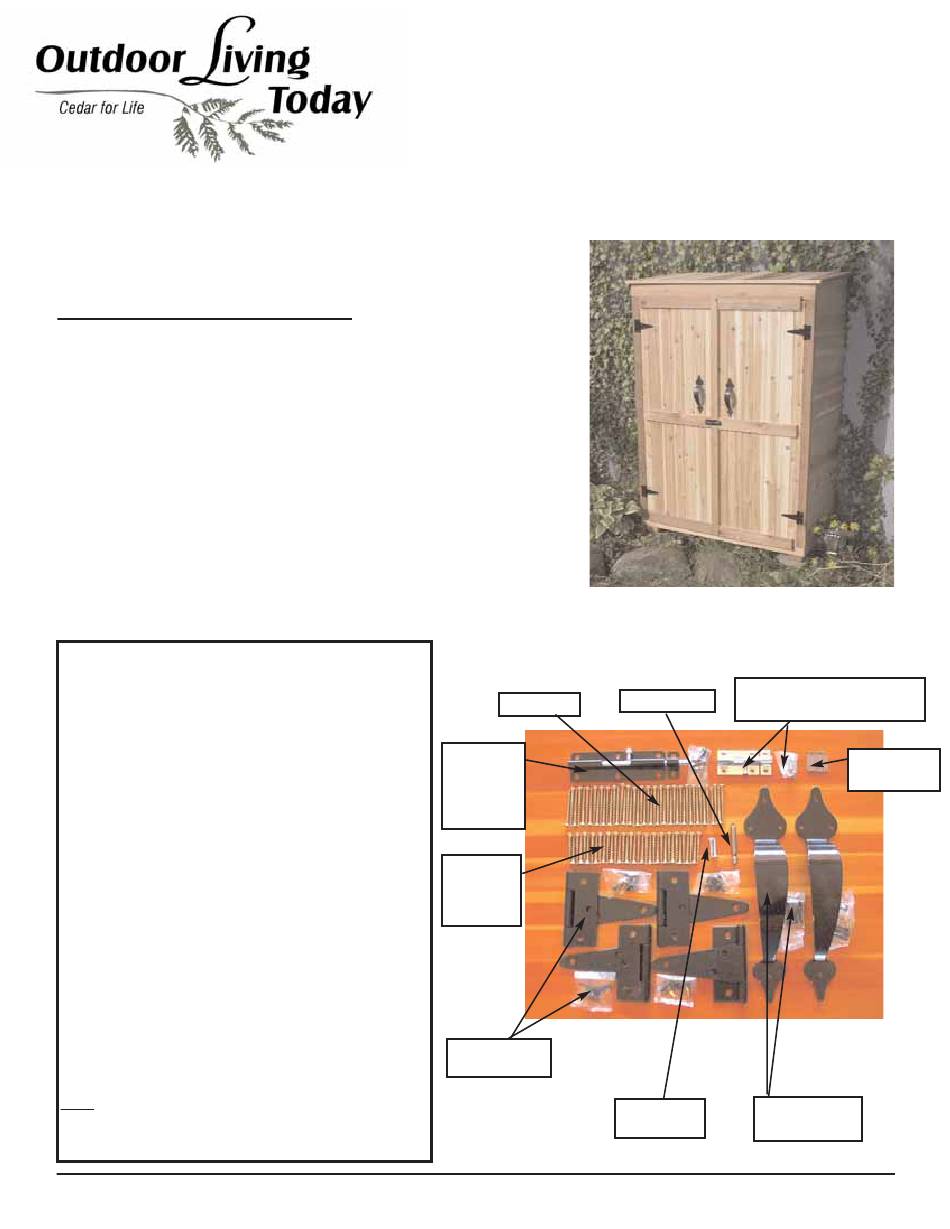

Detail of Hardware Package
Barrel Bolt with Hardware
Sq. Drive Bit
(Door Bottom)
1" Screws
(Shelves)
sales@outdoorlivingtoday.com
1" Finishing
Nails
2 Pull Handles
& Hardware
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Outdoor living today Garden Chalet
Summary of Contents for Outdoor living today Garden Chalet
- Page 1 May 2007 Garden Chalet Assembly Manual Thank you for purchasing a Garden Chalet. Please take the time to identify all the parts prior to assembly. Safety Points and Other Considerations Our products are built for use based on proper installation and normal residential use, on level ground.
- Page 2 2. Attach Front and Rear Sidewall 1. Identify Sidewall Panels. Frame Plates (1x2”) to both Sidewall These panels are higher at back Panels using 4-1 1/2” screws per piece. and lower in the front. Make sure Frame Plates are flush with existing 1x2’s.
- Page 3 7. Position both corner sections together 8. Position Floor Panel flush with Back and place the Backwall Frame Plate on and Sidewall Panels. top of 1x2 framing. Attach the Backwall Frame Plate with 8 - 1 1/2” screws. 9. Secure the floor with 4 - 1 1/2” screws 10.
- Page 4 15. Attach the four Legs using 2 - 2” screws per 13. Complete attaching 1x3 Vertical 14. Attach the 1x4 Horizontal Door leg. Door Trim. A space for the 1x4 Trim with 2 - 2” screws per side. Horizontal Door Trim will remain. Vertical Door Flange 17.
- Page 5 1/8” 20. With Doors in proper 19. Next, time to attach your Doors! Lay either Door in opening with position, attach hinges to hinges to outside frame. Position the second Door in the same Vertical Door Trim. manner. For proper Door position, place door 1/8” from side frame and equal spacing at top and bottom.
- Page 6 26. Install Upper Horizontal Shelf Frame. You will determine the height of 25. Attach Horizontal Shelf Frame the shelf to fit your needs. Once again, Joint. Drill pilot hole first to avoid drill pilot hole to prevent splitting. splitting of wood. 27.
- Page 7 32. Use 6 screws to completely attach 31. Fasten Roof down with 2” screws. Roof. One in each corner and also on Screw from roof into wall framing. center front and back. Screw from Roof into wall framing. 33. To complete the Chalet, install the Door Pull Handles.
- Page 8 You may also wish to paint your new Garden Chalet rather then stain it. In both cases we recommend that you consult with your local paint and stain dealer in your local area for their recommendations.
