Thank you for purchasing a 8' x 16'
Garden in a Box. Please take the time to
identify all the parts prior to assembly.
Safety Points and Other Considerations
Please follow this instruction manual when
assembling your Garden in a Box and retain the
manual for future maintenance purposes.
Please use Safety Eyewear and Gloves while
Assembling. Be sure to read and
follow all operating instructions for any tools
used during assembly.
Remember- NO SAW CUTTING IS REQUIRED!
B
C
In the event of a missing or broken piece, simply call the Outdoor Living Today
Customer Support Line @ 1-888-658-1658 within 30 days of the delivery of your
purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Outdoor Living Today
8'X16' Garden in a Box
Assembly Manual
Licensed under US PATENTS 7,424,787; 7,490,435
F
D
www.outdoorlivingtoday.com
Page 1

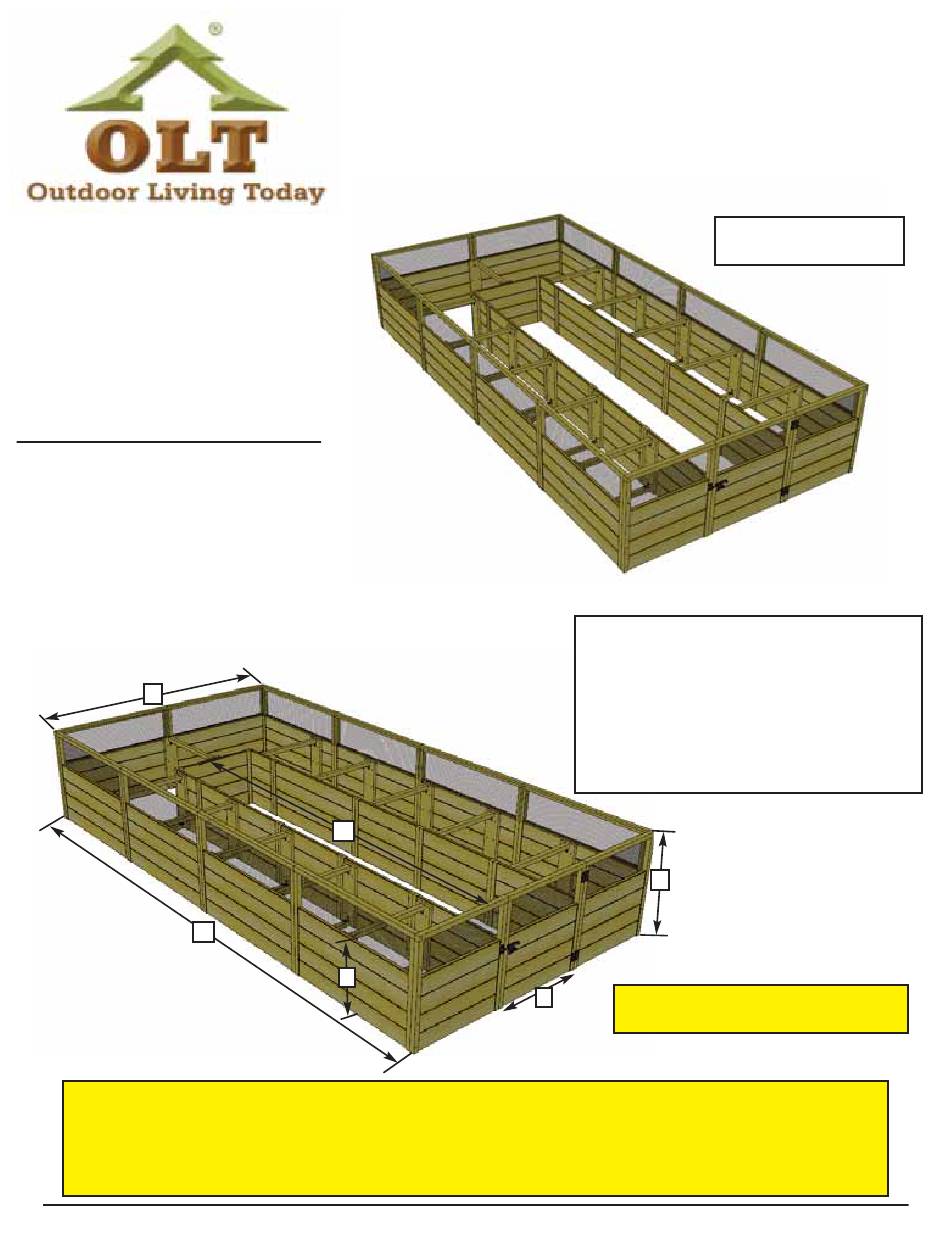

Garden in a Box Dimensions:
A: Height = 33 1/2"
B: Outside Width = 92"
C: Outside Depth = 187"
D: Height to Bottom of Screen = 21 1/2"
E: Door Width = 30 5/8"
F: Length of Inner Panel Sections = 151 1/2"
A
Estimated Assembly Time for
E
the Garden in a Box = 6 Hours.
sales@outdoorlivingtoday.com
Revision #1.7
March 9, 2021
Advertisement
Related Manuals for Outdoor living today 8611035
Summary of Contents for Outdoor living today 8611035
- Page 1 Estimated Assembly Time for the Garden in a Box = 6 Hours. In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 within 30 days of the delivery of your purchase.
-
Page 2: Hardware Kit
Exploded View and Parts List for 8’x16’ Garden in a Box Parts List Part A 10 - Side/Rear Panels 46” wide x 33 1/2” high Parts B & C 2 - Front Panels & 1 - Door Panel 30 5/8” wide x 33 1/2” high Part D 7 - Interior Panels 30 5/8”... - Page 3 Important Information for Homeowner Selecting a Location - Garden Setting or Patio Walk around your property and make notes of the following: Diagonal inside - sunny spots measurement - slope of the land is 203 1/2” - light blocking trees and high buildings. Don’t hide your Garden away in a dark corner.
- Page 4 Orientate Panels as illustrated (screens positioned to the inside). 10 - Side and Rear Wall Panels (Part A - 46” w x 33 1/2” h). 2 - Front Panels (Part B - 30 5/8” w x 33 1/2” h) 1 - Door Panel (Part C - 30 5/8”...
- Page 5 Attach panels completely together using 4 additional 2 1/2” Screws evenly spaced on panel framing. Make sure panels are aligned prior to screwing. Pre-drill first to prevent wood from splitting. Be sure to level the ground so panels sit evenly. Position and attach 2nd Rear Panel (Part A) together making sure both rear frames are aligned at top and sides.
- Page 6 Align and attach second Side Panel (Part A) as per Step 2. Use 5 - 2 1/2” Screws to secure. Be sure to level the ground so panels sit evenly. 3 - 2 1/2” Screws on inside. Align and attach the third and fourth Side Panel (Part A) as per Step 4.
- Page 7 Align and attach Front Panel (Part B) - 30 5/8” wide to side panel with 5 - 2 1/2” Screws as per Step 2. Align and attach remaining Side Panels (Part A) and Front Panel (Part B) as per Steps 2, 3 &...
- Page 8 Interior Panel framing flush Panel Siding is with Front Panel Framing. offset on framing. Orientate offset to the inside. Locate all 7 Interior Panels (Part D) - 30 5/8”w x 22”h. and 2 Flush. Narrow Interior Panels (Part DD) - 15 3/8”w x 22”...
- Page 9 Align and attach final side Interior Panels (Part D) as per Step 10. Angle screw panels together with 3 - 2 1/2” Screws from the inside. 2 1/2” Screws. Align and attach 7th Interior Panel (Part D) between frames of attached Interior panels.
- Page 10 Part E Bed Rib Connection Plates. 2 1/2” screw Part F Bed Rib Frame. To complete rib assembly, locate all 22 Bed Rib Connection Plates (Part E) - 1” x 5 1/2” x 20”. 20 Bed Rib Frames (Parts F) - 1 1/2” x 1 1/2” x 26 3/8” and 2 longer Bed Rib Frames (Part G) - 1 1/2”...
- Page 11 Note that connection plate is offset from inner panel joint. Do not align connection Flush with plate on vertical wall bottom. framing. Offset as shown. Lift and position completed short Bed Rib Frame and place between side and interior panel siding. Do not center on panel framing.
- Page 12 Screen to inside. Orientate Hinge so counter sunk holes are to the outside. 3 - 3/4” Black Headed Screws. Locate Door Panel (Part C) - 30 5/8” w x 33 1/2” h) and position on flat surface screen down. Attach both hinges to door panel with 3 - 3/4”...
- Page 13 We strongly recommend you now line the inner walls of your Garden in a Box with landscape fabric or 6 mil poly/plastic sheeting (not provided) before filling with soil. We hope your experience constructing our 8’x16’ Garden in a Box has been both positive and rewarding.
