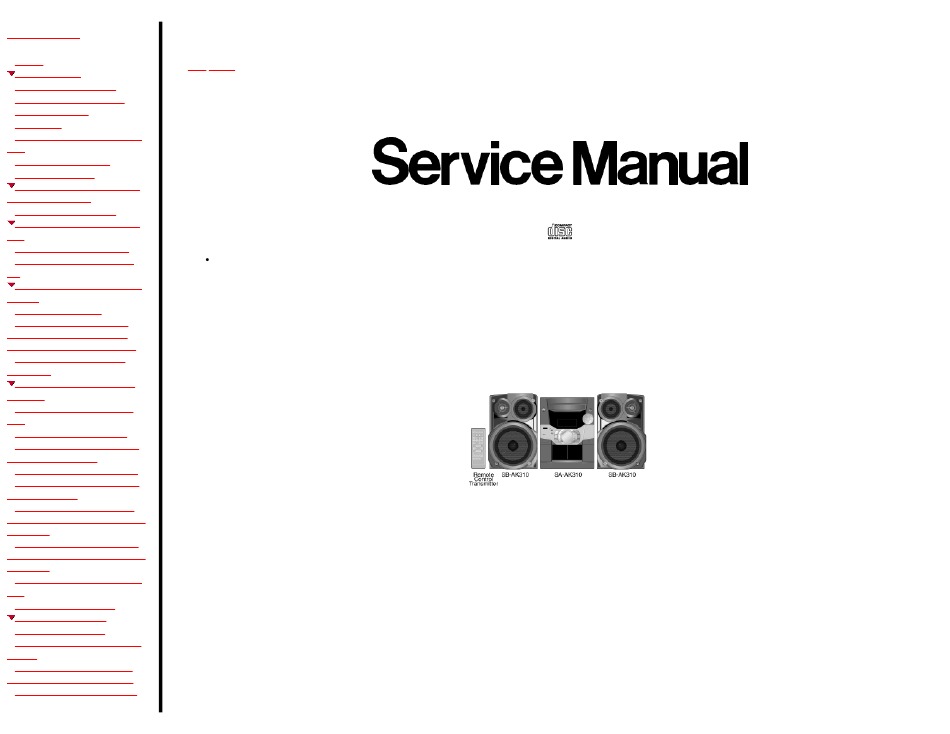

Service Manual
TOP NEXT
ORDER NO. MD0210229C1
A6
CD Stereo System
SA-AK310P
SA-AK310PC
Colour
TAPE SECTION :
SG-2W MECHANISM SERIES
Specifications
AMPLIFIER SECTION
Power output
10% Total harmonic distortion
60Hz-3kHz, both channels driven
(Low channel)
3kHz-16kHz, both channels driven
(High channel)
Total Bi-Amp power
Power output
10% Total harmonic distortion
1kHz, both channels driven
(Low channel)
10kHz, both channels driven
(High channel)
Total Bi-Amp power
40 W per channel (6Ω)
40 W per channel (6Ω)
80 W per channel
55 W per channel (6Ω)
55 W per channel (6Ω)
110 W per channel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-AK310P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic SA-AK310P

Summary of Contents for Panasonic SA-AK310P

  • Page 1: Table Of Contents

    9.3 Cassette Mechanism Test (For 10kHz, both channels driven error code H01, H02, H03, F01, F02) (High channel) 55 W per channel (6Ω) 9.4 CD Mechanism Test (F15, F26, Total Bi-Amp power 110 W per channel http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/PVAccel.html (1 of 3) [04/07/2003 10:18:59]...
  • Page 2 Music center: SA-AK310 (P) 20 Parts Location and Replacement Speaker: SB-AK310 (P) Parts List SC-AK310 (PC) Music center: SA-AK310 (PC) 20.1 Deck Mechanism (RAA4502-S) Speaker: SB-AK310 (P) 20.1.1 Deck Mechanism Parts Location 20.1.2 Deck Mechanism Parts List http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/PVAccel.html (2 of 3) [04/07/2003 10:18:59]...
  • Page 3 20.3.2 Cabinet Parts List © 2002 Matsushita Electronics (S) Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. 20.4 Electrical Parts List 20.5 Packing Materials& Accessories Parts List 20.6 Packaging TOP NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/PVAccel.html (3 of 3) [04/07/2003 10:18:59]...

  • Page 4: Safety Precaution

    4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc. 5. Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to prevent the customer from being exposed to a shock hazard. 1.1 Insulation Resistance Test TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0100000000x.html [04/07/2003 10:19:43]...

  • Page 5: Insulation Resistance Test

    *Note: Some exposed parts may be isolated from the chassis by design. These will read infinity. 4. If the measurement is outside the specified limits, there is a possibility of a shock hazard. The equipment should be repaired and rechecked before it is returned to the customer. Fig.1 Fig.2 http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0101000000.html (1 of 2) [04/07/2003 10:19:47]...
  • Page 6 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0101000000.html (2 of 2) [04/07/2003 10:19:47]...

  • Page 7: Before Repair And Adjustment

    Disconnect AC power, discharge Power Supply Capacitors C520 and C540 through a 10Ω, 5W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0200000000x.html [04/07/2003 10:19:48]...

  • Page 8: Protection Circuitry

    2. Determine the cause of the problem and correct it. 3. Turn on the power once again after one minute. Note : When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0300000000x.html [04/07/2003 10:19:50]...

  • Page 9: Accessories

    4 Accessories TOP PREVIOUS NEXT Remote Control Transmitter FM indoor antenna AC power supply cord AM Loop antenna TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0400000000x.html [04/07/2003 10:19:54]...

  • Page 10: Handling Precautions For Traverse Deck

    3. Take care not to apply excessive stress to the flexible board (FFC). 4. Do not turn the variable resistor (laser power adjustment). It has already been adjusted. Grounding for electrostatic breakdown prevention http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0500000000x.html (1 of 2) [04/07/2003 10:19:57]...
  • Page 11 The traverse deck has a short point shorted with solder to protect the laer diode against electroststics breakdown. Be sure to remove the solder from the short point before making connections. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0500000000x.html (2 of 2) [04/07/2003 10:19:57]...

  • Page 12: Precaution Of Laser Diode

    CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Use of caution label http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0600000000x.html (1 of 2) [04/07/2003 10:20:02]...
  • Page 13 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0600000000x.html (2 of 2) [04/07/2003 10:20:02]...

  • Page 14: Operation Procedures

    7 Operation Procedures TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0700000000o.html (1 of 2) [04/07/2003 10:20:09]...
  • Page 15 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0700000000o.html (2 of 2) [04/07/2003 10:20:09]...

  • Page 16: Operation Checks And Component Replacement Procedures

    Special reassembly procedures are described only when required. Select items from the following index when checks or replacement are required. Warning: This product uses a laser diode. Refer to caution statement Precaution of Laser Diode. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0800000000e.html (1 of 3) [04/07/2003 10:20:12]...
  • Page 17 P.C.B. 8.3.3 Replacement of the Power Amplifier IC 8.4 Main Component Replacement Procedures 8.4.1 Replacement of the Traverse Deck 8.5 Replacement for the disc tray 8.6 Disassembly and reassembly for mechanism base drive unit http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0800000000e.html (2 of 3) [04/07/2003 10:20:12]...
  • Page 18 8.9 Replacement for the CD motor ass’y, capstan belt A, capstan belt B and winding belt 8.10 Replacement for the CD motor ass’y, capstan belt A, capstan belt B and winding belt 8.11 Replacement for the cassette lid ass’y 8.12 Measure for tape trouble TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0800000000e.html (3 of 3) [04/07/2003 10:20:12]...

  • Page 19: Checking For Main P.c.b

    Remove 3 screws each side and 5 screws at rear panel. Step 2 Lift up both sides of cabinet ass’y, push the cabinet ass’y toward the rear and remove the cabinet ass’y. Checking the Main P.C.B. as shown below. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0801000000.html [04/07/2003 10:20:15]...

  • Page 20: Disassembly For The Cd Changer Ass'y

    8.2 Disassembly for the CD changer ass’y TOP PREVIOUS NEXT (The CD changer unit can be removed after the CD Lid is removed) 8.2.1 Disassembly for the CD Lid 8.2.2 Disassembly for CD changer unit TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0802000000.html [04/07/2003 10:20:21]...

  • Page 21: Disassembly For The Cd Lid

    When opening the disc tray automatically (Using Power Supply) Step 1 Connect the AC power cord. Step 2 Press the POWER button to power up the main unit. Step 3 Press the OPEN/CLOSE button, the disc tray will be open automatically. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0802010000.html (1 of 4) [04/07/2003 10:20:25]...
  • Page 22 Press the POWER button to turn the power on. Step 6 Press the OPEN/CLOSE button, the disc tray will be close. [Open the disc tray manually (Using service tools)] Step 1 Upset the unit as shown below. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0802010000.html (2 of 4) [04/07/2003 10:20:25]...
  • Page 23 Insert the gear tool into the hole on the underside of CD chasis and then rotate in the direction of arrow. The disc tray will be open. Step 3 Release the 2 claws, and then remove the CD lid cover. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0802010000.html (3 of 4) [04/07/2003 10:20:25]...
  • Page 24 Step 4 Push the disc tray. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0802010000.html (4 of 4) [04/07/2003 10:20:25]...
  • Page 25 Lift up the mechanism unit cover, and then push in the mechanism unit cover. Step 3 Release the claws of both ends, and then lift up the CD changer unit. Step 4 Upset the CD changer unit. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0802020000.html (1 of 2) [04/07/2003 10:20:29]...
  • Page 26 Step 5 Place the CD changer unit on the unit. <The preparation of checking procedures in operational condition is completed> TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0802020000.html (2 of 2) [04/07/2003 10:20:29]...

  • Page 27: Checking For The Unit Operational Condition

    (Place the unit horizontally when loading the CD changer unit.) 8.3.1 Initial setting of CD 8.3.2 Checking for the CD Servo P.C.B., Panel P.C.B., Deck P.C.B., Transformer P.C.B. and Power P.C.B. 8.3.3 Replacement of the Power Amplifier IC TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803000000.html [04/07/2003 10:20:30]...

  • Page 28: Initial Setting Of Cd

    Connect the AC power cord. Step 2 Press POWER button to turn on power for main unit. Step 3 Select the input select button to “CD”. Step 4 Push the OPEN/CLOSE button, and then open the disc tray. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803010000.html (1 of 2) [04/07/2003 10:20:34]...
  • Page 29 Put the CD into the disc tray. Step 6 Press the OPEN/CLOSE button 1, and then close the disc tray. (Then, the CD will load.) <The initial setting of CD unit is completed.> TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803010000.html (2 of 2) [04/07/2003 10:20:34]...

  • Page 30: Checking For The Cd Servo (K)

    The initial setting of CD unit must be completed. (Refer to the initial setting of CD unit in item 8.3.1.) Step 1 Push the power button and the power turns OFF. Step 2 Remove the FFC boards. Step 3 Remove the CD changer unit. Step 4 Remove 4 screws. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803020000.html (1 of 5) [04/07/2003 10:20:39]...
  • Page 31 Connect the FFC board (19 pin) from CD servo P.C.B.. Step 1 Press the POWER button and the power turns off. Step 2 Remove the connectors. Step 3 Pull out the FFCs. Step 4 Remove the CD changer unit. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803020000.html (2 of 5) [04/07/2003 10:20:39]...

  • Page 32: Remove 2 Screws

    Lay the unit as shown below. Step 6 Remove 2 screws. Step 7 Release the 2 claws, and then draw the front panel ass’y. Check the Panel P.C.B., Deck P.C.B. and Transformer P.C.B. as shown below http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803020000.html (3 of 5) [04/07/2003 10:20:39]...
  • Page 33 Follow the (Step 1) - (Step 6) of Disassembly for the CD Lid of Item 8.2.1. Follow the (Step 1) - (Step 8) of Checking for Panel P.C.B.,Deck P.C.B., Transformer P.C.B. and Power P.C.B. of Item 8.3.2. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803020000.html (4 of 5) [04/07/2003 10:20:39]...
  • Page 34 NOTE: Insulate Power P.C.B. with insulation material to avoid short circuit. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803020000.html (5 of 5) [04/07/2003 10:20:39]...

  • Page 35: Replacement Of The Power

    Remove 2 screws fixed to the Power Amplifier IC and Transistor Holders. Step 3 Break the joint with a metal cutter as shown below. Step 4 Unsolder the terminals of Power Amp IC, transistor and replace the component. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803030000.html (1 of 2) [04/07/2003 10:20:44]...
  • Page 36 Step 5 Fix back the bottom chasis with a screw as shown. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0803030000.html (2 of 2) [04/07/2003 10:20:44]...

  • Page 37: Main Component Replacement Procedures

    8.4 Main Component Replacement Procedures TOP PREVIOUS NEXT 8.4.1 Replacement of the Traverse Deck TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804000000.html [04/07/2003 10:20:47]...

  • Page 38: Replacement Of The Traverse Deck

    Follow the disassembly instruction for the CD changer unit of Item 8.2.2. Step 1 Push the power button and the power turns OFF. Step 2 Remove the FFC boards. Step 3 Remove the CD changer unit. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (1 of 8) [04/07/2003 10:20:54]...
  • Page 39 Step 4 Insert the gear with hexagonal wrench into the hole. Step 5 Rotate the hexagonal wrench in the direction of arrow (clockwise), and then open the disc tray fully. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (2 of 8) [04/07/2003 10:20:54]...
  • Page 40 With pressing the claw (A), rotate the hexagonal wrench clockwise. (The slide plate R moves for a little amount.) Step 7 Pressing the claw (B) in the direction of arrow (1), the connection lever moves in the direction of arrow (2). Step 8 Lift up the traverse deck ass’y. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (3 of 8) [04/07/2003 10:20:54]...
  • Page 41 Remove the traverse deck ass’y from the timing lever. Caution: When removing or inserting the traverse deck avoid touching the OPU lens and pressing onto the turntable. Step 10 Remove 3 screws. Step 11 Unsolder the motor terminals (4 points). http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (4 of 8) [04/07/2003 10:20:54]...
  • Page 42 Step 12 Remove the FFC board from the connector, and then remove the CD Servo P.C.B. Step 13 Remove the pin. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (5 of 8) [04/07/2003 10:20:54]...
  • Page 43 Installation of the CD Servo P.C.B. after replacement Step 1 Connect the FFC board. Step 2 Install the CD servo P.C.B. in the traverse deck ass’y. Step 3 Remove 3 screws. Step 4 Solder. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (6 of 8) [04/07/2003 10:20:54]...
  • Page 44 Note for installation of the CD servo P.C.B. Installation for traverse deck ass’y Step 1 Install the traverse deck ass’y to the timing lever. Step 2 Align the boss of traverse deck ass’y with the slot of traverse cam gear. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (7 of 8) [04/07/2003 10:20:54]...
  • Page 45 Force the claw of timing lever. Step 4 Force the disc tray fully. Step 5 With pressing the claw (B) in the direction of arrow (1), force the connection lever in the direction of arrow (2). TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0804010000.html (8 of 8) [04/07/2003 10:20:54]...

  • Page 46: Replacement For The Disc Tray

    Follow the Disassembly for the CD Changer Unit of Item 8.2.2. Follow the (Step 1) - (Step 8) of Item 8.4 Step 1 Remove 4 screws. Step 2 Remove the upper plate. Step 3 Remove 3 screws. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0805000000.html (1 of 5) [04/07/2003 10:21:26]...
  • Page 47 With lifting the claw in the direction of (1), draw the clamp SW P.C.B. in the direction of arrow (2). Step 5 Remove the mechanism cover. Step 6 Insert the gear with hexagonal wrench into the hole. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0805000000.html (2 of 5) [04/07/2003 10:21:26]...
  • Page 48 Release the both claws, and then draw the disc tray. Step 9 With forcing the left guide bar manually because the left guide bar interfers with claw, draw the disc tray. [Installation of the disc tray after replacement] http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0805000000.html (3 of 5) [04/07/2003 10:21:26]...
  • Page 49 Step 1 Slide the drive rack fully in the direction of arrow. Step 2 Holding the drive rack not to move, install the disc tray. Step 3 Align the drive rack with the drive gear. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0805000000.html (4 of 5) [04/07/2003 10:21:26]...
  • Page 50 NOTE: Force the right guide bar of tray base manually not to move upwards. Step 4 Holding the disc tray manually, push the disc tray in the direction of the arrow. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0805000000.html (5 of 5) [04/07/2003 10:21:26]...

  • Page 51: Disassembly And Reassembly For Mechanism Base Drive Unit

    Follow the (Step 1) - (Step 9) of Item 8.5 Step 1 Remove 3 screws. Step 2 Release the claw, and then remove the gear holder. Step 3 Remove the belt and change gear spring. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (1 of 17) [04/07/2003 10:21:37]...
  • Page 52 NOTE: Take care not to lose the change gear spring. Step 4 Remove the pulley gear, change gear and UP/DOWN gear. Step 5 Release the 2 claws, and then remove the bottom SW P.C.B.. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (2 of 17) [04/07/2003 10:21:37]...
  • Page 53 Step 6 Install the tray lock spring to hook temporary. Step 7 Release the claw, and then remove the tray lock. Step 8 Release the claw, and then remove the rear lock. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (3 of 17) [04/07/2003 10:21:37]...
  • Page 54 Step 9 Pressing the claw (B) in the direction of arrow (1), force the connection lever in the direction of arrow (2). Step 10 Move the slide plate 1 to the end of stock side. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (4 of 17) [04/07/2003 10:21:37]...
  • Page 55 Lift up the left end of spindle base unit in the direction of arrow (1), and then remove the unit in the direction of arrow (2). Step 12 Remove slide plate 1 and slide plate 2. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (5 of 17) [04/07/2003 10:21:37]...
  • Page 56 Step 13 Remove the traverse relay gear, traverse cam gear and drive gear. [Dissassembly/reassembly for the spindle base unit] Step 1 Draw the 5 disc spacers. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (6 of 17) [04/07/2003 10:21:37]...
  • Page 57 Pushing the claw, slide the support plate in the direction of arrow, and then remove it. Step 3 Rotate the disc lever in the direction of arrow (1), draw the disc lever. NOTE: Take care not to lose the disc lever spring. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (7 of 17) [04/07/2003 10:21:37]...
  • Page 58 Step 4 Release the 2 claws, and then draw the relay gear B. Step 5 Release the 2 claws as shown below. NOTE: Hold the loading stopper ass’y manually bacause it is flipped by spring. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (8 of 17) [04/07/2003 10:21:37]...
  • Page 59 Remove the loading stopper ass’y in the direction of arrow. Step 8 Release the 2 claws, and then remove the relay gear A. Step 9 Release the 2 claws, and then remove the spindle shaft. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (9 of 17) [04/07/2003 10:21:37]...
  • Page 60 Step 10 Remove the lower spindle spring with tweezers. Step 11 Force the lower hook with thin tip of minus screwdriver. Step 12 Squeeze the shaft of lower hook, and then draw it. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (10 of 17) [04/07/2003 10:21:37]...
  • Page 61 Align the claw of loading stoppers ass’y with the slot of spindle base. (Caution should be exercised when alignment of claw due to the size of claws.) Step 2 Lower the loading stopper ass’y, and then align the lower spindle with the trapezoid tooth of relay http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (11 of 17) [04/07/2003 10:21:37]...
  • Page 62 Force the loading stopper ass’y, latch the claw firmly. [Reassembly for mechanism base drive unit] Step 1 Install the traverse cam gear. Step 2 Rotate the traverse cam gear to the direction of arrow. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (12 of 17) [04/07/2003 10:21:37]...
  • Page 63 Step 3 Install the drive gear and traverse relay gear. *When installing the traverse relay gear, align the trapezoid tooth of gear with tooth of traverse cam gear. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (13 of 17) [04/07/2003 10:21:37]...
  • Page 64 Install the slide plate 1 to the mechanism base, and then match to the connection leve and align the trapezoid tooth of traverse relay gear with the slide plate 1. Step 6 Install the spindle base unit. (First, slide plate 1.) http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (14 of 17) [04/07/2003 10:21:37]...
  • Page 65 Step 8 Install the rear lock. (The claw should be latched.) Step 9 Install the bottom SW P.C.B.. (The claw should be latched.) Step 10 Install the tray lock. (The claw should be latched.) http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (15 of 17) [04/07/2003 10:21:37]...
  • Page 66 Step 12 Install the UP/DOWN gear, change gear, change gear spring, pulley gear and belt in the order of (1) - (5). Step 13 Install the gear holder, and then tighten the screw (a). http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (16 of 17) [04/07/2003 10:21:37]...
  • Page 67 Check the proper operation of following items with gear and hexagonal screwdriver. 1. Open/close of tray base. 2. Moving the tray base to the stock side. 3. UP/DOWN operation of spindle base unit. 4. UP/DOWN operation of traverse ass’y. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0806000000.html (17 of 17) [04/07/2003 10:21:37]...

  • Page 68: Replacement For The Motor Ass'y

    Follow the (Step 1) - (Step 7) of Item 8.5 Step 1 Install the belt temporarily. NOTE: Take care not apply the grease to the belt. Step 2 Upset the CD loading unit. Step 3 Remove 3 screws. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0807000000.html (1 of 3) [04/07/2003 10:21:42]...
  • Page 69 Release the claw (B), and then remove the motor ass’y. [Notice for motor ass’y installation] 1. Locate the name plate of motor to the traverse ass’y. 2. Align the hole of motor with the ribs. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0807000000.html (2 of 3) [04/07/2003 10:21:42]...
  • Page 70 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0807000000.html (3 of 3) [04/07/2003 10:21:42]...

  • Page 71: Replacement For The Pinch Roller Ass'y And Head Block

    Follow the disassembly for the CD changer unit of Item 8.2.2. Follow the (Step 1) - (Step 14) of Item 8.4 Step 1 Remove the connector.?? Step 2 Remove 2 screws. Step 3 Remove the 2 claws, and then draw the front panel ass’y. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0808000000.html (1 of 4) [04/07/2003 10:21:46]...
  • Page 72 Remove the flat cable from the connector (CN1001). Step 8 Remove the 5 screw. Step 9 Tilt the cassette mechanism in the direction of arrow (1), and then remove it in the direction of arrow (2). http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0808000000.html (2 of 4) [04/07/2003 10:21:46]...
  • Page 73 * The mechanism as shown below is for DECK1. For the one of DECK 2, perform the same procedures. Step 13 Release the 2 claws, and then remove the pinch roller (R), (F). Step 14 Release ther 2 claws, and then remove the head connector. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0808000000.html (3 of 4) [04/07/2003 10:21:46]...

  • Page 74: Remove 2 Screws

    Step 15 Remove 2 screws. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0808000000.html (4 of 4) [04/07/2003 10:21:46]...

  • Page 75: Replacement For The Cd Motor Ass'y, Capstan Belt A, Capstan Belt B And Winding Belt

    Follow the (Step 1) - (Step 14) of Item 8.4 Follow the (Step 1) - (Step 11) of Item 8.9 Step 1 Release the 2 claws, and then remove the head connector. Step 2 Remove 6 screws. Step 3 Remove the sub chassis. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0809000000.html (1 of 6) [04/07/2003 10:21:50]...
  • Page 76 Release the claw of tape side, and then remove the winding lever and spring. Step 7 Remove the flywheel F. [Installation of the belt] Step 1 The boss and marking should be positioned horizontally. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0809000000.html (2 of 6) [04/07/2003 10:21:50]...
  • Page 77 Step 4 Put the winding belt on the flywheel F. Step 5 Install the winding lever and spring while pressing the winding arm in the direction of arrow. Step 6 Install the flywheel R. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0809000000.html (3 of 6) [04/07/2003 10:21:50]...
  • Page 78 Put the capstan belt A temporarily as shown below. Step 8 Put the capstan belt B on the motor ass’y pulley. Step 9 Install the sub chassis to the mechanism, and then tighten screws. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0809000000.html (4 of 6) [04/07/2003 10:21:50]...
  • Page 79 Step 10 Remove 3 screws. Step 11 Put the capstan belt B as shown below. Step 12 Put the capstan belt A on the motor ass’y pulley. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0809000000.html (5 of 6) [04/07/2003 10:21:50]...
  • Page 80 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0809000000.html (6 of 6) [04/07/2003 10:21:50]...

  • Page 81: Replacement For The Cd Motor Ass'y, Capstan Belt A, Capstan Belt B And Winding Belt

    Follow the (Step 1) - (Step 11) of Item 8.9 Step 1 Remove 2 screws. Step 2 Unsolder the plunger terminals (2 points). Step 3 Release the 3 claws, and then remove the mechanism P.C.B. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0810000000.html [04/07/2003 10:21:54]...

  • Page 82: Replacement For The Cassette Lid Ass'y

    Force the lever upward, open the cassette lid ass’y. (For DECK1 and DECK2) Step 2 Lift up the cassette lid ass’y in the direction of arrow. (For DECK1 and DECK2). Step 3 Remove the cassette lid ass’y. (For DECK1 and DECK2). http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0811000000.html (1 of 2) [04/07/2003 10:21:58]...
  • Page 83 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0811000000.html (2 of 2) [04/07/2003 10:21:58]...

  • Page 84: Measure For Tape Trouble

    F in the direction of the arrow to remove the tape. Step 2 Force the lever upward and open the cassette lid ass’y. Take the cassette tape off. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0812000000.html (1 of 2) [04/07/2003 10:22:04]...
  • Page 85 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0812000000.html (2 of 2) [04/07/2003 10:22:04]...

  • Page 86: Self-Diagnostic Function

    9.3 Cassette Mechanism Test (For error code H01, H02, H03, F01, F02) 9.4 CD Mechanism Test (F15, F26, F16, F17, F27, F28, F29, H15) 9.5 To clear all Error code 9.6 How to get out from Self-Diagnostic function 9.7 Power Amplifier Failure (F61) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0900000000x.html [04/07/2003 10:22:08]...

  • Page 87: Self-Diagnostic Display

    TOP PREVIOUS NEXT This unit is equipped with a self-diagnostic display function which, if a problem occurs, will display an error code corresponding to the problem. Use this function when performing maintenance on the unit. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0901000000.html [04/07/2003 10:22:17]...

  • Page 88: How To Enter The Self-Diagnostic Function

    9.2 How to enter the Self-Diagnostic Function TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0902000000.html [04/07/2003 10:22:25]...

  • Page 89: Cassette Mechanism Test (For Error Code H01, H02, H03, F01, F02)

    (e.g. H01 F01 ..etc.) 10. Press “TAPE, DECK 1/2” to select Deck 1. 11. Repeat step 2 to 9 to test Deck 1. (Tape Deck 1 will not check H02 because of no recording function) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0903000000.html [04/07/2003 10:22:39]...

  • Page 90: Cd Mechanism Test

    6. Press “OPEN/CLOSE (1)” to close the tray. 7. Press “ /STOP” to indicate Error Code. If several problem exist, error code will change each time when “ /STOP” is pressed. (e.g. F16 ..etc). TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0904000000.html [04/07/2003 10:22:47]...

  • Page 91: To Clear All Error Code

    9.5 To clear all Error code TOP PREVIOUS NEXT 1. Press “STOP/TUNE MODE” button for 5 seconds. 2. FL indicator shows “CLEAR” for 1 second and change to “T”. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0905000000.html [04/07/2003 10:22:49]...

  • Page 92: How To Get Out From Self-Diagnostic Function

    9.6 How to get out from Self-Diagnostic function TOP PREVIOUS NEXT 1. Press “Power” button OFF. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0906000000.html [04/07/2003 10:22:51]...

  • Page 93: Power Amplifier Failure (F61)

    9.7 Power Amplifier Failure (F61) TOP PREVIOUS NEXT 1. When power amplifier fail, F61 will indicate automatically. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s0907000000.html [04/07/2003 10:22:53]...

  • Page 94: Description Of Error Code

    10 Description of Error Code TOP PREVIOUS NEXT 10.1 Error detection for Cassette Mechanism block 10.2 Error detection for CD/Changer block 10.3 Power Supply related error detection TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1000000000x.html [04/07/2003 10:22:57]...

  • Page 95: Error Detection For Cassette Mechanism Block

    Playback cannot perform.Faulty contact or short-circuit of HALF siwtch (S952, S972). Reel Pulsedetection error The tape advances slightly and then stops.Faulty reel pulse, faulty hole detect IC (IC951, IC971). TPS abnormal Cassette deck will not perform TPS function.Faulty playback EQ/recording amplifier IC (IC101). TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1001000000.html [04/07/2003 10:23:04]...

  • Page 96: Error Detection For Cd&Sol;Changer Block

    Tray 1 detech switch NG (Check & Replace) Cannot eject CD Check if disc is stuck. Tray 2 detech switch NG (Confirm & Replace) The CD tray closes CD disc tray detech switch NG (S3) (check & Replace) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1002000000.html [04/07/2003 10:23:17]...

  • Page 97: Power Supply Related Error Detection

    POWER AMPoutput abnormal When POWER is switched on, power become off automatically.During normal operation, if DC DET become L, PCNT shall become L and the error display on the left shall be displayed. (IC501) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1003000000.html [04/07/2003 10:23:27]...

  • Page 98: Cd Test Mode Function

    CD PLAY with CD unit being connected only and CD Automatic Alignment result is shown on FL display. 11.1 How to set CD test mode 11.2 CD Automatically Adjustment result indication TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1100000000x.html [04/07/2003 10:23:29]...

  • Page 99: How To Set Cd Test Mode

    11.1 How to set CD test mode TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1101000000.html [04/07/2003 10:23:31]...

  • Page 100: Cd Automatically Adjustment Result Indication

    Under CD test mode, pressing the numeric key ‘0’ on the remote controller will display the auto adjustment result. FLOCK, TLOCK and CLVS status shall be shown as below: During the above display, executing CD PLAY will display auto adjustment result for CD PLAY mode. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1102000000.html [04/07/2003 10:23:33]...

  • Page 101: Measurements And Adjustments

    12.1.1 Tape Speed Adjustment (Deck 1/2) 12.1.2 Bias and Erase Voltage Check 12.1.3 Bias Frequency Adjustment (Deck 1/2) 12.2 Tuner Section 12.2.1 AM-IF Alignment 12.2.2 AM RF Adjustment 12.3 Alignment Points 12.3.1 Cassette Deck Section 12.3.2 Adjustment Point TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1200000000e.html [04/07/2003 10:23:35]...

  • Page 102: Cassette Deck Section

    EVM (DC Electronic volmeter) Digital fruency counter Test Tape Tape speed gain adjustment (3 kHz, -10 dB); QZZCWAT 12.1.1 Tape Speed Adjustment (Deck 1/2) 12.1.2 Bias and Erase Voltage Check 12.1.3 Bias Frequency Adjustment (Deck 1/2) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1201000000.html [04/07/2003 10:23:38]...

  • Page 103: Tape Speed Adjustment

    Adjustment target: 2940 ~ 3060 Hz (NORMAL speed) 4. After alignment, assure that the output frequency of the DECK 1 FWD are within ±60 Hz of the value of the output frequency of DECK 2 FWD. Fig. 1 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1201010000.html [04/07/2003 10:23:40]...

  • Page 104: Bias And Erase Voltage Check

    2. Insert the Normal blank tape (QZZCRA) into DECK 2 and the unit to “REC” mode (use “• REC/STOP” key). 3. Measure and make sure that the output is within the standard value. Bias voltage for Deck 2 14±4mV (Normal) Erase voltage for Deck 2 80mV (Normal) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1201020000.html [04/07/2003 10:23:44]...

  • Page 105: Bias Frequency Adjustment (Deck 1/2)

    2. Insert the Normal blank tape (QZZCRA) into DECK 2 and set the unit to “REC” mode (• use “REC/STOP” key). 3. Adjust L1002 so that the output frequency is within the standard value. Standard Value: 97 ±8 kHz TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1201030000.html [04/07/2003 10:23:48]...

  • Page 106: Tuner Section

    12.2 Tuner Section TOP PREVIOUS NEXT 12.2.1 AM-IF Alignment 12.2.2 AM RF Adjustment TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1202000000.html [04/07/2003 10:23:50]...

  • Page 107: Am-If Alignment

    1. Connect the instrument as shown in Fig.?. 2. Set the unit to AM mode. 3. Apply signal as shown in Fig. 1 from AM-SG. 4. Adjust Z102 so that the output frequency is maximized in Fig. 2. Fig.1 Fig.2 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1202010000.html [04/07/2003 10:23:55]...

  • Page 108: Am Rf Adjustment

    8. Adjust Z101 (ANT) so that the EVM-SG is maximized. 9. Set AM-SG to 520kHz. 10. Receive 520kHz in the unit. 11. Adjust Z101 (OSC) so that the EVM-DC value is with 1.1±0.5V. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1202020000.html (1 of 2) [04/07/2003 10:24:04]...
  • Page 109 (2 of 2) [04/07/2003 10:24:04]...

  • Page 110: Alignment Points

    12.3 Alignment Points TOP PREVIOUS NEXT 12.3.1 Cassette Deck Section 12.3.2 Adjustment Point TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1203000000.html [04/07/2003 10:24:05]...

  • Page 111: Cassette Deck Section

    12.3.1 Cassette Deck Section TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1203010000.html [04/07/2003 10:24:09]...

  • Page 112: Adjustment Point

    12.3.2 Adjustment Point TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1203020000.html [04/07/2003 10:24:11]...

  • Page 113: Illustration Of Ic's, Transistors And Diodes

    13 Illustration of IC’s, Transistors and Diodes TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1300000000x.html [04/07/2003 10:24:14]...
  • Page 114 RSN315H42-P C2BBGF000405 (100P) C0GAM0000005 C0AABB000117 AN7348S-E1 (24P) MN662790RSC (80P) AN8885SBE1 (28P) BU2090AF-E2 (16P) C1BB00000747 (42P) C2BB00000086 (18P) LA1833NMNTLM (24P) LC72131MDTRM (20P) 0N2180RLC1 AN8739SBTE2 C1AA00000612 2SK544F-AC KRA102MTA KRA110MTA KRC102MTA KRC103MTA 2SC2058SPTA C1ADCF000001 KTC2026 KTA12710YTA KRA102STA KTA1046 KTC3205YTA KRC101STA KTD1146YTA KRC102STA 2SB621ARSTA KTC3875GRTA B1AAKD000009 KTD1304TA...

  • Page 115: Terminal Function Of Ic's

    14.1 IC701 (AN8885SBE1) Servo Amplifier 14.2 IC702 (MN662790RSC) Servo processor/ Digital signal processor/ Digital filter/ D/A converter 14.3 IC703 (AN8739SBTE2) Focus coil/ Tracking coil/ Traverse motor/ Spindle motor driver 14.4 IC600 (C2BBGF000405) System Microprocessor TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1400000000x.html [04/07/2003 10:24:33]...

  • Page 116: Ic701 (An8885Sbe1) Servo Amplifier

    Power-down input OFTR OFTR N.C. 3T-ENV output N.C. N.C. TE amp input TEOUT TE amp output FEOUT FE amp output FE amp input VREF Reference voltage TBAL Tracking balance control FBAL Focus balance control http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1401000000.html (1 of 2) [04/07/2003 10:24:36]...
  • Page 117 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1401000000.html (2 of 2) [04/07/2003 10:24:36]...

  • Page 118: Ic702 (Mn662790Rsc) Servo

    1/2-diveded clock signal of crystal osscillating at MSEL = “H” (fSMCK = 8.4672 MHz) 1/4 divided clock signal of crystal oscillating at MSEL = :L:(fSMCK = 4.2336MHz) CSEL Frequency Selection Terminal H = 33.8688 MHz ; L = 16.9344MHz Traverse drive output Spindle motor ON output (“L” : N) http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1402000000.html (1 of 3) [04/07/2003 10:24:39]...
  • Page 119 I/O VCO Loop filter for 33.8688MHz conversation terminaal for 16.9344 MHz crystal mode, must use other circuit SUBC Sub-code serial data output SBCK Clock input for sub-code serial data X1 IN Crystal oscullating circuit input (f = 16.9344MHz) X2 OUT Crystal oscillating circuit input ( f = 16.9344MHz) http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1402000000.html (2 of 3) [04/07/2003 10:24:39]...
  • Page 120 RF signal polarity assignment input (at “H” level, RSEL=”H”, at “L” level, RESL = “L”) IOVOD 5V supply input PSEL Test terminal (connected to Gnd) MSEL SMCK osillating frequency designation input (“L”:4.2336 MHz, “H”:8.4672 MHz) SSEL SUBQ output mode select (“H”:Q-code buffer mode) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1402000000.html (3 of 3) [04/07/2003 10:24:39]...

  • Page 121: Ic703 (An8739Sbte2) Focus

    N.C. PGND2 - Ground connection (2) for driver PVCC2 I Power supply (2) for driver N.C. Power supply terminal VREF Reference voltage input Motor driver (4) input Motor driver (3) input RSTIN Reset terminal http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1403000000.html (1 of 2) [04/07/2003 10:24:43]...
  • Page 122 N.C. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1403000000.html (2 of 2) [04/07/2003 10:24:43]...

  • Page 123: Ic600 (C2Bbgf000405) System Microprocessor

    32.768 kHz Sub Clock XCIN 32.768 kHz Sub clock Ground (0V) 4.19 MHz Main Clock XOUT 4.19MHz Main Clock Power Supply (+15) MBP1 MPU Beat Proof Output 1 MBP2 MPU Beat Proof Output 2 http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1404000000.html (1 of 3) [04/07/2003 10:24:45]...
  • Page 124 I/O Region and function setting and EEPROM chip enable select output EE_CS EEPROM chip enable SER4 (EE_CLK/EX1_CLK) SER3 (EE_DAT/EX1_DAT) SER2 (ASP_CLK) SER1 (ASP_DAT) SP_C Speaker C control AVSS Analog ground (0V) VREF Reference for A-D SP_B Speaker B control SP_A Speaker A control http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1404000000.html (2 of 3) [04/07/2003 10:24:45]...
  • Page 125 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1404000000.html (3 of 3) [04/07/2003 10:24:45]...

  • Page 126: Block Diagram

    15 Block Diagram TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1500000000b.html [04/07/2003 10:24:49]...
  • Page 127 CD OPTICAL PICKUP IC701 AN8885SBE1 SERVO AMP SEMICONDUCTOR LASER RFEQ1 OFTR OFTR Q701 LASER POWER DRIVE TENV RFEQ2 /RFDET /RFDET DET. VREF FEOUT SUBTRACTER VREF TEOUT SUBTRACTER VREF BAND PHOTO DETECTOR VREF [CH4] LEVEL FOCUS COIL SHIFT LEVEL TRACKING COIL [CH3] SHIFT TRV+...
  • Page 128 TO MAIN UNIT IC702 MN662790RSC SERVO PROCESSOR/ DIGITAL SIGNAL PROCESSOR DIGITAL FILTER/ D/A CONVERTER CLVS MAIN UNIT OUTR BLKCK BLKCK /CLDCK SBCK SUBC MAIN UNIT DEMPH OUTL CD SIGNAL SSEL FLAG SQCK SQCK IPFLAG SUBQ SUBQ DIGITAL AUDIO INTERFACE PLLF DIGITAL AUDIO INTERFACE PLLF2...
  • Page 129 AM ANT FM ANT Z101 Z120 (FM) CF201 CF202 Q101 COIL COIL MIXER IF AMP RF AMP BUFFER (FM) DECODER RM AMP BUFFER PHASE PILOT CANCEL STEREO LEVEL S-CURVE SWITCH AM/FM COMP BUFFER TUNING DRIVE PILOT Z102 IC101 X102 LA1833NMNTLM FM/AM IF AMP, DET/AM OSC, MIX/FM MPX...
  • Page 130 C0GAM0000005 MOTOR DRIVE Vs 8 OUT1 OUT2 POWER SUPPLY CONTROL Q322 CD STATUS STATUS INTERFACE SWITCH Q321 SUBQ SUBQ INTERFACE SWITCH D323 SQCK/ST/DO Q320 Q324 CD MOTOR BLKCLK BLKCK INTERFACE SUPPLY SWITCH SWITCH /CDRST Q323 PLUNGER MOTOR SUPPLY CONTROL SWITCH D322 MLD/PLLCE D321...
  • Page 131 IC1001 AN7348S-E1 P.B. EQ /REC AMP ALC/TPS AMP (DECK 1) P.B. HEAD LCH 24(23) Q1014(Q1015) 1(2) 20(5) BUFFER 22(3) 21(4) (DECK 2) R/P HEAD LCH 17(8) 18(7) LOGIC L/H Q1012 Q1020 (Q1013) (Q1021) NOR/CrO & MUTING HI/LO LOGIC MUTING CONTROL RIPPLE LOGIC REJECTION...
  • Page 132 IC301 IN B1 FILTER (HEADPHONE) C0AABB000117 HEADPHONE AMP Q405(Q205) (24) HPF FREQ OUT 1(2) AMP SWITCH IN B2 5(38) INC 1(2) Q407 Q401 Q402 Q411 (Q207) (Q201) (Q202) (Q211) Q404(Q204) FILTER MUTING MUTING LPF FREQ FILTER HEADPHONE SWITCH SWITCH SWITCH AMP SWITCH IC300 C1BB00000747...
  • Page 133 16(15) 3(6) -IN2 1(2) OUT2 1(2) JK951 HIGH CH (6 W) OUT 1 1(2) 7(9) 13(12) -IN1 1(2) JK952 IC501 LOW CH 5(1) RSN315H42-P (6 W) -VCC 1(2) POWER 4(2) +VCC 1(2) IN GND OUT GND AC DET D502 -VCCM FILTER FILTER Q512,Q513...

  • Page 134: Schematic Diagram

    (All schematic diagrams may be modified at any time with the development of the new technology) Note: : Push switch : Push switch : Switch : CD switch : Lock switch S601 : Power switch S602 : SSEQ switch S603 : Preset switch http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1600000000s.html (1 of 6) [04/07/2003 10:25:46]...
  • Page 135 : Open/ Close switch S607 : CD 1 switch S608 : CD 2 switch S609 : CD 3 switch S610 : CD 4 switch S611 : CD 5 switch S701 : Reset switch S901 : REW switch http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1600000000s.html (2 of 6) [04/07/2003 10:25:46]...
  • Page 136 : FF switch S905 : Stop switch S906 : Deck 2 switch S907 : Tape switch S908 : AUX switch S909 : Deck 1 switch S910 : Display switch S951 : Mode switch S952 http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1600000000s.html (3 of 6) [04/07/2003 10:25:46]...
  • Page 137 (resistors), etc. are used. Whenreplacingany of components, be sure to use only manufacturer´s specified parts shown in the parts list. Caution ! IC, LSI and VLSI are sensitive to static electricity. Secondary trouble can be prevented by taking care during repair. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1600000000s.html (4 of 6) [04/07/2003 10:25:46]...
  • Page 138 Cover the parts boxes made of plastics with aluminium foil. Put a conductive mat on the work table. Ground the soldering iron. Do not touch the pins of IC, LSI or VLSI with fingers directly. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1600000000s.html (5 of 6) [04/07/2003 10:25:46]...
  • Page 139 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1600000000s.html (6 of 6) [04/07/2003 10:25:46]...

  • Page 140: Printed Circuit Board

    17 Printed Circuit Board TOP PREVIOUS NEXT Note: Circuit board diagrams may be modified at any time with the development of new technology. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1700000000x.html [04/07/2003 10:26:08]...
  • Page 141 CD SERVO P.C.B (REPX0192D) (RF) TP20 X701 TJ701 TP23 C717 R714 TP19 TP21 TP29 C716 C721 C744 R709 TP24 C722 R712 TP18 C723 C724 R742 C725 TP25 IC701 TP26 TP27 C731 C753 TP22 C754 C711 J702 C718 C712 IC702 C713 J712 R705 C747...
  • Page 142 MAIN P.C.B. (REPX0325A) FM ANT AM ANT 75 OHMS JK101 C332 C331 R202 C430 R352 C303 R401 J131 R471 J130 R472 Z120 C107 C451 J366 R112 Q411 C421 J350 Q404 R473 C435 C452 R454 Q401 Q204 J100 R433 R423 R474 C440 R432 R429...
  • Page 143 PANEL P.C.B. (REPX0326A) S606 OPEN/CLOSE S607 R607 S608 S611 C659 FL600 C641 C661 J901 R611 J665 R609 R610 D613 J609 S610 S609 C660 J929 R627 J666 C656 Q610 J667 C603 Q611 R657 J643 IC603 R656 Q612 J645 R917 J947 J920 Q613 R918 J946...
  • Page 144 D600 S601 POWER SENSOR C658 C642 R619 J644 R618 R664 IC601 R617 R663 R662 R661 Z600 R660 Q609 J621 J643 CP601 J650 R917 J697 C639 R918 J647 R911 R919 S602 J619 R916 R687 R920 SSEQ S605 R604 J672 J631 J926 J673 J633 DECK...
  • Page 145 TACT SWITCH P.C.B. (REPX0326A) VOLUME R902 S903 S902 R903 S901 S904 CD PLAY TUNER VR600 J932 S910 S905 R909 STOP DISPLAY R908 R905 3 4 5 6 7 8 S909 S906 CP900 S907 S908 R907 R906 DECK1 OPEN DECK2 OPEN TAPE...

  • Page 146: Deck Mechanism P.c.b

    DECK P.C.B. DECK MECHANISM P.C.B. (REPX0331A) (REPX0321A) Q1001 IC1004 C1006 R1006 C1009 R1005 C1003 J1000 CS1002 TP10 J1002 L1002 TP11 R1001 R1004 Q1007 TP12 C1002 J1003 C1026 C1021 C1020 C1011 C1016 R1010 R1009 C1022 C1010 R1028 C1014 C1013 C1041 C1019 R1060 Q1005 R1014...
  • Page 147 POWER P.C.B. (REPX0328A) C513 R516 J511 J513 Q508 R509 J510 J512 D508 C514 R508 R531 R507 R532 R515 D507 D505 D506 J543 R529 C512 R530 J541 D509 Q507 J567 R521 D503 J501 J576 J523 R522 J566 J553 J542 C510 R511 C540 J506 R510...
  • Page 148 TRANSFORMER P.C.B. (REPX0324A)

  • Page 149: Spindle Position P.c.b

    CD LOADING P.C.B (REP2578A-N) 1 2 3 4 5 6 7 8 9 10 2 3 4 CD DETECT P.C.B SPINDLE POSITION P.C.B (REP2578A-N) (REP2578A-N) LOCK 1 2 3 4 TUNER PACK P.C.B (REP1999B)

  • Page 150: Wiring Connection Diagram

    18 Wiring Connection Diagram TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1800000000x.html [04/07/2003 10:27:57]...
  • Page 151 H950/W950 MAIN / TUNER P.C.B CD LOADING P.C.B Z120 CN501 CN300 TUNER PACK SOLDER SIDE P.C.B Z102 CD DETECT P.C.B POWER SOLDER SIDE P.C.B SOLDER SIDE 13 14 CN309 13 14 CN500 CN310 CN301 W1 1. . 4 SPINDLE POSITION P.C.B SOLDER SIDE CN302 CN304...

  • Page 152: Troubleshooting Guide

    19 Troubleshooting Guide TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s1900000000x.html [04/07/2003 10:28:22]...

  • Page 153: Parts Location And Replacement Parts List

    After the end of this period, the assembly will no longer be available. [M] Indicates in the Remarks columns indicates parts supplied by MESA. The “(SF)” mark denotes the standard part. http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2000000000e.html (1 of 2) [04/07/2003 10:28:25]...
  • Page 154 20.2.1 CD Loading Mechanism Parts Location 20.2.2 CD Loading Mechanism Parts List 20.3 Cabinet 20.3.1 Cabinet Parts Location 20.3.2 Cabinet Parts List 20.4 Electrical Parts List 20.5 Packing Materials& Accessories Parts List 20.6 Packaging TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2000000000e.html (2 of 2) [04/07/2003 10:28:25]...

  • Page 155: Deck Mechanism (Raa4502-S)

    20.1 Deck Mechanism (RAA4502-S) TOP PREVIOUS NEXT 20.1.1 Deck Mechanism Parts Location 20.1.2 Deck Mechanism Parts List TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2001000000.html [04/07/2003 10:28:28]...

  • Page 156: Deck Mechanism Parts Location

    20.1.1 Deck Mechanism Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2001010000.html [04/07/2003 10:28:31]...
  • Page 157 (1 of 2) [04/07/2003 10:28:43]...
  • Page 158 (2 of 2) [04/07/2003 10:28:43]...
  • Page 159 (1 of 2) [04/07/2003 10:28:56]...
  • Page 160 (2 of 2) [04/07/2003 10:28:56]...

  • Page 161: Deck Mechanism Parts List

    FR LEVER RML0372 WINDING LEVER RML0374 EJECT LEVER RMM0131 BRAKE ROD RMM0133 EJECT ROD RMQ0519 REEL HUB RMS0398-1 MOVING CORE RSJ0003 PLUNGER ASS’Y RMC0061 PACK SPRING RXF0061 FLYWHEEL F ASS’Y RXG0040 FF RELAY GEAR ASS’Y http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2001020000.html (1 of 2) [04/07/2003 10:29:02]...
  • Page 162 RMB0405 FR ROD SPRING 133-2 RMM0132 FR ROD REM0088 CAP MOTOR ASS’Y RHD26022 MOTOR SCREW XTW2+5L HEAD BLOCK UNIT SCRE [M] XTW26+10S SUB-CHASSIS SCREW XYC2+JF17 PCB EARTH SCREW RFKJAA4501-S CHASSIS ASS’Y TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2001020000.html (2 of 2) [04/07/2003 10:29:02]...

  • Page 163: Cd Loading Mechanism (Rd- Dac026-S)

    20.2 CD Loading Mechanism (RD- DAC026-S) TOP PREVIOUS NEXT 20.2.1 CD Loading Mechanism Parts Location 20.2.2 CD Loading Mechanism Parts List TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2002000000.html [04/07/2003 10:29:06]...

  • Page 164: Cd Loading Mechanism Parts Location

    20.2.1 CD Loading Mechanism Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2002010000.html [04/07/2003 10:29:09]...
  • Page 165 (1 of 2) [04/07/2003 10:29:17]...
  • Page 166 (2 of 2) [04/07/2003 10:29:17]...
  • Page 167 (1 of 2) [04/07/2003 10:29:25]...
  • Page 168 (2 of 2) [04/07/2003 10:29:25]...

  • Page 169: Cd Loading Mechanism Parts List

    RML0530 ASSIST LEVER RML0518 CONNECTION LEVER RMM0201 SLIDE PLATE 1 RME0258 REAR LOCK SPRING RML0521 REAR LOCK RME0257 TRAY LOCK LEVER SPRI RML0520 TRAY LOCK RMM0202 SLIDE PLATE 2 XTB3+10J SCREW RMR0334 FIXED PLATE http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2002020000.html (1 of 3) [04/07/2003 10:29:30]...
  • Page 170 CUSHION SPRING RDG0430 RELAY GEAR ‘A’ RDG0431 RELAY GEAR ‘B’ RME0262 DISK LEVER SP. RMA1105 SUPPORT PLATE RAE0152Z-3 TRAVERSE 358-1 SHGD113-1 FLOATING CUSHION 358-2 SNSD38 TRV MOTOR ASSY SCREW 358-3 RAF0150A-4S 50A OPTICAL PICKUP http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2002020000.html (2 of 3) [04/07/2003 10:29:30]...
  • Page 171 FLOATING SPRING A RME0109 FLOATING SPRING B RMR1124-K1 TRAVERSE CHASSIS RMS0632 TRAVERSE PIN XTN2+6G SCREW RMX0141 PUSH SPACER RMQ0749 UPPER SPINDLE RHM0001 MAGNET RMX0140 DISC SPACER RME0261 FRONT LOCK SPRING RMQ0742 SPINDLE BASE TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2002020000.html (3 of 3) [04/07/2003 10:29:30]...

  • Page 172: Cabinet

    20.3 Cabinet TOP PREVIOUS NEXT 20.3.1 Cabinet Parts Location 20.3.2 Cabinet Parts List TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2003000000.html [04/07/2003 10:29:36]...

  • Page 173: Cabinet Parts Location

    20.3.1 Cabinet Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2003010000.html [04/07/2003 10:29:39]...
  • Page 174 (1 of 2) [04/07/2003 10:29:49]...
  • Page 175 (2 of 2) [04/07/2003 10:29:49]...
  • Page 176 (1 of 2) [04/07/2003 10:30:00]...
  • Page 177 (2 of 2) [04/07/2003 10:30:00]...
  • Page 178 (1 of 2) [04/07/2003 10:30:09]...
  • Page 179 (2 of 2) [04/07/2003 10:30:09]...

  • Page 180: Cabinet Parts List

    DECK CONTROL BTN R [M] RGUX0484-1SJ FUNCTION BUTTON (L) [M] RGUX0486-S CD CONTROL BUTTON RGUX0487-1SJ FUNCTION BTN [R] RGWX0070-1S VOLUME KNOB RHD30002-K SCREW RKA0059-K LEG FELT RKFX0093-KM CASS HOLDER L RKFX0094-KM CASS HOLDER R RKMX0077A-K TOP CABINET (BENT) http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2003020000.html (1 of 2) [04/07/2003 10:30:15]...
  • Page 181 CASS HALF SPRING RXGX0002 DAMPER GEAR RXXX0038 HEATSINK UNIT RYFX0110-KJ CASS LID UNIT (L) RYFX0111-KJ CASS LID UNIT (R) XTB3+10J SCREW XTB3+10JFZ SCREW XTB3+20JFZ SCREW XTBS26+10J SCREW XTBS3+8JFZ1 SCREW XTW3+12T SCREW XTW3+15T SCREW TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2003020000.html (2 of 2) [04/07/2003 10:30:15]...

  • Page 182: Electrical Parts List

    IC MICRO P IC601 BU2090AF-E2 IC I/O EXPANDER IC603 C1BB00000086 IC SPE ANA IC701 AN8885SBE1 IC RFAMP IC702 MN662790RSC IC LSI IC703 AN8739SBTE2 IC 4CH DRIVER IC951 CNB13030R2AU IC PHOTO INTERUPTOR IC971 CNB13030R2AU IC PHOTO INTERUPTOR http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (1 of 34) [04/07/2003 10:30:41]...
  • Page 183 TRANSISTOR Q321 KRC101STA TRANSISTOR Q322 KRC101STA TRANSISTOR Q323 KRC102STA TRANSISTOR Q324 KTA12710YTA TRANSISTOR Q401 KTC3875GRTA TRANSISTOR Q402 KTD1304TA TRANSISTOR Q403 KTD1304TA TRANSISTOR Q404 KTC3875GRTA TRANSISTOR Q405 KTC3875GRTA TRANSISTOR Q407 KTD1304TA TRANSISTOR Q411 KTC3875GRTA TRANSISTOR http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (2 of 34) [04/07/2003 10:30:41]...
  • Page 184 TRANSISTOR Q701 B1ADCF000001 TRANSISTOR Q950 KTC3205YTA TRANSISTOR Q951 2SB621ARSTA TRANSISTOR Q952 KRC102MTA TRANSISTOR Q953 B1AAGC000006 TRANSISTOR Q1001 KTC3875GRTA TRANSISTOR Q1003 KTD1303 TRANSISTOR Q1004 KTD1303 TRANSISTOR Q1005 KTD1303 TRANSISTOR Q1007 KTC3875GRTA TRANSISTOR Q1012 KTD1304TA TRANSISTOR http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (3 of 34) [04/07/2003 10:30:41]...
  • Page 185 DIODE D320 MA2J72800L DIODE D321 MA2J72800L DIODE D322 MA2J72800L DIODE D323 MA2J72800L DIODE D324 RL1N4003N02 DIODE D401 MA2J72800L DIODE D501 B0BA9R600002 DIODE D502 B0BA01500003 DIODE D503 MTZJ15CTA DIODE D504 B0AACK000004 DIODE D505 1D3E DIODE http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (4 of 34) [04/07/2003 10:30:41]...
  • Page 186 DIODE D958 1T3T DIODE D959 1T3T DIODE D960 MTZJ27ATA DIODE D961 1D3E DIODE D962 1D3E DIODE D963 1D3E DIODE D964 B0BA6R600008 DIODE D965 1T3T DIODE D966 1D3E DIODE D971 MA2C16500E DIODE D1003 B0ACCK000005 DIODE http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (5 of 34) [04/07/2003 10:30:41]...
  • Page 187 S908 EVQ21405RJ SW AUX S909 EVQ21405RJ SW DECK 1 S910 EVQ21405RJ SW DISPLAY S951 RSH1A018-3U SW MODE S952 RSH1A019-2U SW HALF S971 RSH1A018-3U SW MODE S972 RSH1A019-2U SW HALF S975 RSH1A019-2U SW RECINH_F SWITCHES http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (6 of 34) [04/07/2003 10:30:41]...
  • Page 188 10P FFC CONNECTOR CN1001 K1MN14B00058 14P FFC CONNECTOR CP600 K1MN10B00104 10P FFC CONNECTOR CP601 RJS1A9417 17P FFC CONNECTOR CP602 K1MN30A00046 30P CONNECTOR CP900 RJU066H08 8P B-B SOCKET CS1001 RJS1A6805-J CONNECTOR CS1002 RJS1A6805-J CONNECTOR COILS & TRANSFORMERS http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (7 of 34) [04/07/2003 10:30:41]...
  • Page 189 REMOTE CTRL SENSOR Z950 ERZV10V511CS ZENER Z971 RGSD12A1445T RADA RESISTOR CERAMIC FILTERS CF201 J0B1075A0061 CERAMIC FILTER CF202 J0B1075A0061 CERAMIC FILTER RELAY RL950 RSY0040M-0 POWER RELAY OSCILLATORS X102 RLFDFT22DD CRYSTAL OSCILLATOR X103 H0H720400005 CRYSTAL OSCILLATOR http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (8 of 34) [04/07/2003 10:30:41]...
  • Page 190 H950 K1YF09000001 9P WIRE HOLDER JACKS JK101 RJH5414-1 JK ANTENNA JK300 RJH2213N-2 JK 2P RCA JK601 RJJ37TK07-X JK HEADPHONE JK950 K2AB2B000002 JK AC INLET JK951 K4BC04B00050 JK TERMINAL SPEAKER JK952 K4BC04B00046 JK TERMINAL SPEAKER http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (9 of 34) [04/07/2003 10:30:42]...
  • Page 191 270 1/16W R104 ERJ3GEYJ102V 1K 1/16W R105 ERJ3GEYJ471V 470 1/16W R106 ERJ3GEYJ474V 470K 1/16W R107 ERJ3GEYJ331V 330 1/16W R110 ERJ3GEYJ102V 1K 1/16W R111 ERJ3GEYJ391V 390 1/16W R112 ERJ3GEYJ104V 100K 1/16W R113 ERJ3GEYJ103V 10K 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (10 of 34) [04/07/2003 10:30:42]...
  • Page 192 22K 1/16W R144 ERJ3GEYJ121V 120 1/16W R145 ERJ3GEYJ104V 100K 1/16W R146 ERJ3GEYJ104V 100K 1/16W R151 ERJ3GEYJ820V 82 1/16W R152 ERJ3GEY0R00V 0 1/16W R201 ERJ3GEYJ103V 10K 1/16W R202 ERJ3GEYJ332V 3.3K 1/16W R203 ERJ3GEYJ1R0V 1 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (11 of 34) [04/07/2003 10:30:42]...
  • Page 193 100K 1/16W R232 ERJ3GEYJ222V 2.2K 1/16W R233 ERJ3GEYJ472V 4.7K 1/16W R234 ERJ3GEYJ104V 100K 1/16W R235 ERJ3GEYJ152V 1.5K 1/16W R236 ERJ3GEYJ153V 15K 1/16W R237 ERJ3GEYJ153V 15K 1/16W R238 ERJ3GEYJ224V 220K 1/16W R239 ERJ3GEYJ103V 10K 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (12 of 34) [04/07/2003 10:30:42]...
  • Page 194 10K 1/16W R305 ERJ3GEYJ682V 6.8K 1/16W R307 ERJ3GEYJ222V 2.2K 1/16W R308 ERJ3GEYJ222V 2.2K 1/16W R309 ERJ3GEYJ273V 27K 1/16W R310 ERJ3GEYJ563V 56K 1/16W R311 ERDS1FVJ150T 15 1/2W R312 ERD2FCVG120T 12 1/4W R313 ERJ3GEYJ103V 10K 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (13 of 34) [04/07/2003 10:30:42]...
  • Page 195 47K 1/16W R342 ERJ3GEYJ473V 47K 1/16W R343 ERJ3GEYJ103V 10K 1/16W R344 ERJ3GEYJ223V 22K 1/16W R345 ERJ3GEYJ123V 12K 1/16W R346 ERJ3GEYJ223V 22K 1/16W R347 ERJ3GEYJ123V 12K 1/16W R348 ERJ3GEYJ221V 220 1/16W R349 ERJ3GEYJ102V 1K 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (14 of 34) [04/07/2003 10:30:42]...
  • Page 196 1K 1/16W R423 ERJ3GEYJ272V 2.7K 1/16W R424 ERJ3GEYJ472V 4.7K 1/16W R425 ERJ3GEYJ473V 47K 1/16W R426 ERJ3GEYJ332V 3.3K 1/16W R427 ERJ3GEYJ473V 47K 1/16W R428 ERJ3GEYJ222V 2.2K 1/16W R429 ERJ3GEYJ123V 12K 1/16W R430 ERJ3GEYJ102V 1K 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (15 of 34) [04/07/2003 10:30:42]...
  • Page 197 0 1/16W R460 ERJ3GEY0R00V 0 1/16W R471 ERJ3GEYJ123V 12K 1/16W R472 ERJ3GEYJ224V 220K 1/16W R473 ERJ3GEYJ181V 180 1/16W R474 ERJ3GEYJ102V 1K 1/16W R501 ERDS2TJ103T 10K 1/4W R502 ERDS2TJ223T 22K 1/4W R503 ERDS2TJ123T 12K 1/4W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (16 of 34) [04/07/2003 10:30:42]...
  • Page 198 ERDS2TJ222T 2.2K 1/4W R532 ERDS2TJ151T 150 1/4W R533 K5G400A00001 RESISTOR R600 ERDS2TJ392T 3.9K 1/4W R601 ERDS2TJ102T 1K 1/4W R602 ERDS2TJ102T 1K 1/4W R603 ERDS2TJ122T 1.2K 1/4W R604 ERDS2TJ182T 1.8K 1/4W R605 ERDS2TJ222T 2.2K 1/4W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (17 of 34) [04/07/2003 10:30:42]...
  • Page 199 1K 1/4W R638 ERDS2TJ471T 470 1/4W R639 ERDS2TJ223T 22K 1/4W R640 ERDS2TJ681T 680 1/4W R641 ERDS2TJ472T 4.7K 1/4W R642 ERDS2TJ472T 4.7K 1/4W R643 ERDS2TJ106T 10M 1/4W R644 ERDS2TJ334T 330K 1/4W R645 ERDS2TJ104T 100K 1/4W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (18 of 34) [04/07/2003 10:30:42]...
  • Page 200 100K 1/4W R681 ERDS2TJ103T 10K 1/4W R687 ERDS2TJ271T 270 1/4W R688 ERDS2TJ2R7T 2.7 1/4W R689 ERDS2TJ223T 22K 1/4W R691 ERDS2TJ102T 1K 1/4W R692 ERDS2TJ2R7T 2.7 1/4W R693 ERDS2TJ223T 22K 1/4W R698 ERDS2TJ102T 1K 1/4W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (19 of 34) [04/07/2003 10:30:42]...
  • Page 201 120K 1/16W R749 ERJ3GEYJ472V 4.7K 1/16W R750 ERJ6GEYJ4R7V 4.7 1/10W R753 D0GB100JA002 100 1/16W R900 ERDS2TJ103T 10K 1/4W R901 ERDS2TJ102T 1K 1/4W R902 ERDS2TJ102T 1K 1/4W R903 ERDS2TJ122T 1.2K 1/4W R904 ERDS2TJ182T 1.8K 1/4W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (20 of 34) [04/07/2003 10:30:42]...
  • Page 202 10 1/2W R957 ERDS2TJ103T 10K 1/4W R958 ERDS2TJ103T 10K 1/4W R959 ERD2FCVJ4R7T 4.7 1/4W R960 ERDS2TJ472T 4.7K 1/4W R961 ERDS2TJ151T 150 1/4W R972 ERDS2TJ821T 820 1/4W R973 ERDS2TJ393T 39K 1/4W R1001 ERJ3GEYJ1R0V 1 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (21 of 34) [04/07/2003 10:30:43]...
  • Page 203 100K 1/16W R1046 ERJ3GEYJ104V 100K 1/16W R1047 ERJ3GEYJ102V 1K 1/16W R1048 ERJ3GEYJ102V 1K 1/16W R1049 ERJ3GEYJ105V 1M 1/16W R1050 ERJ3GEYJ105V 1M 1/16W R1051 ERJ3GEYJ221V 220 1/16W R1052 ERJ3GEYJ221V 220 1/16W R1053 ERJ3GEYJ681V 680 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (22 of 34) [04/07/2003 10:30:43]...
  • Page 204 100 16V F1D1H5R6A017 5.6P 50V ECBT1E103ZF5 0.01 25V F1D1H102A029 1000P 50V F1D1H2R2A017 2.2P 50V ECBT1H181KB5 180P 50V F1D1H5R6A017 5.6P 50V F1D1H3R3A017 3.3P 50V F1D1H4R7A017 4.7P 50V F1D1H3R3A017 3.3P 50V F1D1H2R2A017 2.2P 50V ECBT1H180JC5 18P 50V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (23 of 34) [04/07/2003 10:30:43]...
  • Page 205 100 6.3V C130 ECA0JAK101XB 100 6.3V C131 ECJ1VC1H151J 150P 50V C132 ECJ1VB1H102K 1000P 50V C133 ECUV1H270JCV 27P 50V C134 ECUV1H270JCV 27P 50V C136 ECJ1VB1H102K 1000P 50V C137 ECUV1H332KBV 3300P 50V C138 ECJ1VB1E103K 0.01 25V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (24 of 34) [04/07/2003 10:30:43]...
  • Page 206 10 16V C222 ECJ1VF1C104Z 0.1 16V C223 ECJ1VC1H101K 100P 50V C224 ECA1HAK4R7XB 4.7 50V C225 ECJ1VC1H101K 100P 50V C226 ECJ1VC1H470J 47 50V C227 ECA1CAK100XB 10 16V C228 ECA1CAK100XB 10 16V C229 ECA1HAK010XB 1 50V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (25 of 34) [04/07/2003 10:30:43]...
  • Page 207 100 6.3V C312 ECJ1VB1E103K 0.01 25V C313 ECJ1VB1E103K 0.01 25V C315 ECA1AAK330XB 33 10V C316 ECJ1VB1E103K 0.01 25V C317 ECJ1VB1H102K 1000P 50V C318 ECA1CAK330XB 33 16V C319 ECA1CAK330XB 33 16V C320 ECJ1VB1H102K 1000P 50V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (26 of 34) [04/07/2003 10:30:43]...
  • Page 208 0.47 50V C420 ECQV1H474JZ3 0.47 50V C421 ECA1CAK100XB 10 16V C422 ECJ1VF1C104Z 0.1 16V C423 ECJ1VC1H101K 100P 50V C424 ECA1HAK4R7XB 4.7 50V C425 ECJ1VC1H101K 100P 50V C426 ECJ1VC1H470J 47 50V5 C427 ECA1CAK100XB 10 16V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (27 of 34) [04/07/2003 10:30:43]...
  • Page 209 0.01 50V C510 ECA1EAM101XB 100 25V C511 ECKR1H103KB5 0.01 50V C512 ECA1EAK330XB 33 25V C513 ECA1EAK100XB 10 25V C514 ECKR1H103KB5 0.01 50V C520 ECA1HM222B 2200 50V C530 ECQV1H184JL3 0.18 50V C540 ECA1HM222B 2200 50V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (28 of 34) [04/07/2003 10:30:43]...
  • Page 210 ECA1HAK3R3XB 3.3 50V C641 ECEA1VKA220B 22 35V C642 ECEA1VKA220B 22 35V C645 F1D1H561A012 560P 50V C646 F1D1H561A012 560P 50V C647 F1D1H561A012 560P 50V C648 F1D1H561A012 560P 50V C649 F1D1H561A012 560P 50V C650 F1D1H561A012 560P 50V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (29 of 34) [04/07/2003 10:30:43]...
  • Page 211 10P 50V C723 ECEA1AKA221I 220 10V C724 ECJ2ZB1E104M 0.1 25V C725 ECJ1VB1H102K 1000P 50V C726 ECJ1VB1H102K 1000P 50V C727 ECA1HAK010XI 1 50V C728 ECA1HAK010XI 1 50V C730 ECUV1C104ZFV 0.1 16V C731 ECEA0JKA221I 220 6.3V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (30 of 34) [04/07/2003 10:30:43]...
  • Page 212 100 63V C957 ECA2AM100B 10 100V C958 ECKR1H103KB5 0.01 50V C959 ECKR2H103ZF5 0.01 500V C960 ECQE1104KF3 0.1 100V C961 RCA1CM102BT 1000P 16V C962 RCA1CM102BT 1000P 16V C963 ECEA1VKA4R7B 4.7 35V C1001 F1H1H103A730 0.01 50V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (31 of 34) [04/07/2003 10:30:43]...
  • Page 213 ECA1HAK3R3XB 3.3 50V C1036 ECUV1C333KBV 0.033 16V C1037 ECA1HAK3R3XB 3.3 50V C1038 ECUV1H221KBV 220P 50V C1039 ECUV1H221KBV 220P 50V C1040 ECA1CAK100XB 10 16V C1041 ECA1CAK100XB 10 16V C1042 ECA1CAK220XB 22 16V C1043 ECA1HAK4R7XB 4.7 50V http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (32 of 34) [04/07/2003 10:30:43]...
  • Page 214 0 1/16W RJ725 ERJ3GEY0R00V 0 1/16W RJ726 ERJ3GEY0R00V 0 1/16W RJ727 ERJ3GEY0R00V 0 1/16W RJ728 ERJ3GEY0R00V 0 1/16W RJ729 ERJ3GEY0R00V 0 1/16W RJ730 ERJ3GEY0R00V 0 1/16W RJ731 ERJ3GEY0R00V 0 1/16W RJ732 ERJ3GEY0R00V 0 1/16W http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (33 of 34) [04/07/2003 10:30:44]...
  • Page 215 0 1/16W RJ737 ERJ3GEY0R00V 0 1/16W RJ738 ERJ3GEY0R00V 0 1/16W RJ739 ERJ3GEY0R00V 0 1/16W RJ740 ERJ3GEY0R00V 0 1/16W RJ741 ERJ3GEY0R00V 0 1/16W RJ742 ERJ3GEY0R00V 0 1/16W TEST JUMPER TJ701 EYF8CU TEST JUMPER TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2004000000.html (34 of 34) [04/07/2003 10:30:44]...

  • Page 216: Packing Materials& Accessories Parts List

    MIRAMAT BAG ACCESSORIES N2QAGB000025 REMOTE CONTROLLER [M] A1-1 RKK-HTR0283 R/C BATTERY COVER RJA0065-A AC CORD RQT6693-P O/I BOOK RQT6694-M O/I BOOK [M]P RQT6695-C O/I BOOK [M]PC RSA0006-L FM ANTENNA WIRE N1DADYY00002 AM LOOP ANTENNA TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2005000000.html [04/07/2003 10:30:53]...

  • Page 217: Packaging

    20.6 Packaging TOP PREVIOUS TOP PREVIOUS http://202.224.189.178/~sgml/viewing/SA-AK310P/ALL/SVC/s2006000000.html [04/07/2003 10:30:58]...
  • Page 218 (1 of 2) [04/07/2003 10:31:05]...
  • Page 219 (2 of 2) [04/07/2003 10:31:05]...
