Page 1: Tape Section

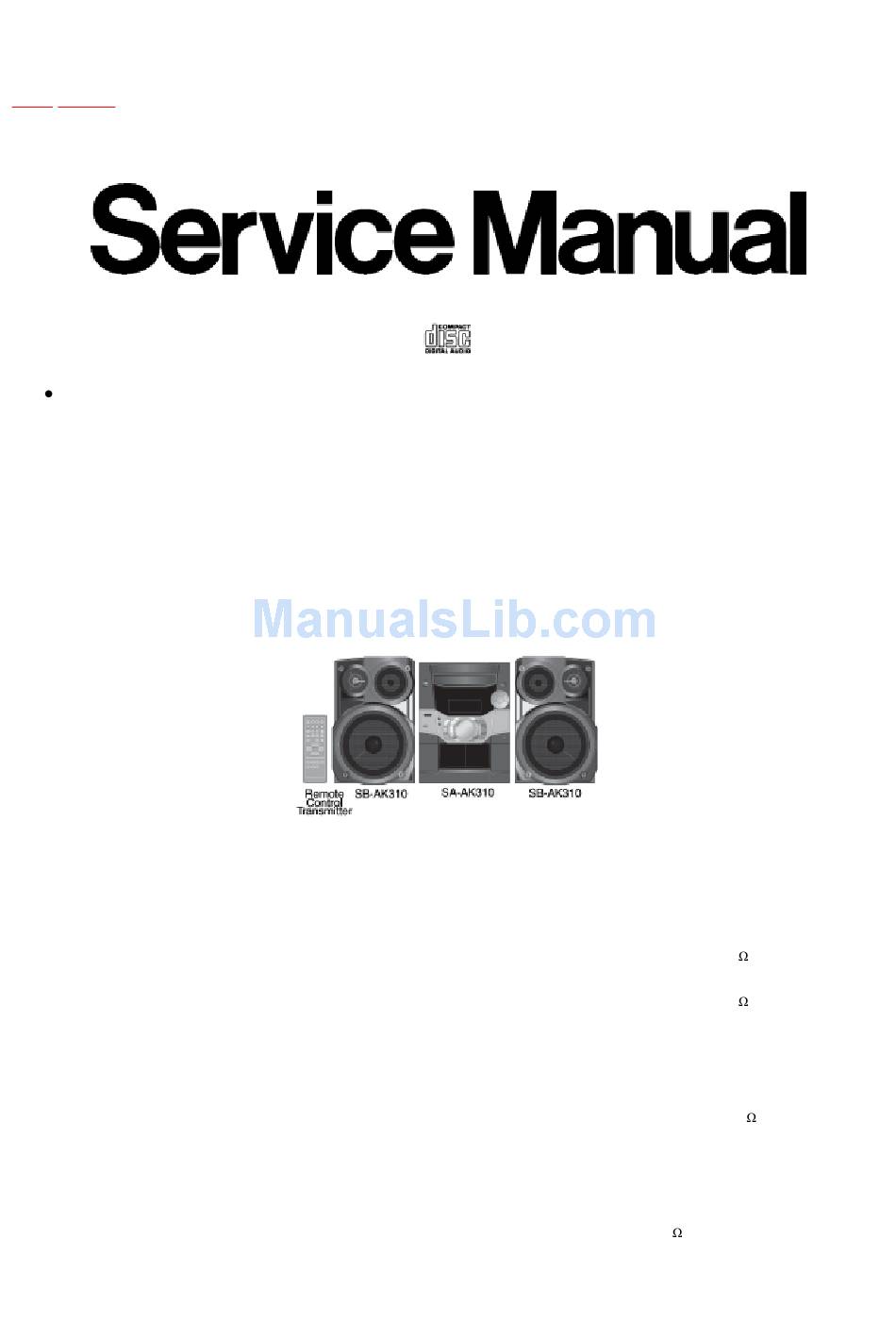

Service Manual TOP NEXT ORDER NO. MD0212275C3 CD Stereo System SA-AK310GC SA-AK310GN Colour (S)... Silver Type TAPE SECTION : SG-2W MECHANISM SERIES Specifications AMPLIFIER SECTION Power output 10% Total harmonic distortion 1kHz, both channels driven (Low channel) 55 W per channel (6 )
Page 2 Sensitivity S/ N 20 dB (at 999 kHz) 560µ V/ m CASSETTE DECK SECTION Track system 4 track, 2 channel Heads Record/ playback Solid permalloy head Erasure Double gap ferrite head Motor DC servo motor Recording system AC bias 100 kHz Erasing system AC erase 100 kHz Tape speed...
Page 3 TOP NEXT...
Page 4: Before Use
1 Before Use TOP PREVIOUS NEXT Be sure to disconnect the mains cord before adjusting the voltage selector. Use a minus(-) screwdriver to set the voltage selector (on the rear panel) to the voltage setting for the area in which the unit will be used. (If the power supply in your area is 117V or 120V, set to the “127V”...
Page 5: Before Repair And Adjustment
2 Before Repair and Adjustment TOP PREVIOUS NEXT Disconnect AC power, discharge Power Supply Capacitors C520 and C540 through a 10 , 5W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
Page 6: Protection Circuitry
3 Protection Circuitry TOP PREVIOUS NEXT The protection circuitry may have operated if either of the following conditions are noticed: No sound is heard when the power is turned on. Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
Page 7 4 Accessories TOP PREVIOUS NEXT Remote control transmitter FM indoor antenna AC power supply cord (For GC only) AC power supply cord (For GN only) AM Loop antenna Power plug adaptor TOP PREVIOUS NEXT...
Page 8: Operation Procedures
5 Operation Procedures TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 9: Handling Precautions For Traverse Deck
6 Handling Precautions For Traverse Deck TOP PREVIOUS NEXT The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity of clothes or human body. So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup). Handling of traverse deck (optical pickup) 1.
Page 10 TOP PREVIOUS NEXT...
Page 11 7 Operation Checks and Component Replacement Procedures TOP PREVIOUS NEXT “ATTENTION SERVICER” Some chassis components may have sharp edges. Be careful when disassembling and servicing. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. For reassembly after operation checks or replacement, reverse the respective procedures.
Page 12 7.4.1 Replacement of the Traverse Deck 7.5 Replacement for the disc tray 7.6 Disassembly and reassembly for mechanism base drive unit 7.7 Replacement for the motor ass ’ y 7.8 Replacement for the pinch roller ass ’ y and head block 7.9 Replacement for the Deck motor ass ’...
Page 13 7.1 Checking for Main P.C.B. TOP PREVIOUS NEXT Step 1 Remove 3 screws each side and 5 screws at rear panel. Step 2 Lift up both sides of cabinet ass’y, push the cabinet ass’y toward the rear and remove the cabinet ass’y.
Page 14 7.2 Disassembly for the CD changer ass’ y TOP PREVIOUS NEXT (The CD changer unit can be removed after the CD Lid is removed) 7.2.1 Disassembly for the CD Lid 7.2.2 Disassembly for CD changer unit TOP PREVIOUS NEXT...
Page 15 7.2.1 Disassembly for the CD Lid TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. When opening the disc tray automatically (Using Power Supply) Step 1 Connect the AC power cord. Step 2 Press the POWER button to power up the main unit. Step 3 Press the OPEN/CLOSE button, the disc tray will be open automatically.
Page 16 [Open the disc tray manually (Using service tools)] Step 1 Upset the unit as shown below. Step 2 Insert the gear tool into the hole on the underside of CD chasis and then rotate in the direction of arrow. The disc tray will be open. Step 3 Release the 2 claws, and then remove the CD lid cover.
Page 17 7.2.2 Disassembly for CD changer unit TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. Step 1 Remove 2 screws at rear cabinet as show below. Step 2 Lift up the mechanism unit cover, and then push in the mechanism unit cover.
Page 18 7.3 Checking for the unit operational condition TOP PREVIOUS NEXT (Place the unit horizontally when loading the CD changer unit.) 7.3.1 Initial setting of CD 7.3.2 Checking for the CD Servo P.C.B., Panel P.C.B., Deck P.C.B., Transformer P.C.B. and Power P.C.B.
Page 19 7.3.1 Initial setting of CD TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. Step 1 Connect the AC power cord. Step 2 Press POWER button to turn on power for main unit. Step 3 Select the input select button to “CD”.
Page 20 7.3.2 Checking for the CD Servo P.C.B., Panel P.C.B., Deck P.C.B., Transformer P.C.B. and Power P.C.B. TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. The initial setting of CD unit must be completed. (Refer to the initial setting of CD unit in Item 7.3.1).
Page 21 Step 1 Press the POWER button and the power turns off. Step 2 Remove the connectors. Step 3 Pull out the FFCs. Step 4 Remove the CD changer unit. Step 5 Lay the unit as shown below. Step 6 Remove 2 screws. Step 7 Release the 2 claws, and then draw the front panel ass’y.
Page 22 NOTE: Insulate Power P.C.B. with insulation material to avoid short circuit. TOP PREVIOUS NEXT...
Page 23 7.3.3 Replacement of the Power Amplifier IC TOP PREVIOUS NEXT Checking the Power P.C.B. Follow the (Step 1) - (Step 2) of Item 7.1. Step 1 Remove the 2 screws fixed to the Power Amplifier IC. Step 2 Remove 2 screws fixed to the Power Amplifier IC and Transistor Holders. Step 3 Break the joint with a metal cutter as shown below.
Page 24 7.4 Main Component Replacement Procedures TOP PREVIOUS NEXT 7.4.1 Replacement of the Traverse Deck TOP PREVIOUS NEXT...
Page 25 7.4.1 Replacement of the Traverse Deck TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the (Step 1) - (Step 6) of Disassembly for the CD Lid of Item 7.2.1. Follow the disassembly instruction for the CD changer unit of Item 7.2.2. Step 1 Push the power button and the power turns OFF.
Page 26 Step 7 Pressing the claw (B) in the direction of arrow (1), the connection lever moves in the direction of arrow (2). Step 8 Lift up the traverse deck ass’y. Step 9 Remove the traverse deck ass’y from the timing lever. Caution: When removing or inserting the traverse deck avoid touching the OPU lens and pressing onto the turntable.
Page 27 Step 14 Release the claw, and then remove the traverse deck ass’y. Note: Be careful not to lose the 3 floating spring because those will also be removed on removal of the traverse deck ass’y. Installation of the CD Servo P.C.B. after replacement Step 1 Connect the FFC board.
Page 28 Step 3 Force the claw of timing lever. Step 4 Force the disc tray fully. Step 5 With pressing the claw (B) in the direction of arrow (1), force the connection lever in the direction of arrow (2). TOP PREVIOUS NEXT...
Page 29 7.5 Replacement for the disc tray TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1 Follow the Disassembly for the CD Lid of Item 7.2.1. Follow the Disassembly for the CD Changer Unit of Item 7.2.2. Follow the (Step 1) - (Step 8) of Item 7.4 Step 1 Remove 4 screws.
Page 30 Step 8 Release the both claws, and then draw the disc tray. Step 9 With forcing the left guide bar manually because the left guide bar interfers with claw, draw the disc tray. [Installation of the disc tray after replacement] Step 1 Slide the drive rack fully in the direction of arrow.
Page 31 Step 4 Holding the disc tray manually, push the disc tray in the direction of the arrow. TOP PREVIOUS NEXT...
Page 32 7.6 Disassembly and reassembly for mechanism base drive unit TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. Follow the Disassembly for the CD changer unit of Item 7.2.2. Follow the (Step 1) - (Step 14) of Item 7.4 Follow the (Step 1) - (Step 9) of Item 7.5 Step 1...
Page 33 Step 6 Install the tray lock spring to hook temporary. Step 7 Release the claw, and then remove the tray lock. Step 8 Release the claw, and then remove the rear lock. Step 9 Pressing the claw (B) in the direction of arrow (1), force the connection lever in the direction of arrow (2).
Page 34 Step 12 Remove slide plate 1 and slide plate 2. Step 13 Remove the traverse relay gear, traverse cam gear and drive gear. [Dissassembly/reassembly for the spindle base unit] Step 1 Draw the 5 disc spacers. Step 2 Pushing the claw, slide the support plate in the direction of arrow, and then remove it. Step 3 Rotate the disc lever in the direction of arrow (1), draw the disc lever.
Page 35 NOTE: Take care not to lose the disc lever spring. Step 4 Release the 2 claws, and then draw the relay gear B. Step 5 Release the 2 claws as shown below. NOTE: Hold the loading stopper ass’y manually bacause it is flipped by spring. Step 6 Remove the cushion spring.
Page 36 Step 9 Release the 2 claws, and then remove the spindle shaft. Step 10 Remove the lower spindle spring with tweezers. Step 11 Force the lower hook with thin tip of minus screwdriver. Step 12 Squeeze the shaft of lower hook, and then draw it. Step 13 Rotate the lower spindle in the direction of arrow until the lower spindle interferes with stopper.
Page 37 Step 2 Lower the loading stopper ass’y, and then align the lower spindle with the trapezoid tooth of relay gear A. Step 3 Force the loading stopper ass’y, latch the claw firmly. [Reassembly for mechanism base drive unit] Step 1 Install the traverse cam gear.
Page 38 Step 4 Install the slide plate 2 to the mechanism base, and then match to the connection lever. Step 5 Install the slide plate 1 to the mechanism base, and then match to the connection leve and align the trapezoid tooth of traverse relay gear with the slide plate 1. Step 6 Install the spindle base unit.
Page 39 Step 12 Install the UP/DOWN gear, change gear, change gear spring, pulley gear and belt in the order of (1) - (5). Step 13 Install the gear holder, and then tighten the screw (a). Step 14 Install the tray base, traverse ass’y, mechanism cover and upper plate. [Operation check after servicing] Check the proper operation of following items with gear and hexagonal screwdriver.
Page 40 7.7 Replacement for the motor ass’ y TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. Follow the Disassembly for the CD changer unit of Item 7.2.2. Follow the (Step 1) - (Step 8) of Item 7.4 Follow the (Step 1) - (Step 7) of Item 7.5 Step 1...
Page 41 1. Locate the name plate of motor to the traverse ass’y. 2. Align the hole of motor with the ribs. TOP PREVIOUS NEXT...
Page 42 7.8 Replacement for the pinch roller ass’ y and head block TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. Follow the disassembly for the CD changer unit of Item 7.2.2. Follow the (Step 1) - (Step 14) of Item 7.4 Step 1 Remove the connector.
Page 43 Step 9 Tilt the cassette mechanism in the direction of arrow (1), and then remove it in the direction of arrow (2). Step 10 Unsolder the motor terminals. Step 11 Remove 4 screws. Step 12 Remove mechanism Deck P.C.B. * The mechanism as shown below is for DECK1. For the one of DECK 2, perform the same procedures.
Page 44 7.9 Replacement for the Deck motor ass’ y, capstan belt A, capstan belt B and winding belt TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. Follow the Disassembly for the CD changer unit of Item 7.2.2.
Page 45 [Installation of the belt] Step 1 The boss and marking should be positioned horizontally. Step 2 Put the winding belt on the pulley temporarily. Step 3 Install the flywheel F. Step 4 Put the winding belt on the flywheel F. Step 5 Install the winding lever and spring while pressing the winding arm in the direction of arrow.
Page 46 Step 10 Remove 3 screws. Step 11 Put the capstan belt B as shown below. Step 12 Put the capstan belt A on the motor ass’y pulley. TOP PREVIOUS NEXT...
Page 47 7.10 Replacement for the CD motor ass’ y, capstan belt A, capstan belt B and winding belt TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Follow the Disassembly for the CD Lid of Item 7.2.1. Follow the Disassembly for the CD changer unit of Item 7.2.2.
Page 48 7.11 Replacement for the cassette lid ass’ y TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Step 1 Force the lever upward, open the cassette lid ass’y. (For DECK1 and DECK2) Step 2 Lift up the cassette lid ass’y in the direction of arrow. (For DECK1 and DECK2). Step 3 Remove the cassette lid ass’y.
Page 49 7.12 Measure for tape trouble TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 7.1. Step 1 If a cassette tape cannot be removed from the deck since the tape is caught by the capstan or pinch roller during playback or recording, rotate the flywheel F in the direction of the arrow to remove the tape.
Page 50: Precaution Of Laser Diode
8 Precaution of Laser Diode TOP PREVIOUS NEXT Caution : This product utilizes a laser diode with the unit turned "ON", invisible laser radiation is emitted from the pick up lens. Wavelength : 780 nm Maximum output radiation power from pick up : 100 µW/VDE Laser radiation frompick up unit is safety level, but be sure the followings: 1.
Page 51: Table Of Contents
9 Self-Diagnostic Function TOP PREVIOUS NEXT 9.1 Self-diagnostic display 9.2 How to enter the Self-Diagnostic Function 9.3 Cassette Mechanism Test (For error code H01, H02, H03, F01, F02) 9.4 CD Mechanism Test (F15, F26, F16, F17, F27, F28, F29, H15) 9.5 To clear all Error code 9.6 How to get out from Self-Diagnostic function 9.7 Power Amplifier Failure (F61)
Page 52: Self-Diagnostic Display
9.1 Self-diagnostic display TOP PREVIOUS NEXT This unit is equipped with a self-diagnostic display function which, if a problem occurs, will display an error code corresponding to the problem. Use this function when performing maintenance on the unit. TOP PREVIOUS NEXT...
Page 53: How To Enter The Self-Diagnostic Function
9.2 How to enter the Self-Diagnostic Function TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 54: Cassette Mechanism Test (For Error Code H01, H02, H03, F01, F)
9.3 Cassette Mechanism Test (For error code H01, H02, H03, F01, F02) TOP PREVIOUS NEXT 1. Press “TAPE, DECK 1/2” to select Deck 2. 2. Load a cassette tape with the erasure prevention tab, remove from left side only and close the cassette holder.
Page 55 9.4 CD Mechanism Test (F15, F26, F16, F17, F27, F28, F29, H15) TOP PREVIOUS NEXT 1. Press “CD”. 2. Press “OPEN/CLOSE (1)” and place a CD. 3. Press “OPEN/CLOSE (1)” to close the tray. 4. Press “OPEN/CLOSE (5)” and wait until the tray is open. 5.
Page 56: To Clear All Error Code
9.5 To clear all Error code TOP PREVIOUS NEXT 1. Press “STOP/TUNE MODE” button for 5 seconds. 2. FL indicator shows “CLEAR” for 1 second and change to “T”. TOP PREVIOUS NEXT...
Page 57: How To Get Out From Self-Diagnostic Function
9.6 How to get out from Self-Diagnostic function TOP PREVIOUS NEXT 1. Press “Power” button OFF. TOP PREVIOUS NEXT...
Page 58: Power Amplifier Failure (F)
9.7 Power Amplifier Failure (F61) TOP PREVIOUS NEXT 1. When power amplifier fail, F61 will indicate automatically. TOP PREVIOUS NEXT...
Page 59 10 Description of Error Code TOP PREVIOUS NEXT 10.1 Error detection for Cassette Mechanism block 10.2 Error detection for CD Changer block 10.3 Power Supply related error detection TOP PREVIOUS NEXT...
Page 60 10.1 Error detection for Cassette Mechanism block TOP PREVIOUS NEXT NO. Error ErrorDisplay Problem condition MODE SWdetection error Faulty operation of cassette mechanism.Faulty contact or short-circuit of mechanism mode switch (S951, S971). REC INH SWdetection Recording not possible.Faulty contact or short-circuit of REC INH switch (S975). error HALF SWdetection error Playback cannot perform.Faulty contact or short-circuit of HALF switch (S952, S972).
Page 61 10.2 Error detection for CD Changer block TOP PREVIOUS NEXT NO. Error ErrorDisplay Problem condition REST SW detection error CD does not function.This error occurs when the Optical Pick Up REST SW (S701) is not detected within the specified time (about 8 seconds) CD tray opens automatically CLAMP switch (SW4) NG (Check &...
Page 62 10.3 Power Supply related error detection TOP PREVIOUS NEXT NO Error ErrorDisplay Problem condition POWER AMPoutput When POWER is switched on, power become off automatically.During normal operation, if DC DET abnormal become L, PCNT shall become L and the error display on the left shall be displayed. (IC501) TOP PREVIOUS NEXT...
Page 63: Cd Test Mode Function
11 CD Test Mode Function TOP PREVIOUS NEXT This CD test mode is provided to check CD unit without connecting to changer loading mechanism. This mode shall operate CD PLAY with CD unit being connected only and CD Automatic Alignment result is shown on FL display. 11.1 How to set CD test mode 11.2 CD Automatically Adjustment result indication TOP PREVIOUS NEXT...
Page 64 11.1 How to set CD test mode TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 65 11.2 CD Automatically Adjustment result indication TOP PREVIOUS NEXT Under CD test mode, pressing the numeric key ‘0’ on the remote controller will display the auto adjustment result. FLOCK, TLOCK and CLVS status shall be shown as below: During the above display, executing CD PLAY will display auto adjustment result for CD PLAY mode.
Page 66: Measurements And Adjustments
12 Measurements and Adjustments TOP PREVIOUS NEXT 12.1 Cassette Deck Section 12.1.1 Tape Speed Adjustment (Deck 1 / 2) 12.1.2 Bias and Erase Voltage Check 12.1.3 Bias Frequency Adjustment (Deck 1 / 2) 12.2 Tuner Section 12.2.1 AM-IF Alignment 12.2.2 AM RF Adjustment 12.3 Alignment Points 12.3.1 Cassette Deck Section 12.3.2 Adjustment Point...
Page 67: Cassette Deck Section
12.1 Cassette Deck Section TOP PREVIOUS NEXT Measurement Condition Make sure head, capstan and press roller are clean. Judgeable room temperature 20 ± 5 °C (68 ± 9°F) Measuring instrument EVM (DC Electronic volmeter) Digital fruency counter Test Tape Tape speed gain adjustment (3 kHz, -10 dB); QZZCWAT 12.1.1 Tape Speed Adjustment (Deck 1 / 2) 12.1.2 Bias and Erase Voltage Check 12.1.3 Bias Frequency Adjustment (Deck 1 / 2)
Page 68 12.1.1 Tape Speed Adjustment (Deck 1/ 2) TOP PREVIOUS NEXT 1. Set the tape edit button to “NORMAL” position. 2. Insert the test tape (QZZCWAT) to DECK 2 and playback (FWD side) the middle portion of 3. Adjust Motor VR (DECK 2) for the output value shown below. Adjustment target: 2940 ~ 3060 Hz (NORMAL speed) 4.
Page 69: Bias And Erase Voltage Check
12.1.2 Bias and Erase Voltage Check TOP PREVIOUS NEXT 1. Set the unit “AUX” position. 2. Insert the Normal blank tape (QZZCRA) into DECK 2 and the unit to “REC” mode (use “• REC/STOP” key). 3. Measure and make sure that the output is within the standard value. Bias voltage for Deck 2 14±4mV (Normal) Erase voltage for Deck 2 80mV (Normal)
Page 70 12.1.3 Bias Frequency Adjustment (Deck 1/ 2) TOP PREVIOUS NEXT 1. Set the unit to “AUX” position. 2. Insert the Normal blank tape (QZZCRA) into DECK 2 and set the unit to “REC” mode (• use “REC/STOP” key). 3. Adjust L1002 so that the output frequency is within the standard value. Standard Value: 97 ±8 kHz Fig.
Page 71: Tuner Section
12.2 Tuner Section TOP PREVIOUS NEXT 12.2.1 AM-IF Alignment 12.2.2 AM RF Adjustment TOP PREVIOUS NEXT...
Page 72: Am-If Alignment
12.2.1 AM-IF Alignment TOP PREVIOUS NEXT 1. Connect the instrument as shown in Fig. 5. 2. Set the unit to AM mode. 3. Apply signal as shown in Fig. 5 from AM-SG. 4. Adjust Z102 so that the output frequency is maximized in Fig. 6. Fig.
Page 73: Am Rf Adjustment
12.2.2 AM RF Adjustment TOP PREVIOUS NEXT 1. Connect the instrument as shown in Fig. 7. 2. Set the unit to AM mode. 3. Set AM-SG to 520kHz. 4. Receive 520kHz in the unit. 5. Adjust Z101 (OSC) so that the EVM-AC is maximized. 6.
Page 74: Alignment Points
12.3 Alignment Points TOP PREVIOUS NEXT 12.3.1 Cassette Deck Section 12.3.2 Adjustment Point TOP PREVIOUS NEXT...
Page 75 12.3.1 Cassette Deck Section TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 76: Adjustment Point
12.3.2 Adjustment Point TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 77: Schematic Diagram
13 Schematic Diagram TOP PREVIOUS NEXT (All schematic diagrams may be modified at any time with the development of the new technology) Note: : Push switch : Push switch : Open Switch : CD switch : Lock switch S601 : Power switch S602 : SSEQ switch S603...
Page 78 S607 : CD 1 switch S608 : CD 2 switch S609 : CD 3 switch S610 : CD 4 switch S611 : CD 5 switch S701 : Reset switch S901 : REW switch S902 : Tuner switch S903 : CD switch S904 : FF switch S905...
Page 79 : AUX switch S909 : Deck 1 switch S910 : Display switch S951 : Mode switch S952 : Half switch S971 : Mode switch S972 : Half switch S975 : Recinh_f switch VR600 : VR Volume Jog The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscilloscope on the basis of chassis.
Page 80 Secondary trouble can be prevented by taking care during repair. Cover the parts boxes made of plastics with aluminium foil. Put a conductive mat on the work table. Ground the soldering iron. Do not touch the pins of IC, LSI or VLSI with fingers directly. TOP PREVIOUS NEXT...
Page 81: Cd Servo Circuit
SCHEMATIC DIAGRAM -1 : +B SIGNAL LINE : CD-DA SIGNAL LINE OPTICAL PICKUP CIRCUIT CD SERVO CIRCUIT R701 LASER DIODE C701 6.3V33 Q701 Q701 B1ADCF000001 C703 LASER POWER DRIVE 6.3V100 R750 LD GND NBOUT C704 C714 6.3V100 C707 0.027 NAOUT C713 VREF VREF...
Page 82 SCHEMATIC DIAGRAM - 2 : +B SIGNAL LINE : CD SIGNAL LINE : CD-DA SIGNAL LINE CD SERVO CIRCUIT R717 C727 C725 50V1 R721 1000P C726 C731 1000P 6.3V220 C730 R718 C728 50V1 C754 C732 C733 470P 6.3V220 LCH OUT A.GND RCH OUT C753...
Page 83 SCHEMATIC DIAGRAM - 3 : +B SIGNAL LINE : FM SIGNAL LINE : AM SIGNAL LINE : FM/AM SIGNAL LINE : FM OSC SIGNAL LINE : AM OSC SIGNAL LINE TUNER/MAIN CIRCUIT Q106 TUNER PACK Z120 R104 C103 B1AAAC000011 R107 CF201 CF202 0.01...
Page 84: Main Circuit
SCHEMATIC DIAGRAM - 4 : +B SIGNAL LINE : AUX SIGNAL LINE : MAIN SIGNAL LINE : -B SIGNAL LINE : CD SIGNAL LINE : PLAYBACK SIGNAL LINE PANEL CIRCUIT : RECORD SIGNAL LINE : FM/AM SIGNAL LINE : MIC SIGNAL LINE (CP601) ON SCHEMATIC DIAGRAM-9 MAIN CIRCUIT...
Page 85 SCHEMATIC DIAGRAM - 5 : MAIN SIGNAL LINE : +B SIGNAL LINE : -B SIGNAL LINE : CD SIGNAL LINE PANEL CIRCUIT (CP602) ON : FM/AM SIGNAL LINE SCHEMATIC DIAGRAM-9 MAIN CIRCUIT CN302 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 Q203, Q403 R406 R404...
Page 86 SCHEMATIC DIAGRAM - 6 : +B SIGNAL LINE : AUX SIGNAL LINE : MAIN SIGNAL LINE : FM/AM SIGNAL LINE : CD SIGNAL LINE : PLAYBACK SIGNAL LINE : RECORD SIGNAL LINE MAIN CIRCUIT D301 UDZSTE177R5B D301 TGND TUNER DET_OUT DET_OUT CIRCUIT R416...
Page 87: Panel Circuit
SCHEMATIC DIAGRAM - 7 : MAIN SIGNAL LINE : +B SIGNAL LINE : MIC SIGNAL LINE PANEL CIRCUIT SYS6V R600 4.7K...GC VREF+ R602 R601 R603 R604 R605 R681 1.2K 1.8K 2.2K H_DECK1 IC601 SW5V C1BB00000574 R623 REC_H 4.7K I/O EXPANDER C636 R622 4.7K...
Page 88 SCHEMATIC DIAGRAM - 8 : -B SIGNAL LINE : +B SIGNAL LINE PANEL CIRCUIT FL600 R656 R657 A2BD00000061 1 2 3 4 5 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 C642 C641 35V22...
Page 89 SCHEMATIC DIAGRAM - 9 : -B SIGNAL LINE : MAIN SIGNAL LINE : MIC SIGNAL LINE : +B SIGNAL LINE PANEL CIRCUIT Q603 Q604 D613 KTA1276GRTA KTA1276GRTA B0BA5R600016 TRANSFORMER VREF SUPPLY SWITCH DECK SUPPLY SWITCH Z600 L601 CIRCUIT B3RAB0000025 SYS6V SYS6V G0C100JA0030 REMOTE SENSOR...
Page 90 SCHEMATIC DIAGRAM -10 : +B SIGNAL LINE : PLAYBACK SIGNAL LINE : -B SIGNAL LINE : RECORD SIGNAL LINE DECK CIRCUIT R1038 R1039 R1055 4.7 K 2.2K C1038 220P R1098 C1044 R1015 C1034 10V33 50V3.3 C1032 IC1001 0.018 AN7348S-E1 PLAYBACK R1040 HEAD P.B EQ/REC AMP/...
Page 91 SCHEMATIC DIAGRAM - 11 : +B SIGNAL LINE : PLAYBACK SIGNAL LINE : -B SIGNAL LINE : RECORD SIGNAL LINE MAIN CIRCUIT (CN304) ON SCHEMATIC DIAGRAM-4 DECK CIRCUIT CN1001 Q1017 KTD1146YTA 50V3.3 C1054 MOTOR SWITCH C1064 50V3.3 R1091 R1095 2.2K 100K R1057 R1060...
Page 92 SCHEMATIC DIAGRAM - 12 : -B SIGNAL LINE : MAIN SIGNAL LINE : +B SIGNAL LINE POWER CIRCUIT IC501 IC501 RSN315H42-P POWER HIC Q512-Q513 B1AAGC000006 C501 0.01 DC DETECT SWITCH HIGH SPKR_L_GND CHANNEL SPEAKER SPKR_R_GND R250 JK951 C242 C244 R255 C243 820P 0.047...
Page 93 SCHEMATIC DIAGRAM - 13 : +B SIGNAL LINE : -B SIGNAL LINE TRANSFORMER CIRCUIT (FOR GN ONLY) D950-D953 1N5402BM21 VCC+ D952 D950 VCC- POWER C960 CIRCUIT AC GND (H950/ W950) ON D953 D951 T950 SCHEMATIC AC_IN ETP76VMT61WA RL950 DIAGRAM-12 RSY0040M-0 SUB B SUB+B GND D954-D957...
Page 94 SCHEMATIC DIAGRAM - 14 : +B SIGNAL LINE : -B SIGNAL LINE VOLTAGE SELECTOR CIRCUIT S950 TRANSFORMER CIRCUIT (FOR GC ONLY) K0AFZA000005 VOLTAGE SELECTOR D950-D953 1N5402BM21 VCC+ D952 D950 VCC- POWER CIRCUIT AC GND C960 (H950/ W950) ON SCHEMATIC D954-D957 T950 AC_IN D953...
Page 95: Printed Circuit Board
14 Printed Circuit Board TOP PREVIOUS NEXT Note: Circuit board diagrams may be modified at any time with the development of new technology. TOP PREVIOUS NEXT...
Page 96 CD SERVO P.C.B (REPX0192D) (RF) TP20 X701 TJ701 TP23 C717 R714 TP19 TP21 TP30 C716 C721 R709 C744 TP29 TP29 TP24 C722 R712 TP18 C723 C724 R742 C725 TP25 IC701 TP26 TP27 C731 C753 TP22 C754 C711 J702 C718 C712 IC702 C713 J712...
Page 97 MAIN P.C.B. (REPX0325C...GC) (REPX0325D...GN) FM ANT AM ANT 75 OHMS JK101 C332 C331 R202 C430 R352 R401 R471 J131 C303 J130 R472 Z120 C107 C451 R112 J366 Q411 C421 J350 Q404 C435 R473 R454 Q204 C452 J100 R433 R423 Q401 R474 C440 R432...
Page 98 PANEL P.C.B. (REPX0326D...GC) (REPX0326C...GN) S606 OPEN/CLOSE S607 R607 S608 S611 C659 FL600 C641 C661 J901 R611 J665 R609 D613 R610 J609 S610 S609 C660 J929 R627 J666 C656 Q610 J667 C603 Q611 R657 J643 IC603 R656 Q612 J645 R917 J947 J920 Q613 R918...
Page 99 D600 S601 POWER SENSOR C658 C642 R619 J644 R618 R664 R617 IC601 R663 R662 R661 Z600 R660 Q610 Q611 Q609 J621 CP601 J643 Q612 J650 R917 J697 Q613 R918 C639 J647 R911 R919 S602 J619 R916 R687 R920 SSEQ S605 R604 J672 J631...
Page 100 TACT SWITCH P.C.B. (REPX0326D...GC) (REPX0326C...GN) VOLUME R902 S902 S903 R903 S901 S904 CD PLAY TUNER VR600 J932 S910 S905 R909 STOP DISPLAY R908 R905 3 4 5 6 7 8 S909 S906 CP900 S907 S908 R907 R906 DECK1 OPEN DECK2 OPEN TAPE...
Page 101 DECK P.C.B. DECK MECHANISM P.C.B. (REPX0331A) (REPX0321A) Q1001 IC1004 C1006 R1006 C1009 R1005 C1003 J1000 CS1002 TP10 J1002 L1002 TP11 R1001 R1004 Q1007 TP12 C1002 J1003 C1026 C1021 C1020 C1011 C1016 R1010 R1009 C1022 C1010 R1028 C1014 C1013 C1041 C1019 R1060 Q1005 R1014...
Page 102 POWER P.C.B. (REPX0328A) C513 R516 J511 Q508 R509 J510 J512 D508 C514 R508 R531 R507 R532 R515 D507 D505 J543 D506 R529 C512 R530 J541 D509 J567 R521 D503 J501 J576 J523 R522 J566 J553 J542 C510 C540 R511 J506 R510 C507 C508...
Page 103 TRANSFORMER P.C.B. (REPX0324B...GC) T951 (SUB-TRANSFORMER) C963 Q952 (BLACK) R957 Q953 C954 C962 J920 R951 F1 T2.5AL JK950 J989 J918 AC IN C964 J988 Q954 110V C952 T950 (POWER TRANSFORMER) 127V 220V-230V 240V C953 SECONDARY PRIMARY 50HZ/60HZ J990 J987 Q950 C960 J912 CN951 C958...
Page 104 TRANSFORMER P.C.B. (REPX0327C...GN) T951 (SUB-TRANSFORMER) C963 Q952 R957 Q953 C954 C961 R951 J920 F1 T1AL JK950 J989 J988 AC IN C952 230V-240V C953 50HZ T950 (POWER TRANSFORMER) J990 SECONDARY PRIMARY J987 Q950 C960 CN951 C958 D952 RL950 Q951 C957 D950 FP951 D958 D953...
Page 105 CD LOADING P.C.B (REP2578A-N) 1 2 3 4 5 6 7 8 9 10 2 3 4 OPEN PUSH PUSH CD DETECT P.C.B SPINDLE POSITION P.C.B (REP2578A-N) (REP2578A-N) LOAD 1 2 3 4 TUNER PACK P.C.B (REP1999B)
Page 106: Block Diagram
15 Block Diagram TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 107 CD OPTICAL PICKUP IC701 AN8885SBE1 SERVO AMP SEMICONDUCTOR LASER RFEQ1 OFTR OFTR Q701 LASER POWER DRIVE TENV RFEQ2 /RFDET /RFDET DET. VREF FEOUT SUBTRACTER VREF TEOUT SUBTRACTER VREF BAND PHOTO DETECTOR VREF [CH4] LEVEL FOCUS COIL SHIFT LEVEL TRACKING COIL [CH3] SHIFT TRV+...
Page 108 TO MAIN UNIT IC702 MN662790RSC SERVO PROCESSOR/ DIGITAL SIGNAL PROCESSOR DIGITAL FILTER/ D/A CONVERTER CLVS MAIN UNIT OUTR BLKCK BLKCK /CLDCK SBCK SUBC MAIN UNIT DEMPH OUTL CD SIGNAL SSEL FLAG SQCK SQCK IPFLAG SUBQ SUBQ DIGITAL AUDIO INTERFACE PLLF DIGITAL AUDIO INTERFACE PLLF2...
Page 109 AM ANT FM ANT Z101 Z120 CF201 CF202 Q101 COIL COIL MIXER IF AMP RF AMP BUFFER (FM) DECODER RM AMP BUFFER PILOT PHASE CANCEL STEREO LEVEL S-CURVE SWITCH AM/FM COMP BUFFER TUNING DRIVE PILOT Z102 IC101 X102 LA1833NMNTLM FM/AM IF AMP DET/AM OSC MIX/FM MPX ST/DO...
Page 110 C0GAM0000005 MOTOR DRIVE Vs 8 OUT1 OUT2 POWER SUPPLY CONTROL Q322 CD STATUS STATUS INTERFACE SWITCH Q321 SUBQ SUBQ INTERFACE SWITCH D323 SQCK ST/DO Q320 Q324 BLKCLK CD MOTOR BLKCK SUPPLY INTERFACE SWITCH SWITCH /CDRST Q323 PLUNGER MOTOR SUPPLY CONTROL SWITCH D322 MLD/PLLCE...
Page 111 IC1001 AN7348S-E1 P.B. EQ/REC AMP/ ALC/TPS AMP (DECK 1) P .B. HEAD LCH 24(23) Q1014(Q1015) 1(2) 20(5) BUFFER 22(3) 21(4) (DECK 2) R/P HEAD LCH 17(8) 18(7) LOGIC L/H Q1012 Q1020 (Q1013) (Q1021) NOR/CrO & MUTING HI/LO LOGIC MUTING CONTROL RIPPLE LOGIC REJECTION...
Page 112 IN B1 IC301 C0AABB000117 HEADPHONE AMP Q405(Q205) (24) HPF FREQ OUT 1(2) FILTER IN B2 AMP SWITCH 5(38) SWITCH IN C1(2) Q407 Q402 Q411 (Q207) (Q202) (Q211) Q404(Q204) Q401 (Q201) FILTER MUTING MUTING LPF FREQ HEADPHONE FILTER SWITCH SWITCH AMP SWITCH IC300 C1BB00000747 8(35)
Page 113 16(15) 3(6) OUT2 1(2) -IN2 1(2) JK951 HIGH CH (6 W) OUT 1 1(2) 7(9) 13(12) -IN1 1(2) JK952 IC501 LOW CH 4(2) (6 W) RSN315H42-P +VCC 1(2) POWER 5(1) -VCC 1(2) IN GND OUT GND AC DET -VCCM D502 FILTER FILTER Q502,Q505...
Page 114: Wiring Connection Diagram
16 Wiring Connection Diagram TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 115 FM ANT AM ANT H950/W950 JK101 JK300 Z120 CN501 CD LOADING P.C.B Z101 CN300 MAIN / TUNER P.C.B SOLDER SIDE Z102 CF201 CF202 CD DETECT P.C.B TUNER PACK SOLDER SIDE P.C.B POWER P.C.B SOLDER SIDE CN309 13 14 CN310 CN301 CN500 W1 1.
Page 116 17 Illustration of IC’ s, Transistors and Diodes TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 117 RSN315H42-P C0GAM0000005 C0AABB000117 C2BBGF000405 (100P) AN7348S-E1 (24P) MN662790RSC (80P) AN8885SBE1 (28P) C1BB00000086 (18P) C1BB00000574 (16P) C1BB00000747 (42P) LA1833NMNTLM (24P) LC72131MDTRM (20P) CNB13030R2AU AN8739SBTE2 C1AA00000612 2SK544F-AC B1AAGC000007 KRA102MTA KRA110MTA KRC102MTA KRC103MTA 2SC2058SPTA 2SC2412KT96R KTC2026 2SB621ARSTA B1ADCF000001 KTA1046 2SB0621AHA KRA102STA B1AAKD000009 KRC101STA KTA12710YTA KRC102STA KTC3205YTA...
Page 118 18 Terminal Function of IC’ s TOP PREVIOUS NEXT 18.1 IC701 (AN8885SBE1) Servo Amplifier 18.2 IC702 (MN662790RSC) S ervo processor / Digital signal processor / Digital filter / D / A converter 18.3 IC703 (AN8739SBTE2) Focus coil / Tracking coil / Traverse motor / Spindle motor driver 18.4 IC600 (C2BBGF000405) System Microprocessor TOP PREVIOUS NEXT...
Page 119 18.1 IC701 (AN8885SBE1) Servo Amplifier TOP PREVIOUS NEXT Pin No. Mark Function Tracking signal input 1 Tracking signal input 2 Power supply Focus signal input terminal 1 Focus signal input terminal 2 APC amp input APC amp output RF summing output RFIN Detector’s input CSBRT...
Page 120 18.2 IC702 (MN662790RSC) S ervo processor/ Digital signal processor/ Digital filter/ D/ A converter TOP PREVIOUS NEXT Mark I/O Function BCLK N.C. LRCK N.C. SRDATA O N.C. DVDD1 Power supply input ( for digital circuit) DVSS1 GND (digital circuit) Digital audio interface signal output (Latches data at first transition) MCLK Microprocessor command clock signal input MDATA...
Page 121 /RFDET RF detection signal input (“L” : detection) Dropout signal input (“H” : Dropout) LDON Laser on signal output (“H” : ON) PLLF2 I/O N.C. DSLF2 Tracking Offset alignment output/DSL Balance Output (DA Output) WVEL N/C. RF signal input IREF Reference current input DSL bias terminal (not used, open) DSLF...
Page 122 18.3 IC703 (AN8739SBTE2) Focus coil/ Tracking coil/ Traverse motor/ Spindle motor driver TOP PREVIOUS NEXT Pin No. Mark Function /RST RESET output terminal N.C. Motor drive (2) input Turntable motor drive signal (“L” :ON) N.C. Motor driver (1) input N.C. PVCC1 I Power supply (1) for driver PGND1 -...
Page 123 18.4 IC600 (C2BBGF000405) System Microprocessor TOP PREVIOUS NEXT Pin No. Mark Function DECK2 (RECI_F/MODE2/RECI_R/ HALF2) KEY1 Key 1 input KEY2 Key 2 input VJOG_A Volume jog A-D detection VJOG_B Volume jog A-D detection CHG_AD2 (Position/bottom) chngr sw A-D detection input 1 CHG_AD1 (Position/bottom) chngr sw A-D detection input 2 DECK 1...
Page 124 /RESTSW CD limit SW input for the most inner point (Active Low) CDRST CD reset output PHOTO_01 Counter input PHOTO_02 Counter input 44-78 SEG37 - SEG3 O Segment drive output. (Anode drive output) 79-80 R10/SEG2 - Regional/Function setting use/Segment drive output R9/SEG1 81-88 REG8/GRID8-...
Page 125: Troubleshooting Guide
19 Troubleshooting Guide TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 126: Parts Location And Replacement Parts List
20 Parts Location and Replacement Parts List TOP PREVIOUS NEXT Notes: Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise (resistors), etc are used. When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.
Page 127: Table Of Contents
20.2 CD Loading Mechanism (RD-DAC026-S) 20.2.1 CD Loading Mechanism Parts Location 20.2.2 CD Loading Mechanism Parts List 20.3 Cabinet 20.3.1 Cabinet Parts Location 20.3.2 Cabinet Parts List 20.4 Electrical Parts List 20.5 Packing Materials & Accessories Parts List 20.6 Packaging TOP PREVIOUS NEXT...
Page 128: Table Of Contents
20.1 Deck Mechanism (RAA4502-S) TOP PREVIOUS NEXT 20.1.1 Deck Mechanism Parts Location 20.1.2 Deck Mechanism Parts List TOP PREVIOUS NEXT...
Page 129: Deck Mechanism Parts Location
20.1.1 Deck Mechanism Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 132: Deck Mechanism Parts List
20.1.2 Deck Mechanism Parts List TOP PREVIOUS NEXT Ref. No. Part No. Part Name & Description Remarks CASSETTE DECK RED0069 R/P HEAD BLOCK UNIT RED0070 P/B HEAD BLOCK UNIT RDG0300 REEL BASE GEAR RDG0301 WINDING RELAY GEAR RDK0026 MAIN GEAR RDV0033-4 WINDING BELT RDV0064...
Page 135: Cd Loading Mechanism (Rd-Dac026-S)
20.2 CD Loading Mechanism (RD-DAC026-S) TOP PREVIOUS NEXT 20.2.1 CD Loading Mechanism Parts Location 20.2.2 CD Loading Mechanism Parts List TOP PREVIOUS NEXT...
Page 136: Cd Loading Mechanism Parts Location
20.2.1 CD Loading Mechanism Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 139: Cd Loading Mechanism Parts List
20.2.2 CD Loading Mechanism Parts List TOP PREVIOUS NEXT Ref. No. Part No. Part Name & Description Remarks TRAVERSE DECK RML0517 TIMING LEVER RML0516 PLUNGER LEVER RMB0551 UPPER SPINDLE SPRING RMQ0744 LOWER HOOK RDV0056 BELT RML0525 FRONT LOCK LEVER RML0526 DISC LEVER RDG0424 DRIVE GEAR...
Page 140 RML0522 TURNING STOPPER RMQ0745 LOWER SPINDLE RMQ0746 UP/DOWN BASE RMB0550 LOWER SPINDLE SPRING RMQ0747 UPPER HOOK RME0263 CLICK SPRING RMQ0743 SPINDLE SHAFT RMB0552 CUSHION SPRING RDG0430 RELAY GEAR ‘A’ RDG0431 RELAY GEAR ‘B’ RME0262 DISK LEVER SP. RMA1105 SUPPORT PLATE RAE0152Z-3 TRAVERSE 358-1...
Page 143 20.3 Cabinet TOP PREVIOUS NEXT 20.3.1 Cabinet Parts Location 20.3.2 Cabinet Parts List TOP PREVIOUS NEXT...
Page 144: Cabinet Parts Location
20.3.1 Cabinet Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
Page 148: Cabinet Parts List
20.3.2 Cabinet Parts List TOP PREVIOUS NEXT Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS REEX0202 10P FFC BLOCK REEX0204 19P FFC (CU TO MAIN) REEX0210 17P FFC REEX0211 14P FFC WIRE REEX0212 14P FFC WIRE REEX0215 30P FFC RGBX0011-S...
Page 149 XTB3+20JFZ SCREW XTBS26+10J SCREW XTBS3+8JFZ1 SCREW XTW3+12T SCREW XTW3+15T SCREW TOP PREVIOUS NEXT...
Page 153: Electrical Parts List
20.4 Electrical Parts List TOP PREVIOUS NEXT Ref. No. Part No. Part Name & Description Remarks PRINTED CIRCUIT BOARD REPX0192D CD SERVO P.C.B. [M](RTL) REPX0325C MAIN P.C.B. [M](RTL)GC REPX0325D MAIN P.C.B. [M](RTL)GN REPX0326D PANEL P.C.B. [M](RTL)GC REPX0326C PANEL P.C.B. [M](RTL)GN REPX0326D TACT SWITCH P.C.B.
Page 154 Q101 2SC2058SPTA TRANSISTOR Q106 KRA102MTA TRANSISTOR Q201 KTC3875GRTA TRANSISTOR Q202 KTD1304TA TRANSISTOR Q203 KTD1304TA TRANSISTOR Q204 KTC3875GRTA TRANSISTOR Q205 KTC3875GRTA TRANSISTOR Q207 KTD1304TA TRANSISTOR Q211 KTC3875GRTA TRANSISTOR Q301 KRA102STA TRANSISTOR Q302 KTC3875GRTA TRANSISTOR Q308 KTA12710YTA TRANSISTOR Q309 KTC3199GRTA TRANSISTOR Q310 KRA110MTA TRANSISTOR Q320...
Page 155 Q615 KTA12710YTA TRANSISTOR Q701 B1ADCF000001 TRANSISTOR Q950 KTC3205YTA TRANSISTOR Q951 2SB0621AHA TRANSISTOR [M]GN Q951 2SB621ARSTA TRANSISTOR [M]GC Q952 KRC102MTA TRANSISTOR Q953 B1AAGC000006 TRANSISTOR Q954 B1AAGC000007 TRANSISTOR [M]GC Q1001 KTC3875GRTA TRANSISTOR Q1003 B1AAGC000006 TRANSISTOR Q1004 B1AAGC000006 TRANSISTOR Q1005 B1AAGC000006 TRANSISTOR Q1007 KTC3875GRTA TRANSISTOR Q1012...
Page 156 D506 1T3T DIODE D507 1T3T DIODE D508 B0BA5R600016 DIODE D509 B0BA9R600002 DIODE D513 B0AACK000004 DIODE D600 B3AAA0000583 DIODE D605 B0AACK000004 DIODE D609 B3AAA0000583 DIODE D610 MA2C72300F DIODE D611 1SS380TE-17 DIODE D612 1SS380TE-17 DIODE D613 B0BA5R600016 DIODE D614 B0AACK000004 DIODE D615 B0AACK000004 DIODE D616...
Page 157 S605 EVQ21405RJ SW REC S606 EVQ21405RJ SW OPEN/CLOSE S607 EVQ21405RJ SW CD 1 S608 EVQ21405RJ SW CD 2 S609 EVQ21405RJ SW CD 3 S610 EVQ21405RJ SW CD 4 S611 EVQ21405RJ SW CD 5 S701 RSH1A043-U SW RESET S901 EVQ21405RJ SW REW S902 EVQ21405RJ SW TUNER...
Page 158 CN971 K1MN10B00104 10P FFC CONNECTOR CN1001 K1MN14B00058 14P FFC CONNECTOR CP600 K1MN10B00104 10P FFC CONNECTOR CP601 RJS1A9417 P1.25 FFC CONNECTOR CP602 K1MN30A00046 30P CONNECTOR CP900 RJU066H08 8P B-B SOCKET CS1001 RJS1A6805-J CONNECTOR CS1002 RJS1A6805-J CONNECTOR COILS & TRANSFORMERS RLQZP1R2JT-Y RF CHOKE COIL G0CR47KA0029 RF CHOKE COIL L102...
Page 159 X103 H0H720400005 CRYSTAL X601 RSXZ4M19B01T CERAMIC OSCILLATOR X602 H0A327200073 CERAMIC OSCILLATOR X701 RSXZ16M9M01T CERAMIC OSCILLATOR DISPLAY TUBE FL600 A2BD00000061 FL DISPLAY FUSES K5D102BK0008 FUSE [M]GN K5D252BK0007 FUSE [M]GC K5D122BK0004 FUSE [M]GC FUSE HOLDERS EYF52BC FUSE HOLDER EYF52BC FUSE HOLDER EYF52BC FUSE HOLDER [M]GC EYF52BC...
Page 160 REZ1024 3P WIRE REEX0059 PRIMARY WIRE (BROWN) [M]GC REEX0060 PRIMARY WIRE (BLACK) [M]GC REEX0061 WIRE (ORANGE) [M]GC REEX0062 WIRE (BLUE) [M]GC REEX0255 WIRE (PURPLE) [M]GC W600 REXX0324 9P [2MM] FLAT WIRE W950 REXX0325 9P [2.5MM] FLAT WIRE W1002 RWJ0102050KR MOTOR WIRE RESISTORS ERDS2TJ102T 1K 1/4W...
Page 161 R129 ERJ3GEYJ273V 27K 1/16W R130 ERJ3GEYJ103V 10K 1/16W R131 ERJ3GEYJ121V 120 1/16W R132 ERJ3GEYJ103V 10K 1/16W R133 ERJ3GEYJ102V 1K 1/16W R134 ERJ3GEYJ471V 470 1/16W R135 ERJ3GEYJ102V 1K 1/16W R136 ERJ3GEYJ102V 1K 1/16W R137 ERJ3GEYJ102V 1K 1/16W R138 ERJ3GEYJ332V 3.3K 1/16W R141 ERJ3GEYJ682V 6.8K 1/16W...
Page 162 R233 ERJ3GEYJ472V 4.7K 1/16W R234 ERJ3GEYJ104V 100K 1/16W R235 ERJ3GEYJ152V 1.5K 1/16W R236 ERJ3GEYJ183V 18K 1/16W R237 ERJ3GEYJ183V 18K 1/16W R238 ERJ3GEYJ224V 220K 1/16W R239 ERJ3GEYJ103V 10K 1/16W R240 ERJ3GEYJ472V 4.7K 1/16W R241 ERJ3GEYJ123V 12K 1/16W R242 ERJ3GEYJ103V 10K 1/16W R243 ERJ3GEYJ272V 2.7K 1/16W...
Page 163 R321 ERJ3GEYJ104V 100K 1/16W R322 ERJ3GEYJ101V 100 1/16W R323 ERJ3GEYJ104V 100K 1/16W R324 ERJ3GEYJ101V 100 1/16W R325 ERJ3GEYJ104V 100K 1/16W R326 ERJ3GEYJ472V 4.7K 1/16W R327 ERJ3GEYJ103V 10K 1/16W R328 ERJ3GEYJ562V 5.6K 1/16W R329 ERJ3GEYJ562V 5.6K 1/16W R330 ERJ3GEYJ562V 5.6K 1/16W R331 ERJ3GEYJ562V 5.6K 1/16W...
Page 164 R416 ERJ3GEYJ104V 100K 1/16W R417 ERJ3GEYJ822V 8.2K 1/16W R418 ERJ3GEYJ563V 56K 1/16W R419 ERJ3GEYJ152V 1.5K 1/16W R420 ERJ3GEYJ392V 3.9K 1/16W R421 ERJ3GEYJ473V 47K 1/16W R422 ERJ3GEYJ821V 820 1/16W R423 ERJ3GEYJ272V 2.7K 1/16W R424 ERJ3GEYJ472V 4.7K 1/16W R425 ERJ3GEYJ473V 47K 1/16W R426 ERJ3GEYJ332V 3.3K 1/16W...
Page 165 R503 ERDS2TJ123T 12K 1/4W R504 ERDS2TJ473T 47K 1/4W R505 ERDS2TJ473T 47K 1/4W R506 ERDS2TJ104T 100K 1/4W R507 ERDS1FVJ331T 330 1/2W R508 ERDS1FVJ331T 330 1/2W R509 ERDS1FVJ331T 330 1/2W R510 ERDS2TJ272T 2.7K 1/4W R511 ERDS2TJ561T 560 1/4W R512 ERDS2TJ272T 2.7K 1/4W R513 ERDS2TJ332T 3.3K 1/4W...
Page 166 R619 ERDS2TJ472T 4.7K 1/4W R622 ERDS2TJ472T 4.7K 1/4W R623 ERDS2TJ472T 4.7K 1/4W R626 ERDS2TJ102T 1K 1/4W R627 ERDS2TJ223T 22K 1/4W R628 ERDS2TJ101T 100 1/4W R629 ERDS2TJ101T 100 1/4W R630 ERDS2TJ681T 680 1/4W R631 ERDS2TJ473T 47K 1/4W R632 ERDS2TJ103T 10K 1/4W R633 ERDS2TJ101T 100 1/4W...
Page 167 R675 ERDS2TJ472T 4.7K 1/4W R680 ERDS2TJ104T 100K 1/4W R681 ERDS2TJ103T 10K 1/4W R687 ERDS2TJ122T 1.2K 1/4W R688 ERDS2TJ2R7T 2.7 1/4W R689 ERDS2TJ223T 22K 1/4W R691 ERDS2TJ102T 1K 1/4W R692 ERDS2TJ2R7T 2.7 1/4W R693 ERDS2TJ223T 22K 1/4W R698 ERDS2TJ102T 1K 1/4W R699 ERDS2TJ102T 1K 1/4W...
Page 168 R909 ERDS2TJ103T 10K 1/4W R910 ERDS2TJ223T 22K 1/4W R911 ERDS2TJ104T 100K 1/4W R912 ERDS2TJ473T 47K 1/4W R913 ERDS2TJ473T 47K 1/4W R914 ERDS2TJ563T 56K 1/4W R915 ERDS2TJ470T 47 1/4W R916 ERDS2TJ104T 100K 1/4W R917 ERDS2TJ563T 56K 1/4W R918 ERDS2TJ470T 47 1/4W R919 ERDS2TJ103T 10K 1/4W...
Page 169 R1028 ERJ3GEYJ822V 8.2K 1/16W R1029 ERJ3GEYJ475V 4.7M 1/16W R1030 ERJ3GEYJ101V 100 1/16W R1031 ERJ3GEYJ273V 27K 1/16W R1032 ERJ3GEYJ103V 10K 1/16W R1035 ERJ3GEYJ103V 10K 1/16W R1038 ERJ3GEYJ472V 4.7K 1/16W R1039 ERJ3GEYJ153V 15K 1/16W R1040 ERJ3GEY0R00V 0 1/16W R1045 ERJ3GEYJ104V 100K 1/16W R1046 ERJ3GEYJ104V 100K 1/16W...
Page 170 F1D1H4R7A017 4.7P 50V F1D1H3R3A017 3.3P 50V F1D1H2R2A017 2.2P 50V ECBT1H180JC5 18P 50V F1D1H102A029 1000P 50V C101 ECJ1VB1E103K 0.01 25V C102 ECA1CAK100XB 10 16V C103 ECJ1VB1E103K 0.01 25V C104 ECJ1VB1H102K 1000P 50V C106 ECJ1VB1E103K 0.01 25V C107 ECUV1E473ZFV 0.047 25V C108 ECUV1H080DCV 8P 50V C109...
Page 171 C202 ECJ1VC1H101K 100P 50V C203 ECJ1VB1H102K 1000P 50V C204 ECUV1H221KBV 220P 50V C205 ECUV1H221KBV 220P 50V C206 ECA1CAK100XB 10 16V C207 ECA1CAK100XB 10 16V C208 ECA1CAK100XB 10 16V C209 ECA1CAK100XB 10 16V C211 ECA1CAK100XB 10 16V C212 ECA1CAK100XB 10 16V C213 ECA1HAKR47XB 0.47 50V C214...
Page 172 C309 ECEA1HKN4R7B 4.7 50V C310 ECA0JAK101XB 100 6.3V C311 ECA0JAK101XB 100 6.3V C312 ECJ1VB1E103K 0.01 25V C313 ECJ1VB1E103K 0.01 25V C315 ECA1AAK330XB 33 10V C316 ECJ1VB1E103K 0.01 25V C317 ECJ1VB1H102K 1000P 50V C318 ECA1CAK330XB 33 16V C319 ECA1CAK330XB 33 16V C320 ECJ1VB1H102K 1000P 50V...
Page 173 C431 ECJ1VB1H821K 820 50V C432 ECUV1H822KBV 8200P 50V C433 ECUV1H822KBV 8200P 50V C434 ECA1HAK010XB 1 50V C435 ECA1HAKR68XB 0.68 50V C440 ECJ1VB1H102K 1000P 50V C440 F1D1H821A012 820P 50V C441 ECBT1H150JC5 15P 50V C442 F1D1H821A012 820P 50V C443 ECBT1H150JC5 15P 50V C444 F1D1H473A012 0.047 50V...
Page 174 C620 F1D1E223A001 0.022 25V C621 F1D1E223A001 0.022 25V C634 F1D1H101A012 100P 50V C635 F1D1H101A012 100P 50V C636 F1D1H1040002 0.1 50V C637 F1D1E103A001 0.01 25V C638 F1D1H102A012 1000P 50V C639 ECA0JAK470XB 47 6.3V C640 ECA1HAK3R3XB 3.3 50V C641 ECEA1VKA220B 22 35V C642 ECEA1VKA220B 22 35V...
Page 175 C728 ECA1HAK010XI 1 50V C730 ECUV1C104ZFV 0.1 16V C731 ECEA0JKA221I 220 6.3V C732 ECEA0JKA221I 220 6.3V C733 ECUV1C104KBV 0.1 16V C734 ECEA1AKA221I 220 10V C735 ECUVNE104ZFN 0.1 25V C736 ECUV1C104ZFV 0.1 16V C737 ECUV1C104ZFV 0.1 16V C738 ECJ2VB1H103K 0.01 50V C739 ECUV1H152KBV 1500P 50V...
Page 176 C1014 ECJ1VB1H102K 1000P 50V C1015 ECJ1VB1H102K 1000P 50V C1016 ECUV1H222KBV 2200P 50V C1017 ECUV1H222KBV 2200P 50V C1018 ECUV1H103KBV 0.01 50V C1019 ECJ1VB1H102K 1000P 50V C1020 ECUV1H471KBV 470P 50V C1021 ECUV1H471KBV 470P 50V C1022 ECJ1VB1H102K 1000P 50V C1023 ECJ1VB1H102K 1000P 50V C1026 ECA0JAK470XB 47 6.3V...
Page 177 RJ721 ERJ3GEY0R00V 0 1/16W RJ722 ERJ3GEY0R00V 0 1/16W RJ723 ERJ3GEY0R00V 0 1/16W RJ724 ERJ3GEY0R00V 0 1/16W RJ725 ERJ3GEY0R00V 0 1/16W RJ726 ERJ3GEY0R00V 0 1/16W RJ727 ERJ3GEY0R00V 0 1/16W RJ728 ERJ3GEY0R00V 0 1/16W RJ729 ERJ3GEY0R00V 0 1/16W RJ730 ERJ3GEY0R00V 0 1/16W RJ731 ERJ3GEY0R00V 0 1/16W...
Page 178 20.5 Packing Materials& Accessories Parts List TOP PREVIOUS NEXT Ref. No. Part No. Part Name & Description Remarks PACKING MATERIALS RPGX1092 PACKING CASE [M]GC RPGX1093 PACKING CASE [M]GN RPNX0158-J POLYFOAM RPFX0059 MIRAMAT BAG ACCESSORIES N2QAGB000029 REMOTE CONTROL A1-1 RKK-HTR0283 R/C BATTERY COVER RJA0019-2K AC CORD (SF) [M]GC...
Page 179 20.6 Packaging TOP PREVIOUS TOP PREVIOUS...
Page 180 20.5 Packing Materials& Accessories Parts List TOP PREVIOUS NEXT Ref. No. Part No. Part Name & Description Remarks PACKING MATERIALS RPGX1092 PACKING CASE [M]GC RPGX1093 PACKING CASE [M]GN RPNX0158-J POLYFOAM RPFX0059 MIRAMAT BAG ACCESSORIES N2QAGB000029 REMOTE CONTROL A1-1 RKK-HTR0283 R/C BATTERY COVER RJA0019-2K AC CORD (SF) [M]GC...
Page 182 20.6 Packaging TOP PREVIOUS TOP PREVIOUS...
Page 184 20.6 Packaging TOP PREVIOUS TOP PREVIOUS...
