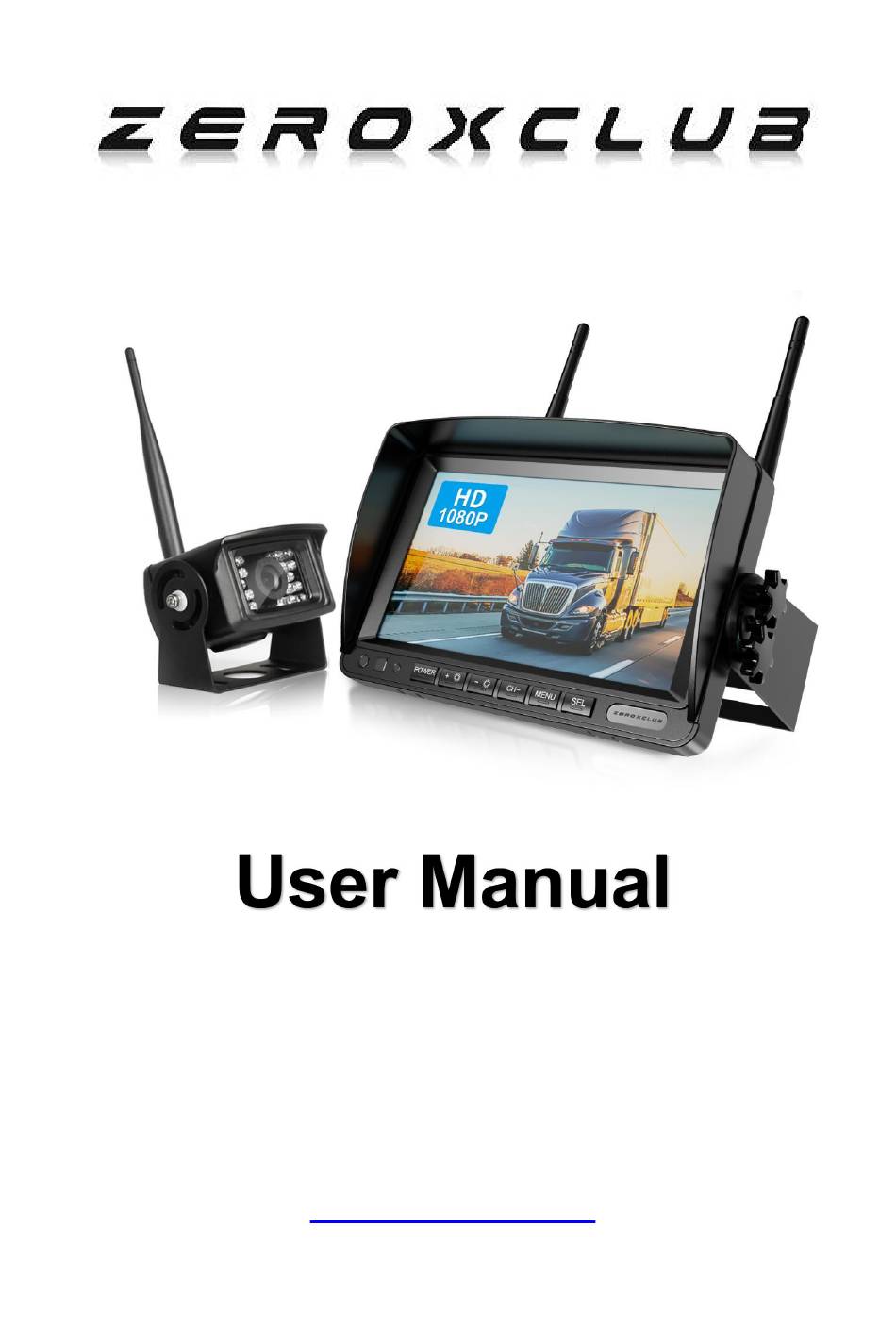

- Page 1 ZEROXCLUB Instructions Manual Wireless Backup Camera System Model: SW01-M Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com Visit our website：https://www.uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ............... 1 SYSTEM TEST GUIDE ................ 2 WARRANTY ..................2 BEFORE USING ................... 2 WHAT IS IN THE BOX ................. 3 SPECIFICATIONS ................3 INSTALL GUIDE ................... 4 Safety Precautions ................4 Installation Steps ...................4... -
Page 3: System Test Guide
Note: Permanent installation should only proceed after successful testing. WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. -
Page 4: What Is In The Box
ZEROXCLUB Instructions Manual sales@uszeroxclub.com. It would be better if you write down the order number from Amazon, include pictures of the damaged or missing part in your email, so that we can handle the problem much more quickly. WHAT IS IN THE BOX... -
Page 5: Install Guide
ZEROXCLUB Instructions Manual Camera Image Sensor CMOS Effective Pixels 1920 x 1080 Waterproof Rating IP69K Power Consumption 250mA (IR ON) (@DC 12V) >10mA (IR OFF) Operating Temperature -4°F~ 158°F Compatible Display System-equipped display Camera Dimensions 2.95(L) x 1.85(H) x 2.36(D) in Wireless Frequency 2.4G... -
Page 6: Step 2: Power The Camera
ZEROXCLUB Instructions Manual brackets/screws. Adjust the camera angle. *Recommend to test system with temporary mounting and wiring before final installation. Install the Rear Cameras 1 Begin by marking the desired 2 Then install the bracket with 3 Align the bracket, position the... -
Page 7: Step 4: Power The Monitor
ZEROXCLUB Instructions Manual 2. Installing the antenna vertically, then position the unit on your windshield or dashboard in a location that provides clear viewing without compromising driving visibility or safety. 3. Adjust the bracket to obtain the best viewing angle. -
Page 8: Monitor Buttons And Icons
ZEROXCLUB Instructions Manual road centered (minimize sky/ground). OPERATING INSTRUCTION Monitor Buttons and Icons It means the strength of the signal between the camera and the monitor. ① CAM 1/2/3/4: The channel number is shown on the top left of the screen. -
Page 9: Change Menu Settings
ZEROXCLUB Instructions Manual screen. ⑩ MENU Press to show menu or return to the previous menu. ⑪ SEL A Confirm/Recording button. Press to star/stop recording. Or press this button to confirm. ⑫ Cord Monitor Harness Connector The icon will shown in the top of the screen while recording video. If there is a problem with the recording, please try to format the memory card. -
Page 10: Pairing Procedure
ZEROXCLUB Instructions Manual Pairing Procedure a. The cameras are factory-paired for QC testing. b. If you cannot see video from a camera on your monitor ("NO SIGNAL" appears), or if you're adding an extra camera, please follow these pairing steps. -
Page 11: Picture Settings
ZEROXCLUB Instructions Manual PICTURE Settings Change the BRIGHTNESS, CONTRAST or HUE setting. to highlight the BRIGHTNESS or CONTRAST or HUE Icon red, then press to change the setting. Press △☼/▽☼ confirm your selection or press MENU to return to the previous page. -
Page 12: P-Line Settings
ZEROXCLUB Instructions Manual P-LINE Settings Turn on/off the parking guidelines. Press MENU→ Go into CAM-SETUP→ Press to highlight the P-LINE icon red→ Press to ON or OFF→ Press △☼/▽☼ confirm your selection or press MENU to return to the previous page. -
Page 13: Play Settings
ZEROXCLUB Instructions Manual △ ☼ ▽ ☼ REWRITE or FORMAT icon red→ Press to ON or MENU OFF→ Press to confirm your selection or press return to the previous page. It will automatically overwrite the previous videos when the REWRITE memory card is full. -
Page 14: Troubleshooting
ZEROXCLUB Instructions Manual The content displayed on the screen is the content recorded by the system. TROUBLESHOOTING Camera Pairing Issues 1) Ensure the camera is receiving power. 2) Verify all wiring connections are secure and properly attached. Loose or incorrect wiring may cause image transmission issues. - Page 15 ZEROXCLUB Instructions Manual 1) Remove the protective film from the camera lens upon completion of installation. 2) The camera lens may be dirty. Wipe them with a piece of soft and clean cloth. 3) Please contact our customer service email: sales2@uszeroxclub.com...
-
Page 16: Faqs
ZEROXCLUB Instructions Manual Still having issues? Contact support with a photo/video of the problem、your order number and lighting conditions when the issue occurs. If you have any questions not mentioned above, just feel free to email us at sales@uszeroxclub.com. We're always there for you! - Page 17 ZEROXCLUB Instructions Manual positive side and negative side. Please read the installation guide carefully before installation. 2) The voltage and current are too high. How to start recording a video? Press the MODE button in the non-menu panel. To verify if your camera unit is receiving power, cover...
