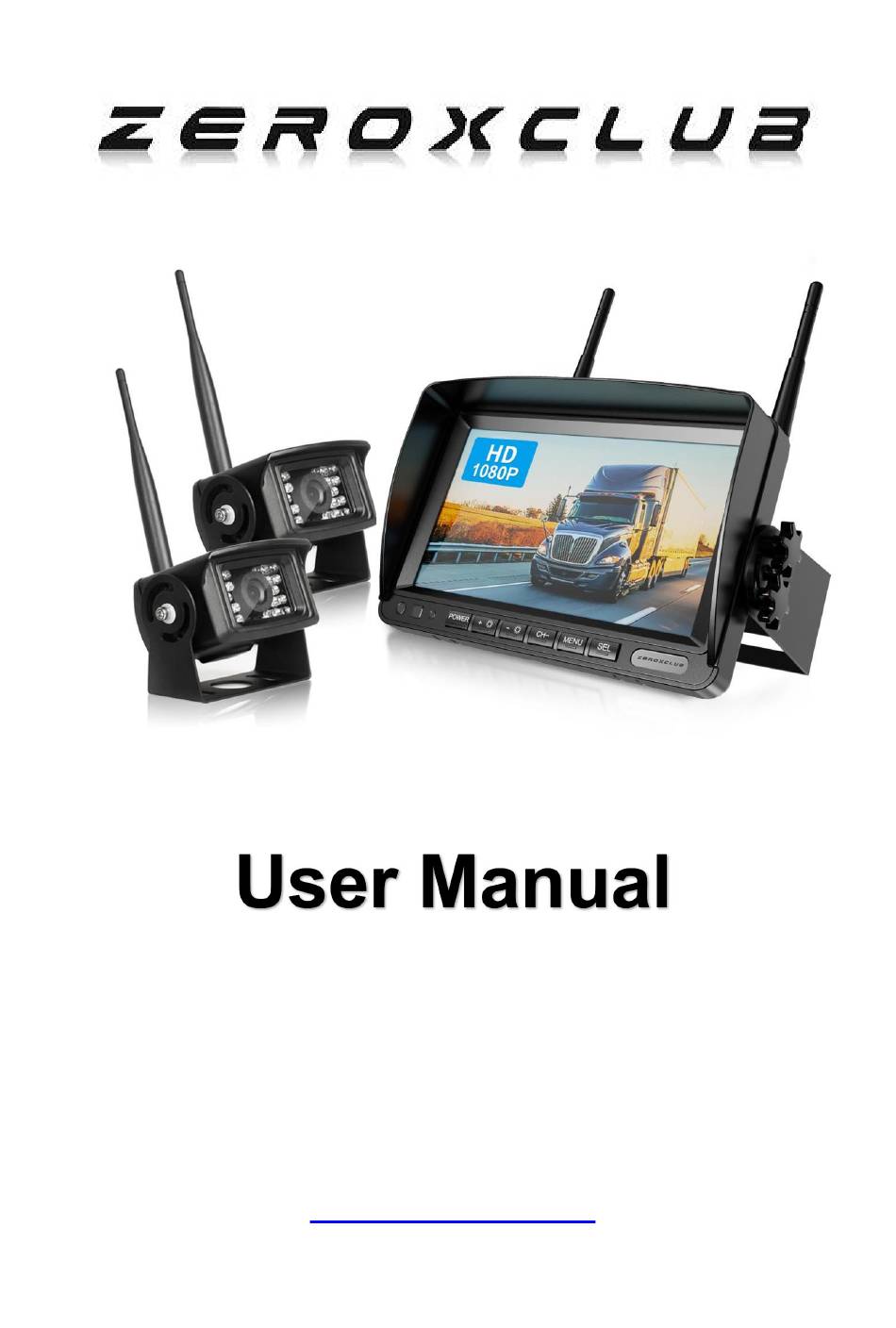

- Page 1 ZEROXCLUB Instructions Manual Wireless Backup Camera System Model: HW02-M/SW02-M Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com Visit our website：https://www.uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ............... 1 SYSTEM TEST GUIDE ................ 2 WARRANTY ..................2 BEFORE USING ................... 2 WHAT IS IN THE BOX ................. 2 SPECIFICATIONS ................2 INSTALL GUIDE ................... 3 Safety Precautions ................3 Installation Steps ...................4... -
Page 3: Table Of Contents
Note: Permanent installation should only proceed after successful testing. WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. -
Page 4: Before Using
ZEROXCLUB Instructions Manual WHAT IS IN THE BOX Monitor x1 Suction Cup Mount Camera x2 Antenna x4 Upgrade Bracket Car Charger Installation Kit DC Power Pigtails U-shaped Bracket Sunshade Cable x3 Memory Card Cover BEFORE USING Make sure your package includes the following listed items completely. -
Page 5: Install Guide
ZEROXCLUB Instructions Manual Monitor Display 7’’ LCD monitor Connector Type DC female connector Working Current DC12V 0.6~0.8A Item Weight 0.64 pounds Monitor Dimensions 7.1(L) x 4.33(H) x 1(D) in Camera Image Sensor CMOS Effective Pixels 1920 x 1080 Waterproof Rating... -
Page 6: Installation Steps
ZEROXCLUB Instructions Manual Installation Steps Step 1: Mount the Camera Choose a location: Choose a location close to the reversing lights/running lights so you can easily splice the power and ground connections or where you want to install. Secure the camera using included brackets/screws. -
Page 7: Step 3: Install The Monitor
ZEROXCLUB Instructions Manual Use Power Cord Step 3: Install the Monitor 1. Begin by assembling the monitor to its mounting bracket 2. Installing the antenna vertically, then position the unit on your windshield or dashboard in a location that provides clear viewing without compromising driving visibility or safety. -
Page 8: Step 5: Test & Adjust
ZEROXCLUB Instructions Manual Use Car Charger Use Power Cord Step 5: Test & Adjust Activate the cameras. Adjust angles to show clear rear view. Keep the road centered (minimize sky/ground). OPERATING INSTRUCTION Monitor Buttons and Icons It means the strength of the signal between the camera and the monitor. -
Page 9: Change Menu Settings
ZEROXCLUB Instructions Manual ● A Function Decrease button. Select backward in menu operation. ⑧ ▽☼ ●While viewing the non-menu panel, press the button once to ▽☼ display guidelines and activate H adjustment mode, pressing △☼ multiple times moves guidelines up/down; press twice to switch to Width (W) mode for adjusting guideline spacing with presses;... -
Page 10: Pairing Settings
ZEROXCLUB Instructions Manual NOTICE In split screen mode, the menu cannot be accessed, please press to switch to single screen first. PAIRING Settings Pairing Procedure a. The cameras are factory-paired for QC testing. b. If you cannot see video from a camera on your monitor ("NO SIGNAL"... -
Page 11: Picture Settings
ZEROXCLUB Instructions Manual (4) Signal Loss Recovery: If the screen displays "NO SIGNAL", re-pair the affected camera. (5) Pair one camera at a time. Repeat the full process for each additional camera. PICTURE Settings Change the BRIGHTNESS, CONTRAST or HUE setting. -
Page 12: P-Line Settings
ZEROXCLUB Instructions Manual your selection or press MENU to return to the previous page. P-LINE Settings Turn on/off the parking guidelines. Press MENU→ Go into CAM-SETUP→ Press to highlight the P-LINE icon red→ Press to ON or OFF→ Press △☼/▽☼... -
Page 13: Record Settings
ZEROXCLUB Instructions Manual RECORD Settings Memory card settings: REWRITE, FORMAT. Press MENU→Go into RECORD→ Press to highlight the REWRITE or FORMAT icon red→ Press △ ☼ ▽ ☼ to ON or MENU OFF→ Press to confirm your selection or press return to the previous page. -
Page 14: Troubleshooting
ZEROXCLUB Instructions Manual The screen cannot be played back while the system is recording, if you want to play back, please press the SEL to stop recording first. Re-start recording the second file when you switch channels. The content displayed on the screen is the content recorded by the system. - Page 15 ZEROXCLUB Instructions Manual 5) Perform manual pairing (refer to user manual). 6) We have the 10ft antenna extension cable, if you need it, please contact our customer service email: sales2@uszeroxclub.com with your Amazon order ID. Blurry images on the monitor 1) Remove the protective film from the camera lens upon completion of installation.
-
Page 16: Faqs
ZEROXCLUB Instructions Manual 3) Polarized Sunglasses Incompatibility. Remove polarized sunglasses when viewing the monitor. 4) Additional Checks: Ensure the camera lens is clean (dirt can affect exposure) or Test in different lighting conditions to isolate the issue. Still having issues? Contact support with a photo/video of the problem、your order number and lighting conditions when the issue occurs. - Page 17 ZEROXCLUB Instructions Manual reversed and cause a short circuit. Check if the polarity on your vehicle body itself is reversed. Make sure the camera's positive side and negative side to coincide with the vehicle body's positive side and negative side. Please read the installation guide carefully before installation.
