INSTRUCTION MANUAL
BUILT-IN OVEN
SFPA6300X
smeg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFPA6300X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Smeg SFPA6300X

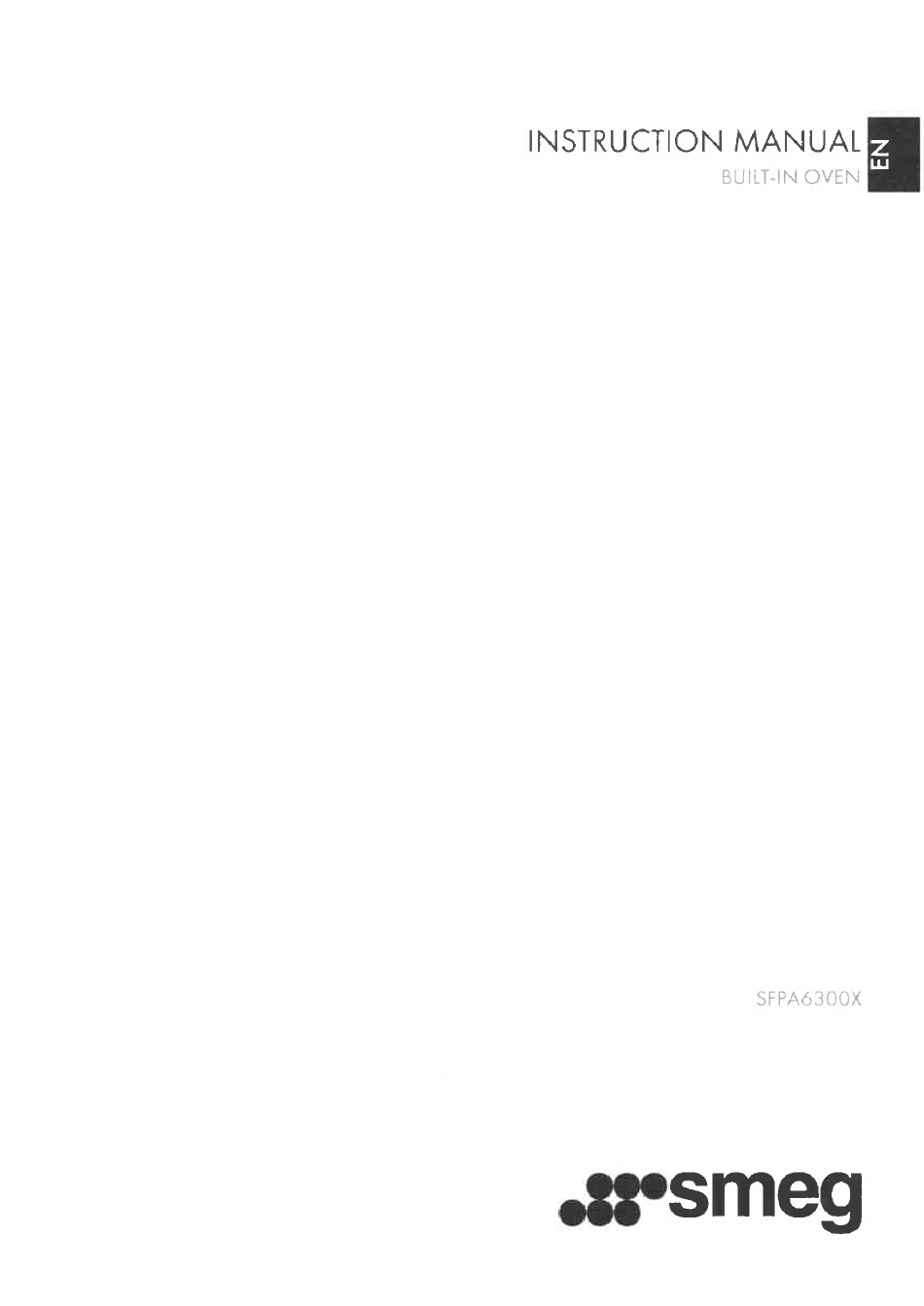

  • Page 1 INSTRUCTION MANUAL BUILT-IN OVEN SFPA6300X smeg...
  • Page 2 --------------------------------------------------------------------------------------------------------------------------- ENGLISH -------- Dear customer, we would like to thank you for your confidence in us. By choosing our product, you have opted for solutions where research for beauty meets innovative technical design to provide unique pieces of furniture. We hope you get the most out of your household appliance. Kindest regards.
  • Page 3: Table Of Contents

    4.5 Extraordinary maintenance 5 Installation 5.1 Electrical connection 5.2 Positioning ORIGINAL INSTRUCTIONS We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com...
  • Page 4: Instructions

    Instructions 1 Instructions • Do not allow children younger than 8 years old to come near the 1.1 General safety instructions appliance when in operation. • The appliance must never be Risk of personal injury cleaned by unsupervised children. • During use the appliance and its •...
  • Page 5 Instructions • DO NOT SPRAY AEROSOLS IN Risk of damaging the appliance THE VICINITY OF THIS • Do not use abrasive or corrosive APPLIANCE WHILE IT IS IN detergents (e.g. scouring OPERATION. powders, stain removers and • Switch the appliance off metallic sponges) on glass parts.
  • Page 6 Instructions • Do not place pans or trays • When positioning the appliance directly on the bottom of the oven during installation, do not use the cavity. door handle to lift up or move this appliance. • If you wish to use greaseproof paper, place it so that it will not •...
  • Page 7: Appliance Purpose

    Instructions For this appliance 1.4 Manufacturer liability The manufacturer declines all liability • Ensure that the appliance is for damage to persons or property switched off before replacing the caused by: bulb. • use of the appliance other than • Do not rest any weight or sit on the the one envisaged;...
  • Page 8: Disposal

    Instructions 1.7 Disposal 1.8 How to read the user manual This user manual uses the following reading To dispose of the appliance: conventions: • Cut the power supply cable and remove it along with the plug. Instructions General information on this user Power voltage manual, on safety and final Danger of electrocution...
  • Page 9: Description

    Description 2 Description 2.1 General Description 1 Control panel 5 Fan 2 Oven light 6 Rack/tray support frames 3 Seal Frame shelf 4 Door...
  • Page 10: Control Panel

    2.2 Control panel 1 Temperature knob 2.3 Other parts This knob allows you to select the cooking Shelves temperature. The appliance features shelves for Turn the knob clockwise to the required positioning trays and racks at different value, between the minimum and maximum heights.
  • Page 11: Available Accessories

    Interior lighting Rack The appliance’s interior lighting comes on: • When the door is opened. • When any function is selected, apart from the ECO and Pyrolytic functions. When the door is open, it is not possible to turn off the interior lighting.
  • Page 12: Use

    3 Use Improper use Risk of damage to enamelled 3.1 Instructions surfaces High temperature inside the oven • Do not cover the bottom of the oven during use cavity with aluminium or tin foil sheets. Danger of burns • If you wish to use greaseproof paper, place it so that it will not interfere with the •...
  • Page 13: Using The Accessories

    3.3 Using the accessories Tray rack The tray rack has to be inserted into the tray. Racks and trays In this way, fat can be collected separately Racks and trays have to be inserted into the from the food that is being cooked. side guides until they come to a complete stop.
  • Page 14 Functions list ECO (Energy-saving cooking) Static grill This low energy consumption The heat coming from the grill element gives perfect grilling results function is particularly suitable for above all for thin and medium thickness cooking on a single shelf. meat and in combination with the Ideal when cooking meat, fish and rotisserie (where fitted) gives the food vegetables.
  • Page 15: Cooking Advice

    3.5 Cooking advice General advice Fan forced The combination of the fan and the • Use a fan assisted function to achieve circular heating element consistent cooking at several levels. (incorporated in the rear of the oven) • It is not possible to shorten cooking times allows you to cook different foods on by increasing the temperature (the food several levels, as long as they need...
  • Page 16 Advice for cooking desserts/pastries and To save energy biscuits • Stop cooking a few minutes before the • Use dark metal moulds: They help to time normally used. Cooking will absorb the heat better. continue for the remaining minutes with the heat which has accumulated inside •...
  • Page 17: Touch" Programmer Clock

    3.6 “Touch” Programmer clock Setting the time If the time is not set, the oven will not switch on. On the first use, or after a power failure, the digits will be flashing on the appliance’s display. 1. Hold down the clock key for two seconds.
  • Page 18 Timed cooking At the end of cooking the heating elements will be deactivated. On the display, the Timed cooking is the function symbol turns off, the symbol which allows a cooking operation flashes and the buzzer sounds. to be started and then ended after 5.
  • Page 19 Programmed cooking 7. Wait approx. 7 seconds without pressing any key in order for the function to Programmed cooking is the activate. The current time will appear on function which allows a cooking the display, and the symbols operation to be started at a set time and then ended after a will turn off while the indicator...
  • Page 20 Modifying the set data Minute minder timer 1. Press the clock key The minute minder timer does not stop the cooking operation but 2. Use the value increase and value rather informs the user when the set time has run out. decrease keys to set the number of minutes required.
  • Page 21 Cooking information table Weight Temperature Time Food Function Shelf (minutes) (Kg) (°C) Lasagne 3 - 4 Convection 220 - 230 45 - 50 Pasta bake 3 - 4 Convection 220 - 230 45 - 50 Roast veal Supercook/Fan Assisted 180 - 190 90 - 100 Pork Supercook/Fan Assisted...
  • Page 22: Cleaning And Maintenance

    Cleaning and maintenance 4 Cleaning and maintenance Ordinary daily cleaning Always use only specific products that do 4.1 Instructions not contain abrasives or chlorine-based acids. Improper use Pour the product onto a damp cloth and Risk of damage to surfaces wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.
  • Page 23: Cleaning The Door

    Cleaning and maintenance 4.3 Cleaning the door 3. To reassemble the door, put the hinges in the relevant slots in the oven, making sure Removing the door that grooved sections A are resting completely in the slots. Lower the door For easier cleaning, the door can be and once it is in place remove the pins removed and placed on a canvas.
  • Page 24 Cleaning and maintenance Removing the internal glass panels 4. Clean the external glass panel and the panels removed previously. Use For easier cleaning, the internal glass absorbent kitchen roll. In case of panels of the door can be removed. stubborn dirt, wash with a damp sponge 1.
  • Page 25: Cleaning The Inside Of The Oven

    Cleaning and maintenance 4.4 Cleaning the inside of the oven Removing rack/tray support frames Removing the rack/tray support frames Advice for cleaning the oven cavity enables the sides to be cleaned more In order to keep your oven in the best easily.
  • Page 26 Cleaning and maintenance Pyrolytic Setting the Pyrolytic cycle 1. Turn the function knob to the symbol The pyrolytic cycle is an automatic pyrolytic cleaning function. high-temperature cleaning procedure which causes dirt to 2. The duration of the Pyrolytic cycle will dissolve.
  • Page 27 Cleaning and maintenance 7. Return the function knob to the O Setting a programmed Pyrolytic cycle position. It is possible to program the pyrolytic cycle 8. The door remains locked as long as the start time just like any other cooking function.
  • Page 28: Extraordinary Maintenance

    Cleaning and maintenance 4.5 Extraordinary maintenance 4. Slide the lamp out and remove it. Replacing the internal light bulb Live parts Danger of electrocution • Unplug the appliance from the power supply. 1. Completely remove all accessories from inside the oven. Do not touch the halogen lamp 2.
  • Page 29: Installation

    Installation 5 Installation Fixed connection Fit the power line with an omnipolar circuit 5.1 Electrical connection breaker in compliance with installation regulations. Power voltage The circuit breaker should be located near Danger of electrocution the appliance and in an easily reachable position.
  • Page 30: Positioning

    Installation 5.2 Positioning Position of the power cable Heavy appliance Crushing hazard • Position the appliance into the cabinet cutout with the help of a second person. Pressure on the open door Risk of damage to the appliance • Never use the oven door to lever the appliance into place when fitting.
  • Page 31 Installation Fastening bushings Appliance overall dimensions (mm) 1. Remove the bushing covers inserted on the front of the appliance. 2. Mount the appliance into the recess. 3. Secure the appliance to the piece of furniture using the screws. 4. Cover the bushings using the covers that were previously removed.
  • Page 32 Installation Mounting under worktops (mm) Make sure that the piece of furniture rear/bottom part has an opening of approx. 60 mm.
  • Page 33 Installation Mounting into a column (mm) Make sure that the piece of furniture top/rear part has an opening approx. 35-40 mm deep.
  • Page 34 914777583/A...
