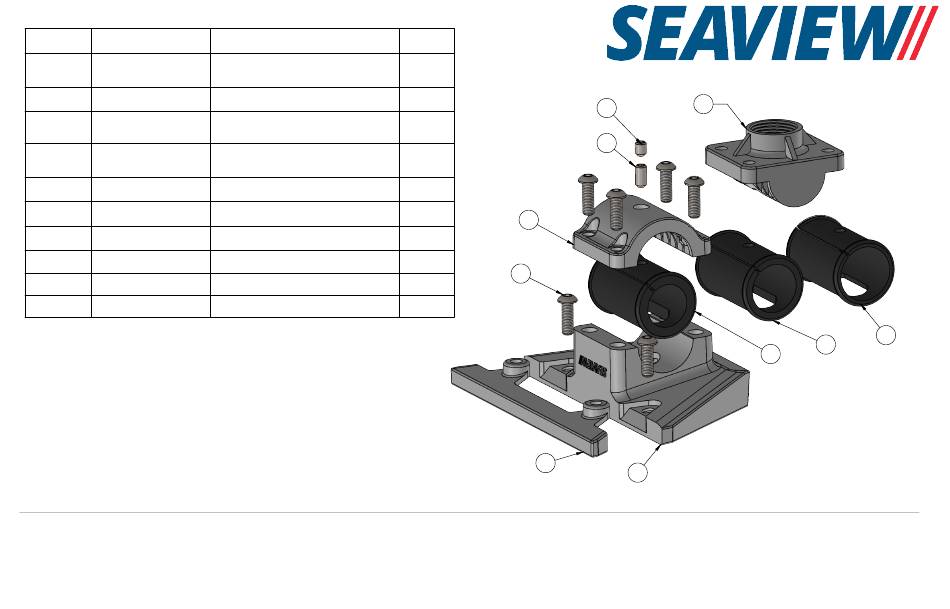

ITEM NO.
PART NUMBER
1
SVRCLMINIA
2
SVRCLMINIB
3
SVRCLMINIC
4
SVRCLMINID
5
RPODCLBSK1
6
RPODCLBSK1.125
7
RPODCLBSK1.25
8
142034BHCS
9
142012SET
10
1420SET
SVRCLMINI
*Portions of this instruction manual may have been
refined using artificial intelligence to enhance clarity and
readability*
1
DESCRIPTION
ASA STARLINK MINI ADAPTER
CLAMP
ASA CLAMP WITH SET SCREW
ASA 1"-14 THREADED CLAMP HALF
ASA ADAPTER LOCK WITH 316 SS
INSERTS
RUBBER GASKET FOR 1" RAIL
RUBBER GASKET FOR 1.125" RAIL
RUBBER GASKET FOR 1.25" RAIL
1/4"-20 X 3/4" BHCS
SET SCREW ( 1.125" & 1.25"" RAIL)
SET SCREW ( 1" RAIL)
QTY.
1
1
1
1
1
1
2
1
6
8
1
1
4
3
10
9
5
1
•
Please note that some dimensions may
not be shown (applies to all pages)
•
Do not scale drawing (applies to all pages)
•
For help e-mail info@seaviewglobal.com;
ph. 1-800-655-7922
7
6
Advertisement
Related Manuals for SeaView SVRCLMINI
Summary of Contents for SeaView SVRCLMINI
- Page 1 1/4"-20 X 3/4" BHCS 142012SET SET SCREW ( 1.125" & 1.25"" RAIL) 1420SET SET SCREW ( 1" RAIL) SVRCLMINI • Please note that some dimensions may not be shown (applies to all pages) *Portions of this instruction manual may have been •...
- Page 2 3.55in 1.62in RPODCLBSK1.25 1.22in 1/4"-20 THREAD FOR SET SCREW 2.50in 3.28in RPODCLBSK1.125 1.85in 1.09in .66in WITHOUT BUSHINGS, ID = 1.375" RPODCLBSK1 .97in SVRCLMINI For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 3 3.28in 1"-14 THREAD 1.85in .66in 2.13in SVRCLMINI For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 4 INSTALLATION INSTRUCTIONS BEGIN ON NEXT PAGE For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 5 When mounting the Starlink Mini on a rail, begin by routing the cables through Item 1 from the Bill of Materials (BOM). If mounting to a 1"-14 threaded stud, jump ahead to step 9. You may route the cables either through the center hole (Option 1) or externally by drilling through the designated dimples (Option 2).
- Page 6 If following Option 1 from the previous step, use a hole saw to drill a hole in the rail to pass the cables through. Example hole location For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 7 Use the appropriate gasket for your application, and place it on the rail. Be sure to align the opening in the gasket with the hole. For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 8 Install the clamp assembly as shown. If rail curvature makes it difficult to press the clamp halves together, temporarily using longer 1/4"-20 bolts may help reduce the gap between components Use Loctite or a similar thread-locking compound on all screws. For help e-mail info@seaviewglobal.com ph.
- Page 9 Install the shorter set screw (item 10 in BOM) when fitting to a 1.25" or 1.125" diameter rail. Use the longer set screw (item 9 in BOM) when fitting to a 1" diameter rail. Note that rail diameters may vary slightly between users.
- Page 10 Remove the kickstand from the Starlink Mini. Then, slide the Starlink Mini antenna onto item one as shown below. Apply firm pressure to ensure that antenna is fully secured and seated onto item ↑ ↑ For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 11 Install items as illustrated below. Ensure the SS locking inserts (detailed in Figure C) are fully seated in the Starlink Mini slots to securely fasten the antenna. Loctite or a comparable thread-locking compound is recommended unless the antenna will DETAIL C be removed often.
- Page 12 When operating the device underway, users should exercise caution and be aware of the risks associated with the dynamic forces and conditions encountered at sea or on a vehicle. For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 13 Users may opt to utilize item 3 from the Bill of Materials (BOM) to adapt the Starlink Mini to a 1"-14 thread. You may route the cables either through the center hole (Option 1) or externally by drilling through the designated dimples (Option 2). To avoid twisting/pinching the Starlink cable, attach item 3 to item 1 before routing cable.
- Page 14 Remove the kickstand from the Starlink Mini. Then, slide the Starlink Mini antenna onto item one as shown below. Apply firm pressure to ensure that antenna is fully secured and seated onto item ↑ ↑ For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
- Page 15 Install items as illustrated below. Ensure the SS locking inserts (detailed in Figure C) are fully seated in the Starlink Mini slots to securely fasten the antenna. Loctite or a comparable thread-locking compound is recommended unless the antenna will be removed often. DETAIL C Starlink Mini Slots SS locking inserts...
- Page 16 When operating the device underway, users should exercise caution and be aware of the risks associated with the dynamic forces and conditions encountered at sea or on a vehicle. For help e-mail info@seaviewglobal.com ph. 1-800-655-7922...
