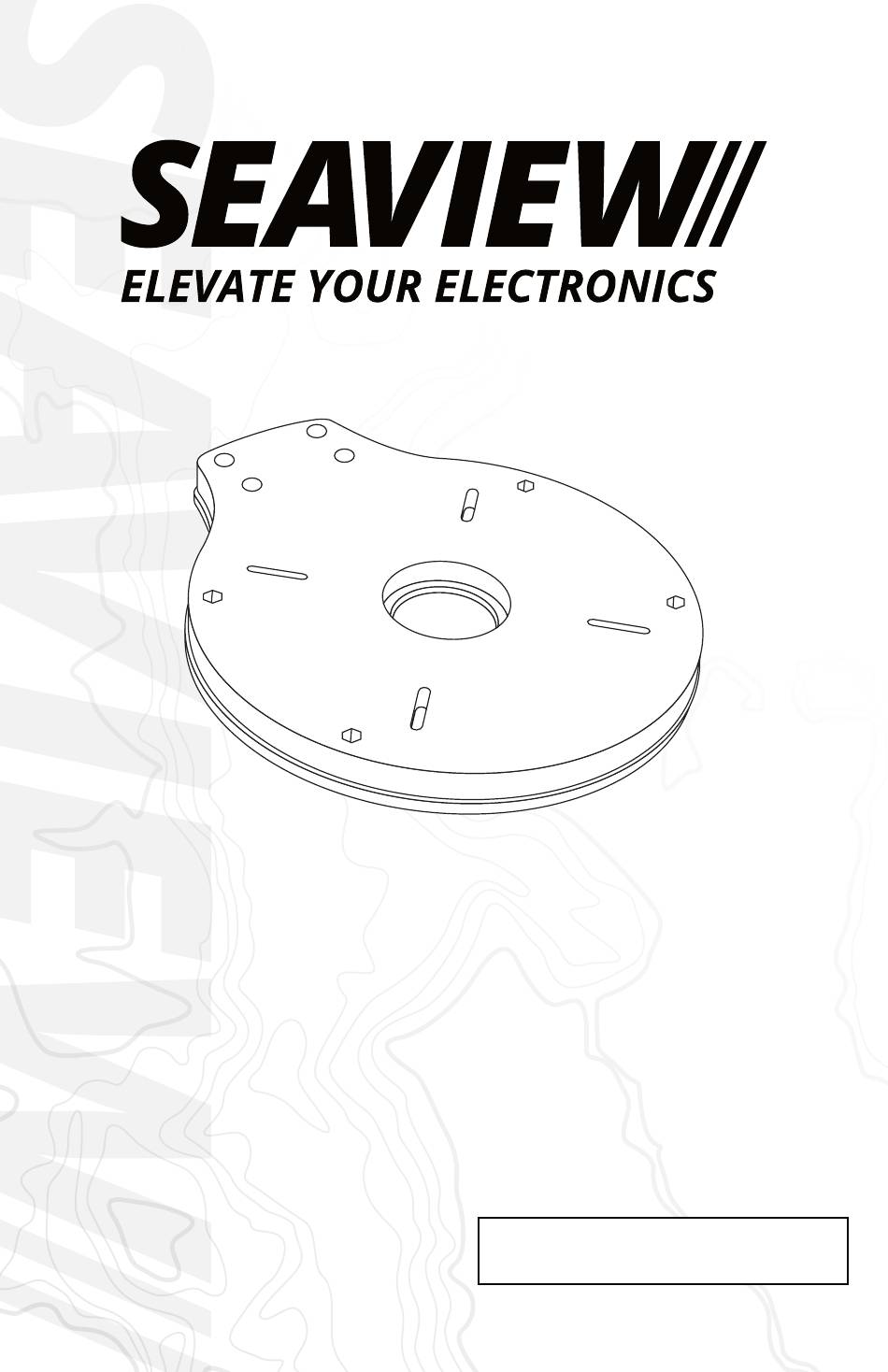

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Top Plate: ADA-S3 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED (If using a Light Bar) TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 Insert the four nuts into the adapter plate. Apply marine adhesive sealant along the lip in the center hole on the adpater plate. Route the cabling through the black rubber grommet. Be sure that the lip of the adapter plate sits into the groove on the grommet. Place the connector of the cable into a plastic bag.
- Page 4 Insert the bolts into the adapter plate as shown for your electronics. Attach the satellite dome to the adapter plate, and secure with the hardware for your electronics.
- Page 5 Attach the lower adapter plate to the Seaview mount with the eight 5/16-18 x 1” bolts and nylon washers. Apply marine adhesive sealant to the circular groove on the under side of the adapter plate. Then place the adapter plate onto the lower adapter plate.
- Page 6 Secure the two adapter plates to gether with the four 1/4-20x1” bolts and nylon shoulder washers.
-
Page 7: Optional Accessories
Perko 1197 Light. Attwood LED Light Bar Top Light Bar Top Light. with Perko 1197 with Attwood Light, can fit GPS. LED Light, can fit SPREADER KIT GPS. SP1-MOD Allows user to mount GPS units or antennas onto a Seaview Modular Mount. - Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
