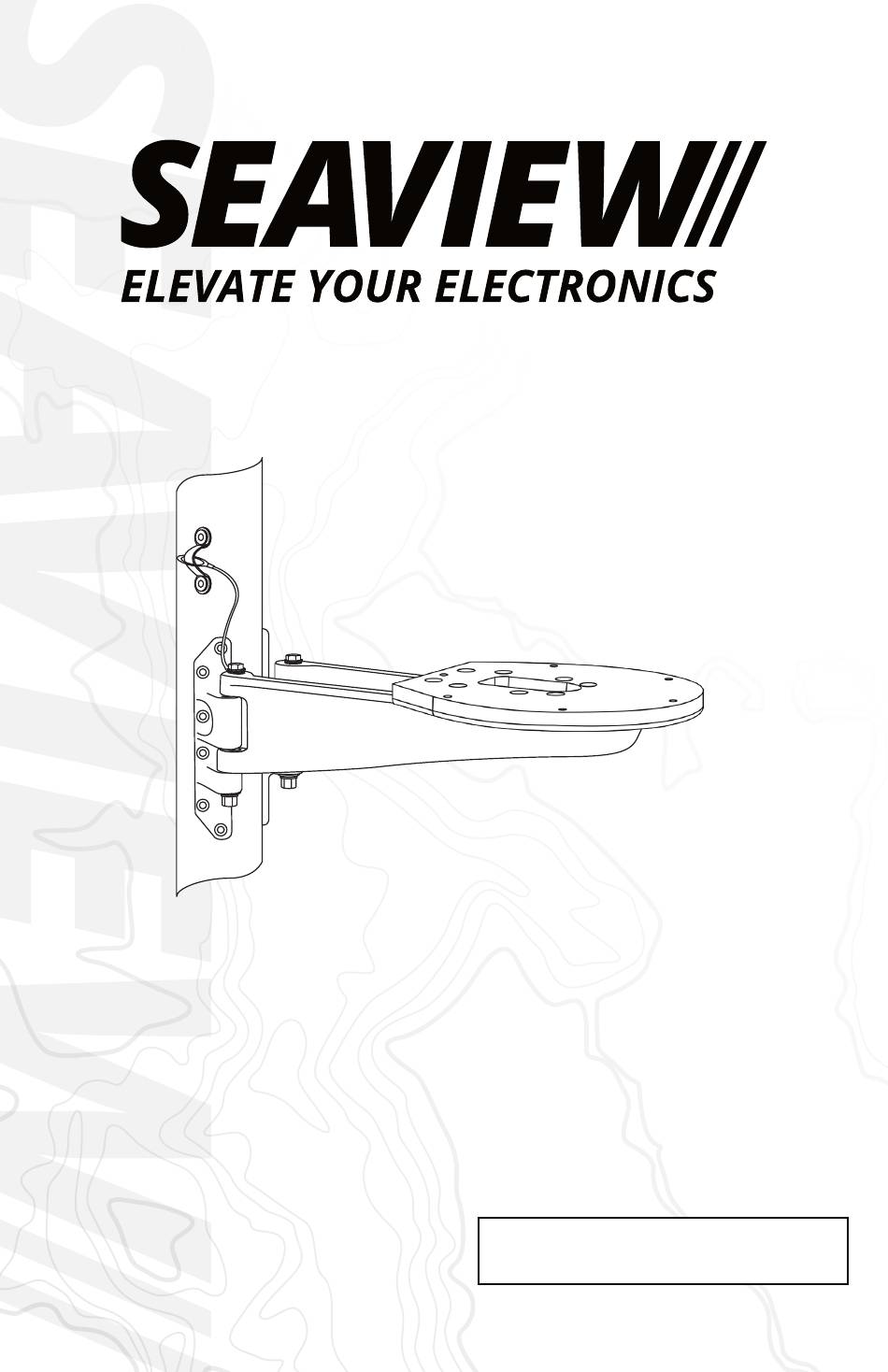

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Mast Mount: SM14F3 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED (SM18MOD) (M6NNUT) (3816NUT) (SMMBLRB/ BLACK) (14NW nylon (3/8 Nylon washer) Flat Washer) (38SBMM 3/8 shoulder bushing) (M10 S.S. WASHER) (M6 S.S. Washers) (SMMBR-2) (SMMBL-2) (PMGRO2) (3/16 S.S. Rivet) (3/8-16 x 5”) -
Page 3: Tools Needed
TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 4 SM-AD-ISO SM14F3 Mast Mount foot assembly. Stainless steel washer Nylon washer Long nylon shoulder washer Long nylon shoulder washer...
- Page 5 Apply marine adhesive sealant to the eight shoulder washers, then insert them into the mast mount as shown. x 8 x 8 Once all shoulder washers are inserted attach the two mast mount feet. Insert the two bolts along with the three washers, two nuts and lanyard as shown below.
- Page 6 Once the feet are attached, place the assembly onto the mast. Make sure the assembly is level, then mark the top and bottom bolt hole with a pen. Once you’ve marked the four holes use a 3/16” drill bit to drill into the mast.
- Page 7 Using a 25mm hole saw, drill into the center of the mast to run our electronic cables. Apply marine adhesive sealant in the hole you just drilled. Be sure not to apply too much. Then insert the rubber grommet. Apply Tef-Gel to the four holes you drilled for the mast mount feet.
- Page 8 Secure the mast mount assembly to the mast using the supplied rivets. Using a 3/16” drill bit drill the remaining eight holes in the mast mount feet. Apply Tef-Gel to the eight holes you just drilled.
- Page 9 Insert the rivets into the remaining eight holes. Mark two holes for the latch. Using a 3/16” drill bit drill the two spots you just marked.
- Page 10 Apply Tef-Gel to the two holes. Secure the latch with two rivets. Make sure to loop the latch through the lanyard prior to securing the rivets. Use the eight 5/16 x 1” bolts to secure the adapter plate to the body of the mast mount.
- Page 11 Bolt the top down riser to the adapter plate using the six M6 x 45mm bolts. The bolt will pass through the top down riser, through the adapter plate and then secure using a S.S. washer and nut.
- Page 12 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
