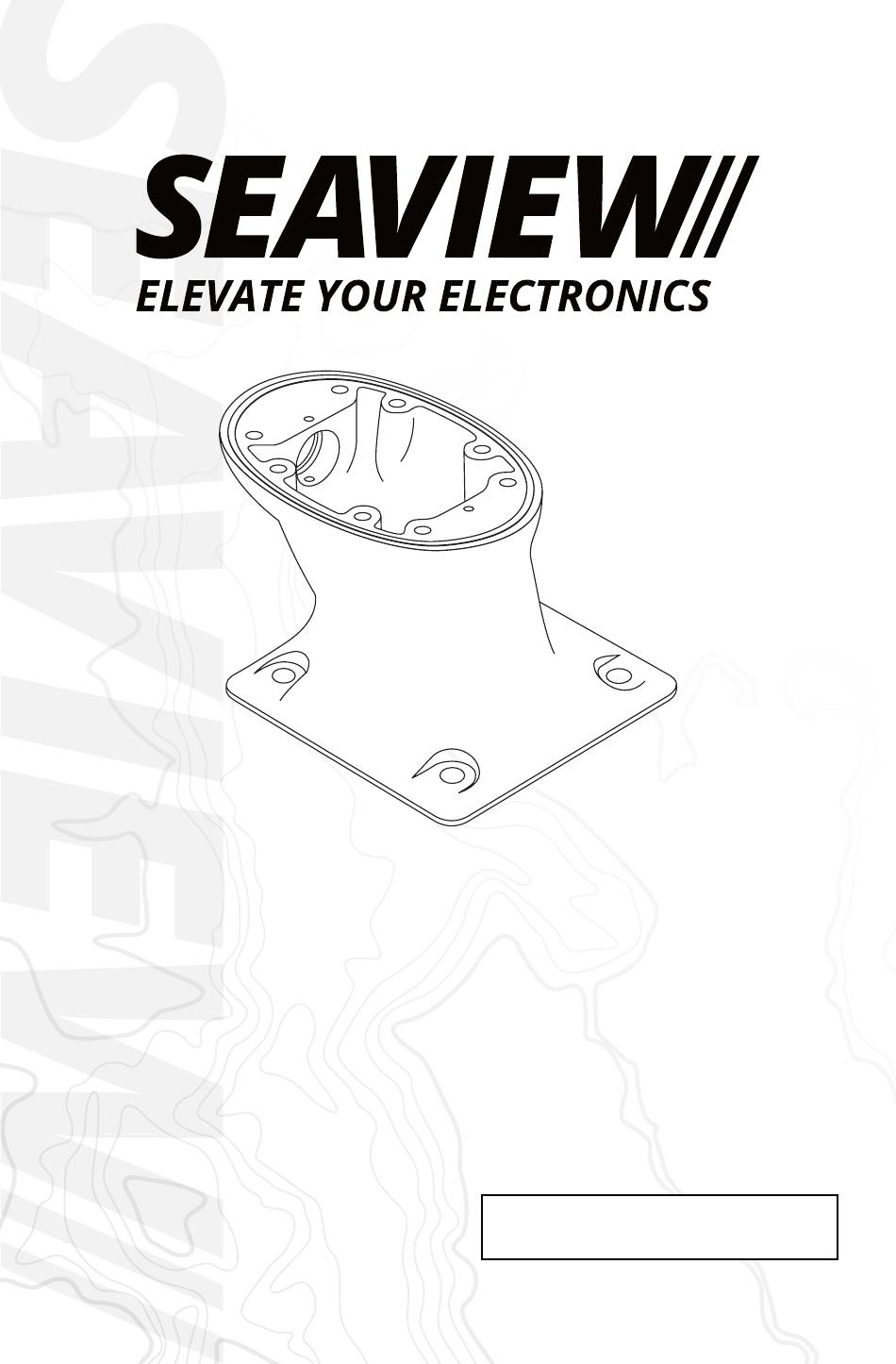

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Mount: PMA-57-M1, PMF-57-M1 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED PMA-57-M1 PMF-57-M1 TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 Insert the rubber grommet into the groove located in the light bar hole at the back of the mount. Place rubber gasket in the groove on the top of the mount. If you are using a light bar, do not use the provided pin.
- Page 4 It should snap onto the pin. Insert the rubber radar cable grommet into the center of the Seaview Top Plate (sold separately). Make sure that the lip in the center of the Top Plate hole sits in the groove of the rubber grommet.
- Page 5 Using a straight edge make sure that the mounting sur- face is flat. Mark the four bolt holes and center radar cable hole using the foam gasket as a template. Using a 3/8” drill bit, drill the four bolt holes. Use a 11/2”...
- Page 6 OPTIONAL For increased water security you can use a Seaview Cable Gland (sold separately) to route your marine electronic cables. Take the provided base drill 7” x 7” Base Drill T emplat e template and mark the four 7” x 7” Se av ie w mount base edge mounting holes for the Cable Gland.
- Page 7 Place the foam gasket and Seaview mount over the bolt holes. If you prefer not to use the foam gasket apply sealant or equivalent to seal the base.
- Page 8 Using your own bolts and the four supplied nylon should washers bolt down the Seaview mount to the mounting surface. Secure your radar to the Top Plate using four bolts, be sure to follow the Seaview Top Plate instructions on how to do this.
- Page 9 Be sure to leave some slack on the radar cable.
-
Page 10: Optional Accessories
Perko 1197 Light. Attwood LED Light Bar Top Light Bar Top Light. with Perko 1197 with Attwood Light, can fit GPS. LED Light, can fit GPS. SPREADER KIT SP1-MOD Allows user to mount GPS units or antennas onto a Seaview Modular Mount. -
Page 11: Cable Glands
HINGES WEDGES Seaview Hinge Adapters fold in any Compensates for plane angle. direction necessary for added height Available in 2, 4 or 6 degree wedges. clearance. CABLE GLANDS Seaview Cable Glands provide waterproof cable routing. - Page 12 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
