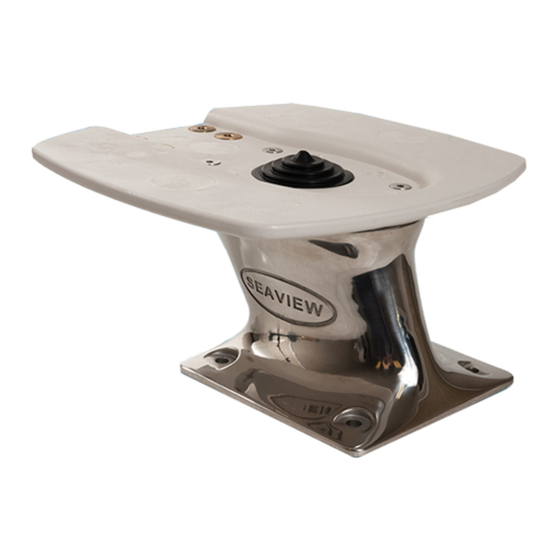

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Stainless Steel Mount: PMA-5-7LSS Refer to website for most up to date instructions and videos.
-
Page 2: Parts Included
PARTS INCLUDED TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 Using a straight edge make sure that the mounting surface is flat. Mark the four bolt holes and center radar cable hole using the foam gasket as a template. Using a 3/8” drill bit, drill the four bolt holes. Use a 1-1/2” hole saw to cut a whole for the radar cable.
- Page 4 Route the radar cable through the Seaview mount and through the hole in the Top Plate. Route the radar cable through the black rubber grommet. Insert the rubber grommet into the lip of the Top Plate as shown below. Apply...
- Page 5 Place the ADA-R1 Drill Template ontop of the Top Plate. AD A-R1 Drill Template Mark the appropriate to drill for your radar make and model, then drill the holes. Refer to the Seaview Top Plate installation instructions.
- Page 6 If you are not using a Seaview Light Bar, use the provided rubber Light Bar Plug. If you are using a Seaview Light Bar, insert the Light Bar into the hole. Refer to the Seaview Light Bar installation instructions. Secure the radar to the Top Plate using your own hardware.
- Page 7 When connecting the radar cable to the radar be sure to leave some slack on the radar cable.
- Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
