Tekky 7-FT ANIMATED FOGGING RAVEN SCARECROW Installation And Operating Instructions

7-FT ANIMATED FOGGING RAVEN SCARECROW
WARNING: DO NOT TURN ON THE PROP UNTIL FULLY ASSEMBLED. STAY CLEAR OF THE PROP

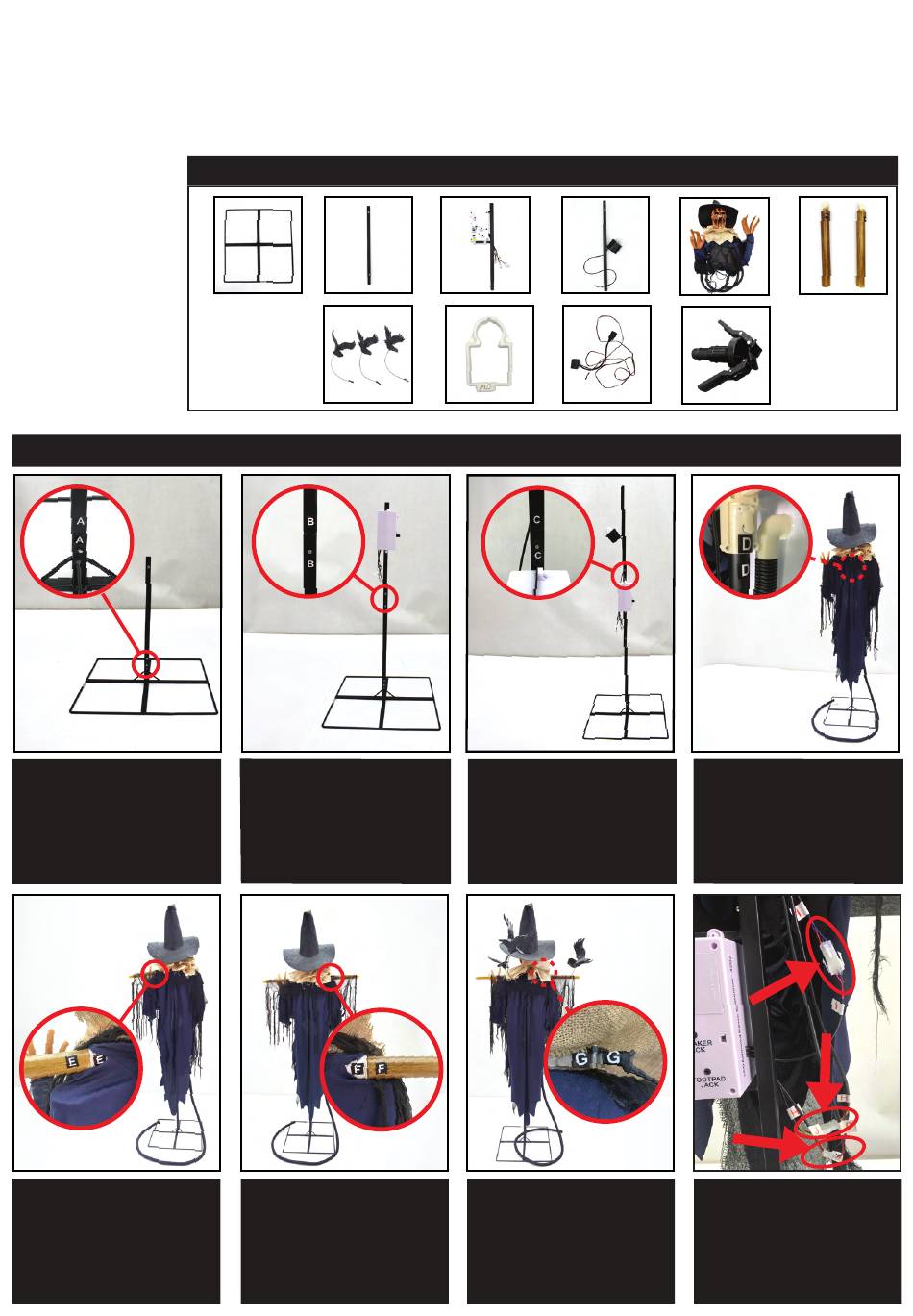

1. METAL BASE
2. LOWER POLE
3. MIDDLE POLE &
CONTROL BOX
4. UPPER POLE & LIGHT
5. HEAD, BODY &
FOG HOSE
6. RIGHT & LEFT POLE
7. THREE RAVENS
8. WIRE MANAGMENT CLIP
9. FOG CORD &
FOG ADAPTER
10. FOG CLAMP
1. Insert and snap lock the
LOWER POLE to the
METAL BASE.
MATCH A TO A
5. Connect the LEFT POLE to the
HEAD & BODY.
MATCH E TO E
INSTALLATION AND OPERATING INSTRUCTIONS
KEEP ALL PLASTIC AND WIRE PARTS AWAY FROM CHILDREN
WHILE OPERATING. ESTIMATED ASSEMBLY TIME TEN MINUTES.
1. 2.
7.
2. Insert and snap lock the
MIDDLE POLE & CONTROL
BOX to the LOWER POLE.
MATCH B TO B
6. Connect the RIGHT POLE to
the HEAD & BODY.
MATCH F TO F
PARTS PARTS
3. 4.
8. 9.
ASSEMBLY ASSEMBLY
3. Insert and snap lock the UPPER
POLE & LIGHT to the
MIDDLE POLE &
CONTROL BOX.
MATCH C TO C
7. Insert and snap lock the THREE
RAVENS to the neck plate on
the HEAD, BODY & FOG HOSE.
MATCH G TO G (×3)
6.
5.
10.
4. Insert and snap lock the HEAD,
BODY & FOG HOSE to the
UPPER POLE & LIGHT.
MATCH D TO D
8.
Attach the wires to the
CONTROL BOX.
MATCH H TO H - Head LEDs
MATCH I TO I - Human Sensor
(located on chest)
MATCH J TO J - Chest LEDs
™
