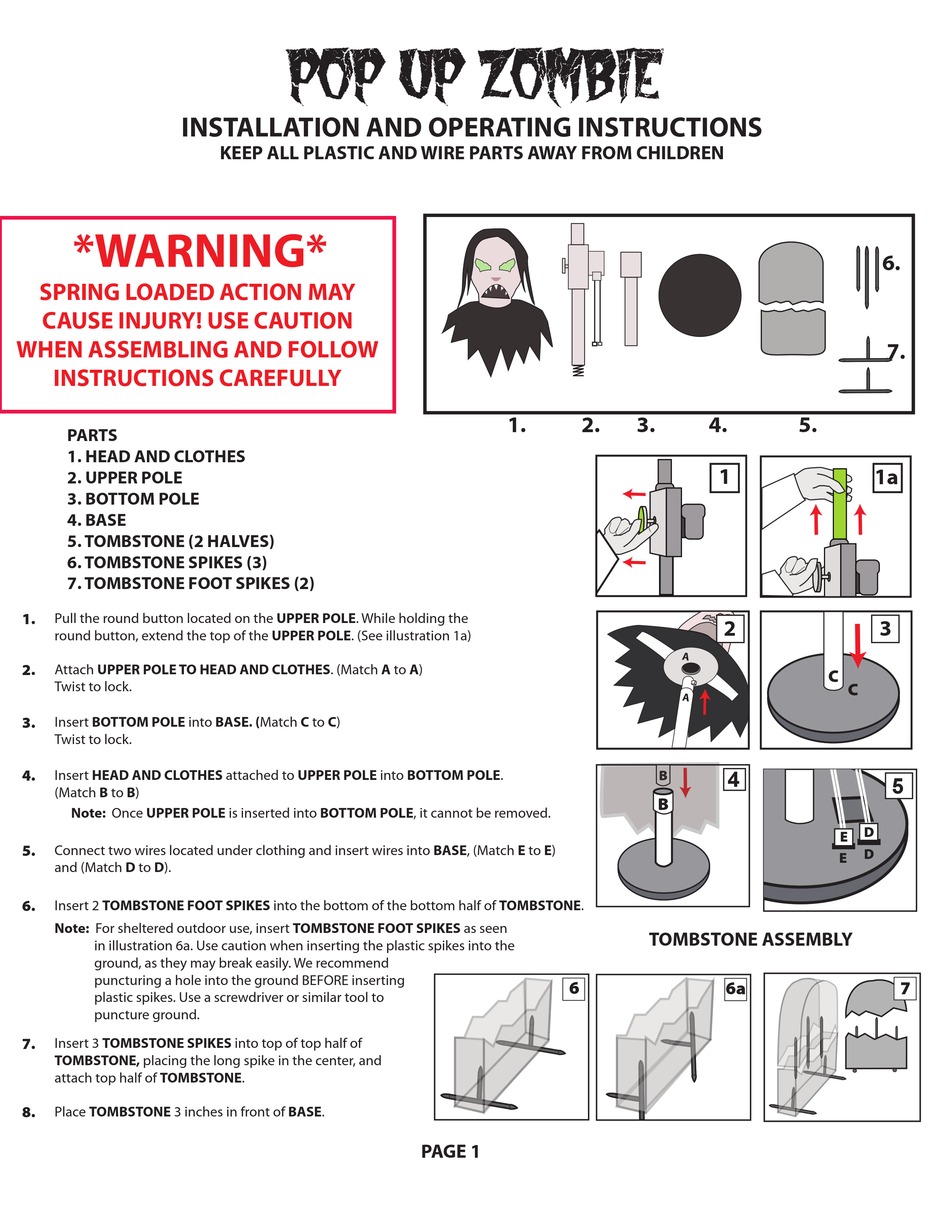

INSTALLATION AND OPERATING INSTRUCTIONS
*WARNING*
SPRING LOADED ACTION MAY
CAUSE INJURY! USE CAUTION
WHEN ASSEMBLING AND FOLLOW
INSTRUCTIONS CAREFULLY

PARTS

1. HEAD AND CLOTHES
2. UPPER POLE
3. BOTTOM POLE
4. BASE
5. TOMBSTONE (2 HALVES)
6. TOMBSTONE SPIKES (3)
7. TOMBSTONE FOOT SPIKES (2)
Pull the round button located on the UPPER POLE. While holding the
1.
round button, extend the top of the UPPER POLE. (See illustration 1a)
Attach UPPER POLE TO HEAD AND CLOTHES. (Match A to A)
2.
Twist to lock.
Insert BOTTOM POLE into BASE. (Match C to C)
3.
Twist to lock.
Insert HEAD AND CLOTHES attached to UPPER POLE into BOTTOM POLE.
4.
(Match B to B)
Note: Once UPPER POLE is inserted into BOTTOM POLE, it cannot be removed.
Connect two wires located under clothing and insert wires into BASE, (Match E to E)
5.
and (Match D to D).
Insert 2 TOMBSTONE FOOT SPIKES into the bottom of the bottom half of TOMBSTONE.
6.
Note: For sheltered outdoor use, insert TOMBSTONE FOOT SPIKES as seen
in illustration 6a. Use caution when inserting the plastic spikes into the
ground, as they may break easily. We recommend
puncturing a hole into the ground BEFORE inserting
plastic spikes. Use a screwdriver or similar tool to
puncture ground.
Insert 3 TOMBSTONE SPIKES into top of top half of
7.
TOMBSTONE, placing the long spike in the center, and
attach top half of TOMBSTONE.
Place TOMBSTONE 3 inches in front of BASE.
8.
POP UP ZOMBIE
KEEP ALL PLASTIC AND WIRE PARTS AWAY FROM CHILDREN
1. 2.
6
PAGE 1
3. 4. 5.
1
2
4
B B
B

TOMBSTONE ASSEMBLY

6a
6.
7.
1a
3
C
5
D
E
D
E
7
