SMILING JACK GREETER

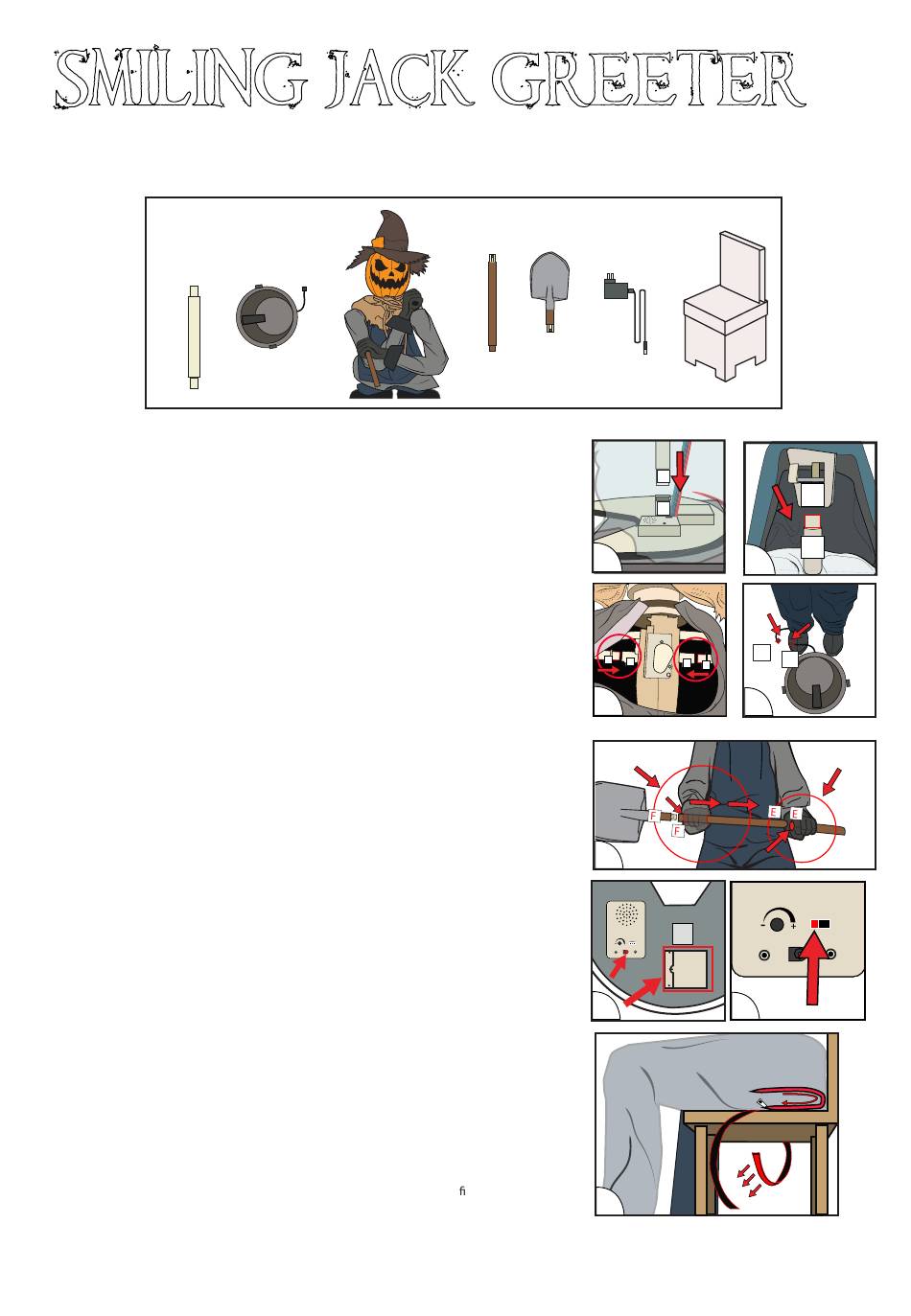

Parts:
A: CENTER SNAP LOCK POLE
B: BOWL
C: HEAD WITH CLOTHES AND BASE
D: SHOVEL HANDLE
E: SHOVEL HEAD
F: ADAPTER
G: CARDBOARD CHAIR
Assembly:
1. Unzip the back of Jack's CLOTHES. Locate the BASE and insert the CENTER SNAP LOCK POLE into
the BASE. (Match A to A)
2. Lower the top half of the HEAD WITH CLOTHES AND BASE onto the SNAP LOCK POLE.
(Match B to B)
3. Open the hook and loop on the back of Jack's shirt. Locate the arm snap-lock poles and insert
both poles into the module located beneath Jack's head.
(Match C to C) and (Match D to D)
4. Place the BOWL at Jack's feet and connect the wire running from the pants to the wire on
the BOWL. (Match G to G)
*Note: BOWL must be level and have a light source above the bowl to enhance
the motion sensor function.
5. Insert the SHOVEL HANDLE through the hole in his right hand. Slide the SHOVEL HANDLE
through the hole and insert the end into his left hand. Snap lock the SHOVEL HEAD onto the
SHOVEL HANDLE. (Match E to E) and (Match F to F)
6. Connect 6V2A ADAPTER (included) or insert 4 AA alkaline batteries (not included) into the
battery compartment located on the BASE.
7. Turn the switch to the ON position to operate in Sound and Motion activation mode. Any sound
or motion inside the candy bowl will activate the item. For MOTION ONLY, only motion inside
the candy bowl will activate the item. Turn item OFF when not in use. Adjust volume control
knob as needed.
8. If you are positioning the item in your own chair see ILLUSTRATION 8. If you are using the
supplied cardboard chair proceed to ILLUSTRATION 9. Close zipper on the back of Jack's pants.
Position the item in a chair, fasten hook and loop strap snugly under chair and ll
BOWL to lure Trick Or Treaters for a scary surprise!
INSTALLATION AND OPERATING INSTRUCTIONS
KEEP ALL PLASTIC AND WIRE PARTS AWAY FROM CHILDREN
WARNING: DO NOT TURN ON THE PROP UNTIL FULLY ASSEMBLED. STAY CLEAR OF THE PROP WHILE OPERATING.
