ETC Installation Guide

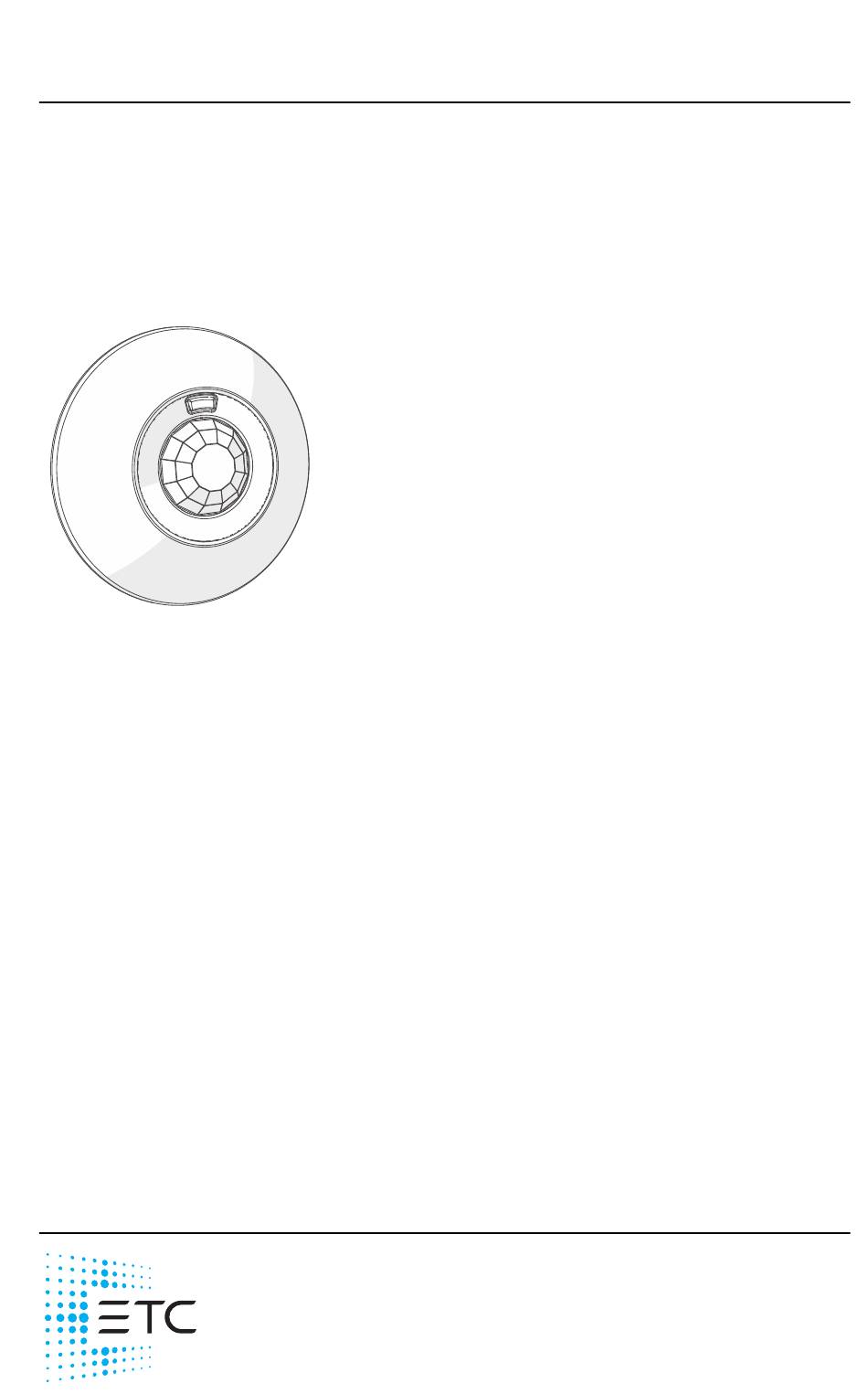

Paradigm Dual Tech Occupancy Sensor
Overview
The Dual Tech Ceiling-Mount Occupancy Sensor uses passive infrared
(PIR) and acoustic detection to provide reliable occupancy and vacancy
sensing for lighting control. The ceiling-mount sensor offers 360 degree
coverage with optimized lens options to accommodate small spaces,
large spaces, and spaces with high ceilings.
Field-installed lens masks are provided to allow customized occupancy
detection fields for each sensor lens type.
Configuration
The Paradigm Processor (P-ACP) to which this Ceiling-Mount Occupancy
Sensor is connected must learn, or be told, the hardware address (also
known as the neuron ID). You can manually enter this ID (as labeled on
the device) into the configuration using LightDesigner software, or you
can use the "Connect Device" menu on the connected P-ACP to identify
the ID. See the Paradigm Processor Configuration Manual ; specifically the
section on Arch Setup Menu > Station Connections, or reference the
LightDesigner online help system for related information to associate and
connect the device to the Paradigm control system.
Prepare for Installation
Ceiling-mount sensors are intended for installation to a finished ceiling
surface, soft ceiling tile mounted, or attached to a round or octagonal
fixture junction box.
Small Room Lens - coverage
42 m
74.3 m
Large Room Lens - coverage
168 m
280 m
High Ceiling Lens - coverage
29 m
730 m
