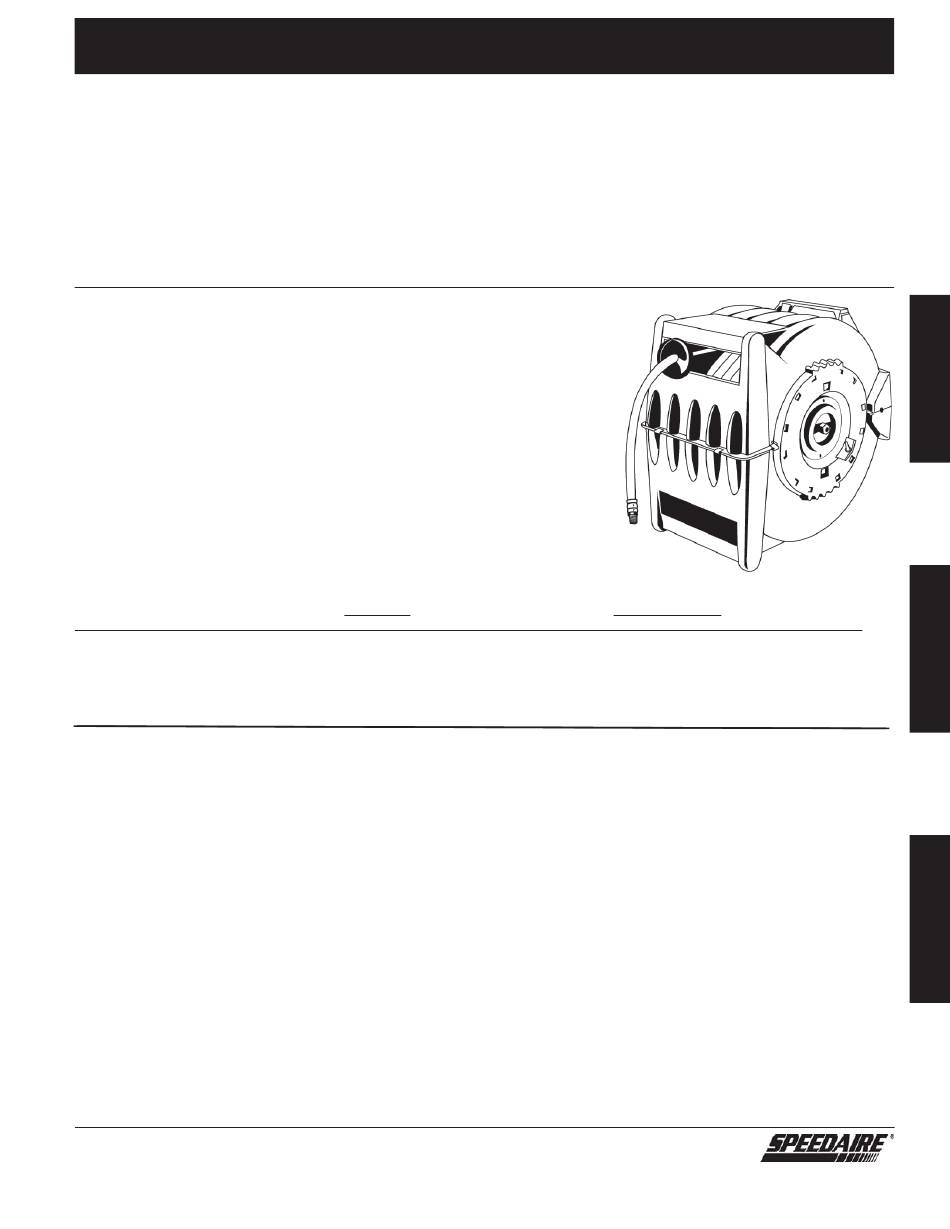

Speedaire 2VDF1 Operating Instructions Manual

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Speedaire
Hose Reels
Description
Speedaire® self-retracting hose reels for use with air supply systems, featuring:
• Reel can pivot up to 135º or lock in any of seven different angled positions
• Hose rewinds into case to prevent accidents and damage to hose
• Two rewinding modes: latching and free run for ease of use
• Auto-leveling to ensure hose coils smoothly back into reel during rewind
• Models with different hose lengths and sizes to suit different applications
• Speedaire® hose - extreme fl exibility in sub-zero temperatures; easy to handle
• Free-standing base and built-in handle for portability
• Durable UV-stabilized polypropylene housing
• Bracket included for mounting on wall or overhead
• Adjustable hose stopper
• 5' Speedaire® lead-in hose included
• Built in USA
Specifi cations
Model # Hose Size Inlet Hose
2VDF1 3/8" x 50' 3/8" x 5'
2VDF2 3/8" x 75' 3/8" x 5'
2VDF3 3/8" x 100' 3/8" x 5'
2VDF4 1/2" x 50' 1/2" x 5'
Unpacking
Inspect contents of carton. Check the
list of included items to determine
that all parts are accounted for. After
unpacking unit, inspect carefully for
any damage that may have occurred
during transit. Check for loose, missing,
cracked, or otherwise damaged parts.
Shipping damage claim must be
fi led with freight carrier.
Included in carton:
• Operating Instructions & Parts Manual
• Reel with Speedaire® Hose
• Lead-in hose
• Wall / Overhead Mounting Bracket,
(which includes):
• Bracket, thumb screw & washer
• Bracket Rod tube
• Hitch-pin clip
• Positioning brace
Form 5SXXXX
Retractable
®
Maximum Temperature
Working Pressure Range
300 psi -40º to 150º F
300 psi -40º to 150º F
300 psi -40º to 150º F
300 psi -40º to 150º F
Specifi cations
Specifi cations are for use with normal
shop compressed air. Other use is not
recommended. Do not exceed the
maximum working pressure of any
components in an air supply system.
Do not exceed the temperature range
of the hose.
General Safety Information
1. Keep all bystanders, children, and
visitors away while operating com-
pressed air equipment.
2. Wear gloves and eye protection.
3. Do not exceed maximum working
pressure of any components in an air
supply system.
4. Inspect hoses and equipment before
and during use. Do not use damaged
hose or reel or other components.
Printed in U.S.A.
00000
XXXX/XXX/VCPVP
2VDF1, 2VDF2, 2VDF3, and 2VDF4
Reel Dimensions
H W L
17-1/4" 10-1/4" 19-1/4
17-1/4" 10-1/4" 19-1/4"
17-1/4" 10-1/4" 19-1/4"
17-1/4" 10-1/4" 19-1/4"
5. Do not release the end of the hose
when rewinding as personal injury
or damage could result.
6. Do not stand on reel or use as a
step.
7. Turn off air supply to reel and safely
release air pressure before discon-
necting supply hose, or attempting
any repairs or adjustments to hose
reel.
8. Do not exceed temperature range
of hose.
9. Hose and reel are not for use with
any breathing air supply nor as part
of any life-support system.
10. Protect hose and reel from mech-
anical injury and damage.
11. Read and understand all instructions
before use. Keep instructions
for future reference.
