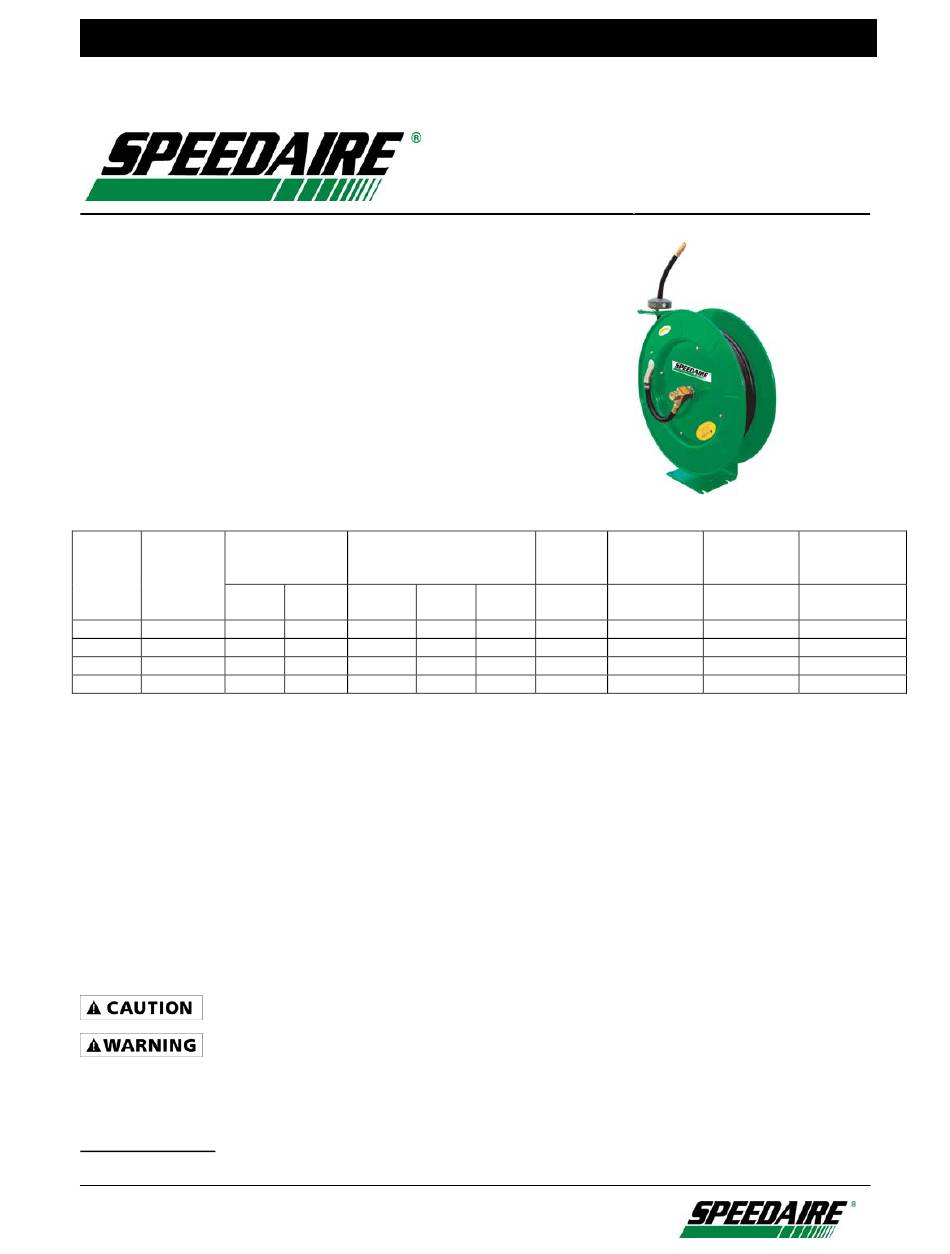

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description
Speedaire Industrial Hose Reels have an internal spring for
automatic hose rewind and a locking ratchet to maintain desired
hose position while in use.
Unpacking
After unpacking the unit, inspect all components for any damage
that may have occurred in transit. Read the following precautions
and instructions before you begin assembly or using. Failure to comply
with these instructions could result in personal injury or property damage.
Keep these instructions in a convenient location for future reference.
Specifications and Dimensions
Maximum
Hose Dimension
Operating
Model
Pressure
I.D
(PSI)
(Inch)
2CUB6 300 3/8
2CUB8 300 1/2
2CUC1 300 3/4
2CUC3 300 1
General Safety Information
1. Make sure incoming line pressure does not exceed rated operating pressure for your model hose reel.
2. Use proper eye protection when assembling and using the hose reel.
3. Remove all spring tension before beginning disassembly. (Refer to Page 3 – hose replacement)
4. Keep children away from the work area, a recoiling hose has a surprising force.
5. Never let the hose retract without holding on to it.
Throughout this manual the following symbols have these special meanings.
NOTE: Indicates special instructions which are important but not related to hazards.
Warns about hazards that may cause minor personal injury or property damage if ignored.
Warns about hazards that can cause serious personal injury, death, or major property damage if
ignored.
Installation
Installation of Reel
ICM020
Printed in China
08/07
Industrial Hose Reel 3/8, ½, ¾, 1"
Hose Reel
Dimensions
Length Length Width
(Ft) (Inch) (Inch)
100 26.2 12.0
75 26.2 12.0
75 26.2 12.0
50 26.2 12.0
2CUB6/2CUB8/2CUC1/2CUC3
Hose Outlet
Weight Connection
NPT Male
Height
(Lbs) (Inch)
(Inch)
27.0 101.2 3/8
27.0 97.0 1/2
27.0 97.0 3/4
27.0 97.0 3/4
Reel Inlet Maximum
Connection Operating
NPT Female Temperatures
(Inch) (F)
1/2 210
1/2 210
3/4 210
1 210
