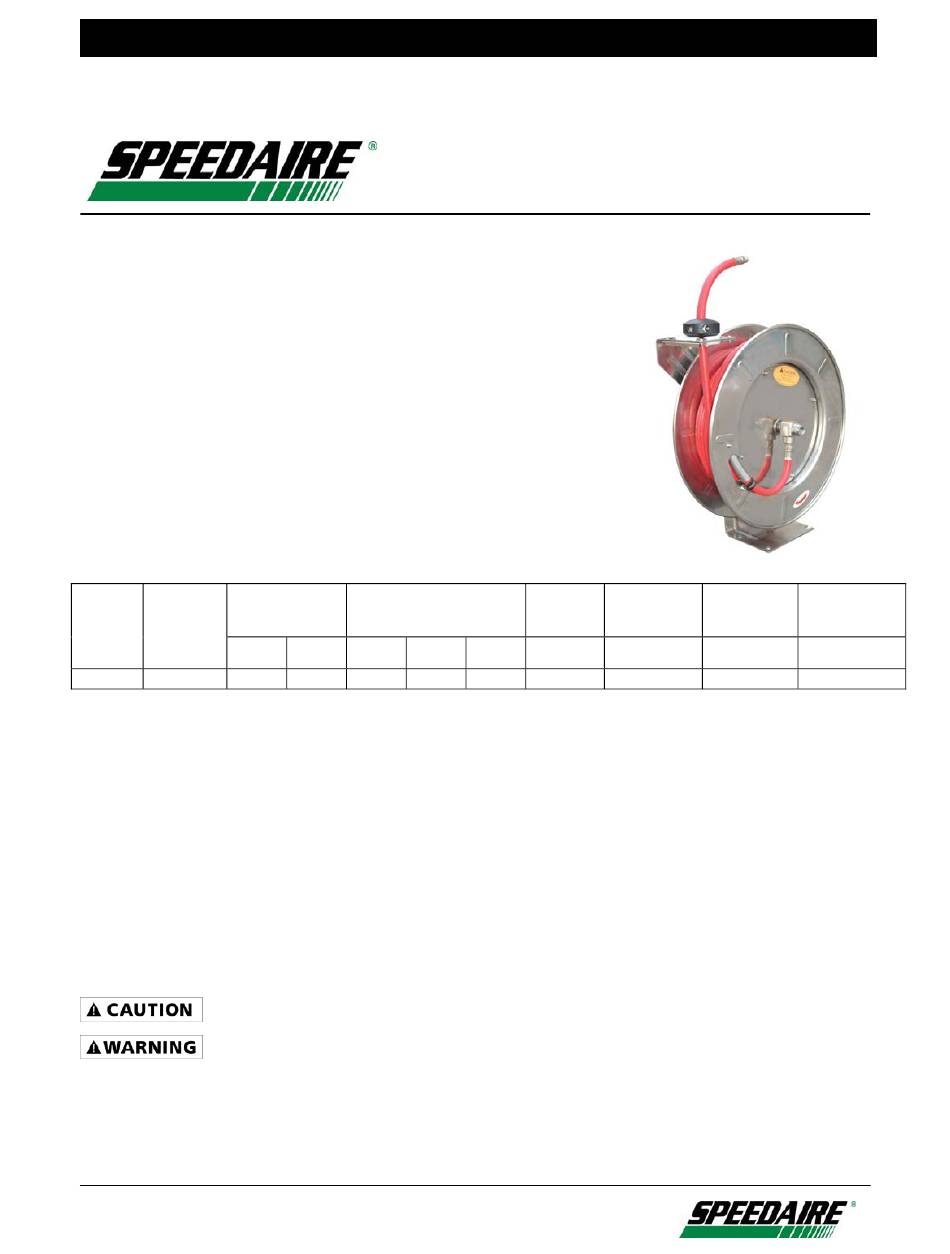

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description
Speedaire Stainless Steel Industrial Hose Reels a
pre-rinse, wash down, chemical transfer and industrial solvent handling.
They
have an internal spring for automatic hose rewind and a locking ratchet to
maintain desired hose position while in use.
Unpacking
After unpacking the unit, inspect all components for any damage that may
have occurred in transit. Read the following precautions and instructions
before you begin assembly or using. Failure to comply with these instructions
could result in personal injury or property damage. Keep these instructions in
a convenient location for future reference.
Specifications and Dimensions
Maximum
Operating
Dimensions
Model
Pressure
I.D
(PSI)
(Inch)
2CUD4
300
1/2
General Safety Information
1. Make sure incoming line pressure does not exceed maximum rated operating pressure for your model hose reel.
2. Use proper eye protection when assembling and using the hose reel.
3. Remove all spring tension before beginning disassembly (Refer to Page 3 – hose replacement).
4. Keep children away from the work area, a recoiling hose has surprising force.
5. Never let the hose retract without holding on to it.
Throughout this manual the following symbols have these special meanings.
NOTE: Indicates special instructions which are important but not related to hazards.
Warns about hazards that may cause minor personal injury or property damage if ignored.
Warns about hazards that can cause serious personal injury, death, or major property damage if
ignored.
ICM011
Printed in China
08/07
Stainless Steel Industrial Hose Reel ½"
re ideal for food processing,
Hose
Hose Reel
Dimensions
Length
Length
Width
(Feet)
(Inch)
(Inch)
50
20.6
8.4
Hose Outlet
Weight
Connection
NPT Male
Height
(Pounds)
(Inch)
(Inch)
22.5
53.0
1/2
2CUD4
Reel Inlet
Maximum
Connection
Operating
NPT Female
Temperatures
(Inch)
(Fahrenheit)
1/2
210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2CUD4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Speedaire 2CUD4

  • Page 1 Stainless Steel Industrial Hose Reel ½” Description re ideal for food processing, Speedaire Stainless Steel Industrial Hose Reels a pre-rinse, wash down, chemical transfer and industrial solvent handling. They have an internal spring for automatic hose rewind and a locking ratchet to maintain desired hose position while in use.
  • Page 2: Installation

    Speedaire Operating Instructions and Parts Manual 2CUD4 Stainless Steel Industrial Hose Reel ½” Installation Installation of Reel 1. For ceiling mounting: install reel at least 10 feet above the floor. 2. You will need to purchase appropriate hardware for your specific reel mounting configuration.
  • Page 3: Operation

    Speedaire Operating Instructions and Parts Manual 2CUD4 Stainless Steel Industrial Hose Reel ½” Operation 1. Check reel for correct operation by slowly pulling out the hose. A “clicking” noise will be heard three times every half revolution of the drum.
  • Page 4 LIMITED ONE YEAR WARRANTY Should a Speedaire Hose Reel fail to perform satisfactorily due to defect or poor workmanship within one year of purchase, return it to your place of purchase and it will be replaced or repaired free of charge. Incidental or...
  • Page 5 Speedaire Operating Instructions and Parts Manual 2CUD4 Stainless Steel Industrial Hose Reel ½” FIGURE 2 - Base Template Template is not drawn to scale...
  • Page 6: Repair Parts List

    Speedaire Operating Instructions and Parts Manual 2CUD4 Stainless Steel Industrial Hose Reel ½” For Replacement Parts, call 1-800-323-0620 24 hours a day – 365 days a year Please provide the following: - Model Number - Serial Number (if any) - Part description and number as shown on parts list...
  • Page 7 Speedaire Operating Instructions and Parts Manual 2CUD4 Stainless Steel Industrial Hose Reel ½” Manufactured for Grainger International, Inc 100 Grainger Pkwy., Lake Forest IL 60045 U.S.A.
