Speedaire 2CUD6 Operating Instructions And Parts Manual

1/4” enclosed industrial hose reel

Advertisement

Quick Links

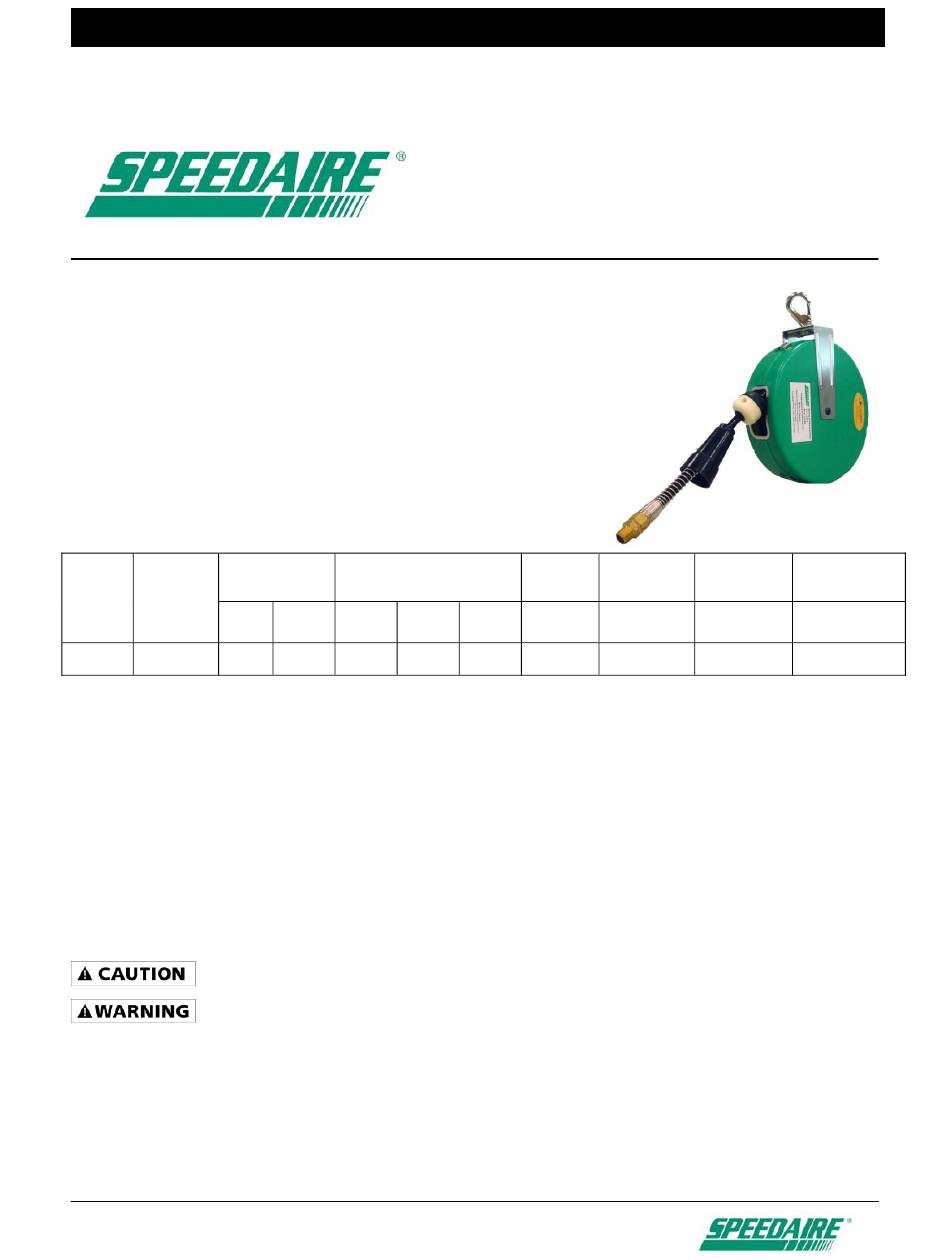

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description
SPEEDAIRE Enclosed Industrial Hose Reels have an internal spring for automatic hose
rewind and a locking ratchet to maintain desired hose position while in use.
These general industrial, low pressure, auto retractable hose reels have multiple
mounting positions for various applications. These hose reels are protected by a
coated steel housing that helps extend the life of the reel, hose and internal mechanism.
Unpacking
After unpacking the unit, inspect components for damage that may
have occurred during transit.
Specifications and Dimensions
Maximum
Dimensions
Operating
Model
Pressure
I.D
(PSI)
(Inch)
2CUD6
200
1/4
General Safety Information
1. Make sure incoming line pressure does not exceed maximum rated operating pressure for your hose reel model.
2. Use proper eye protection when assembling and using the hose reel.
3. Keep children away from the work area, a recoiling hose has surprising force.
4. Never let the hose retract without holding on to it.
Read the following precautions and instructions before you begin assembly or using. Failure to comply with these
instructions could result in personal injury or property damage.
Keep these instructions in a convenient location for future reference.
-Do not open the housing because the rewind spring can unwind with great force and cause injury.
- Do not use if the pressure exceeds 200PSI
SHPI001
Printed In Taiwan
09/07
Hose
Hose Reel
Dimensions
Length
Length
Width
(Feet)
(Inch)
(Inch)
20
8.66
2.36
1/4" Enclosed Industrial Hose Reel
Hose Outlet
Weight
Connection
NPT Male
Height
(Pounds)
(Inch)
7.87
3.1
Reel Inlet
Connection
NPT Female
Temperatures
(Inch)
(Inch)
1/4
1/4
2CUD6
Maximum
Operating
(Fahrenheit)
165

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2CUD6 and is the answer not in the manual?

Questions and answers

Robin
February 16, 2025

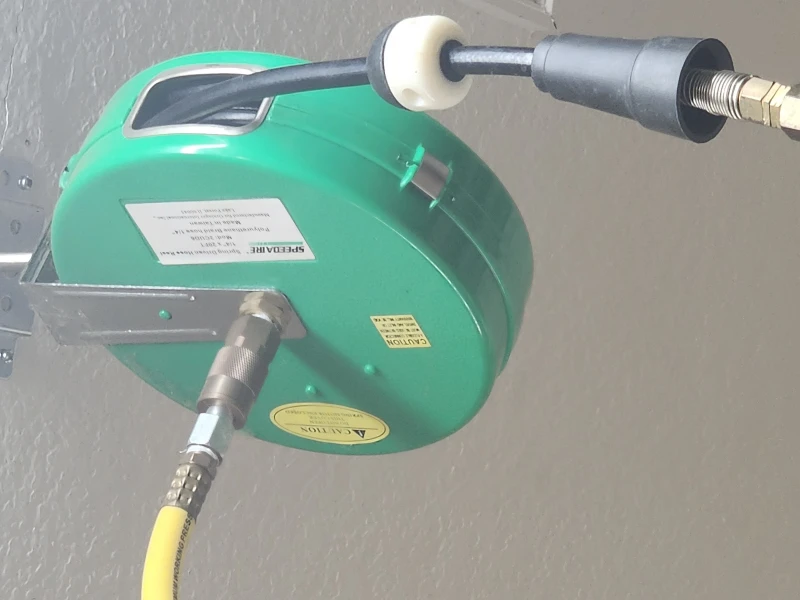

Speedair 1/4 in mini air hose how can I adjust the tension spring?

User image 67b22d3517e94
1 comments:
Mr. Anderson
February 16, 2025

The provided context does not contain specific instructions for adjusting the tension spring on the Speedaire 2CUD6 1/4 in mini air hose. However, it does mention a warning not to open the housing, as the rewind spring can unwind with great force and cause injury. Therefore, adjusting the tension spring may not be recommended or may require professional servicing.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Speedaire 2CUD6

  • Page 1 1/4” Enclosed Industrial Hose Reel Description SPEEDAIRE Enclosed Industrial Hose Reels have an internal spring for automatic hose rewind and a locking ratchet to maintain desired hose position while in use. These general industrial, low pressure, auto retractable hose reels have multiple mounting positions for various applications.
  • Page 2 Speedaire Operating Instructions and Parts Manual 2CUD6 1/4” Enclosed Industrial Hose Reel Installation Refer to the exploded view diagram on page 4 for assistance in component identification during installation. Reel Installation After selecting your mounting position, check to see if the assembly frame (#4) is in the correct position or if it needs repositioning.
  • Page 3 LIMITED ONE YEAR WARRANTY Should a Speedaire Hose Reel fail to perform satisfactorily due to defect or poor workmanship within one year of purchase, return it to your place of purchase and it will be replaced or repaired free of charge. Incidental or consequential damages...
  • Page 4 Speedaire Operating Instructions and Parts Manual 2CUD6 1/4” Enclosed Industrial Hose Reel Note: This diagram and components list is a reference for product installation only. Sling Hook Locking Piece Assembly Piece Assembly Frame Hexagonal Screw Outer Shell Wheel Disc seat...
