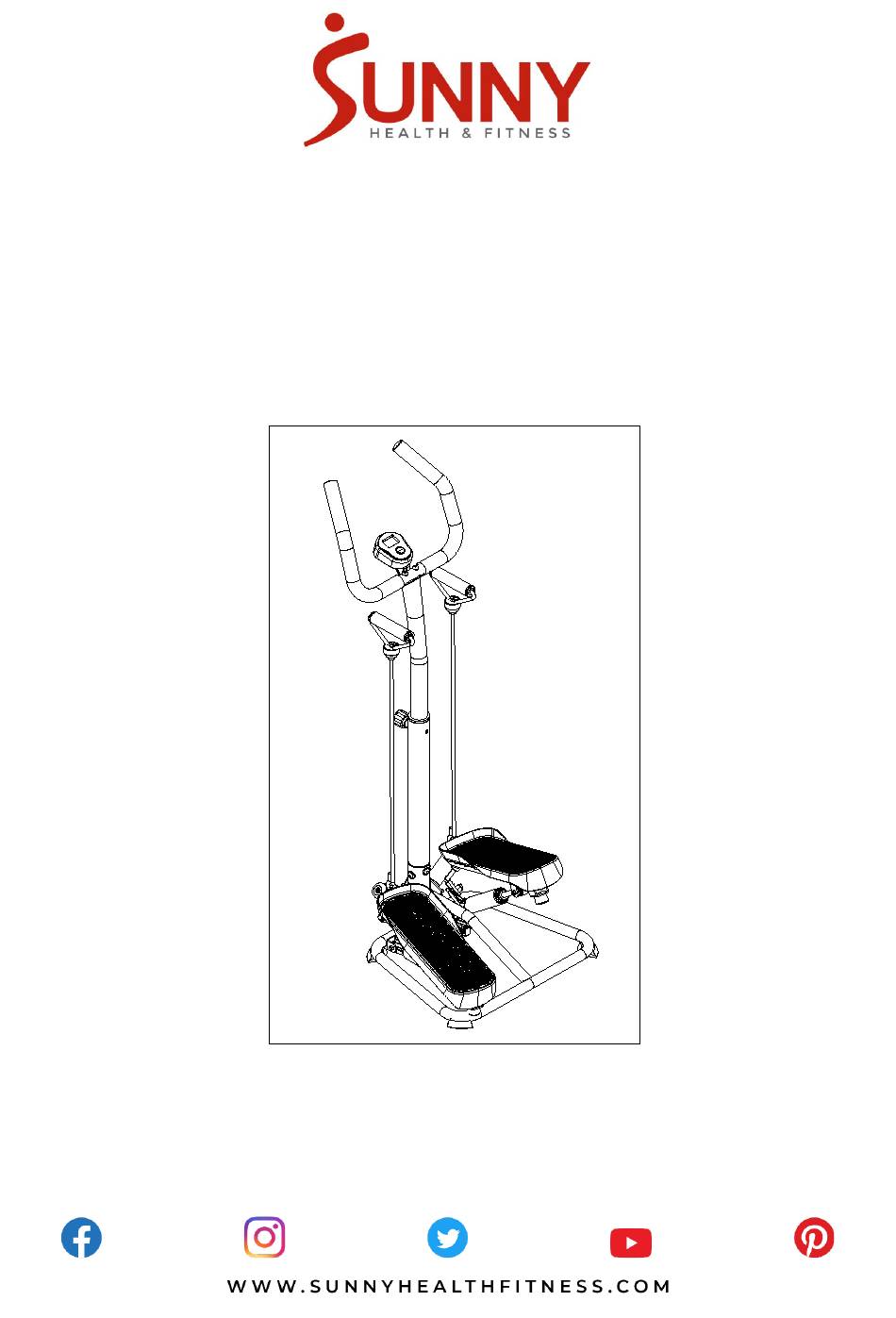

HANDLEBAR STEP MACHINE WITH
RESISTANCE BANDS
SF-S020065
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-S020065
Summary of Contents for Sunny Health & Fitness SF-S020065
- Page 1 HANDLEBAR STEP MACHINE WITH RESISTANCE BANDS SF-S020065 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM HARDWARE PACKAGE #42 S5 #15 M16*1.5*20*φ37 #40 M8*16*S5 5PCS #41 d8*φ20*2*R25 5PCS #39 M8*35*15*S5 2PCS #21 Φ60*M14... -
Page 4: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Nylon Nut Left Foot Tube Hexagon Bolt M6*36*10*S5 Right Foot Tube Sensor Wire Φ17*Φ11*8 Pully Fixed Bracket Sensor Holder Φ30*20 Cushion Foot Pad 58.4*33.7*20 Hexagon Bolt M6*20*S5 Nylon Nut Φ50*20 Hexagon Bolt M8*20*S5 Computer... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Remove the Main Frame (No. 1) from the box. Lift one pedal of Left or Right Pedal (No. 8 or No. 13) up with your hand and ensure that the Wire Rope (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: #15 M16*1.5*20*φ37 1PC Connect the Sensor Wire (No. 28) with the Extension Wire (No. 43). Insert the Upper Handlebar Post (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 6: Connect the Extension Wire (No. 43) to the Computer Wire (No. 32a). Then attach the Computer (No.
- Page 8 MAINTENANCE & ADJUSTMENT GUIDE ADJUSTING THE STEPPING HEIGHT Turn the Adjustment Knob (No. 21) clockwise to increase the stepping height. Turn the Adjustment Knob (No. 21) counter-clockwise to decrease the stepping height. ADJUSTING THE HEIGHT OF HANDLEBAR Turn the Adjustment Knob (No. 15) counter-clockwise and pull out it from Bottom Handlebar Post (No.
- Page 9 EXERCISE BAND INSTRUCTIONS Unscrew the hook nut located on the exercise band until the hook is open as shown in the picture below. Attach the exercise band hook onto the exercise band buckle and screw the hook nut closed until the exercise band buckle is secured with the hook nut.
-
Page 10: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT Battery Battery Cover BATTERY INSTALLATION: 1. Take out 1 AAA battery from Computer box. 2. Press the buckle of battery cover on the Computer (No. 32), then remove battery cover. 3. Install 1 AAA battery into the battery case on the back of the Computer (No. 32). Pay attention to the battery + and –... -
Page 11: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: CALORIES (CAL)-------------------------------0~9999 KCAL COUNT (CNT)-----------------------------------0~9999 TIME-----------------------------------------------00:00~99.59 MIN TOTAL COUNT (TOT. CNT)-----------------0~9999 KEY FUNCTIONS： MODE: This key lets you to select and lock on to a particular function you want. FUNCTIONS: 1.CALORIES (CAL): Display calories burned during exercise. 2.COUNT (CNT): Accumulates the count of steps taken while exercising.
