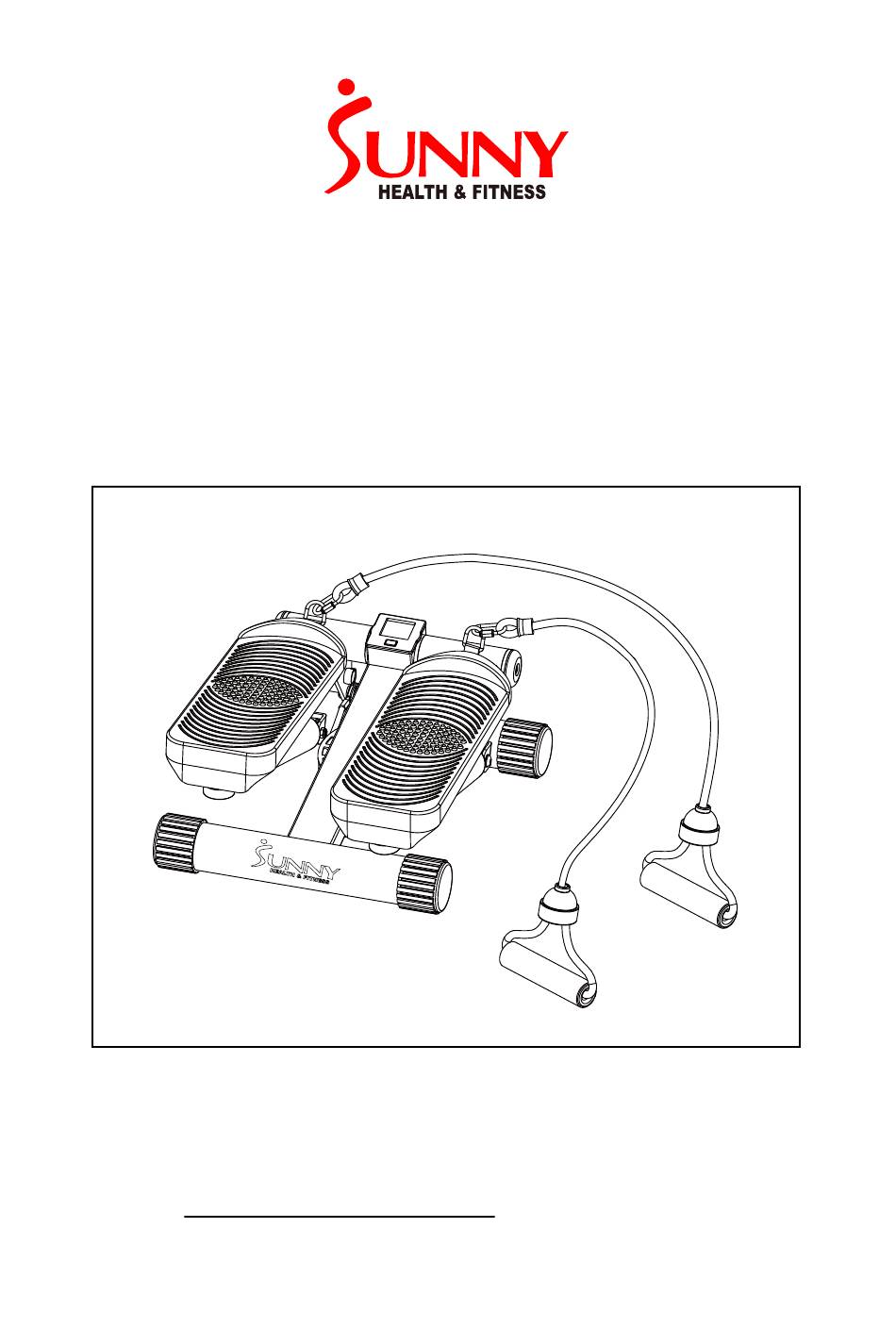

MINI STEPPER
WITH EXERCISE BANDS
NO. 012S
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 012S and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny Health & Fitness 012S

  • Page 1 MINI STEPPER WITH EXERCISE BANDS NO. 012S USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 4: Parts List

    PARTS LIST Description Spec. Qty Description Spec. Qty 1 Screw 12 Meter 2 Bearing Cap 13 Sensor 3 Bearing Sleeve 14 Magnet 4 Pedal Tube(R) 15 Pedal Tube(L) 5 Pedal 16 Hydraulic Cylinders 6 Screw 17 Nut 7 Stopper 18 Bolt 8 Cap 19 Webbing 9 Pulley...
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS TEP 1: Main Frame (No. 10) Remove the from the box. Lift Pedal (No. 5) up with your hand and ensure that Pulley (No. 9) the cable is properly secured around the shown in the picture . STEP 2: Turn the Knob (No.
  • Page 6 EXERCISE BAND INSTRUCTIONS 1. Unscrew the hook nut located on the band until the hook is open as shown in the picture below. 2. Attach the band hook onto the pedal hook and screw the hook nut closed until the pedal hook is secured with the hook nut.
  • Page 7: Maintenance & Care Instructions

    MAINTENANCE & CARE INSTRUCTIONS 1. If the stepper screeches during exercise, please discontinue use and do the following: loosen the screw located on the U-Shaped iron then loosen the cable as shown in the picture below. Next, lubricate both the U-Shaped iron and cable to improve the sliding condition.
  • Page 8: Exercise Computer

    EXERCISE COMPUTER KEY FUNCTIONS: MODE: Press the MODE button to select a function. (Time, Rep/Min, Count, Calorie and Scan) OPERATION PROCEDURES: 1. AUTO ON/OFF: If the steps of the machine are put into motion or the MODE key is pressed, the computer will activate and will remain active during use.
  • Page 9: Changing The Battery

    CHANGING THE BATTERY 1. Remove the plastic cap from the battery. 2. Remove the battery using the tool provided or your fingers. 3. Insert the new battery using the tool provided or your fingers. Ensure that the positive side of the battery which is labeled with a + sign is facing upward once the new battery is in place.
