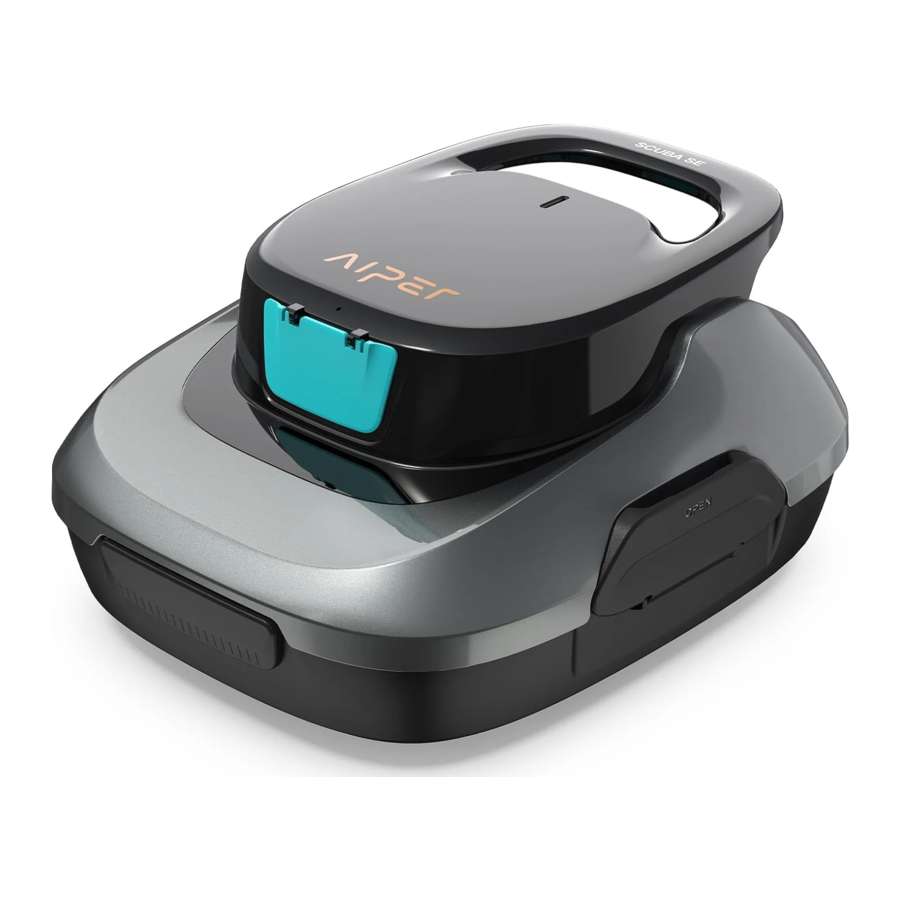

Aiper Scuba SE Manual

If you have any questions, please visit our website at www.aiper.com and contact our customer service team for assistance or more information.

Aiper Customer Service:
Email: service@aiper.com
Facebook: @AiperOfficial

Scan for Video Guide

Structure

Overview

Specifications & Working Conditions

1. Pool Size: 860 sq.ft/80m2 Flat Floor Pools

2. Charger Input: 100~240V, 50/60Hz

3. Charger Output: 12.6V/1.0A

4. Charging Time: 3-4 Hours

5. Battery Life: 90 Minutes

6. IP Grade: IPX8 Waterproof

7. Max Water Depth: 1.6-10ft(0.5-3m)

8. Battery Capacity: 2600mAh (28.08Wh)

For optimal performance, Aiper recommends using your device in the following water conditions.

Temperature: 50-95°F (10-35°C)

pH Value: 7.0-7.4

Chlorine: Maximum 4 ppm

NaCl: Maximum 5000 ppm

Using Your Aiper Pool Cleaner

First Use

The device was designed to clean flat floored swimming pools with no slopes up to 860 sq.ft/80m².
Tightly insert the two included brushes into the slots at the bottom of your device. You will hear a clicking sound that indicates the brushes are securely in place.
Power off your device after use.
Lift from the pool with the bottom of the device facing the wall.

Optional

Fully charge your device before using it for the first time.
Press the Power Button and place your device in the water after you hear a beep.
If your device has powered off due to low battery against the edge of your pool, the device will beep intermittently for two minutes.
Lift your device from the pool using the included hook. Telescopic pole not included.
Open Latches: Open the left and right latches outwards.
Open the Top Shell: Hold the handle with one hand and remove the Top Shell from your device with your free hand.
Remove the Filter Screen. Clean the filter and bottom of your device with clean water.
Put the filter back into your device. Return the Top Shell to the device. You will hear a click when Top Shell is securely attached to your device.

Charging

Fully charge your device before using it to clean your pool.

Power off your device before charging.
Clean and dry the charging port before plugging your device into an electrical outlet.

When charging, ensure your device is right side up to prevent damaging the handle.
When charging the device via the charger, it has the following statuses:

Working Status		Description
Red	Charging	The red light indicates charging in progress.
Green	Fully charged	The indicator light will turn green once the device is fully charged.

Maintenance

Always wash the filter tray immediately after use. Dried debris may cause blockage and affect performance if debris is not washed and removed in a timely manner.
Brush Replacement

If a brush becomes worn out, follow the steps below.

Remove the Top Shell of your device and locate the brush position.
Using a small tool or your fingers, push the two small locking pins to the side as indicated in the diagram below.

Press the locking pins down to release the brush.
Insert a new brush into the bottom slot of the cleaner. (Replacement brushes are not included)

Wheel Replacement
If one of your device's wheels breaks, follow the steps below.

Remove the shell of your device and find the location of the broken wheel.
Using a tool or your finger, push the wheel buckle until it bends slightly, then press on the wheel stem as indicated in the diagram below.
Insert the new wheel stem by first aligning it with the two small holes of the wheel socket. You should hear a clicking sound when the wheel has locked in place.

Storage

The device should be stored in a cool, well-ventilated place away from direct sunlight.
If you need to store the device for a prolonged period, we recommend you charge it every three months between 40%-60% to maintain battery health. Only use an authorized power adapter. If your device is not charged for a long time, battery discharge and battery voltage may act in unintended ways which could cause fatal damage.

Common Faults

Working Status	Status Description
Low Battery Alert	The device docks by the pool edge, with the buzzer beeping intermittently.	Beeps for 5 mins (beep for 2s intermittently)
Stuck Impeller Alert	The buzzer beeps intermittently.	Beeps for 5 min (beep for 1s intermittently)
Water Damage Alert	The buzzer beeps intermittently.	Beeps for 5 min (beep for 5s intermittently)

Packing List

NO.	Name	Model	QTY(pc)
1	Cleaner	Aiper Scuba SE	1
2	Charger		1
3	Retrieval Hook		1
4	User Manual		1
5	Brushes		2

Warranty

This product has passed all quality control and safety tests, conducted by the technical department of the factory.

This product comes with a warranty that covers your item's battery and motor from the date of purchase. The respective country's legal provisions for warranty conditions shall apply accordingly.
This warranty is voided if the product has been altered, misused, or has been repaired by unauthorized personnel.
The warranty extends only to manufacturing defects and does not cover any damage resulting from mishandling of the product by the owner.
The order number or record must be presented for any claim or repair during the warranty period.
This is an additional warranty offered by AIPER INTELLIGENT SARL. at 43-47 avenue de la Grande Armée, 75116 Paris, France. This warranty does not affect the free of charge remedies for lack of conformity that the consumer holds against the seller, according to law.
Warranty Email: service@aiper.com

Important Safety Precautions

Read this manual carefully and use your device in accordance with the instructions. Aiper is not liable for any damages or injuries caused by improper use.

Instructions:

Do not operate the device when people or animals are in the pool.
Ensure the device is turned off when conducting maintenance, cleaning, or when not in use.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Only use the original, authorized power adapter.
The adapter cord should only be replaced by a qualified electrician.
It is strongly recommended to connect the charger to a surge protector when charging.
Ensure the charging port is completely dry before charging your device.
While charging, the device should be kept in a cool, well-ventilated place. Customers should not over the device while charging as this may lead to overheating or hardware malfunctions.
Do not operate the device out of the water, as this may lead to hardware malfunctions or overheating.
Only certified professionals should disassemble the driving kit of the device.
Do not operate the device while running your pool filter.
Avoid puncturing the oil sealing of the motor, as this contains grease. If punctured, this may cause a small grease leakage into your pool.
Do not store or use the device near anything that generates extreme heat.
Do not pierce or bludgeon the device's shell, as this will cause irreparable damage. Additionally, the device should not be thrown.
Do not use any third-party battery. The device can only be used with the model HYY0345210 battery.
This appliance contains batteries that are only replaceable by skilled persons.
This appliance contains batteries that are non-replaceable. When the battery is at end of life, the appliance shall be properly disposed of.
Do not expose the appliance or battery to excessive temperatures.
Be aware of the risk of terminals of the battery-operated appliance or battery being short-circuited by metal objects.
Return the batteries to a professional recycling organization.

The battery must be removed from the appliance before it is scrapped.
The appliance must be disconnected from the supply mains when removing the battery.
The battery is to be disposed of safely.

Do not damage the battery when removing it to avoid short circuits or liquid leakage. If the battery leaks, keep the fluid from touching your skin or clothes, and wipe it away immediately with a dry cloth. Then send the battery to an appropriate recycling facility or the designated after-sales service team to properly dispose of it.
