Tecno KJ8 Manual
Exploded diagram specification
| 1 | TP+LCM | 2 | FRONT COVER |
| 3 | GRAPHENE | 4 | FRONT CAMER |
| 5 | BACK CAM | 6 | BACK CAM |
| 7 | BACK CAM | 8 | RECEVER |
| 9 | NFC | 10 | REC ECO |
| 11 | CABLE A | 12 | CABLE B |
| 13 | MAIN BOARD | 14 | BATTER |
| 15 | MIDDLE FRAME | 16 | FLASH LAMP |
| 17 | RCAM CON COPPER | 18 | CARD |
| 19 | WATER FRAME | 20 | HEAT DISSIPATION FILM |
| 21 | FCAM CON COPPER | 22 | MYLAR |
| 23 | CONDUCTIVE FABRIC | 24 | SCREW_M14_D30_L35 |
| 25 | BAT COVER | 26 | CAM DECO |
| 27 | LENS | 28 | SCREW_M14_D30_L20 |
| 29 | SCREW_M14_D30_L30 | 30 | SCREW_M14_D30_L25 |
| 31 | BTB STEEL | 32 | USB RUBBER |
| 33 | USB PET | 34 | MYLAR |
| 35 | SUB PCBA | 36 | MOTOR |
| 37 | SPK FRAME | 38 | FINGERPRINT |
| 39 | SIDEKEY FPC |

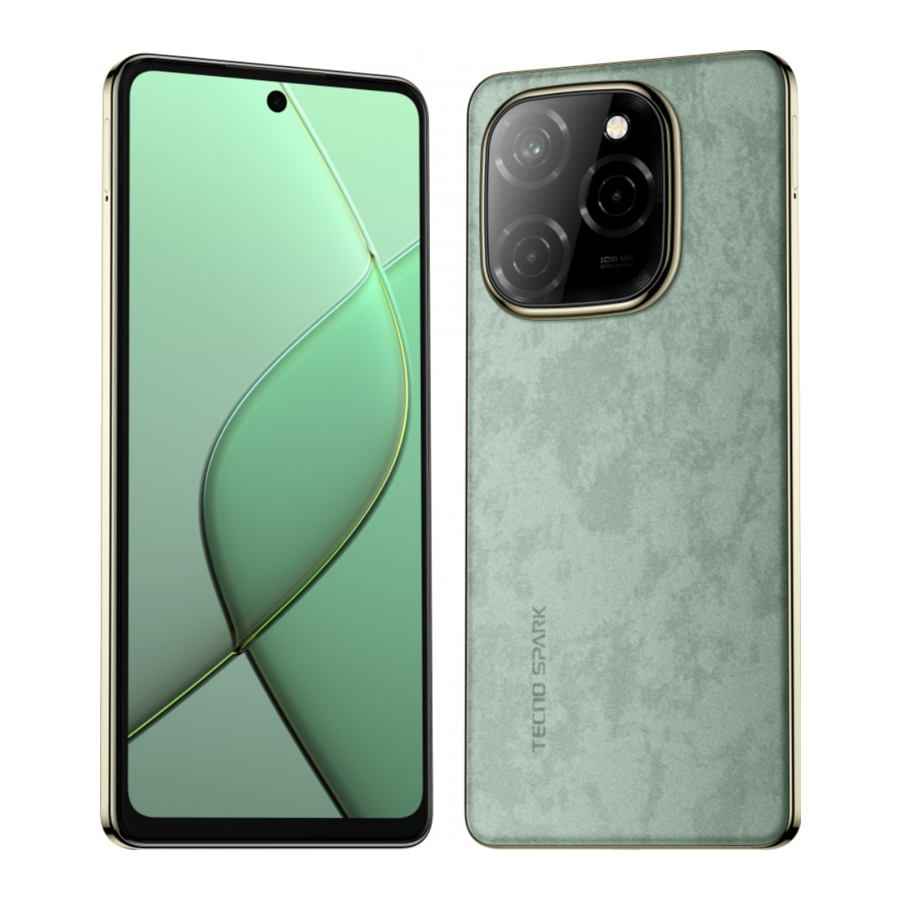

Know your phone
- Front camera
- Volume + button
- Volume - button
- Power button & side fingerprint sensor
- NFC
SIM/SD card installation
- Power off your phone.
- Refer to the following picture for SIM/SD card installation.
Charging the phone
You can charge your phone with a charger or by connecting it to a computer using a USB cable (comes with the phone).
Use only TECNO chargers and cables. Other chargers or cables may damage the phone and invalidate its warranty.
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
