Sealey TB183LEDW Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
Check the battery status, ensure the lights are functioning correctly before using.
9
Please check that each light function works normally before using.
9
When the lights are in storage, check the batteries every 6 months.
9
You must complete the paring process when using replacement & additional lights.
9
Regularly check the lights after long periods of use.
9
2. INTRODUCTION
TB18LEDW: Magnetic wireless light clusters give essential light functions with no wiring required. Designed and manufactured for metal trailers,
lorries, agricultural machinery, tractors, and other vehicles up to 20m long. EU Plug wiring configurations and vehicles fitted with a 7-pin plug
towing trailers. Includes wireless transmitter that works with 7-pin plugs only. 5-Functions: brake lights, rear turn signal lights, rear position lights,
license plate lights, and return reflectors. Dual USB charging cable supplied allowing for both lights to be charged simultaneously. Supplied in
storage case.
TB183LEDW: Quick and simple installation that does not require any tools or wiring. Suitable for use with more modern vehicles fitted with a
13-pin plug. Easy to pair, does not require any wiring and can easily be moved from vehicle to vehicle. Up to 7hr battery life, with built-in battery
indicator on each light. Supplied with dual USB cable, which allows both lights to be charged at the same time. Includes five essential functions:
brake lights, rear turn signals, rear position lights, license plate lights and return reflectors. Designed for durability in all environments and
weather conditions with an IP65 rating. Supplied in a case for easy storage when not in use.
3. SPECIFICATION
Model No:..................................... TB18LEDW/TB183LEDW
Battery: ............................ 3.7V 2Ah Li-ion/ 3.7V 2.2Ah Li-ion
Charging Time: ..................................................................4hr
LED Type: ..................................................... 24 x 0.2W SMD
Voltage: ............................................................................12V

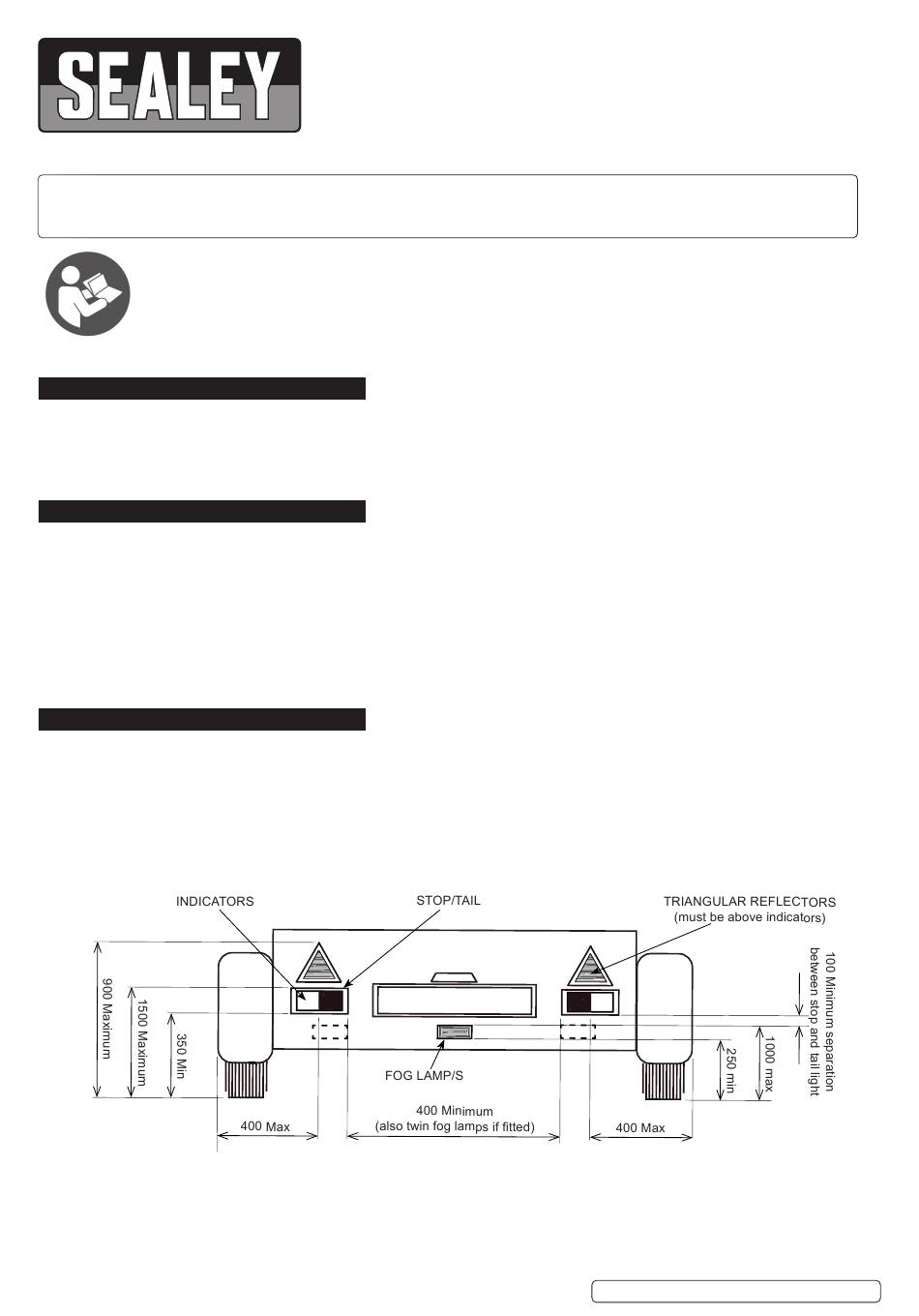

MOUNTING POSITIONS FOR TRAILER REAR LAMPS AND
Dimensions are in millimetres
All lamps and reflectors should be mounted symmetrically. Trailers over 1.3M wide require at least one rear red fog lamp, and it must be
mounted on the centre line or to the offside of the trailer. If twin rear fog lamps are fitted they should be mounted symmetrically. Trailers over
1.6M wide require white front reflectors and white front markers/lamps. Trailers manufactured from October 2012 fitted with brakes re-
quire a reversing light. Trailers over 5M long may require side retro reflectors and side marker lamps. Trailers 6M long and over require red/
white side markers. The above information is given as a guide only; for full details consult 'The Road Vehicle Lighting Regulations'.
© Jack Sealey Limited
WIRELESS SMD LED TRAILER LIGHT SET, 7/13
PIN, 2PC
TB18LEDW/TB183LEDW
MODEL NO:
Working Frequency: ....................................................2.4Ghz
IP Rating: ........................................................................IP65
Transmitter: ....................................2.6GHz (12V 7 pin outlet)
Fixing: ......................................................................Magnetic
Working Temperature Range: -30°C to +50°C Operating Time:
7hr
REFLECTORS
Original Language Version
All lamps must be 'E' marked
TB18LEDW, TB183LEDW Issue 1 03/04/25
