Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
WARNING! To prevent serious injury, read and understand all warnings and instructions before use.
DO NOT exceed rated weight capacity of this product.
8
DO NOT exceed rated weight capacity of pick up truck. Refer to pick up truck gross vehicle weight rating.
8
DO NOT use this product to unload anything over 900kg.
8
DO NOT use if any part(s) are damaged or not in place.
8
WARNING! Secure Roller Bar before driving. Failure to secure Roller Bar may cause Load Sheet to billow while driving, causing a
traffic hazard.
Before each use, clean pick up bed and Load Sheet. Dirt and debris can damage Load Sheet. Spray silicone lubricant (not included)
9
around "L" Brackets and Crank Slot.
Make sure tailgate is closed and latched.
9
Open tailgate cautiously, load may shift or fall while opening.
9
Assemble parts as per manual and ensure all parts are connected properly, with all screws, bolts and nuts secured tight.
9
Keep unloading area clear before use.
9
Always wear appropriate personal protective equipment for installation and use.
9
Check total weight of the load before using this product.
9
Check local regulations and vehicle condition before installing this product onto your vehicle.
9
2. INTRODUCTION

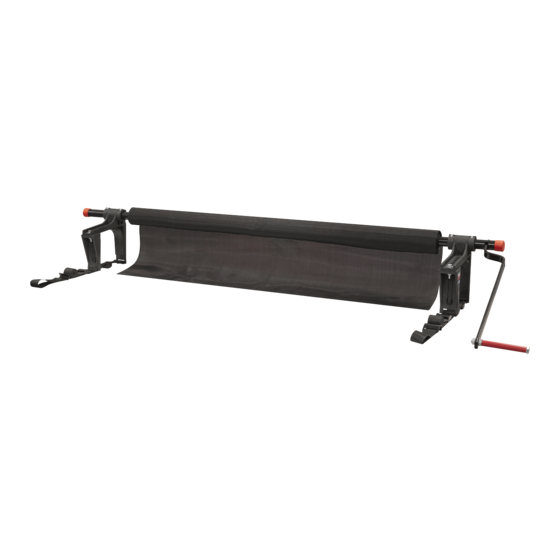

Simple crank system allows for quick unloading of cargo from your truck bed in a matter of seconds. Suited to compact and step-side
truck beds with a max tailgate thickness of 9.5cm. Can unload cargo weighting up to 900kg. Quick set up and easy storage, crank
is removable and only needed when clearing cargo. High quality polypropylene mat, designed to withstand high strain without tearing.
Single person operation allows for pain free unloading of cargo, reducing risk of back injuries. Small wrench and easy assembly
instructions included, securely fastens to tailgate without welding, cutting, or drilling. Suitable for all sorts of materials such as soil,
gravel, mulch, clay, sand, refuse and firewood.
3. SPECIFICATION
Model No: ............................................................ TBU01
Capacity: .............................................................. 900kg
Dimensions: ...............................................455 x 128cm
© Jack Sealey Limited
TRUCK BED CARGO UNLOADER 900KG
TBU01
MODEL NO:
INTRODUCTION
Original Language Version
SPECIFICATION
TBU01 Issue:1 31/07/23
