FUTABA FP-4DN Instruction Manual

FUTABA FP-4DN Instruction Manual

4/5/6 ch. digital proportional radio control
Hide thumbs

Advertisement

Quick Links

New FUTABA
DIGITAL PROPORTIONAL
RADIO CONTROL

Advertisement

loading
Need help?

Need help?

Do you have a question about the FP-4DN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FUTABA FP-4DN

Summary of Contents for FUTABA FP-4DN

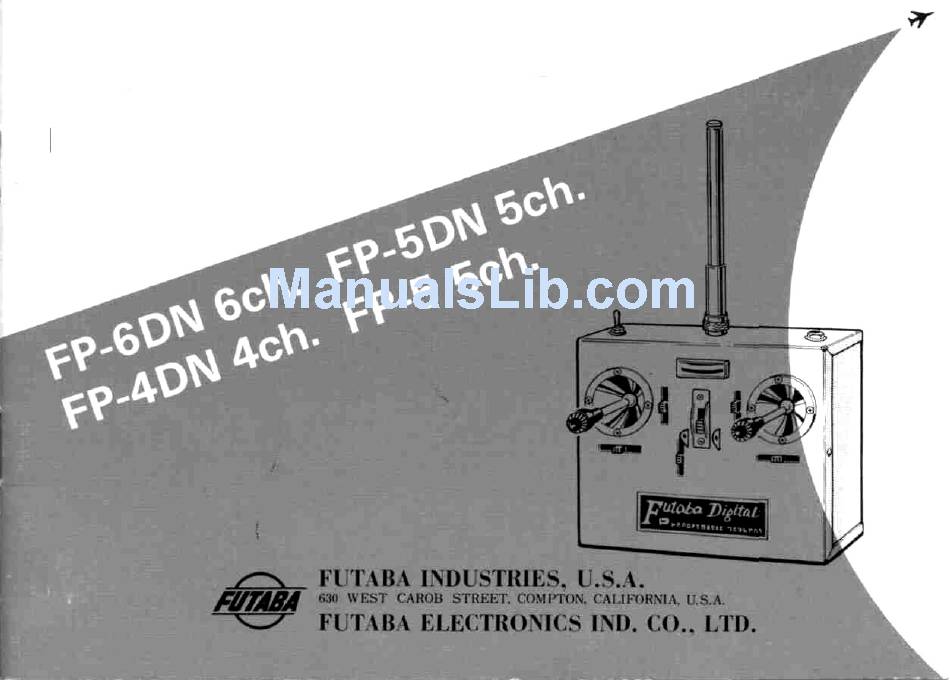

  • Page 1 New FUTABA DIGITAL PROPORTIONAL RADIO CONTROL...

  • Page 2: Table Of Contents

    INDEX Features................ 1 Specifications ............2 Transmitter operation ..........3 Handling the Receiver & Servos ......... 6 Ni-cads batteries & re-charging........8 Preca tions, test & installation ........9 Guarantee..............12 Factory repair service ..........13...

  • Page 3: Features

    4. Neck strap and Hook is provided for convenient handling. RECEIVER 1. Because of the New 8-BIT integrated circuit device, used in all Futaba Receivers, all Futaba Propo. Systems are supplied with 6 channel capacity receiver FP-R6D. 2. Light weight and miniaturized by NEW 3-Wire Mini-Block connector.

  • Page 4: Specifications

    TRANSMITTER OPERATION With the FP-4DN, a two-stick control will operate: 1. Throttle 2. Aileron 3. Elevator 4. Rudder With the FP-5DN, in addition to the above mentioned operations, a snap-switch is provided for the landing gear or other suitable operations.
  • Page 5 The front panel controls on the Transmitters are shown in the Diagram below and it is suggested that the manipu- lation of these controls be well mastered. FP-T6D FP-T4D FP-T5D FP-T5 (for FP-4DN) (for FP-5DN) (for FP-5) (for FP-6DN) 4-CHANNEL 5-CHANNEL...
  • Page 6 1. FP-4DN, FP-5DN, FP-6DN and FP-5 Transmitters are equipped with a built-in transformer-type charger for maximum safety and provided with 8/450 mAH Nickel Cadmium Batteries for dependable operations. 2. With the antenna firmly in place, turn the switch on and the Meter needle will point to 10 or more on the Dial.

  • Page 7: Handling The Receiver & Servos

    HANDLING THE RECEIVER AND SERVOS 1 . The FP-R6D receiver incorporates an 8 Bit integrated circuit and is made into 6-channel operation. The same inte- grated circuit is also used for Four (4) and Five (5) channel operation. 2. The Block connector sockets that con- nects the different Servos are an inte- gral part of the receiver.
  • Page 8 6. Connectors are made as shown in the above diagram. Please make certain that each connector is fully plugged in and that the Aileron section etc., and the power supply switch harness is correctly identified. 7. After making certain that the connections are correct according to the above diagram, turn on the transmitter switch and then put the receiver switch to ON position.
  • Page 9 NI-CAD BATTERIES AND RE-CHARGING FP-4DN, FP-5DN, FP-6DN and FP-5 Transmitters are equipped with eight (8) pen-light type Ni-Cad batteries. For the Receiver & Servos, Four (4) Ni-Cad batteries are provided in the set. Prior to each usage Ni-Cad batteries should be charged for 12 to 15 hours. If they have not been in use for some time, the batteries should be charged for about 20 hours before use.
  • Page 10 TO CHARGE TRANSMITTER BATTERIES 1. One end of the charging cord should be plugged into "A" at the bottom of the Transmitter and the other end into the wall socket of the household electric power outlet (AC 115V). TO CHARGE THE RECEIVER 1.
  • Page 11 3. When installing the Servo, the use of the Servo tray is very convenient. This is done according to the diagram. Please make sure each connector is plugged in completely. Always re-check the installation of the Servo Horns and Rods to make sure that their motion matches the move- ment of the Transmitter control stick.
  • Page 12 4. After setting the push rods on each Servo, using transmitter, actuate each Servo fully from left to right making sure the rod will not hang-up on any position, otherwise the excessive current flow thru Servo will damage the unit. 5.

  • Page 13: Guarantee

    GUARANTEE Your NEW FUTABA Digital Proportional R/C system is guaranteed for 180 days from date of purchase against all defects in materials or workmanship. When the attached registration card is returned to us within Ten days of purchase. Guarantee is void if this R/C system has been improperly handled, damaged in a crash or tampered with.

  • Page 14: Factory Repair Service

    7. Include a packing list of all items being returned and double check to make sure all items are. 8. If you return damaged equipment to FUTABA for factory service FUTABA will estimate the cost of repair and notify you, upon receipt of your payment your equipment will be repaired and return to you.
