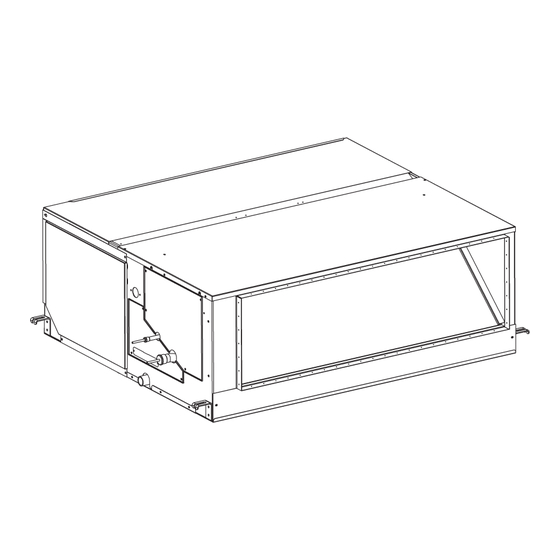

- Page 1 VRF AIR CONDITIONERS (HEAT PUMP) IN-THE-CEILING RPI-8.0FSNQ, RPI-10.0FSNQ, RPI-8.0FSN3Q, RPI-10.0FSN3Q TYPE P00510Q...
- Page 3 This declaration becomes invalid, if technical or operational modifications are introduced without the manufacturer's consent. Johnson Controls Hitachi Air Conditioning Europe SAS is authorized to compile technical file or relevant technical documentation. Address : Rue de Lombardie, Parc Aktiland II – 69800 Saint Priest, France...
- Page 5 HITACHI HITACHI distributor HITACHI Refer to Installation & Maintenance Manual of outdoor unit for temperature operation range.
-
Page 6: Important Notice
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. HITACHI's HITACHI's... -
Page 7: Automatic Control
6.Automatic Control Section2 Installation & Maintenance Manual... - Page 9 Children should be supervised that they do not play with the appliance. The appliance should not be installed in the laundry. Table 2.1 Line-up of Indoor Unit Capacity (HP) 10.0 RPI-8.0FSNQ RPI-10.0FSNQ Model RPI-8.0FSN3Q RPI-10.0FSN3Q...
- Page 11 Regarding the instructions of Wired Remote Control Switch or Wireless Remote Control Switch,read the operation manual attached to the control switch.
- Page 13 Note: When in immediate contact with refrigerant, please use the installation tools and instruments dedicated to the new refrigerant. Since the pressure of new refrigerant R410A is 1.4 times that of traditional refrigerant, its performance is susceptible to impurities like moisture, scale and grease, etc. It's essential to remove the moisture, dust, other refrigerants or refrigerant oils from the refrigeration system.
- Page 14 (small) (big)
- Page 15 (unit:mm) Check to ensure that the number of below is within 0.42kg/m . Otherwise it may cause danger situation if the refrigerant in the Outdoor Unit leaks into the room where this Indoor Unit is installed. R:Total Quantity of Charged Refrigerant(kg) ≤...
- Page 16 (unit:mm) 4-40X12 e X 50- f ø3 ø3 g X 50-h Fig. 4.3 Suspension Bolts (unit:mm) Model 1060 1098 10.0 1250 1288 1106 1100 1000 21 1050...
- Page 18 (Only for R410A or R407C) Flaring Dimension Perform the flaring work as shown below. (unit:mm) Diameter -0.4 R410A R407C 6.35 air-tightness 13.0 9.53 13.2 16.2 12.7 16.6 15.88 19.7 19.4 23.3 19.05 (*)It is impossible to perform the flaring work with 1/2H material.
- Page 19 (unit:mm) (unit:mm) 1500 to 2000...
- Page 21 Cord Clamp 10.0...
- Page 22 (1) Field wiring shall be in conformity to local laws Line and regulations, and all wiring operations must be performed by qualified professionals. (2) Refer to relevant standards for above-noted power cord size. (3) Where power cord is connected through junction box in series, be sure to determine the total current and choose wires based on the table below.
- Page 23 (RSW2 & DSW5) Ex.) Set at No.5 Cycle Set by inserting Setting DSW5 Slotted screwdriver Position into the groove Set All Pins OFF Before shipment. DSW5 and RSW2 are set to "0". RSW2 Max.64 cycles are available to set when all the equipment to be connected are corresponding to H-LINK.
- Page 25 1040523 Qingdao Hisense Hitachi Air-conditioning Systems Co., Ltd. Add.: No. 218, Qianwangang Road, Economic and Technological Development Zone, Qingdao, China The Company is committed to continuous product improvement. We reserve the right, therefore, to alter the product information at any time and without prior announcement.
