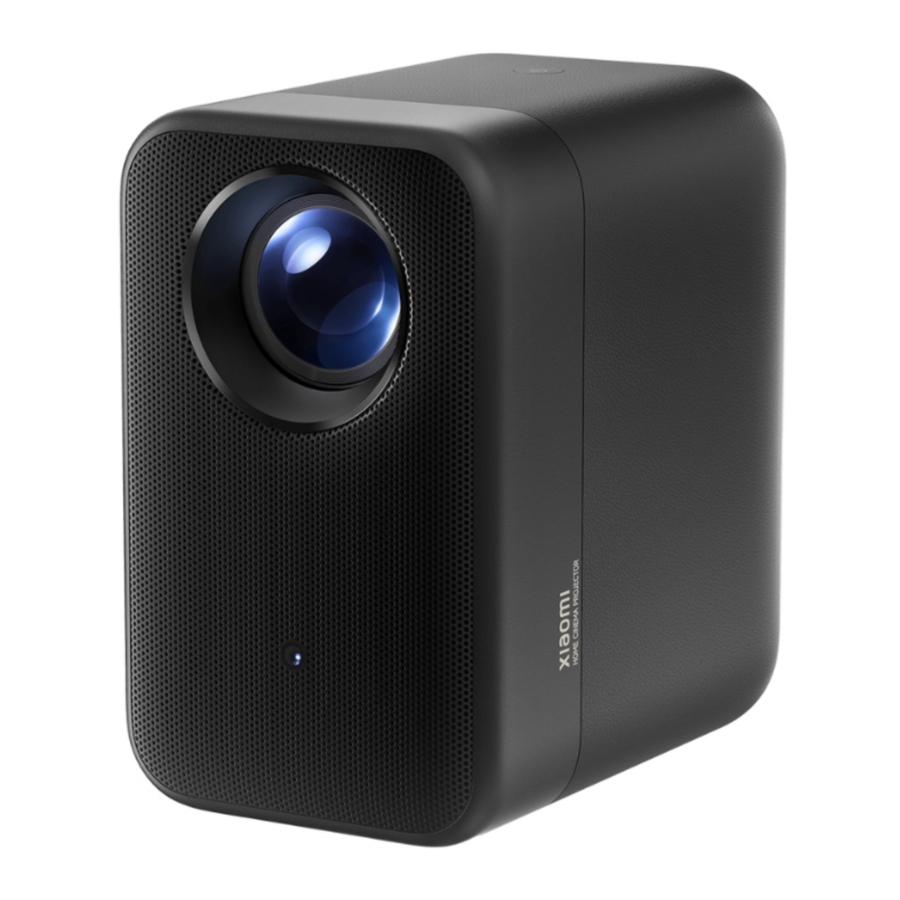

Xiaomi L1 Pro, XMTYY03PFMG Manual

Product Overview

1. Headphone Port
2. USB
   USB 2.0 Protocol Port
3. HDMI
   HDMI Signal Input Port
4. DC IN
   DC Port

• Do not look directly into the projection lens to avoid eye damage as this projector emits strong light during use.
• Do not place any objects within a range of 20 cm around the air inlet and outlet to avoid affecting the heat dissipation and causing damage or posing hazards.
• If mounting is required, please purchase a compatible mounting bracket with screws meeting the following specifications: a diameter of 1/4 inch and a length of less than 8 mm.
• Retain the original packaging for future storage or transportation.

Remote control

	Power Button: Turn on or turn off the projector
	Google Assistant: Ask Google Assistant to find movies, stream apps, play music, and control the projector - all with your voice.
	Navigation Button: Move up, down, left, or right
	Confirm Button: Press to confirm
	Back Button: Return to the previous screen
	Home Button: Return to the home screen
	Settings Button: Open the control panel
	Netflix Button: Access the Netflix app
	YouTube Button: Access the YouTube app
	Volume Button: +Volume up -Volume down

How to Use

Remote control pairing

Turning On
When the projector is connected to the power supply, press the power button on the projector or the power button on the remote control to turn on the projector.

Turning Off
Press the power button on the projector or the power button on the remote control to bring out the turning off menu, and select the corresponding option.

Make sure the remote control has batteries installed and the projector is turned on.

Place the remote control near the projector, within a distance of 20 cm, and simultaneously press and hold the back button and the home button for 3 seconds to trigger the remote control pairing.

Once completed, the screen will indicate that the remote control is paired successfully.

Adjusting image focus

Auto focus

• The auto focus function is enabled by default. When this function is triggered by moving the projector, the image focus will be automatically adjusted. Alternatively, you can select Settings > Projector > Focus > Execute Focus, and the image focus will also be automatically adjusted.
• You can enable or disable the auto focus function by selecting Settings > Projector > Focus > Auto Focus.

Manual focus

• You can select Settings > Projector > Focus > Manual Focus, and use the left and right buttons on the remote control to manually adjust the focus.


Note: After auto focus is completed, you can also press the confirm button to enter manual focus, and use the navigation button on the remote control to move left and right for further fine-tuning.

Image correction

Auto keystone correction

• The auto keystone correction function is enabled by default. When this function is triggered by moving the projector, the keystone correction will be automatically applied to the image. Alternatively, you can select Settings > Projector > Keystone > Execute auto keystone correction, and the keystone correction will be automatically applied to the image.
• You can enable or disable the auto keystone correction function by selecting Settings > Projector > Keystone.

Manual keystone correction

• You can select Settings > Projector > Keystone > Manual keystone correction, and use the remote control to adjust the image corners for correction.


Auto obstacle avoidance

• This function is enabled by default. During auto image correction, the projector will automatically detect and avoid obstacles in the projected area, ensuring an unobstructed and complete image. The image may zoom out based on the positions and sizes of the obstacles.
• You can enable or disable this function by pressing the settings button on the remote control and selecting Settings > Projector > Keystone > EasyView.

Auto screen alignment

• This function is enabled by default. During auto image correction, the projector will automatically detect the screen (sold separately) and align the image with all four edges of the screen.
• You can enable or disable this function by pressing the settings button on the remote control and selecting Settings > Projector > Keystone > EasyFit.

Projection distance & screen dimensions

Determine the distance between the projector and the screen according to the desired screen size.

Screen Dimensions (SD): The diagonal size of the projection screen (in inches). Projection Distance (D): The distance between the front end of the projector and the screen (in centimeters).
Screen Width (W): The width of the image projected on the wall (in centimeters). Note: The values in the table above are for reference only. They may slightly differ from the actual values. Please refer to the actual values.

Specifications

Troubleshooting

Safety Instructions

Before using the product, make sure to carefully read the following safety instructions.
This warning symbol informs the user that this product contains non-insulated voltage sources that can cause an electric shock. Coming into contact with any internal component may result in an electric shock.
This symbol informs the user about important handling and maintenance related information. Please read this information carefully to ensure proper use.
This symbol informs the user to be aware of high temperatures.
This symbol informs the user to avoid touching this part.
Transportation Instructions: It is recommended to transport this projector in its original or similar packaging.
Preventing Electric Shocks and Fire Hazards:

• Only use the provided genuine power adapter.
• Unplug the projector from the electrical outlet during thunderstorms or when it is not being used for a long time, so as to avoid damage caused by a power surge or lightning strike.
• Do not place any flammable objects near this projector so as to avoid fire.
• Do not block any of the vents as this may cause heat build-up inside the projector, and possibly result in a fire.
• Do not block the lens when the projector is turned on. Any object placed close to the lens may get very hot and/or deformed, and may even cause a fire.

Safety Precautions:

• Do not place this projector on an unstable platform, stand or table so as to prevent it from falling and causing serious damage or personal injury.
• Do not look directly into the lens when the projector is turned on to avoid eye damage.
• Do not attempt to disassemble this projector as it may contain dangerous high voltage components. This projector must only be maintained and repaired by a qualified or authorized technician.
• Do not expose this projector to rain or moisture (operating humidity is 20%–80%).
• Do not immerse this projector in, nor expose it to water or other liquids. Immediately unplug the projector if any liquid or object got into its housing, and have it checked by a qualified technician before using it again.
• Do not place this projector in any of the following environments:
  • In poorly ventilated or narrow spaces.
  • Near devices that produce a strong magnetic field.
  • In direct sunlight.
  • In extremely hot, cold or humid environments.
  • Close to a fire alarm.

• Risk of explosion if the battery is replaced by an incorrect type.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
