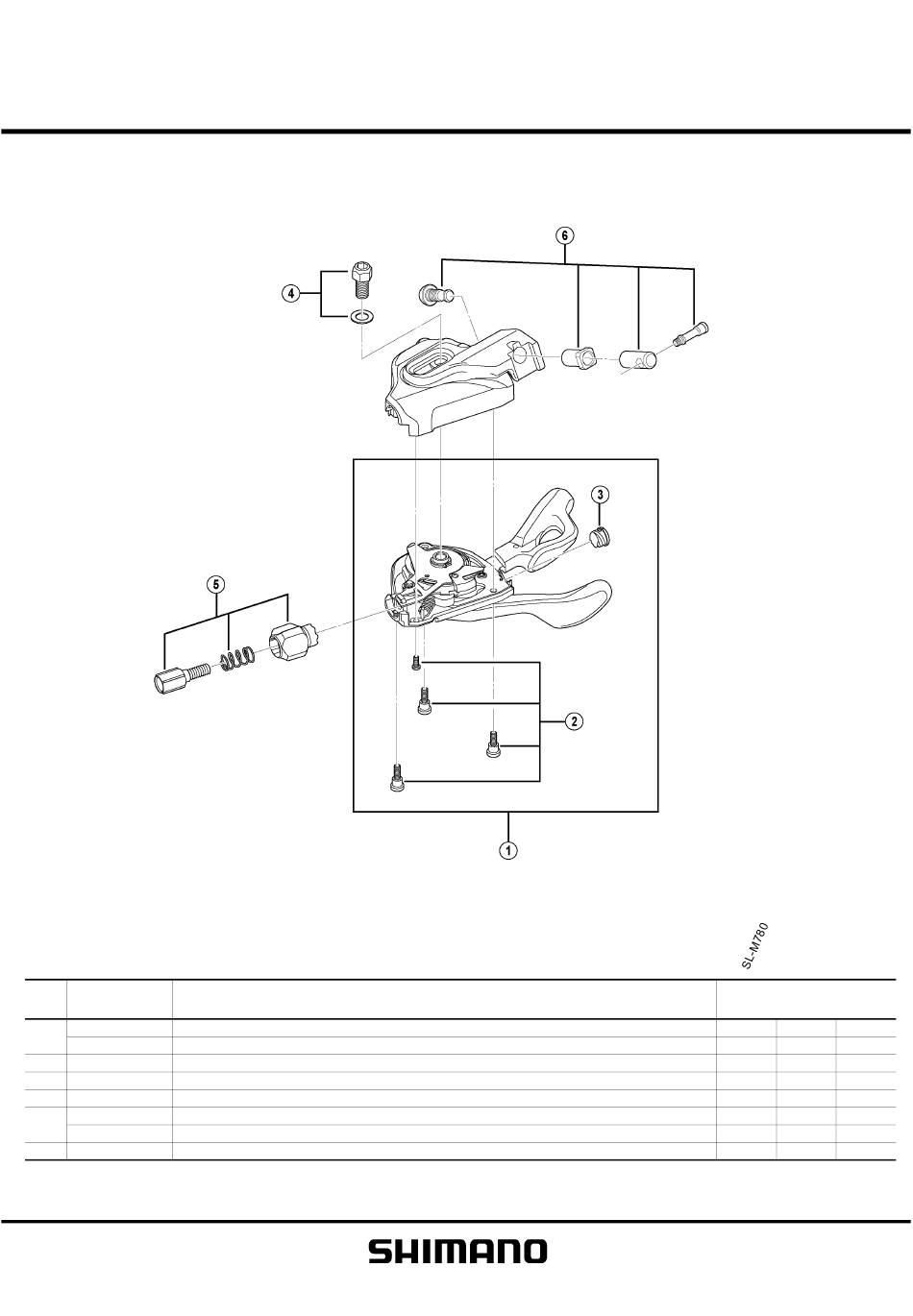

DEORE XT Rapidfire Plus Lever
SL-M780-B-I
(I-spec B-type)
INTERCHANGEABILITY
A
A
A
Mar.-2013-3533
©
Shimano Inc. A
