Aqualytic MultiDirect AL450 Instruction Manual

System
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

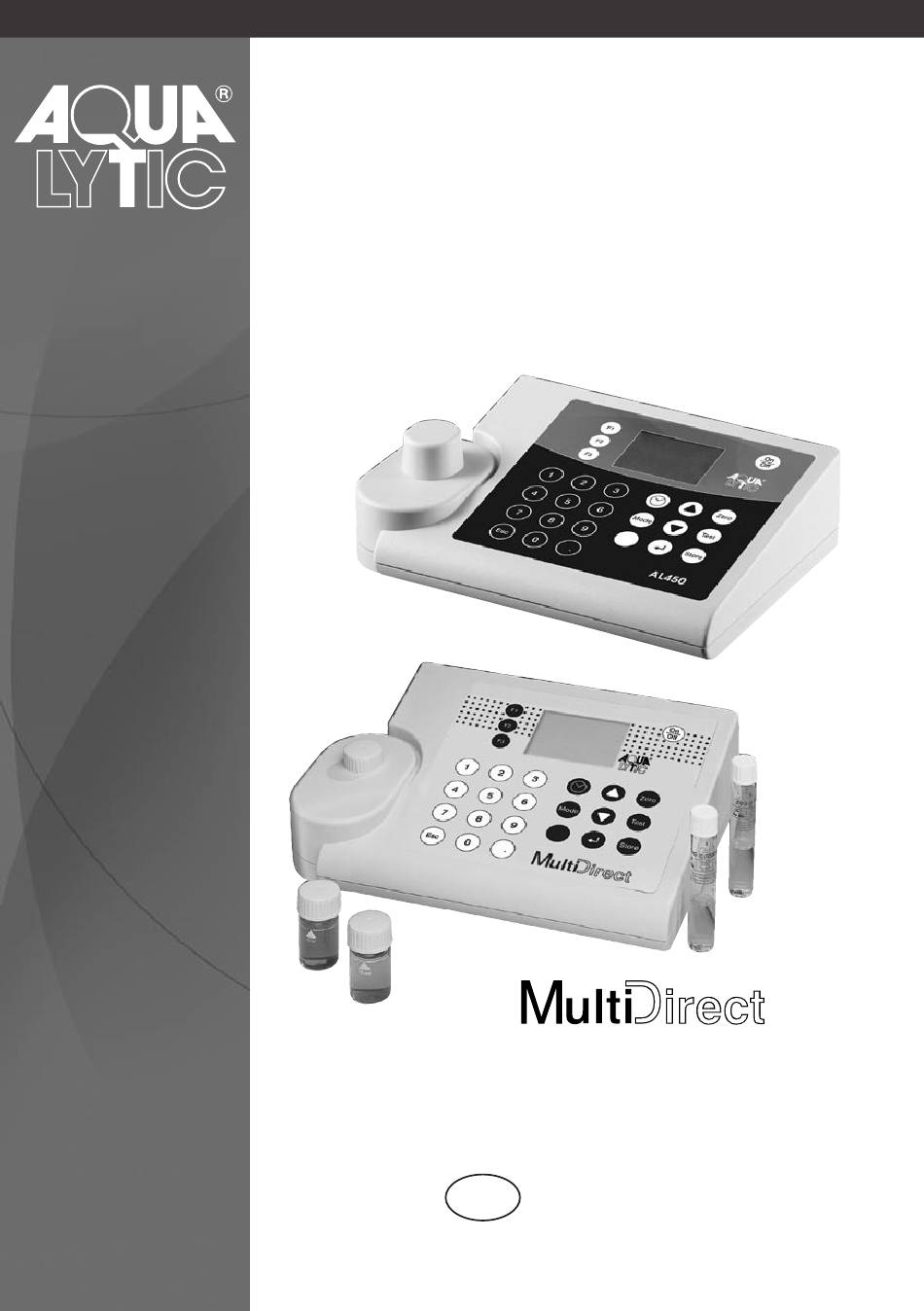

Photometer System
AL450
GB Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiDirect AL450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aqualytic MultiDirect AL450

Summary of Contents for Aqualytic MultiDirect AL450

  • Page 1 Photometer System AL450 GB Instruction manual...

  • Page 3: Important Note

    Important steps before using the photometer Please carry out the following steps as described in the Instruction manual. Become familiar with your new pho- tometer before starting with the first tests: • Unpacking and inspection of delivery contents, see page 282. •...

  • Page 5: Wichtige Information

    Wichtige Information Um die Qualität unserer Umwelt zu erhalten, beschützen und zu verbessern Entsorgung von elektronischen Geräten in der Europäischen Union Aufgrund der Europäischen Verordnung 2002/96/EC darf Ihr elektronisches Gerät nicht mit dem normalen Hausmüll entsorgt werden! Tintometer GmbH entsorgt ihr elektrisches Gerät auf eine professionelle und für die Umwelt verantwortungsvolle Weise.
  • Page 6 Información Importante Para preservar, proteger y mejorar la calidad del medio ambiente Eliminación de equipos eléctricos en la Unión Europea Con motivo de la Directiva Europea 2002/96/CE, ¡ningún instrumento eléctrico deberá eliminarse junto con los residuos domésticos diarios! Tintometer GmbH se encargará de dichos instrumentos eléctricos de una manera profesional y sin dañar el medio ambiente.
  • Page 7 Wichtiger Entsorgungshinweis zu Batterien und Akkus Jeder Verbraucher ist aufgrund der Batterieverordnung (Richtlinie 2006/66/ EG) gesetzlich zur Rückgabe aller ge- und verbrauchten Batterien bzw. Akkus verpflichtet. Die Entsorgung über den Hausmüll ist verboten. Da auch bei Produkten aus unserem Sortiment Batterien und Akkus im Lieferumgang enthalten sind, weisen wir Sie auf folgendes hin: Verbrauchte Batterien und Akkus gehören nicht in den Hausmüll, sondern können unentgeltlich bei den öffentlichen Sammelstellen Ihrer Gemeinde und überall...
  • Page 8 Indicación importante acerca de la eliminación de pilas y acumuladores Basado en la norma relativa a pilas/ baterías (directiva 2006/66/CE), cada consumidor, está obligado por ley, a la devolución de todas las pilas/ baterías y acumuladores usados y consumidos. Está prohibida la eliminación en la basura doméstica. Ya que en productos de nuestra gama, también se incluyen en el suministro pilas y acumuladores, le sugerimos lo siguiente: Las pilas y acumuladores usados no pertenecen a la basura doméstica, sino que pueden...

  • Page 9: Safety Precautions

    Be aware of the risks of using the required reagents by reading the MSDS (Material Safety Data Sheets). Failure could result in serious injury to the operator or damage to the instrument. MSDS: www.aqualytic.com CAUTION Use the charger unit only with rechargeable batteries. Failure can result in serious injury to the operator or damage to the instrument.

  • Page 10: Table Of Contents

    Table of contents Part 1 Methods ....................7 1.1 Table of Methods ..................... 8 Acid demand to pH 4.3 ....................12 Alkalinity-total (Alkalinity-m, m-Value) ................14 Alkalinity-total HR (Alkalinity-m HR, m-Value HR) ............16 Alkalinity-p (p-Value) ....................... 18 Aluminium with tablets ....................20 Aluminium (powder pack) ....................
  • Page 11 Chlorite in presence of Chlorine and Chlorine dioxide ............. 68 Chromium with Powder Pack ..................72 differentiated determination ..................74 Chromium (VI) ......................76 Chromium, total (Cr(III) + Cr(VI)) .................. 77 COD LR ........................... 78 COD MR ......................... 80 COD HR .......................... 82 Colour, true and apparent ....................
  • Page 12 Molybdate HR (powder pack) ..................142 Nickel with tablet ......................144 Nitrate .......................... 146 Nitrite with tablet ......................148 Nitrite LR (powder pack) ....................150 Nitrogen, total LR ......................152 Nitrogen, total HR ......................154 Oxygen, active ......................156 Oxygen, dissolved ......................158 Ozone ...........................
  • Page 13 Important notes ..................224 1.2.1 Correct use of reagents ................224 1.2.2 Cleaning of vials and accessories for analysis ..........225 1.2.3 Guidelines for photometric measurements ........... 225 1.2.4 Sample dilution techniques ................227 1.2.5 Correcting for volume additions ..............227 Part 2 Instrument Manual ...............
  • Page 14 2.4.5 Calibration ....................256 2.4.6 Lab function ....................264 Profi-Mode ....................264 One Time Zero ..................... 265 2.4.7 User operations .................... 266 User method list ................... 266 User Concentration Methods ................ 268 User Polynomials ..................270 Delete User Methods ..................273 Print Data of User Methods ................

  • Page 15: Part 1 Methods

    Part 1 Methods Al450_12 06/2013...

  • Page 16: Table Of Methods

    1.1 Methods No. Analysis Reagent Range Displayed Method OTZ Page [nm] 20 Acid demand tablet 0.1-4 mmol/l Acid/Indicator 1,2,5 to pH 4.3 T 30 Alkalinity, total T tablet 5-200 mg/l CaCO Acid/Indicator 1,2,5 31 Alkalinity HR, tablet 5-500 mg/l CaCO Acid/Indicator 1,2,5 total T...
  • Page 17 1.1 Methods No. Analysis Reagent Range Displayed Method OTZ Page [nm] 170 Fluoride L liquid 0.05-2 mg/l F SPADNS 210 H tablet 0.03-3 mg/l H DPD/catalyst 213 H LR L liquid 1-50 mg/l H Titanium – tetrachloride/acid 214 H HR L liquid 40-500 mg/l H...
  • Page 18 1.1 Methods No. Analysis Reagent Range Displayed Method OTZ Page [nm] 290 Oxygen, active T tablet 0.1-10 mg/l O 292 Oxygen, Vacu-vial 10-800 μg/l O Rhodazine D – dissolved 300 Ozone (DPD) T tablet 0.02-2 mg/l O DPD/Glycine 70 PHMB T tablet 2-60 mg/l PHMB Buffer/Indicator...
  • Page 19 1.1 Methods No. Analysis Reagent Range Displayed Method OTZ Page [nm] 390 Urea T tablet + 0.1-2.5 mg/l Urea Indophenol/ liquid Urease 400 Zinc T tablet 0.02 -1 mg/l Zn Zincon – The precision of Lovibond Reagent Systems (tablets, powder packs and tube tests) is identical to ®...

  • Page 20: Acid Demand To Ph 4.3

    1.1 Methods Acid demand to pH 4.3 with Tablet 0.1 – 4 mmol/l 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 21 1.1 Methods Notes: The terms total Alkalinity, Alkalinity-m, m-Value and Acid demand to pH 4.3 are identical. For accurate results exactly 10 ml of water sample must be taken for the test. Al450_12 06/2013...

  • Page 22: Alkalinity-Total (Alkalinity-M, M-Value)

    1.1 Methods Alkalinity, total = Alkalinity-m = m-Value with Tablet 5 – 200 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 23 1.1 Methods Notes: 1. The terms total Alkalinity, Alkalinity-m, m-Value and Alkalinity to pH 4.3 are identical. 2. For accurate results exactly 10 ml of water sample must be taken for the test. 3. Conversion table: Acid demand to pH 4.3 German English French...

  • Page 24: Alkalinity-Total Hr (Alkalinity-M Hr, M-Value Hr)

    1.1 Methods Alkalinity HR, total = Alkalinity-m HR = m-Value HR with Tablet 5 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 25 1.1 Methods Notes: For verification of the result look carefully at the bottom of the vial. If a thin yellow layer forms, then mix the vial again. This ensures that reaction is complete. Reread the result. Conversion table: Acid demand to pH 4.3 German English French...

  • Page 26: Alkalinity-P (P-Value)

    1.1 Methods Alkalinity-p = p-value with Tablet 5 – 300 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 27 1.1 Methods Notes 1. The terms Alkalinity-p, p-Value and Alkalinity to pH 8.2 are identical. 2. For accurate test results exactly 10 ml of water sample must be taken for the test. 3. This method was developed from a volumetric procedure for the determination of Alkalinity-p.

  • Page 28: Aluminium With Tablets

    1.1 Methods Aluminium with Tablet 0.01 – 0.3 mg/l Al 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 29 1.1 Methods Notes: Before use, clean the vials and the measuring beaker with Hydrochloric acid (approx. 20%). Rinse them thoroughly with deionised water. To get accurate results the sample temperature must be between 20°C and 25°C. A low test result may be given in the presence of Fluorides and Polyphosphates. The effect of this is generally insignificant unless the water has fluoride added artificially.

  • Page 30: Aluminium (Powder Pack)

    1.1 Methods Aluminium with Vario Powder Pack 0.01 – 0.25 mg/l Al Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill 20 ml of water sample in a 100 ml beaker. 2. Add the contents of one Vario Aluminum ECR F20 Powder Pack straight from the foil to the water sample.
  • Page 31 1.1 Methods After the reaction period is finished proceed as follows: 12. Place the vial (the blank) in the sample chamber making sure that the marks are aligned. prepare Zero 13. Press ZERO key. press ZERO 14. Remove the vial from the sample chamber. 15.

  • Page 32: Ammonia With Tablet

    1.1 Methods Ammonia with Tablet 0.02 – 1 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 33 1.1 Methods Notes: 1. The tablets must be added in the correct sequence. 2. The AMMONIA No. 1 tablet will only dissolve completely after the AMMONIA No. 2 tablet has been added. 3. The temperature of the sample is important for full colour development. At a temperature below 20 °C the reaction period is 15 minutes.

  • Page 34: Ammonia (Powder Pack)

    1.1 Methods Ammonia with Vario Powder Pack 0.01 – 0.8 mg/l N Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water (this is the blank). 2.
  • Page 35 1.1 Methods Notes: 1. Extremely basic or acidic water samples should be adjusted with 0.5 mol/l (1 N) Sulfuric acid solution or 1 mol/l (1 N) Sodium hydroxide solution to pH 7. 2. Interferences: Interfering substance Interference levels and treatments Calcium greater than 1000 mg/l CaCO Iron...

  • Page 36: Ammonia Lr

    1.1 Methods Ammonia LR with Vario Tube Test 0.02 – 2.5 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank). 2. Open another white capped reaction vial and add Ø...
  • Page 37 1.1 Methods Notes: 1. Strong alkaline or acidic water samples must be adjusted to approx. pH 7 before analysis (use 1 mol/l Hydrochloric acid resp. 1 mol/l Sodium hydroxide). 2. If chlorine is known to be present, add one drop of 0.1 mol/l Sodium thiosulfate for each 0.3 mg/l Cl in a one litre water sample.

  • Page 38: Ammonia Hr

    1.1 Methods Ammonia HR with Vario Tube Test 1 – 50 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 0.1 ml deionised water (this is the blank). 2. Open another white capped reaction vial and add Ø...
  • Page 39 1.1 Methods Notes: Strong alkaline or acidic water samples must be adjusted to approx. pH 7 before analysis (use 1 mol/l Hydrochloric acid resp. 1 mol/l Sodium hydroxide). If chlorine is known to be present, add one drop of 0.1 mol/l Sodium thiosulfate for each 0.3 mg/l Cl in a one litre water sample.

  • Page 40: Boron

    1.1 Methods Boron with Tablet 0.1 – 2 mg/l B 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 41 1.1 Methods Notes: The tablets must added in the correct sequence. The sample solution should have a pH value between 6 and 7. Interferences are prevented by the presence of EDTA in the tablets. The rate of colour development depends on the temperature. The temperature of the sample must be 20 °C ±...

  • Page 42: Bromine

    1.1 Methods Bromine with Tablet 0.05 – 13 mg/l Br 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 43 1.1 Methods Notes: Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Bromine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

  • Page 44: Chloramine (Mono) And Free Ammonia

    1.1 Methods Chloramine (Mono) and Free Ammonia with Vario Powder Pack and Liquid Reagent 0.04 – 4.50 mg/l Cl The following selection is shown in the display: Chloramine (Mono) >> with without NH4 for the determination of Monochloramine and free Am- >>...
  • Page 45 1.1 Methods Chloramine (Mono) with Vario Powder Pack 0.04 – 4.50 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 46 1.1 Methods Chloramine (Mono) and Free Ammonia with Vario Powder Pack and Liquid Reagent 0.04 – 4.50 mg/l Cl 0.01 – 0.50 mg/l NH Use two clean vials (24 mm Ø) and mark one as the chloramine vial, the other as the ammonia vial. 1.
  • Page 47 1.1 Methods 13. Close the vial tightly with the cap and swirl several times to mix the contents (approx. 20 seconds). 14. Place the ammonia vial in the sample chamber making sure that the marks are aligned. T1 accepted prepare T2 15.

  • Page 48: Chloride

    1.1 Methods Chloride with Tablet 0.5 – 25 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 49 1.1 Methods Notes: Ensure that all particles of the tablet are dissolved – Chloride causes an extremely fine distributed turbidity with a milky appearance. Heavy shaking leads to bigger sized particles which can cause false readings. High concentrations of electrolytes and organic compounds have different effects on the precipitation reaction.

  • Page 50: Chlorine Hr With Tablet

    1.1 Methods Chlorine with Tablet 0.01 – 6 mg/l Cl Chlorine HR with Tablet 0.1 – 10 mg/l Cl Chlorine with Liquid Reagent 0.02 - 4 mg/l Cl Chlorine with Vario Powder Pack 0.02 - 2 mg/l Cl Chlorine The following selection is shown in the display: >>...
  • Page 51 1.1 Methods Notes: Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

  • Page 52: Differentiated Determination (Free, Combined, Total)

    1.1 Methods Chlorine, differentiated determination with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 53 1.1 Methods 13. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted 14. Press TEST key. prepare T2 Wait for a reaction period of 2 minutes. press TEST Countdown 2:00 After the reaction period is finished the measurement starts automatically.

  • Page 54: Free Chlorine

    1.1 Methods Chlorine, free with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 55: Total Chlorine

    1.1 Methods Chlorine, total with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 56: Chlorine Hr With Tablet

    1.1 Methods Chlorine HR, differentiated determination with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 57 1.1 Methods 12. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 13. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 14. Press TEST key. press TEST Wait for a reaction period of 2 minutes.

  • Page 58: Free Chlorine

    1.1 Methods Chlorine HR, free with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 59: Total Chlorine

    1.1 Methods Chlorine HR, total with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 60: Chlorine With Liquid Reagent

    1.1 Methods Chlorine, differentiated determination with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 61 1.1 Methods 13. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 14. Press TEST key. press TEST Wait for a reaction period of 2 minutes. Countdown 2:00 After the reaction period is finished the reading starts automatically.

  • Page 62: Free Chlorine

    1.1 Methods Chlorine, free with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 63: Total Chlorine

    1.1 Methods Chlorine, total with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 64: Chlorine (Powder Pack)

    1.1 Methods Chlorine, differentiated determination with Vario Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 65 1.1 Methods 12. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 13. Press TEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically.

  • Page 66: Free Chlorine

    1.1 Methods Chlorine, free with Vario Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 67: Total Chlorine

    1.1 Methods Chlorine, total with Vario Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 68: Chlorine Dioxide

    1.1 Methods Chlorine dioxide with Tablet 0.02 – 11 mg/l ClO Chlorine dioxide The following selection is shown in the display: >> with Cl without Cl for the determination of Chlorine dioxide in the presence >> with Cl of Chlorine. for the determination of Chlorine dioxide in the absence >>...
  • Page 69 1.1 Methods Notes: Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine dioxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

  • Page 70: In Presence Of Chlorine

    1.1 Methods Chlorine dioxide in the presence of Chlorine with Tablet 0.02 – 11 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample. 2. Add one GLYCINE tablet straight from the foil and crush the tablet using a clean stirring rod.
  • Page 71 1.1 Methods 13. Remove the vial from the sample chamber, empty the vial, rinse vial and cap several times. Fill with a few drops of water sample. 14. Add one DPD No. 1 tablet straight from the foil and crush the tablet using a clean stirring rod. 15.
  • Page 72 1.1 Methods Notes: (Chlorine dioxide in the presence of Chlorine) The conversion factor to convert Chlorine dioxide (display) to Chlorine dioxide as Chlorine is 2.6315. mg/l ClO [Cl] = mg/l ClO · 2,6315 Chlorine dioxide displayed as Chlorine units ClO [Cl] has its origin in swimming poolwater treatment according to DIN 19643.

  • Page 73: In Absence Of Chlorine

    1.1 Methods Chlorine dioxide in absence of Chlorine with Tablet 0.02 – 11 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 74: Chlorine Hr (Ki)

    1.1 Methods Chlorine HR (Kl) with Tablet 5 – 200 mg/l Cl Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 8 ml of water sample, close tightly with the cap. Ø 16 mm 2.
  • Page 75 1.1 Methods Notes: Oxidising agents interfere as they react in the same way as Chlorine. Al450_12 06/2013...

  • Page 76: Chlorite In Presence Of Chlorine And Chlorine Dioxide

    1.1 Methods Chlorite in presence of Chlorine and Chlorine dioxide 0,01 – 6 mg/l Cl Firstly, the glycine method is used to measure the concen- tration of Chlorine Dioxide. This is then followed by the determination of the free and total chlorine, from which the Combined Chlorine can be calculated.
  • Page 77 1.1 Methods 9. Transfer the contents of the first vial (Glycine solu- tion) into the prepared vial (point 8). 10. Close the vial tightly with the cap and swirl several times until the tablets are dissolved. 11. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 78 1.1 Methods 21. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 22. Place the vial in the sample chamber making sure that marks are aligned. 23. Wait for a reaction period of 2 minutes. Zero accepted prepare Test 24.
  • Page 79 1.1 Methods Calculations: mg/l Chlorine dioxide = result G x 1,9 mg/l free Chlorine = result A – result G mg/l combined Chlorine = result C – result A mg/l Chlorite = result D – ( result C + 4 x result G ) Tolerances: By calculation of non direct analysable parameters it is necessary to consider the error propagation besed on the possible tolerances of the single test tesults.

  • Page 80: Chromium With Powder Pack

    1.1 Methods Chromium with Powder Pack 0.02 – 2 mg/l Cr Chrom >> diff The following selection is shown in the display: Cr (VI) Cr (III + VI) for the differentiated determination of Chromium (VI), >> diff Chromium (III) and total Chromium for the determination of Chromium (VI) >>...
  • Page 81 Al450_12 06/2013...

  • Page 82: Differentiated Determination

    1.1 Methods Chromium, differentiated determination with Powder Pack 0.02 – 2 mg/l Cr Digestion: 1. Fill a clean vial (16 mm Ø) with 10 ml of water sample. 2. Add the contents of one PERSULF.RGT FOR CR Pow- der Pack straight from the foil into the vial. Ø...
  • Page 83 1.1 Methods After the reaction period is finished the measurement starts automatically. 13. Fill a second clean vial (16 mm Ø) with 10 ml of the water sample. 14. Add the contents of one CHROMIUM HEXAVALENT Powder Pack straight from the foil to the water Ø...
  • Page 84 1.1 Methods Chromium (Vl) with Powder Pack 0.02 – 2 mg/l Cr Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample. Ø 16 mm 2. Place the vial in the sample chamber making sure that the marks are aligned.

  • Page 85: Chromium (Vi)

    1.1 Methods Chromium, total (Cr(lll) + Cr(Vl)) with Powder Pack 0.2 – 2 mg/l Cr Digestion: 1. Fill a clean vial (16 mm Ø) with 10 ml of water sample. 2. Add the contents of one PERSULF.RGT FOR CR Pow- der Pack straight from the foil into the vial.

  • Page 86: Cod Lr

    1.1 Methods COD LR with Vario Tube Test 0 – 150 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank (Note 1)). 2.
  • Page 87 1.1 Methods Notes: Run samples and blanks with the same batch of vials. The blank is stable when stored in the dark and can be used for further measurements with vials of the same batch. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.

  • Page 88: Cod Mr

    1.1 Methods COD MR with Vario Tube Test 0 – 1500 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank (Note 1)). 2.
  • Page 89 1.1 Methods Notes: 1. Run samples and blanks with the same batch of vials. The blank is stable when stored in the dark and can be used for further measurements with vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.

  • Page 90: Cod Hr

    1.1 Methods COD HR with Vario Tube Test 0 – 15 g/l O 0 – 15 000 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 0.2 ml deionised water (this is the blank (Note 1)). 2.
  • Page 91 1.1 Methods Notes: 1. Run samples and blanks with the same batch of vials. The blank is stable when stored in the dark and can be used for further measurements with vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.

  • Page 92: Colour, True And Apparent

    1.1 Methods Colour, true and apparent (APHA Platinum-Cobalt Standard Method) 0 – 500 Pt-Co units Sample preparation (Note 4): Step A Filter approx. 50 ml deionised water through a membrane filter with a pore width of 0.45 μm. Discard the filtrate. Filter another 50 ml deionised water and keep it for zeroing.
  • Page 93 1.1 Methods Notes: 1. This colour scale was originally developed by A. Hazen as a visual comparison scale. It is therefore necessary to ascertain whether the extinction maximum of the water sample is in the range from 420 to 470 nm, as this method is only suitable for water samples with yellowish to yellowish-brown coloration.

  • Page 94: Copper With Tablet

    1.1 Methods Copper with Tablet 0.05 – 5 mg/l Cu Copper The following selection is shown in the display: >> diff free total for the differentiated determination of free, combined and >> diff total Copper. >> free for the determination of free Copper. for the determination of total Copper.

  • Page 95: Differentiated Determination (Free, Combined, Total)

    1.1 Methods Copper, differentiated determination with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 96: Free Copper

    1.1 Methods Copper, free with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 97: Total Copper

    1.1 Methods Copper, total with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.

  • Page 98: Copper (Powder Pack)

    1.1 Methods Copper, free (Note 1) with Vario Powder Pack 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 99 1.1 Methods Notes: 1. For determination of total Copper digestion is required. 2. Extremely acid water samples (pH 2 or less) must be adjusted between pH 4 and pH 6 before the reagent is added (with 8 mol/l Potassium hydroxide solution KOH). Caution: pH values above 6 can lead to Copper precipitation.

  • Page 100: Cyanide

    1.1 Methods Cyanide with Reagent Test 0.01 – 0.5 mg/l CN 1. Fill a clean vial (24 mm Ø) with 2 ml of water sample and 8 ml of deionised water, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 101 1.1 Methods Notes: 1. Only free Cyanide and Cyanides that can be destroyed by Chlorine are determined by this test. 2. In the present of Thiocyanate, heavy metal complexes, colorants or aromatic amines, the cyanide must be separated out by distillation before analysis is performed. 3.

  • Page 102: Cya-Test (Cyanuric Acid)

    1.1 Methods CyA-TEST (Cyanuric acid) with Tablet 0 – 160 mg/l CyA 1. Fill a clean vial (24 mm Ø) with 5 ml of the water sample and 5 ml deionised water (Note 1), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 103 1.1 Methods Notes: 1. Use deionised water or tap water free of Cyanuric acid. 2. If Cyanuric acid is present a cloudy solution will occur. Small single particles are not necessarily caused by Cyanuric acid. 3. Dissolve the tablet completely (therefore swirl the vial approx. 1 minute). Un-dissolved particles of the tablet can cause results that are too high.

  • Page 104: Deha

    1.1 Methods DEHA (N,N-Diethylhydroxylamine) with Tablet and Liquid Reagent 20 – 500 μg/l DEHA / 0.02 – 0.5 mg/l DEHA 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap (Note 2). 2.
  • Page 105 1.1 Methods Notes: 1. Application: Testing of residual corrosion inhibitors (Oxygen scavengers) in boiler feed water or condensate. 2. Before using clean the vials with Hydrochloric acid (approx. 20%). Rinse thoroughly with deionised water. 3. Keep the sample dark during colour development time. UV-light (sunlight) causes high measurement results.

  • Page 106: Deha (Powder Pack)

    1.1 Methods DEHA (N,N-Diethylhydroxylamin) with Vario Powder Pack and Liquid Reagent 20 – 500 μg/l DEHA / 0.02 – 0.5 mg/l DEHA Use two clean vials (24 mm Ø) and mark one as blank for zeroing (Note 2). 1. Fill a clean vial with 10 ml deionised water (this is the blank).
  • Page 107 1.1 Methods Notes: 1. Application: Testing of residual corrosion inhibitors (Oxygen scavengers) in boiler feed water or condensate. 2. Before using clean the vials with Hydrochloric acid (approx. 20%). Rinse thoroughly with deionised water. 3. Ideally temperature for full colour development is 25°C ± 3 °C. 4.

  • Page 108: Fluoride

    1.1 Methods Fluoride with Liquid Reagent 0.05 – 2 mg/l F Caution: See notes! 1. Fill a clean vial (24 mm Ø, Note 8) with exactly 10 ml of water sample (Note 4), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 109 1.1 Methods Notes: The same batch of SPADNS reagent solution must be used for adjustment and test. The adjustment process needs to be performed for each new batch of SPADNS reagent solution (see Standard Methods 20th, 1998, APHA, AWWA, WEF 4500 F D., S. 4-82). The procedure is described in chapter 2.4.5 “Calibration –...

  • Page 110: H O With Tablet (24 Mm Ø)

    1.1 Methods (Hydrogen peroxide) with Tablet 0.03 – 3 mg/l H 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 111 1.1 Methods Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Hydrogen peroxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

  • Page 112: H Olr With Liquid Reagent (16 Mm Ø)

    1.1 Methods (Hydrogen peroxide) LR with Liquid Reagent 1 – 50 mg/l H Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample, close tightly with the cap. (Note 1, 2) Ø...
  • Page 113 1.1 Methods Notes: The hydrogen peroxide is determined in the form of yellow/orange coloured peroxotitanic acids in strongly acidic media. In connection with neutral to weakly alkaline (~pH 10) samples, the acid in the reagent is sufficient in order to produce a medium suitable for measurement.

  • Page 114: H Ohr With Liquid Reagent (16 Mm Ø)

    1.1 Methods (Hydrogen peroxide) HR with Liquid Reagent 40 – 500 mg/l H Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample, close tightly with the cap. (Note 1, 2) Ø...
  • Page 115 1.1 Methods Notes: The hydrogen peroxide is determined in the form of yellow/orange coloured peroxotitanic acids in strongly acidic media. In connection with neutral to weakly alkaline (~pH 10) samples, the acid in the reagent is sufficient in order to produce a medium suitable for measurement.

  • Page 116: Hardness, Calcium With Calcheck Tablet

    1.1 Methods Hardness, Calcium with Tablet 50 – 900 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml deionised water. 2. Add one CALCHECK tablet straight from the foil to the deionised water and crush the tablet using a clean stirring rod.
  • Page 117 1.1 Methods Notes: 1. Strong alkaline or acidic water samples must be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1 mol/l Sodium hydroxide). 2. The tolerance of the method is increasing with higher concentrations. When diluting samples, this should be take into account, always measuring in the first third of the range.

  • Page 118: Hardness, Calcium With Calcio Tablet

    1.1 Methods Hardness, Calcium 2T with Tablet 0 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 119 1.1 Methods Notes: To optimise the readings an optional batch related calibration can be performed using Mode 40, see page 256. Strong alkaline or acidic water samples must be adjusted to a pH-value between pH 4 and 10 before the tablets are added (use 1 mol/l Hydrochloride acid resp. 1 mol/l Sodium hydroxide).

  • Page 120: Hardness, Total

    1.1 Methods Hardness, total with Tablet 2 – 50 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 121 1.1 Methods Notes: 1. Strong alkaline or acidic water samples must be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. Conversion table: mg/l CaCO °dH °fH °eH 1 mg/l CaCO ----...

  • Page 122: Hardness, Total Hr

    1.1 Methods Hardness, total HR with Tablet 20 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 1 ml of water sample and 9 ml of deionised water, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 123 1.1 Methods Notes: 1. Strong alkaline or acidic water samples must be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. Conversion table: mg/l CaCO °dH °fH °eH 1 mg/l CaCO ----...

  • Page 124: Hydrazine (Powder)

    1.1 Methods Hydrazine with Powder Reagent 0.05 – 0.5 mg/l N / 50 – 500 μg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample (Note 1, 2), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 125 1.1 Methods Notes: 1. If the water sample is cloudy, you must filter it before performing the zero calibration. 2. The temperature of the water sample should not exceed 21 °C. 3. Using the Hydrazine spoon: 1 g is equivalent to one level spoon. 4.

  • Page 126: Hydrazine With Liquid Reagent

    1.1 Methods Hydrazine with Vario Liquid Reagent 0.005 – 0.6 mg/l N / 5 – 600 μg/l N Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill a clean vial with 10 ml deionised water (this is the blank).
  • Page 127 1.1 Methods Notes: 1. Samples cannot be preserved and must be analysed immediately. 2. Sample temperature should be 21 °C ± 4 °C. 3. The blank may develop a faint yellow colour due to the reagent. 4. Interferences: • Ammonia causes no interferences up to 10 mg/l. At a concentration of 20 mg/l it is possible that the test result increases by 20 %.

  • Page 128: Hydrazine With Vacu-Vials

    1.1 Methods Hydrazine with Vacu-vials K-5003 (see Notes) ® 0.01 – 0.7 mg/l N / 10 – 700 μg/l N Insert the adapter for 13 mm Ø vials. 1. Place the blank in the sample chamber. The blank is part of the test kit.
  • Page 129 1.1 Methods Notes: This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. Vacu-vials is a registered trade mark of the company CHEMetrics, Inc.

  • Page 130: Iodine

    1.1 Methods Iodine with Tablet 0.05 – 3.6 mg/l I 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 131 1.1 Methods Notes: 1. Oxidising reagents, such as Chlorine, Bromine, etc. interfere as they react in the same way as Iodine. Al450_12 06/2013...

  • Page 132: Iron

    1.1 Methods Iron with Tablet 0.02 – 1 mg/l Fe *Determination of total dissolved Iron Fe and Fe Iron with Vario Powder Pack 0.02 – 3 mg/l Fe *Determination of all dissolved iron and most undissolved forms of iron. Iron, total with Vario Powder Pack 0.02 –...
  • Page 133 1.1 Methods Notes: Iron Determination dissolved and dissolved Iron undissolved Iron Filtration Digestion + Fe + Fe IRON LR IRON (II) LR methods tablet tablet 220, 222, 223 result A minus result B = Fe Digestion procedure for the determination of total dissolved and undissolved iron. Add 1 ml of concentrated sulfuric acid to 100 ml water sample.

  • Page 134: Iron With Tablet

    1.1 Methods Iron (Note 1) with Tablet 0.02 – 1 mg/l Fe 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 135 1.1 Methods Notes: This method determines the total dissolved Iron as Fe and Fe The IRON (II) LR tablet is used for differentiation – as described above – instead of the IRON LR tablet. = Fe – Fe 2+/3+ For the determination of total dissolved and undissolved iron digestion is required. An example is described on page 125.

  • Page 136: Iron (Powder Pack)

    1.1 Methods Iron (Note 1) with Vario Powder Pack 0.02 – 3 mg/l Fe 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
  • Page 137 1.1 Methods Notes: The reagent reacts with all dissolved iron and most undissolved forms of iron in the water sample. Iron oxide requires prior digestion: use mild, vigorous or Digesdahl digestion (e.g. for digestion with acid see page 125). Very strong alkaline or acidic water samples must be adjusted to a pH value between 3 and 5 before analysis.

  • Page 138: Iron Tptz (Powder Pack)

    1.1 Methods Iron, total (TPTZ, Note 1) with Vario Powder Pack 0.02 – 1.8 mg/l Fe Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill a clean vial with 10 ml deionised water (this is the blank).
  • Page 139 1.1 Methods Notes: 1. For determination of total Iron digestion is required. TPTZ reagent recovers most insoluble iron oxides without digestion. 2. Rinse all glassware with 1:1 Hydrochloric acid solution first and then rinse with deionised water to remove iron deposits that can cause slightly high results. 3.

  • Page 140: Manganese With Tablet

    1.1 Methods Manganese with Tablet 0.2 – 4 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 141 1.1 Methods Note: KMnO Al450_12 06/2013...

  • Page 142: Manganese Lr (Powder Pack)

    1.1 Methods Manganese LR with Vario Powder Pack 0.01 – 0.7 mg/l Mn Use two clean vials (24 mm Ø) and mark one as blank for zeroing (Note 1). 1. Fill a clean vial with 10 ml of deionised water (this is the blank).
  • Page 143 1.1 Methods Notes: 1. Rinse all glassware with 1:1 Nitric acid solution first and then rinse with deionised water. 2. Water samples that contain more than 300 mg/l CaCO hardness: after adding the Vario Ascorbic Acid Powder Pack add additionally 10 drops of Rochelle Salt Solution. 3.

  • Page 144: Manganese Hr (Powder Pack)

    1.1 Methods Manganese HR with Vario Powder Pack 0.1 – 18 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 145 1.1 Methods Notes: 1. This test is applicable for the determination of soluble Manganese in water and wastewater. 2. Highly buffered water samples or extreme pH values may exceed the buffering capacity of the reagents and requires sample pre-treatment. If samples were acidified for storing, adjust the pH between 4 and 5 with 5 mol/l (5 N) Sodium hydroxide before test.

  • Page 146: Molybdate With Tablet

    1.1 Methods Molybdate with Tablet 1 – 50 mg/l MoO / 0.6 – 30 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 147 1.1 Methods Notes: 1. The tablets must be added in the correct sequence. 2. Under test conditions (pH 3.8 – 3.9) iron does not interfere nor do other metals at levels likely to be found in industrial water systems. 3. Conversions: mg/l Mo = mg/l MoO x 0.6 mg/l Na...

  • Page 148: Molybdate Lr (Powder Pack)

    1.1 Methods Molybdate / Molybdenum LR mit Vario Powder Pack 0.05 – 5.0 mg/l MoO / 0.03 – 3 mg/l Mo 1. Fill a clean Mixing Cylinder (25 ml) with 20 ml of the water sample. 2. Add the contents of one Vario Molybdenum 1 LR F20 Powder Pack straight from the foil into the water sample (20 ml).
  • Page 149 1.1 Methods Zero vorbereiten 12. Press ZERO key. ZERO drücken 13. Remove the vial from the sample chamber. 14. Place the sample in the sample chamber making sure that the marks are aligned. Zero akzeptiert Test vorbereiten 15. Press TEST key. TEST drücken The result is shown in the display in mg/l Molybdate / Molybdenum.

  • Page 150: Molybdate Hr (Powder Pack)

    1.1 Methods Molybdate / Molybdenum HR with Vario Powder Pack 0.5 – 66 mg/l MoO / 0.3 – 40 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2.
  • Page 151 1.1 Methods Notes: 1. Filter turbid water samples using filter paper and funnel before analysis. 2. Highly buffered water samples or extreme pH values should be adjusted to a pH of nearly 7 with 1 mol/l Nitric acid or 1 mol/l Sodium hydroxide. 3.

  • Page 152: Nickel With Tablet

    1.1 Methods Nickel with Tablet 0.1 – 10 mg/l Ni 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
  • Page 153 1.1 Methods Notes: If Iron is present in the sample, add one level spoonful of Nickel PT powder to the sample (after adding Nickel No. 1) and mix. The presence of cobalt at 0.5 mg/l gives a positive response in the test. The presence of higher levels of EDTA (at least 25 mg/l) complexes nickel and reduces response in the test.

  • Page 154: Nitrate

    1.1 Methods Nitrate with Tube Test 1 – 30 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial (Reagent A) and add 1 ml deionised water (this is the blank). Ø 16 mm 2.
  • Page 155 1.1 Methods Notes: Some solids may not dissolve. Conversion: mg/l NO = mg/l N x 4.43 Al450_12 06/2013...

  • Page 156: Nitrite With Tablet

    1.1 Methods Nitrite with Tablet 0.01 – 0.5 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
  • Page 157 1.1 Methods Notes: The following ions can produce interferences since under the reaction conditions they cause precipitation: Antimony (III), Iron (III), Lead, Mercury (I), Silver, Chloroplatinate, Metavanadate and Bismuth. Copper (II)-ions may cause lower test results as they accelerate the decomposition of the Diazonium salt.

  • Page 158: Nitrite Lr (Powder Pack)

    1.1 Methods Nitrite LR with Vario Powder Pack 0.01 – 0.3 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 159 1.1 Methods Notes: Interferences: • Strong oxidizing and reducing substances interfere. • Cupric and ferrous ions cause low results. • Antimonous, Auric, Bismuth, Chloroplatinate, Ferric, Lead, Mercurous, Metavanadate, Silver ions interfere by causing precipitation. • In samples with very high concentrations of Nitrate (> 100 mg/L N) a small amount of Nitrite will be found. Such high levels of Nitrate appear to undergo a slight amount of reduction to Nitrite, either spontaneously or during the reaction time of the test. Al450_12 06/2013...

  • Page 160: Nitrogen, Total Lr

    1.1 Methods Nitrogen, total LR with Vario Tube Test 0.5 – 25 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open two TN Hydroxide LR digestion vials and add one Vario TN Persulfate Rgt. Powder Pack (Note 2, 3). 2.
  • Page 161 1.1 Methods 16. Place the vial (the blank) in the sample chamber making sure that the marks l are aligned. Place the cover on prepare Zero the adapter. press ZERO 17. Press ZERO key. Countdown Wait for a reaction period of 5 minutes. 5:00 After the reaction period is finished the measurement starts automatically.

  • Page 162: Nitrogen, Total Hr

    1.1 Methods Nitrogen, total HR with Vario Tube Test 5 – 150 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open two TN Hydroxide HR digestion vials and add one Vario TN Persulfate Rgt. Powder Pack (Note 2, 3). 2.
  • Page 163 1.1 Methods 16. Place the vial (the blank) in the sample chamber making sure that the l marks are aligned. Place the cover on prepare Zero the adapter. press ZERO 17. Press ZERO key. Countdown Wait for a reaction period of 5 minutes. 5:00 After the reaction period is finished the measurement starts automatically.

  • Page 164: Oxygen, Active

    1.1 Methods Oxygen, active * with Tablet 0.1 – 10 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 165 1.1 Methods Notes: * Active Oxygen is a synonym for a common disinfectant (based on “Oxygen“) in Swimming Pool Treatment. 1. When preparing the sample, the lost of Oxygen, e.g. by pipetting or shaking, must be avoided. 2. The analysis must take place immediately after taking the sample. Al450_12 06/2013...

  • Page 166: Oxygen, Dissolved

    1.1 Methods Oxygen, dissolved with Vacu-vials K-7553 (see Notes) ® 10 – 800 μg/l O Insert the adapter for 13 mm Ø round vials. 1. Place the blank in the sample chamber. The blank is part of the test kit. prepare Zero 2.
  • Page 167 1.1 Methods Notes: This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. Vacu-vials should be stored in the dark and at room temperature.

  • Page 168: Ozone

    1.1 Methods Ozone with Tablet 0.02 – 2 mg/l O Ozon >> with Cl The following selection is shown in the display: without Cl >> with Cl for the determination of Ozone in the presence of Chlorine. >> without Cl for the determination of Ozone in the absence of Chlorine.
  • Page 169 1.1 Methods Notes: Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Ozone may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

  • Page 170: In Presence Of Chlorine

    1.1 Methods Ozone, in the presence of Chlorine with Tablet 0.02 – 2 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 171 1.1 Methods 13. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 14. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil into the first cleaned vial and crush the tablets using a clean stirring rod.

  • Page 172: In Ábsence Of Chlorine

    1.1 Methods Ozone, in absence of Chlorine with Tablet 0.02 – 2 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 173 Al450_12 06/2013...

  • Page 174: Phmb (Biguanide)

    1.1 Methods PHMB (Biguanide) with Tablet 2 – 60 mg/l PHMB 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 175 1.1 Methods Notes: 1. Clean vials with the brush immediately after analysis. 2. Vials and stirring rods may turn blue after prolonged use. In this case clean vials and stirring rods with a laboratory detergent (see chapter 1.2.2 Cleaning of vials and accessories for analysis).

  • Page 176: Phosphate

    1.1 Methods Phosphate, ortho LR with Tablet 0.05 – 4 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho HR with Tablet 1 – 80 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho with Vario Powder Pack 0.06 – 2.5 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho with Vario Tube Test...
  • Page 177 1.1 Methods General: Ortho-Phosphate ions react with the reagent to form an intense blue colour (methods 320, 323, 324, 325 and 326). Phosphate in organic and condensed inorganic forms (meta-, pyro- and polyphosphates) must be converted to ortho-Phosphate ions before analysis. Pretreatment of the sample with acid and heat provides the conditions for hydrolysis of the condensed inorganic forms.

  • Page 178: Phosphate, Ortho Lr With Tablet

    1.1 Methods Phosphate, ortho LR with Tablet 0.05 – 4 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
  • Page 179 1.1 Methods Notes: Only ortho-Phosphate ions react. The tablets must be added in the correct sequence. The test sample should have a pH-Value between 6 and 7. Interferences: Higher concentrations of Cu, Ni, Cr (III), V (V) and W (VI) interfere due to their colour. Silicates do not interfere (masked by Citric acid in the tablets).

  • Page 180: Phosphate, Ortho Hr With Tablet

    1.1 Methods Phosphate HR, ortho with Tablet 1 – 80 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 181 1.1 Methods Notes: For samples under 5 mg/l PO it is reccommended to analyse the water sample with method 320 ”Posphate LR, ortho with Tablet“. Only ortho-Phosphate ions react. see also page 169 Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75...

  • Page 182: Phosphate, Ortho (Powder Pack)

    1.1 Methods Phosphate, ortho with Vario Powder Pack 0.06 – 2.5 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 183 1.1 Methods Notes: The reagent does not dissolve completely. see also page 169 Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75 Al450_12 06/2013...

  • Page 184: Phosphate, Ortho (Tube Test)

    1.1 Methods Phosphate, ortho with Vario Tube Test 0.06 – 5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction tube PO -P Dilution and add 5 ml of water sample. Ø 16 mm 2.
  • Page 185 1.1 Methods Notes: Use a funnel to add the reagent. The reagent does not dissolve completely. see also page 169 Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75 Al450_12 06/2013...

  • Page 186: Phosphate 1, Ortho C

    1.1 Methods Phosphate 1, ortho with Vacu-vials K-8503 (see Notes) ® 5 – 40 mg/l PO Insert the adapter for 13 mm Ø vials. 1. Place the blank in the sample chamber. The blank is part of the test kit. prepare Zero 2.
  • Page 187 1.1 Methods Notes: This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. Vacu-vials is a registered trade mark of the company CHEMetrics, Inc.

  • Page 188: Phosphate 2, Ortho C

    1.1 Methods Phosphate 2, ortho with Vacu-vials K-8513 (see Notes) ® 0.05 – 5 mg/l PO Insert the adapter for 13 mm Ø vials. 1. Place the blank in the sample chamber. The blank is part of the test kit. prepare Zero 2.
  • Page 189 1.1 Methods Notes: This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. Vacu-vials is a registered trade mark of the company CHEMetrics, Inc.

  • Page 190: Phosphate, Hydrolyzable (Tube Test)

    1.1 Methods Phosphate, acid hydrolyzable with Vario Tube Test 0.02 – 1.6 mg/l P (= ^ 0.06 – 5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open one white capped digestion tube PO4-P Acid reagent and add 5 ml of water sample. 2.
  • Page 191 1.1 Methods Notes: Appropriate safety precautions and a good lab technique should be used during the whole procedure. Use a funnel to add the reagent. The reagent does not dissolve completely. see also page 169 Conversions: mg/l PO = mg/l P x 3.07 mg/l P = mg/l P x 2.29 Al450_12 06/2013...

  • Page 192: Phosphate, Total (Tube Test)

    1.1 Methods Phosphate, total with Vario Tube Test 0.02 – 1.1 mg/l P (= ^ 0.06 – 3.5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open one white capped digestion tube PO4-P Acid reagent and add 5 ml of water sample. 2.
  • Page 193 1.1 Methods Notes: Appropriate safety precautions and a good lab technique should be used during the whole procedure. Use a funnel to add the reagent. The reagent does not dissolve completely. see also page 169 Conversions: mg/l PO = mg/l P x 3.07 mg/l P = mg/l P x 2.29 Al450_12 06/2013...

  • Page 194: Phosphonates

    1.1 Methods Phosphonates Persulfate UV oxidation method with Vario Powder Pack 0 – 125 mg/l (see Table 1) 1. Choose the appropriate sample volume from table 1 (see following pages). 2. Pipette the chosen sample volume into a clean 50 ml graduated cylinder.
  • Page 195 1.1 Methods 13. Place the vial (the blank) in the sample chamber making sure that the marks are aligned. prepare Zero 14. Press ZERO key. press ZERO Wait for a reaction period of 2 minutes (Note 7). Countdown 2:00 After the reaction period is finished the measurement starts automatically.
  • Page 196 1.1 Methods Table 1: Expected range Sample volume Factor (mg/L Phosphonate) in ml 0 – 2.5 0 – 5.0 0 – 12.5 0 – 25 0 – 125 Table 2: Phosphonate type Conversion factor for active phosphonate PBTC 2.840 1.050 HEDPA 1.085 EDTMPA...
  • Page 197 1.1 Methods Interference levels decrease with increasing sample volume. Example: Iron interferes above 200 mg/L if a sample volume of 5 ml is used. At a sample volume of 10 ml the interference level decreases to 100 mg/L. Table 3: Interfering substances Interference level using 5 ml of sample Aluminium...

  • Page 198: Ph Value Lr With Tablet

    1.1 Methods pH value LR 5.2 – 6.8 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 199 1.1 Methods Notes: 1. For photometric determination of pH values only use BROMOCRESOLPURPLE tablets in black printed foil pack and marked with PHOTOMETER. 2. pH values below 5.2 and above 6.8 can produce results inside the measuring range. A plausibility test (pH-meter) is recommended. 3.

  • Page 200: Ph Value With Tablet

    1.1 Methods pH value 6.5 – 8.4 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 201 1.1 Methods Notes: 1. For photometric determination of pH values only use PHENOL RED tablets in black printed foil pack and marked with PHOTOMETER. 2. Water samples with low values of Alkalinity-m (below 35 mg/l CaCO ) may give wrong pH readings.

  • Page 202: Ph Value With Liquid Reagent

    1.1 Methods pH value 6.5 – 8.4 with Liquid Reagent 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 203 1.1 Methods Notes: 1. When testing chlorinated water the residual chlorine contents can influence the colour reaction of the liquid reagent. This can be avoided (without interfering with the pH measurement) by adding a small crystal of Sodiumthiosulfate (Na · 5 H O) to the sample before adding the PHENOL RED solution.

  • Page 204: Ph Value Hr With Tablet

    1.1 Methods pH value HR 8.0 – 9.6 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 205 1.1 Methods Notes: 1. For photometric determination of pH values only use THYMOLBLUE tablets in black printed foil pack and marked with PHOTOMETER. 2. pH values below 8.0 and above 9.6 can produce results inside the measuring range. A plausibility test (pH-meter) is recommended. 3.

  • Page 206: Potassium

    1.1 Methods Potassium with Tablet 0.7 – 12 mg/l K 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 207 1.1 Methods Notes: 1. If Potassium is present a cloudy solution will appear. Single particles are not necessarily caused by Potassium. Al450_12 06/2013...

  • Page 208: Silica

    1.1 Methods Silica/Silicon dioxide with Tablet 0.05 – 4 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 209 1.1 Methods Notes: 1. The tablets must be added in the correct sequence. 2. Phosphate ions do not interfere under the given reaction conditions. 3. Conversion: mg/l Si = mg/l SiO x 0.47 Al450_12 06/2013...

  • Page 210: Silica Lr Pp

    1.1 Methods Silica LR / Silicon dioxide LR with Vario Powder Pack and Liquid Reagent 0.1 – 1.6 mg/l SiO Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill each vial with 10 ml of water sample. 2.
  • Page 211 1.1 Methods 11. Press ZERO key (blank is already placed in the sample prepare Zero chamber - see point 8). press ZERO Wait for a reaction period of 2 minutes. Countdown 2:00 After the reaction period is finished the zero-reading starts automatically.

  • Page 212: Silica Hr Pp

    1.1 Methods Silica HR / Silicon dioxide HR with Vario Powder Pack 1 – 90 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample (Note 1), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 213 1.1 Methods Notes: 1. Temperature of the sample should be 15 °C – 25 °C. 2. If Silica or Phosphate is present a yellow colour is developed. 3. In this step any yellow colour due to Phosphate is removed. 4. Interferences: Substance Interference Iron...

  • Page 214: Sodium Hypochlorite

    1.1 Methods Sodium hypochlorite (Soda bleaching lye) with Tablet 0.2 – 16 % w/w NaOCl Preparation: 1. Fill a 5 ml plastic syringe with the test solution, ensuring that all air bubbles are expelled. Transfer the 5 ml test solution slowly into a 100 ml beaker and dilute to the 100 ml mark with chlorine-free water.
  • Page 215 1.1 Methods 8. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 9. Press TEST key. press TEST The result is shown in the display in % w/w as avail- able chlorine present in the original sample of Sodium hypochlorite.

  • Page 216: Sulfate With Tablet

    1.1 Methods Sulfate with Tablet 5 – 100 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 217 1.1 Methods Note: 1. If Sulfate is present a cloudy solution will appear. Al450_12 06/2013...

  • Page 218: Sulfate (Powder Pack)

    1.1 Methods Sulfate with Vario Powder Pack 5 – 100 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 219 1.1 Methods Note: 1. If Sulfate ions are present a cloudy solution will appear. Al450_12 06/2013...

  • Page 220: Sulfide

    1.1 Methods Sulfide with Tablet 0.04 – 0.5 mg/l S 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 221 1.1 Methods Notes: 1. The tablets must be added in the correct sequence. 2. Chlorine and other oxidizing agents which react with DPD do not interfere with the test. 3. To avoid loss of Sulfide collect the sample carefully with a minimum of aeration. It is essential to test the sample immediately after collection.

  • Page 222: Sulfite

    1.1 Methods Sulfite with Tablet 0.1 – 5 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 223 1.1 Methods Notes: Al450_12 06/2013...

  • Page 224: Suspended Solids

    1.1 Methods Suspended Solids 0 – 750 mg/l TSS Sample preparation: Blend approx. 500 ml of the water sample in a blender at high speed for 2 minutes. 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water, close tightly with the cap.
  • Page 225 1.1 Methods Note: 1. The photometric determination of Suspended Solids is based on a gravimetric method. In a lab this is usually done by evaporation of the filter residue of a filtrated water sample in an oven at 103°C – 105°C and weighing of the dried residue. 2.

  • Page 226: Turbidity

    1.1 Methods Turbidity 0 – 1000 FAU 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 227 1.1 Methods Note: 1. This test uses an attenuated radiation method for the reading of FAU (Formazin Attenuation Units). The results can not be used for USEPA reporting purposes, but may be used for routine measurements. The attenuated radiation method is different from the Nephelometric method.

  • Page 228: Urea

    1.1 Methods Urea with Tablet and Liquid Reagent 0.1 – 2.5 mg/l (NH CO / mg/l Urea 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
  • Page 229 1.1 Methods 14. Close the vial tightly with the cap and swirl several times until the tablets are dissolved. 15. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted Zero accepted prepare Test prepare Test press TEST press TEST 16.

  • Page 230: Zinc

    1.1 Methods Zinc with Tablet 0.02 – 1 mg/l Zn 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample. 2. Add one COPPER / ZINC LR tablet straight from the foil to the water sample, crush the tablet using a clean stirring rod.
  • Page 231 1.1 Methods Notes: 1. The tablets must be added in the correct sequence. 2. In the case of high levels of residual chlorine, perform the analysis with a dechlorinated water sample. To dechlorinate add one DECHLOR tablet to the water sample (point 1). Crush and mix to dissolve the tablet.

  • Page 232: Important Notes

    1.2 Important notes 1.2.1 Correct use of reagents The reagents must be added in the correct sequence. Tablet reagents: The tablet reagents should be added to the water sample straight from the foil without touching them with the fingers. Liquid reagents: Add drops of the same size to the water sample by holding the bottle vertically and squeezing slowly.

  • Page 233: Cleaning Of Vials And Accessories For Analysis

    1.2.2 Cleaning of vials and accessories for analysis Vials, caps and stirring rods should be cleaned thoroughly after each analysis to prevent interferences. Procedure: Clean vials and accessories after each analysis as soon as possible. a. Clean vials and accessories with laboratory detergent (e.g.
  • Page 234 Correct position of the vial (Ø 16 mm): 5. Always perform zeroing and test with closed vial cap. Only use cap with sealing ring. 6. Bubbles on the inside wall of the vial lead to incorrect measurements. To prevent this, remove the bubbles by swirling the vial before performing the test.

  • Page 235: Sample Dilution Techniques

    1.2.4 Sample dilution techniques Proceed as follows for accurate dilutions: Pipette the water sample (see table) into a 100 ml volumetric flask and fill up to 100 ml mark with deionised water. Swirl to mix the contents. Water sample Multiplication [ml] factor Pipette the required volume of the diluted sample into the vial and proceed as described in...
  • Page 236 AL450_12 06/2013...

  • Page 237: Part 2 Instrument Manual

    Part 2 Operating manual Al450_12 06/2013...

  • Page 238: Operation

    2.1 Operation 2.1.1 Commissioning Before working with the photometer insert the rechargeable batteries and the Lithium battery (delivery contents). The rechargeable batteries are not charged. See chapter 2.1.2 Saving data – Important Notes, 2.1.3 Replacement of rechargeable batteries resp. Lithium battery. and 2.1.4 Charging the rechargeable batteries.

  • Page 239: Protective Caps

    2.1.5 Fuse The instrument contains a fuse (E) (type: 1 A, inert, 20 mm). If a replacement is necessary proceed as described in "Replacement of rechargeable batteries resp. Lithium-battery)". If the instrument can be operated with the mains adapter but not with the rechargeable batteries, the fuse could be defect (try new rechargeable batteries first).
  • Page 240 AL450_12 06/2013...

  • Page 241: Overview Of Function Keys

    2.2 Overview of function keys Attention: With the software-update V012.002.3.003.001 an “ESC-function“ is implemented. If your keypad doesn't show an [Esc]-key please note that the grey key without a print (lowest key on the left) has the “ESC-function“. 2.2.1 Overview Switching the photometer on or off Returning to selection of methods or previous menu Function key: description in the text if key available...

  • Page 242: User Countdown

    2.2.3 User countdown With this function the operator is able to define his own countdown. Press [“clock”] key. 19.30.20 2009-06-15 The display shows time and date: Press [“clock”] key. Countdown The display shows: mm : ss Either press [ ] key to accept the last used user count- 99 : 99 down.

  • Page 243: Operation Mode

    2.3 Operation mode Switch the photometer on by pressing the [ON/OFF] key. selftest ... The photometer performs an electronic self-test. 2.3.1 Automatic switch off The instrument switches off automatically after 20 minutes. This is indicated 30 seconds before by a beeper. Press any key to avoid the instrument switching off. As long as the instrument is working (for example countdown or printing) the automatic switch off is inactive.

  • Page 244: Chemical Species Information

    2.3.2.2 Chemical Species Information Pressing the F2 key the display shows a list with available chemical species and corresponding ranges. Changing chemical species see chapter 2.3.7 page 238. 320 Phosphate LR T Line 1: Method number, Method name 0.05-4 mg/l PO Line 2: Range with chemical species 1 0.02-1.3 mg/l P Line 3: Range with chemical species 2...

  • Page 245: Performing Tests

    2.3.5 Performing Tests When zero calibration is complete, remove the vial from the sample chamber and perform the tests as described under “Method“. When the results have been displayed: – with some methods you can change between different chemical species –...

  • Page 246: Changing Chemical Species

    2.3.7 Changing chemical species For some methods there is a possibility to change the chemical species of the test result. If the test result is displayed press arrow key [ ] or [ ]. Example: 320 Phosphate LR T -----[ ]----> 320 Phosphate LR T <---- [ ] ----- 320 Phosphate LR T 0.05-4 mg/l PO 0.02-1.3 mg/l P...

  • Page 247: Printing Results (Infra-Red Interface Module) (Optional)

    Note: The display shows the number of free data sets. Storage: 900 free records left If there are less than 30 data sets free the display shows: Storage: only 29 free records left Clear the memory as soon as possible (see “Deleting stored results”).

  • Page 248: Selecting A New Method

    2.3.11 Selecting a new method Press [ESC] key to return to method selection. Or enter the required method number directly, e.g. [1] [6] [0] for CyA-TEST (Cyanuric acid). Confirm with [ ] key. 2.3.12 Measure absorbance Range: –2600 mAbs to +2600 mAbs Method-No.

  • Page 249: Photometer Settings: Table Of Mode Functions

    2.4 Photometer settings: Table of Mode-Functions MODE-Function No. Description Page Calibration Special method calibration Clear calibration Deleting user calibration Clock Setting date and time Countdown Switching the countdown on/off to ensure reaction times Delete data Deleting all stored results Key beep Switching the acoustic signal on/off to indicate key- pressing Langelier...

  • Page 250: Blank Because Of Technical Requirements

    User concentration Entering the data necessary to run a user concentration method User polynoms Entering the data necessary to run a user polynomial User methods clear Delete all data of a user polynomial or of a concentration method User methods print Print out all data stored with mode 64 (concentration) or mode 65 (polynomial) User methods init...

  • Page 251: Setting Date And Time

    Key beep Mode Press [MODE] [1] [1] keys in sequence. Confirm with [ ] key. The display shows: <Key Beep> ON: 1 OFF: 0 • Press [0] key to switch the key beep off. • Press [1] key to switch the key beep on. Confirm with [ ] key. Note: In the case of methods with reaction periods, an acoustic signal still sounds during the last 10 seconds of the countdown even if the key beep is switched off.
  • Page 252 Countdown (Ensuring reaction periods) Some methods require a reaction period. This reaction period is incorporated in the method as standard with the countdown function. It is possible to switch the countdown off for all methods: Mode Press [MODE] [1] [3] keys in sequence. Confirm with [ ] key.
  • Page 253 Signal beep Performing a zero or a measurement takes 8 seconds. The photometer indicates the end of zeroing or measuring by a short beep. Mode Press [MODE] [1] [4] keys in sequence. Confirm with [ ] key. <Signal Beep> The display shows: ON: 1 OFF: 0 • Press [0] key to switch the signal beep off.

  • Page 254: Printing Of Stored Results

    2.4.3 Printing of stored results Printing all results Mode Press [MODE] [2] [0] keys in sequence. Confirm with [ ] key. <Print> The display shows: Print all Data Start: cancel: Press [ ] key for printing out all stored test results. Test No.: The display shows e.g.: After printing the photometer goes back to <Mode-Menu>...
  • Page 255 Printing results of a selected time period Mode Press [MODE] [2] [1] keys in sequence. Confirm with [ ] key. The display shows: <Print> sorted: date from yy-mm-dd Enter year, month and day for the first day of the required __-__-__ period, e.g.: 14 May 2009 = [0][9][0][5][1][4] Confirm with [ ] key.
  • Page 256 Printing results of a selected Code No. range Mode Press [MODE] [2] [2] keys in sequence. Confirm with [ ] key. The display shows: <Print> sorted: Code-No. Enter numeric code number (up to 6 places) for the first from _ _ _ _ _ _ required Code No., e.g.: [1].
  • Page 257 Printing results of one selected method Mode Press [MODE] [2] [3] keys in sequence. Confirm with [ ] key. <Print> The display shows: >>20 Acid demand 30 Alkalinity-tot Select the required method from the displayed list or enter 40 Aluminium T the method number directly.

  • Page 258: Printing Parameter

    Printing Parameter Press [MODE] [2] [9] keys in sequence. Mode Confirm with [ ] key. <printing parameter> 1: Flow control 2: Baud rate The display shows: cancel: Press [1] key to select ”Flow control”. <Flow Control> is: Hardware The display shows: select: [ ] [ ] save: cancel:...

  • Page 259: Recall / Delete Stored Results

    Press arrow key [ ] or [ ] to select the required baud rate. (600, 1200, 2400, 4800, 9600, 14400, 19200) Confirm with [ ] key. End with [ESC] key. Back to Mode Menu with [ESC] key. Back to method selection with [ESC] key. Note: Select “Hardware”...
  • Page 260 Recall results of a selected time period Mode Press [MODE] [3] [1] keys in sequence. Confirm with [ ] key. <Storage> The display shows: sorted: date from yy-mm-dd Enter year, month and day for the first day of the required __-__-__ period, e.g.: 14 May 2009 = [0][9][0][5][1][4] Confirm with [ ] key.
  • Page 261 Recall results of a selected Code No. range Mode Press [MODE] [3] [2] keys in sequence. Confirm with [ ] key. The display shows: <Storage> sorted: Code No. from _ _ _ _ _ _ Enter numeric code number (up to 6 places) for the first required Code No., e.g.: [1].
  • Page 262 Recall results of one selected method Mode Press [MODE] [3] [3] keys in sequence. Confirm with [ ] key. The display shows: <Storage> >>20 Acid demand 30 Alkalinity-tot Select the required method from the displayed list or enter 40 Aluminium T the method number directly.
  • Page 263 Delete stored results Press [MODE] [3] [4] keys in sequence. Mode Confirm with [ ] key. <Delete data> The display shows: Delete all data? YES : 1 NO : 0 • Press [0] key to retain the data sets in memory. • After pressing key [1] the following acknowledgment is displayed: <Delete data> Press [ ] key to delete. Delete data Do not delete: ESC ATTENTION:...

  • Page 264: Calibration

    2.4.5 Calibration Calcium Hardness Method 191 – Calibration of a method blank Mode Press [MODE] [4] [0] keys in sequence. Confirm with [ ] key. <Calibration> 1: M191 Ca-Hardness 2 The display shows: 2: M191 reset 0 cali. 3: M170 Fluoride L Press [1] key.
  • Page 265 After the reaction period is finished proceed as follows: 9. Rinse the vial (24 mm Ø) with the coloured sample from the beaker and fill with 10 ml of the sample. prepare TEST 10. Press TEST key. press TEST stored The batch related method blank is saved.
  • Page 266 Press [0] key to keep the method blank. Press [1] key to erase the method blank and set the value back to factory calibration. The instrument goes back to mode menu automatically. Fluoride Method 170 Mode Press [MODE] [4] [0] keys in sequence. Confirm with [ ] key.
  • Page 267 7. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted 8. Press TEST key. T1: 0 mg/l F press TEST 9. Remove the vial from the sample chamber, empty the vial, rinse vial and cap several times and then fill the vial with exactly 10 ml Fluoride standard (Concentration 1 mg/l F).

  • Page 268: User Calibration

    User Calibration If a test method is user calibrated the method name is displayed inverse. Procedure: • Prepare a standard of known concentration and use this standard instead of the sample according to the test procedure. • It is recommend to use well known standards which are formulated according to DIN EN, ASTM or other international norms or to use certified standards which are commercially available. • After measuring this standard solution it is possible to change the displayed results to the required value.
  • Page 269 Method Recommended range for user calibration Chromium 1 mg/l Cr COD LR 100 mg/l O COD MR 500 mg/l O COD HR 5 g/l O = 5000 mg/lO Colour operating range Copper T 0.5 – 1.5 mg/l Cu Copper PP 0.5 –...

  • Page 270: Store User Calibration

    Method Recommended range for user calibration PHMB 15 – 30 mg/l Phosphate LR T 1 – 3 mg/l PO Phosphate HR T 30 –50 mg/l PO Phosphate, ortho PP 0.1 –2 mg/l PO Phosphate, ortho TT 3 mg/l PO Phosphate 1, ortho C 20 –30 mg/l PO Phosphate 2, ortho C 1 –3 mg/l PO...

  • Page 271: Delete User Calibration

    Press keys till the displayed result corresponds to the value of the standard. Confirm with [ ] key to store the new calibration factor. Cancel user calibration by pressing [ESC] key. Jus Factor The display shows: saved Chlorine T Now the method name is displayed inverse and the test result 0.02-6 mg/l Cl2 is calculated with the new calibration factor.

  • Page 272: Lab Function

    2.4.6 Lab function Reduced operator guidance => “Profi-Mode“ This function may be used for routine analyses with many samples of one method. The following information is always stored in the methods: a) Method b) Range c) Date and time d) Differentiation of results e) Detailed operator instruction Compliance with reaction periods If the Profi-Mode is active, the photometer provides only a minimum of operator instructions.

  • Page 273: Onetimezero

    One Time Zero (OTZ) OneTimeZero is available for all methods where Zero is performed in a 24 mm Ø round vial with sample water (see chapter 1.1 Table of Methods). OneTimeZero can be used for different tests providing the tests are performed with the same sample water and under the same test conditions.

  • Page 274: User Operations

    2.4.7 User operations User method list After switching on the instrument a scroll list of all available methods is automatically shown in the display. To shorten this list according to the requirements of the user it is possible to create a user defined scroll list. The program structure requires that this list must have at least one active (switched on) method.
  • Page 275 User method list, switch all methods on This mode function activates all methods. After switching on the instrument a scroll list of all available methods is automatically shown in the display. Mode Press [MODE] [6] [1] keys in sequence. Confirm with [ ] key. <Mlist all on>...

  • Page 276: User Concentration Methods

    User Concentration Methods It is possible to enter and store up to 10 User Concentration Methods. Therefor you need 2 to 14 standards of known concentration and one blank (deionised water or reagent blank value). The Standards should be measured with increasing concentrations and from the brightest to the darkest colouration.
  • Page 277 Press the appropriate numerical key to select the required choose resolution resolution, e.g.: for 0.01. 1: 1 2: 0.1 Note: 3: 0.01 Please enter the required resolution according to the instru- 4: 0.001 ment pre-sets: range max. resolutions 0.000 ...9.999 0.001 10.00 ...99.99 0.01...

  • Page 278: User Polynomials

    Prepare the second standard and press [Test] key. S2: 0.10 mg/l prepare The display shows the input value and the measured absorp- press TEST tion value. Confirm with [ ] key. S2: 0.10 mg/l Note: mAbs: • Perform as described above to measure further stan- dards.
  • Page 279 Confirm with [ ] key. Note: Overwrite polynom? if the entered number has already been used to save a YES: 1, NO: 0 polynomial the display shows the query: • Press [0] or [ESC] key to go back to method No. query. • Press [1] key to start entry mode. wavelength: 1: 530 nm 4: 430 nm Enter the required wavelength, e.g.: [2] for 560 nm.
  • Page 280 Press [ ] or [ ] keys to select the required unit. choose unit: >> mg/l mmol/l mAbs µg/l Confirm with [ ] key. choose resolution Press the appropriate numerical key to select the required 1: 1 resolution. 2: 0.1 3: 0.01 Note: 4: 0.001...

  • Page 281: Delete User Methods

    Delete User Methods (Polynomial or Concentration) In principle a valid user method can be overwritten. An existing user method (Polynomial or Concentration) can be totally deleted as well and is removed out of the method selection list: Mode Press [MODE] [6] [6] keys in sequence. Confirm with [ ] key.

  • Page 282: Print Data Of User Methods

    Print Data of User Methods (Polynomials & Concentration) With this Mode function all data (e.g. wavelength, unit ...) of stored user polynomials and concentration methods can be printed out or transferred with HyperTerminal to a PC. Mode Press [MODE] [6] [7] keys in sequence. Confirm with [ ] key.

  • Page 283: Initialise User Method System

    Initialise User Method System (Polynomials & Concentration) Power loss will cause incoherent data. The user method system must be initialised with this mode function to set it to a predefined state. ATTENTION: All stored user methods (polynomial & concentration) are deleted with initialisation. Mode Press [MODE] [6] [9] keys in sequence.

  • Page 284: Special Functions

    2.4.8 Special functions Langelier Saturation Index (Water Balance) For calculation the following tests are required: • pH value • Temperature • Calcium hardness • Total Alkalinity • TDS (Total Dissolved Solids) Run each test separately and note the results. Calculate the Langelier Saturation Index as described: Calculation of Langelier Saturation Index With Mode 71 (see below) it is possible to select between degree Celsius or degree Fahrenheit.

  • Page 285: Selection Of Temperature Unit

    pH value The display shows: 0<=pH<=12 +_ _ _ _ Enter the pH value in the range between 0 and 12 and confirm with [ ] key. <Langelier> Langelier The display shows the Langelier Saturation Index. saturation index 0.00 Press [ ] key to start new calculation. Return to mode menu by pressing [ESC] key.

  • Page 286: Instrument Basic Settings 2

    2.4.9 Instrument basic settings 2 Adjusting display contrast Press [MODE] [8] [0] keys in sequence. Mode Confirm with [ ] key. <LCD contrast> The display shows: Press arrow key [ ] to increase contrast of the LCD display. Press arrow key [ ] to decrease contrast of the LCD display.

  • Page 287: Data Transfer

    2.5 Data transfer Switch the photometer and the personal computer or printer off. Connect the photometer (RS232 interface) and the serial interface of the personal computer or printer using a cable in line with the specified assignment (see technical data). The cable for connection to a personal computer is included in delivery contents.
  • Page 288 AL450_12 06/2013...

  • Page 289: Part 3 Enclosure

    Part 3 Enclosure Al450_12 06/2013...

  • Page 290: Unpacking

    3.1 Unpacking Carefully inspect all items to ensure that every part of the list below is present and no visible damage has occurred during shipment. If there is any damage or something is missing, please contact your local distributor immediately. 3.2 Delivery contents Standard contents for MultiDirect: 1 Photometer in plastic case...

  • Page 291: Technical Data

    3.4 Technical data Display Graphic Display (7-line, 21-characters) Serial Interface serial RS232 for printer- and PC-connection; 9-pin D-sub-mail connector, data format ASCII, 8-bit Data, no parity, 1 start-bit, 1 stop-bit, baud rate and protocol: adjustable Pin assignation: Pin 1 = free Pin 6 = free Pin 2 = Rx Data Pin 7 = RTS...

  • Page 292: Abbreviations

    3.5 Abbreviations Abbreviation Definition °C degree Celsius (Centigrade) °F degree Fahrenheit °F = (°C x 1.8) + 32 °dH degree German Hardness °fH degree French hardness °eH degree English Hardness °aH degree American Hardness Absorption unit ( = Extinction E) 1000 mAbs = 1 Abs = 1 A = μg/l...

  • Page 293: Troubleshooting

    3.6 Troubleshooting 3.6.1 Operating messages in the display / error display Display Possible Causes Elimination Overrange reading is exceeding the range if possible dilute sample or use other measuring range water sample is too cloudy filtrate water sample too much light on the photo cell seal on the cap? Repeat measurement with seal on the cap of the vial.
  • Page 294 Display Possible Causes Elimination The calculation of a value Test procedure correct? (e.g. combined Chlorine) is If not – repeat test not possible Example 1: Example 1 The readings for free and total 0,60 mg/l free Cl Chlorine are different, but comb Cl considering the tolerances of 0,59 mg/l total Cl...

  • Page 295: General

    3.6.2 General Finding Possible Causes Elimination Test result deviates from Chemical species not as Press arrow keys to select the the expected. required. required chemical species. No differentiation: Profi-Mode is switched on. Switch Profi-Mode off with e.g. for the Chlorine Mode 50.

  • Page 296: Declaration Of Ce-Conformity

    AND OF THE COUNCIL of 2004, December the 15 Name of manufacturer: Tintometer GmbH Schleefstraße 8-12 44287 Dortmund Germany declares that this product Aqualytic AL450 / MultiDirect Product name: ® meets the requirements of the following product family standard: DIN EN 61326-1:2006 Basic immunity test requirements (Table1)
  • Page 297 Al450_12 06/2013...
  • Page 298 AL450_12 06/2013...
  • Page 299 Al450_12 06/2013...
  • Page 300 Tintometer GmbH, Division Aqualytic ® Schleefstraße 8-12 | 44287 Dortmund | Germany Tel.: (+49) (0)2 31 / 9 45 10-755 | Fax: (+49) (0)2 31 / 9 45 10-750 Technical changes without notice sales@aqualytic.de | www.aqualytic.de Printed in Germany 06/13...
