Lumascape LS343 Installation Instructions Manual

Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
NO DOWNWARD DO NOT
NO POWER
TOOLS
FORCE OVERTIGHTEN

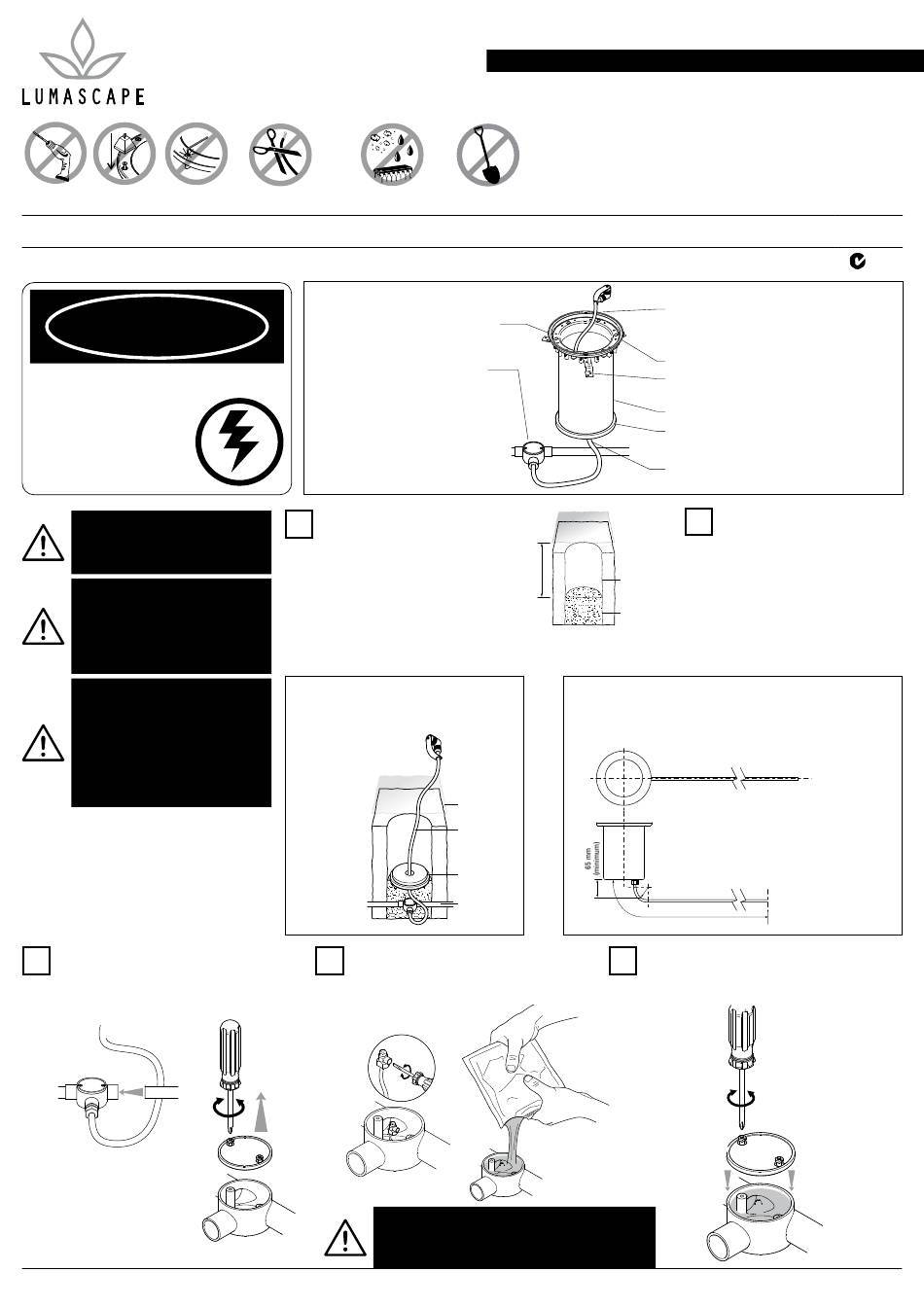

LS343 & LS853 Pre-Install - Pure Optics Reflector
Warranty void if not installed as per installation instructions
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
Before you begin always check
luminaire label for correct supply
details and lamp type if applicable.
Power supply must be
isolated prior to connection or
disconnection of cables. Failure to
do so will result in damage to the
luminaire components.
When installing a luminaire with
quick connector and junction box
assembly use electrical grade
resin (contractor to provide) to
water proof electrical connection
in junction box after connection
has been made and tested.
Supply connection -
3.
Type 87 connection only
Connect according to junction box installation
instructions and local wiring rules.
NOTE: If ordered without
junction box assembly,
connect in accordance with
local wiring rules.
www.lumascape.com.au
DO NOT INTERFERE KEEP ELECTRONICS FREE
WITH CABLE ASSEMBLY FROM DIRT AND MOISTURE
GENERAL ASSEMBLY (Type 87)
Finished surface level to be flush with
top surface of collar.
Factory supplied J-Box with 25 mm
conduit entries.
Use electrical grade resin (not supplied) to
fill and seal junction box after connections
have been made and tested to ensure
water-proofing.
Suitable for LS640-K & LS6052-K
Hole detail - section view
1.
Layout luminaire locations
as required. Use discretion
in placement, luminaire may
become hot and could burn.
Luminaire cavity should be as
shown. Ensure gravel or similar
medium forms the bottom of
cavity to allow drainage.
Type 87 cable entry:
QUICK CONNECTOR & JUNCTION BOX
Flexible armoured cable
Flexible armoured cable
690 mm (maximum distance to conduit)
690 mm (maximum distance to conduit)
where possible
position j-box
within void
170 mm (minimum
cable bend radius)
170 mm (minimum
cable bend radius)
600 mm
Alternate bottom cable entry
Terminate and waterproof the connections
600 mm
4.
Alternate bottom cable entry
Connect wiring and test prior to potting. Add
electrical grade epoxy resin to water proof
junction box.
Power supply must be isolated prior to connection
or disconnection of cables. Failure to do so will
result in damage to the luminaire components.
Copyright ©2014 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773
INSTALLATION INSTRUCTIONS
DO NOT BURY
INSTRUCTIONS COVER MH / HIT
CONTROL GEAR
Minimum
depth
Minimum depth for: LS343 480 mm
Minimum depth for LS853 310 mm
Type 84 cable entry:
MICRO ANTILEACH 3M CABLE ENTRY
Connect in accordance with local wiring rules.
finished
surface
level
Quick
connector
600 mm
cable
foam
600 mm
plug
Connect
to 25 mm
supply
diameter
Connect
conduit
conduit
to 25 mm
diameter
conduit
MODEL LS343 & LS853
INSTALLATION TypE LS640-K Pre-Install Kit
LS6052-K Pre-Install Kit
LS640-2 Mounting Collar
Ip RATING IP68
SUppLy VOLTAGE Mains Voltage
Quick connector and cable. Ensure free cable
reaches beyond height of collar for luminaire
connection.
Mounting collar.
Brackets to anchor sleeve and arrest movement
of collar in concrete.
Stainless steel sleeve.
Styrofoam plug. (Use if required. Ensure
removal after for drainage).
CAUTION: Do not pinch or cut cable
beneath sleeve.
Supply connection
2.
finished
• Connect junction box supplied
surface level
and punch a hole in foam plug
to pass through connector.
hole
Ø265 mm • Pack hole in plug around the
cable to ensure concrete
doesn't enter the luminaire
gravel
cavity. (Ensure the cap on the
connector is secure)
Flexible cable (requires mechanical protection)
Flexible cable (requires mechanical protection)
50 mm (minimum
cable bend radius)
50 mm (minimum
3000 mm
cable bend radius)
Bottom cable entry
3000 mm
Bottom cable entry
Seal
5.
Using a screwdriver seal junction box.
Ensure not to over tighten.
INGROUND
N653
Strip cable end
and connect as
required according
Strip cable end
to local wiring laws
and connect as
required according
to local wiring laws
IN0034 - 26 August 2014
