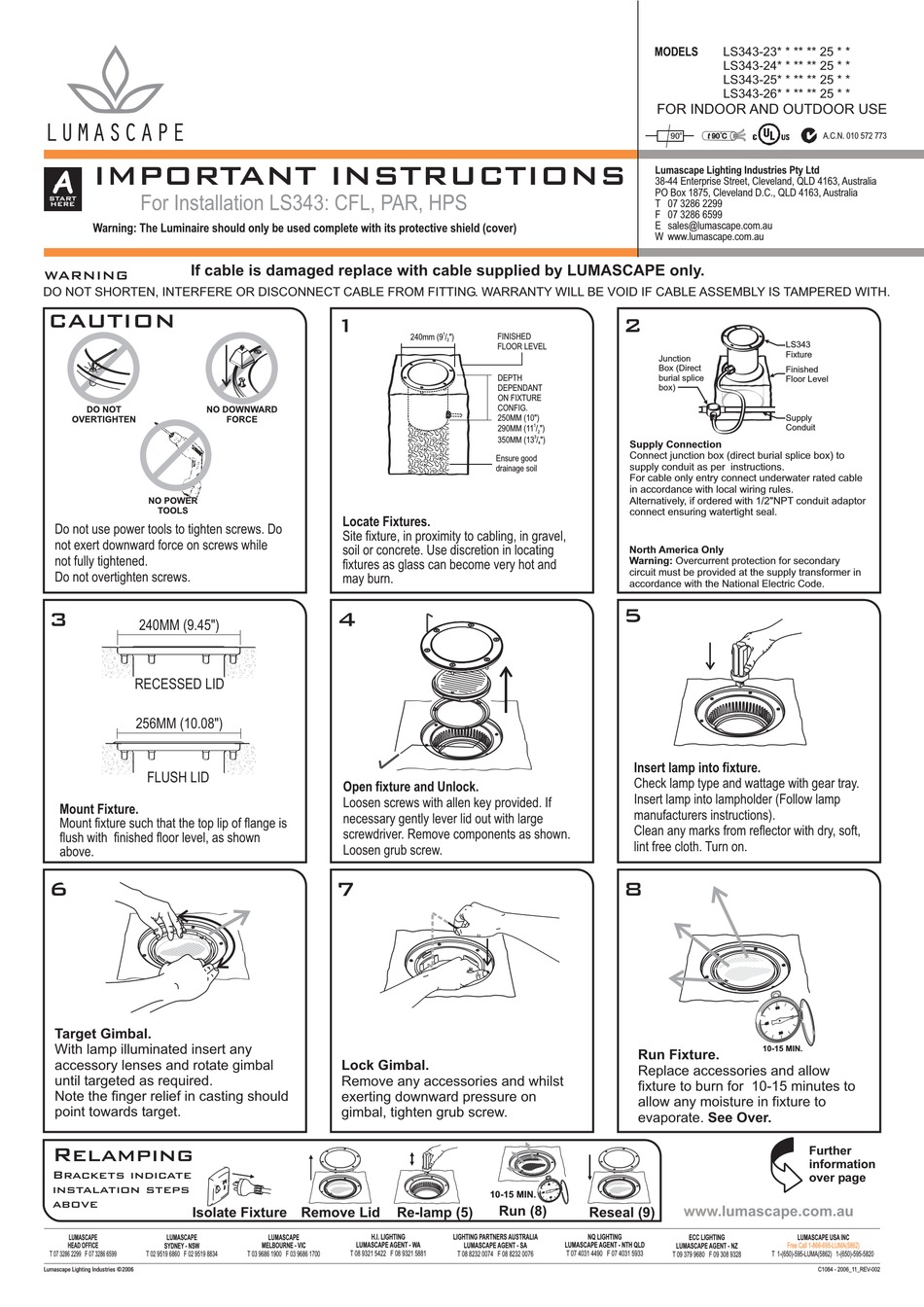

IMPORTANT INSTRUCTIONS
For Installation LS343: CFL, PAR, HPS
START
HERE
Warning: The Luminaire should only be used complete with its protective shield (cover)
If cable is damaged replace with cable supplied by LUMASCAPE only.
WARNING
DO NOT SHORTEN, INTERFERE OR DISCONNECT CABLE FROM FITTING. WARRANTY WILL BE VOID IF CABLE ASSEMBLY IS TAMPERED WITH.
CAUTION
Do not use power tools to tighten screws. Do
not exert downward force on screws while
not fully tightened.
Do not overtighten screws.
3
240MM (9.45")
RECESSED LID
256MM (10.08")
FLUSH LID
Mount Fixture.
Mount fixture such that the top lip of flange is
flush with finished floor level, as shown
above.
6
Target Gimbal.
With lamp illuminated insert any
accessory lenses and rotate gimbal
until targeted as required.
Note the finger relief in casting should
point towards target.
Relamping
Brackets indicate
instalation steps
above
Isolate Fixture
LUMASCAPE LUMASCAPE
HEAD OFFICE SYDNEY - NSW
T 07 3286 2299 F 07 3286 6599 T 02 9519 6860 F 02 9519 8834
©
Lumascape Lighting Industries 2006
1
Æ 240mm (9 / ")
Locate Fixtures.
Site fixture, in proximity to cabling, in gravel,
soil or concrete. Use discretion in locating
fixtures as glass can become very hot and
may burn.
4
Open fixture and Unlock.
Loosen screws with allen key provided. If
necessary gently lever lid out with large
screwdriver. Remove components as shown.
Loosen grub screw.
7
Lock Gimbal.
Remove any accessories and whilst
exerting downward pressure on
gimbal, tighten grub screw.
Remove Lid Re-lamp (5)
H.I. LIGHTING
LUMASCAPE
MELBOURNE - VIC LUMASCAPE AGENT - WA
T 08 9321 5422 F 08 9321 5881
T 03 9686 1900 F 03 9686 1700
1
FINISHED
2
FLOOR LEVEL
DEPTH
DEPENDANT
ON FIXTURE
CONFIG.
250MM (10")
1
290MM (11 / ")
2
3
35 0MM (13 / ")
4
Ensure good
drainage soil
10-15 MIN.
Run (8)
Reseal (9)
LIGHTING PARTNERS AUSTRALIA NQ LIGHTING
LUMASCAPE AGENT - SA LUMASCAPE AGENT - NTH QLD
T 07 4031 4490 F 07 4031 5933
T 08 8232 0074 F 08 8232 0076
MODELS LS343-23* * ** ** 25 * *
LS343-24* * ** ** 25 * *
LS343-25* * ** ** 25 * *
LS343-26* * ** ** 25 * *
FOR INDOOR AND OUTDOOR USE
o t 90 C t 90 C
90
Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
2
LS343
Fixture
Junction
Box (Direct
Finished
burial splice
Floor Level
box)
Supply
Conduit
Supply Connection
Connect junction box (direct burial splice box) to
supply conduit as per instructions.
For cable only entry connect underwater rated cable
in accordance with local wiring rules.
Alternatively, if ordered with 1/2"NPT conduit adaptor
connect ensuring watertight seal.
North America Only
Warning: Overcurrent protection for secondary
circuit must be provided at the supply transformer in
accordance with the National Electric Code.
5
Insert lamp into fixture.
Check lamp type and wattage with gear tray.
Insert lamp into lampholder (Follow lamp
manufacturers instructions).
Clean any marks from reflector with dry, soft,
lint free cloth. Turn on.
8
10-15 MIN.
Run Fixture.
Replace accessories and allow
fixture to burn for 10-15 minutes to
allow any moisture in fixture to
evaporate. See Over.
