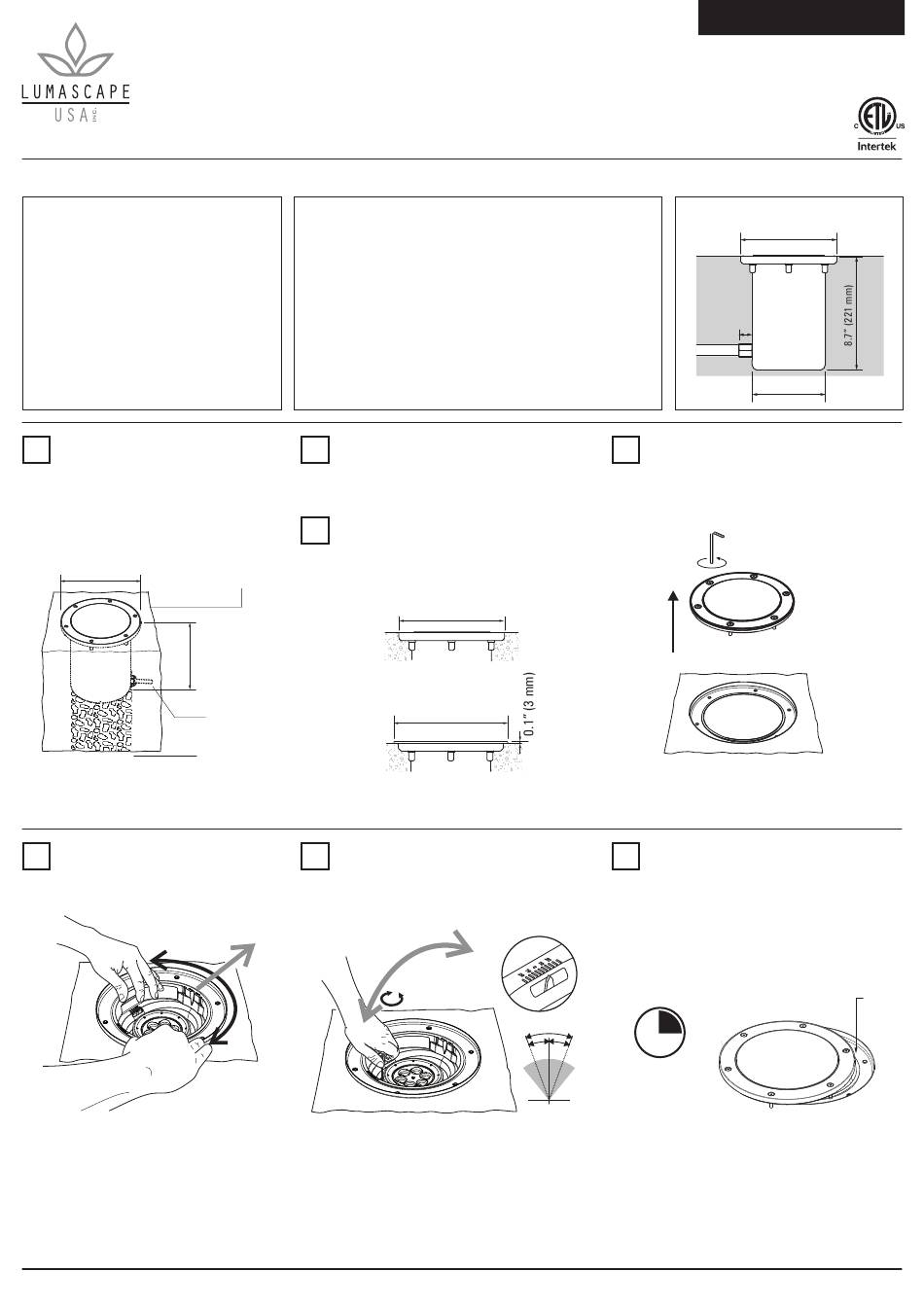

Lumascape LS363LED Installation Instructions

LUMASCAPE USA INC
1300 Industrial Rd, Unit #19
San Carlos, CA 94070, USA
T (650) 595-5862
W www.lumascape.com
Free Call : (866) 695-5862
LS363LED:
Direct Burial (line voltage)
Warranty void if not installed per instructions and local electrical code
WARNING
Install in accordance with National
Electric Code, ANSI/NFPA 70 or the Canadian
Electrical Code, Part I (CEC), CSA C22.1
Locate Luminaires
1.
Site luminaire, in proximity to cabling, in
gravel, soil or concrete. Use discretion in
locating luminaires as glass can become
very hot and may burn.
Ø7.4" (187 mm)
Housing OD
depth 8.7" (221 mm)
Aim Gimbal 1
5.
Rotate gimbal until the Aiming Mark is
aimed as desired.
Should you experience any difficulty, please contact Lumascape directly: phone (866) 695-5862 or email info@lumascape.com
IF IN DOUBT, PLEASE CALL
CAUTION
• The luminaire should only be used complete with its
protective shield (cover)
• If cable is damaged replace with cable supplied by
Lumascape only.
• Do not use power tools to tighten screws.
• Do not exert downward force on screws while not
fully tightened.
• Do not overtighten screws.
Supply Connection
2.
Connect 1/2" NPT conduit adaptor ensuring
watertight seal.
Mount Luminaire
3.
Mount luminaire such that the top lip of flange is
flush with finished floor level, as shown below.
finished
floor level
line voltage
ensure good
drainage soil
Aim Gimbal 2
6.
Adjust gimbal tilt angle by rotating Tilt Adjust
screw with Allen key supplied. Approximate angle
can be read from the Tilt Angle Indicator.
INSTALLATION INSTRUCTIONS
Ø7.4" (187 mm)
Housing OD
recessed lid
Ø8.0" (204 mm)
round/square
flush lid
40°
20°
20°
FORM IN0030US
MODEL: LS363LED
INPUT VOLTAGE: 120-277 V, 50/60 Hz
Ø7.4" (187 mm)
Housing OD
0.98"
(25 mm)
Ø5.6" (142 mm)
Isolate and Open Luminaire
4.
Loosen screws with allen key provided.
If necessary, gently lever lid out with large
screwdriver. Remove components as shown.
Run luminaire
7.
Lay lid partially over luminaire to allow a gap
for any moisture present to evaporate prior to
sealing. Connect to supply and allow to burn for
10-15 minutes. Seal luminaire.
IMPORTANT - DO NOT ENERGISE WITHOUT
PARTIALLY COVERING LAMP
15 min.
Copyright ©2013 LUMASCAPE USA INC.
INGRADE
Air gap
IN0030US - 17 Jul 2013
