Sealey LED141 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
1.1. GENERAL
It is important to ensure that the lamp is fully charged before initial use.
9
DO NOT turn the lamp on when it is being charged.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the lamp.
8
DO NOT leave battery in a discharged state. Recharge battery immediately.
8
Recharge the battery at least once every six months of non-use.
9
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using this light.
‰
Account for all tools being used and DO NOT leave them in or near the engine.
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open, disassemble, modify or service the battery pack.
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°).
8
2. INTRODUCTION

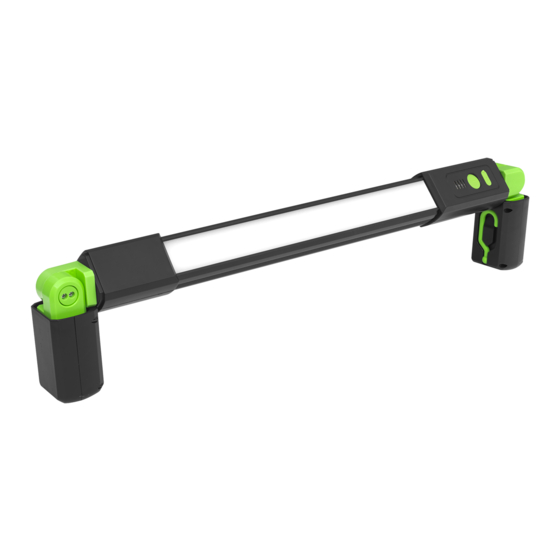

Rechargeable Under-Bonnet 600 Lumen SMD LED worklight with three brightness settings. 180° Swivel handle for accurately directing the light
at any angle required. Each end has a 360° swivel/hanging hook and a magnet for hands-free operation. LED Charge indicator displays the
current battery level during use and while charging. 3.7V 1.8Ah Lithium-ion battery. Charges via a USB Type-C cable (supplied).
3. SPECIFICATION
Model No .................................................................. LED141
Battery ............................................... 3.7V 1.8Ah Lithium-ion
Charging Time ........................................... 3-4hr at 5V DC 2A
LED Qty: ............................................................................ 42
LED Type ....................................................................... SMD
Lumen Output ...................................................... 600 Lumen
Operating Time .................................. High/Med/Low: 1/2/4hr
Power ................................................................................9W
Nett Weight: ............................................................... 0..62kg
4. OPERATION
4.1. OPERATIONAL MODES (Refer to fig.1)
4.1.1. Press On/Off button once to turn the unit on. This will also light up the four LEDs (fig.1) to indicate the battery state. 4 bars lit
indicates 100%, 1 bar lit indicates 25% (or less).
4.1.2. LED Charge indicator displays the current battery level during use and while charging.
4.1.3. Press On/Off button again and the unit operates in full power mode.
4.1.4. Press On/Off button again and the unit operates in mid-power mode.
4.1.5. Press On/Off button again and the unit operates in low power mode.
4.1.6. Press On/Off button again and the unit switches off.
4.2. UNIT MOUNTING AND ADJUSTMENT (Refer to fig.2)
4.2.1. The unit is fitted with a hook at each end to enable suspension from a suitable source.
4.2.2. The unit also has a magnet at each end to allow it to be supported from a ferrous surface / object.
4.2.3. To enable lighting position adjustment, the unit is fitted with hinging/rotating elbows at both ends.
4.2.4. Pull the end caps out to expose the joint (fig.2). Each elbow can be rotated through 180
© Jack Sealey Limited
RECHARGEABLE UNDER-BONNET LIGHT, 9W
SMD LED, 600 LUMENS
LED141
MODEL NO:
Original Language Version
and in one of 9 set positions.
0
LED141 Issue 1 13/03/25
