Table of Contents

Table of Contents

Table of Contents ........................ 1
EN
First Things First .......................... 2
Tools Required ................................... 2
Parts Packed with Your Unit ............ 2
Before Mounting ............................... 2
Mounting Procedure ......................... 3
General Controls ......................... 6
Main Unit ........................................... 6
Side Views .......................................... 6
In Battery Compartment ................... 6
The Remote Control .......................... 7
Display .......................................... 8
Clock & Timer .............................. 8
Setting the Time ................................ 8
Radio ............................................ 9
Built-In AFC ........................................ 9
Antennas ............................................ 9
Turning On the Radio ....................... 9
Turning Off the Radio ....................... 9
Adjusting Volume .............................. 9
Selecting Radio/TV Band ................... 9
Radio Frequency Memory ............... 10
Memory Recall ................................. 10
TV Band ............................................ 10
Using the Weather Band ................ 10
1
CD Player .................................... 11
Selecting CD Player ......................... 11
Loading CD Disc ............................... 11
Play and Pause Playback ................. 11
Skip and Search Tracks .................... 11
End Playback .................................... 11
Replacing the Bulb .......................... 12
Display Brightness .................... 12
Troubleshooting Tips ................ 13
Care and Maintenance .............. 14
Precautions ....................................... 14
Cleaning the Exterior ...................... 14
Handling Compact Discs ................. 14
Cleaning Compact Discs .................. 14
CD Lens Care .................................... 14
Limited Warranty ...................... 15
First Things First
Under Cabinet Mounting
Instructions
Tools Required
• Drill and
1
/
" Drill Bit
4
• Ruler or Tape Measure
• Nail or Awl
• Scissors
• Screwdriver - Phillips
• Countersink (Optional)
• Masking Tape
• Safety Glasses

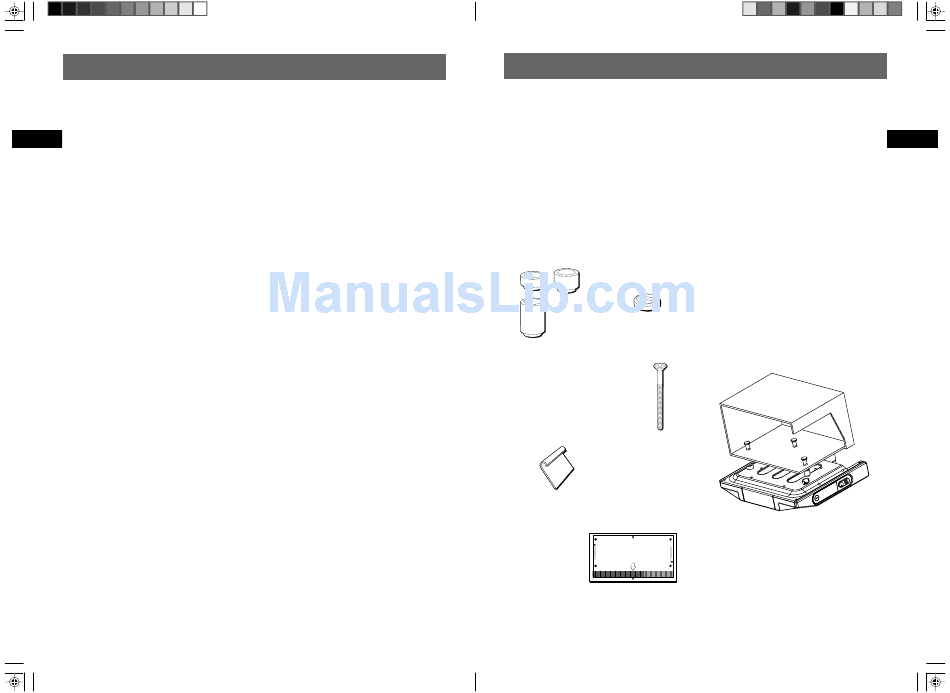

Parts Packed with your Unit
Spacers
3 -
1
/
"
4
3 - Washers
3 -
1
/
"
2
3 - 1"
USE:
3 - 2
3
/
" Phillips head screws
4
or
3 - 1
5
/
" Phillips head screws
8
2 - Cord hooks
1 - Mounting
Cut out on solid black line.
Corte sobre la línea sólida negra.
template
If no overhang, front edge of templet
should be even with front edge of cabinet.
Si no hay una parte sobresaliente la parte
delantera de la plantilla debe ser igual con
el borde delantero del cabinete.
FRONT
FRENTE
Fold guidelines for cabinet with overhang.
Líneas de guía para ser dobladas en la parte sobresaliente de los gabinetes.
Model 2-4290
349A2708-0001 (Rev 0 E/S)
Cut out on solid black line.
Corte sobre la línea sólida negra.
95-10
Printed in Singapore
Before Mounting
Empty contents of the selected cabinet under
which the unit will be mounted and thoroughly
clean the underside of the cabinet to remove any
grease residue which might be present.
We recommend the unit be mounted at the front
edge of the cabinet.
Important: For secure mounting, the screws
must go into the radio to a depth of at least
3
/
".
8
If the overall length from the bottom of the
cabinet shelf to the bottom of the overhang is
more than 1
3
/
", then a wood shim will be
4
necessary. A shim can be made from a sheet of
plywood, using the Template to locate the central
lines for drilling the
1
/
" mounting holes. The
4
shim can be located between the cabinet shelf
bottom and spacers. Make sure the wood is at
3
least as thick as the excess over 1
/
" If a shim is
4
necessary, longer screws are required. Longer
screws (Type #10-32) are available at most local
hardware stores.
Cut out the Template on the line indicated. The
Template size and screw hole positions are
identical to the top of the clock radio.
2
EN
