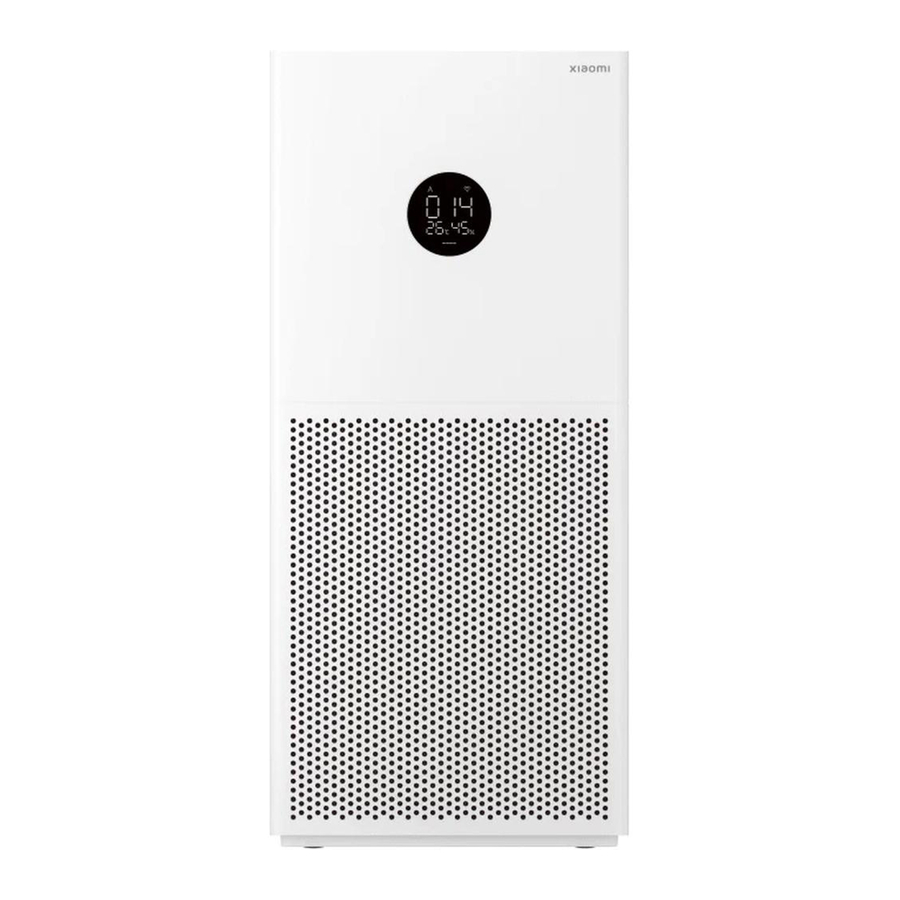

Xiaomi Smart Air Purifier 4 Lite AC-M17-SC Manual

How to Use

Turning on/standby

Press the on/standby button to turn on/standby the purifier.

Switching mode

While the purifier is on, press the mode switch button to cycle through modes.

Adjusting the display's brightness

Press the display on/off button on the back of the purifier to cycle through its brightness levels: on, dim, and off.

Enabling/disabling the child lock function

The child lock function can only be enabled via the app. Once enabled, the screen will flash and display as shown in Figure A. To disable the child lock function, press and hold the mode switch button for seven seconds until you hear a notification sound. Then the screen will display as shown in Figure B.

Resetting Wi-Fi

When connecting the purifier to the app for the first time or unable to connect to it, press and hold the display on/off button on the back of the purifier for 7 seconds. The purifier will make a notification sound once the Wi-Fi is successfully reset.

Enabling/Disabling Wi-Fi

Simultaneously press and hold the mode switch button and the display on/off button on the back of the purifier for 7 seconds. The Wi-Fi function is enabled when the Wi-Fi indicator is on and is disabled when the indicator is off.

Connecting with Mi Home/Xiaomi Home app

This product works with Mi Home/Xiaomi Home app*. Control your device with Mi Home/ Xiaomi Home app.
Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search "Mi Home/Xiaomi Home" in the app store to download and install it.
Open Mi Home/Xiaomi Home app, tap "+" on the upper right, and then follow prompts to add your device.
*The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

49567965
Note: The version of the app might have been updated, please follow the instructions based on the current app version.

Filter status notification

The air quality indicator will blink red for 30 seconds when the filter is exhausted, please replace the filter in a timely manner.

Replacing the Filter

Make sure the purifier is turned off and the power adapter is unplugged before replacing the filter.
Note: To avoid injuries, do not put your fingers between the upper and lower compartments when replacing the filter.

1. Opening the filter compartment
   Press and hold the release buttons with both of your hands, and lift up the upper compartment of the purifier.

2. Removing the old filter
   Remove the old filter upwards.

3. Installing the new filter
   Install the filter into the filter compartment, and then place back the upper compartment of the purifier.

4. Resetting the filter
   While the purifier is on standby, simultaneously press and hold the on/standby button and the display on/off button on the back of the purifier for 7 seconds. Once the filter is successfully reset, the purifier will make two beeps and the air quality indicator will blink green three times.


Notes:

• When the air quality indicator blinks red for 30 seconds, it is a reminder that the filter is exhausted.
• It is recommended to replace the filter every 6 to 12 months.
• Please purchase genuine and compatible filters from official channels.

*Calculated according to standard GB/T 18801-2015
RF Specification:
Wi-Fi 2.4 G (2400–2483.5 MHz), Max. RF Output Power: <20 dBm
Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

External AC Adapter Specifications

Information Published	Value and Precision	Unit
Manufacturer	Zhongshan Baolijin Electronic Co., Ltd.	-
Model Identifier	BLJ48WD240200P-V	-
Input Voltage	100–240	V~
Input AC Frequency	50/60	Hz
Output Voltage	24.0	V
Output Current	2.0	A
Output Power	48.0	W
Average Active Efficiency	87.8	%
Efficiency at Low Load (10%)	84.4	%
No-load Power Consumption	0.10	W

Safety

• · When the power adapter is damaged, it must be replaced with a genuine power adapter purchased from the manufacturer or after-sales service department.
• · This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• · Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• · Make sure the purifier is turned off and unplugged before performing the maintenance.

Precautions

• Turn off and unplug the purifier before moving it.
• The purifier cannot turn on when the fan grille and the filter compartment cover are not installed properly. · Maintain a distance of at least 20 cm between the air inlets and walls or other objects. · The purifier must be placed on firm and flat floor.
• Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
• Frequently remove dust, hair, and other particles from the outer mesh screen of the filter, so as to reduce the chance of bacteria growth.
• Remove dust, hair, and particles from the purifier's air inlets to prevent a reduction of air intake.
• Cover the air outlet to prevent dust, hair, and other particles from falling in when the purifier is left unused for a long time.

To avoid fire, electric shocks, or other damage, use the power adapter and electrical outlet as instructed below:

• Do not excessively pull, twist or bend the power adapter, as this may expose or break the cord's core.
• The power adapter must be plugged into a suitable electrical outlet.
• Use the power adapter that is provided with the purifier, do not use any third party power adapters. · Always unplug the purifier before carrying out maintenance to or moving the air purifier.
• Immediately stop using the purifier when it makes unusual sounds, gives off bad odors, overheats, or its fan rotates irregularly.
• Do not stick your fingers or foreign objects into the protective parts, movable parts, air inlets, or air outlets. · Keep objects such as hairs or fabrics away from the purifier to avoid blocking the air inlets or air outlets.
• Do not sit on, lean on or tilt the purifier.
• When using in conjunction with gas-fueled appliances (such as gas stoves, gas heaters), please ventilate sufficiently to avoid carbon monoxide poisoning.
• Do not pour liquids, nor throw powders or other small substances into the purifier's air outlet. · Make sure no inflammable objects get into the purifier.

Do not use the purifier in the following circumstances, as they may result in electric shocks, fire, or other damage:

• Near open flames, such as candles, incense burners, stoves, fireplaces, cigarettes, firecrackers, lighters, multipurpose torches, candle lighters, or fire pans.
• Near appliances that generate high temperatures, such as electric heaters, fan heaters, electric foot warmers, electric stoves, or electric irons.
• In unstable locations where the purifier can easily fall over.
• In environments that are extremely hot, humid, or damp, such as bathrooms.
