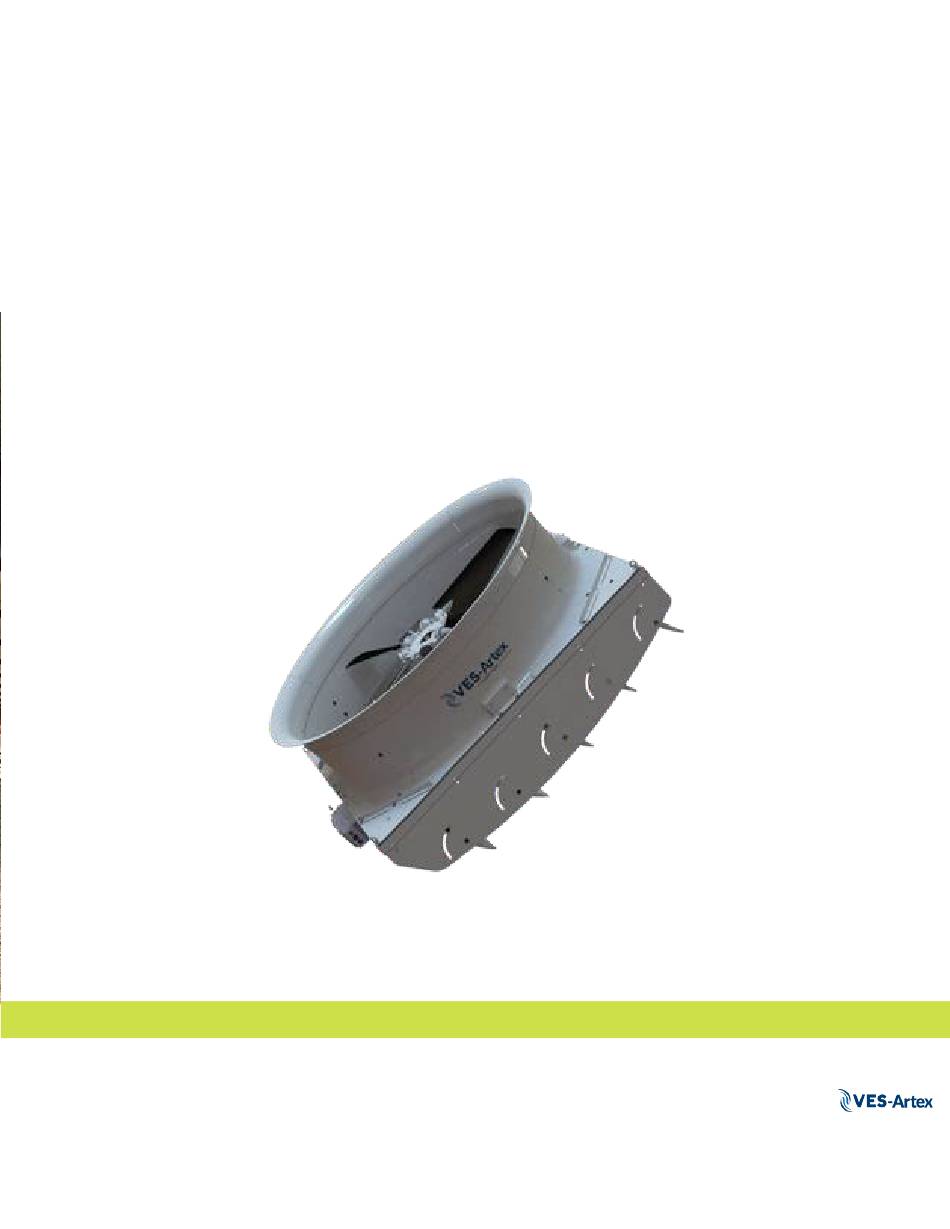

- Page 1 ECVD-ECVV DIRECT DRIVE Product Manual www.ves-artex.com 1.888.622.2999 SAVE THIS MANUAL FOR FUTURE REFERENCE CONFIDENTIAL...
-
Page 2: Table Of Contents
IRING ............................19 EYPAD UNCTIONS MAINTENANCE SCHEDULE ........................21 MAINTENANCE GUIDELINES ........................21 ..........................21 OUTINE AINTENANCE REPAIR GUIDELINES ..........................21 DISPOSAL ..............................21 TROUBLESHOOTING ..........................23 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL... - Page 3 ECVD-ECVV Direct Drive REPLACEMENT PARTS ..........................24 ECD55 T ............................ 24 URBO ECVD55 D ............................ 24 EFLECTOR ECVD72 T URBO ONE .................................. ECVD72 D ............................ 25 EFLECTOR GLOSSARY ..............................26 WARRANTY ..............................26 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com...
-
Page 4: Product Numbers
230/460 FAN HIGHLIGHTS Louvered Circulation fans are the nucleus of VES-Artex’s ventilation strategy. Powerful, dependable motors generate impressive air speed which is directed to the cows by the louvers. Positioning the fresh air right at the cow level helps mitigate heat stress while encouraging lying time, milk production, pregnancy rates, and overall cow health. -
Page 5: Attachments
Read and understand this manual before installing or servicing your VES-Artex product. For the safe handling of VES-Artex products, you will find the following safety words: DANGER, WARNING, CAUTION, and NOTICE throughout this manual. These will identify safety levels as described below. -
Page 6: Safety Alert Key
3. Ensure proper belt tension is fastened with guards. maintained. 4. Heavy load. Handle fans with a 4. Ensure fan(s) are not damaged safe and secure method. before installation. 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL... -
Page 7: Unpacking
VES-Artex products. UNPACKING GENERAL AUTION OTICE 1. Use extreme care when 1. Once a VES-Artex product is unpacking the fan. received, inspect the product 2. Do not remove zip ties (if for any damage. It is present) during transportation recommended that inspection and installation to prevent occurs immediately. -
Page 8: Handling
1. Heavy load. Handle fans in a safe and secure method. 2. Always wear eye protection when installing and servicing VES-Artex products. Use best industry practices when hoisting the fan to the mounting location. Instructions Follow the suggested best practice installation steps: 1. -
Page 9: Mechanical Installation
5. Install top screw (B) and washer (C) through turbo cone (A) into the fan. Secure with washer (C) and nut (D). 6. Continue to secure the turbo cone using hardware (B, C & D). 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL... -
Page 10: Deflector
• Socket & Wrench • Note: Each fan size has a different number of louvers to install: ECVV36: 3 louvers • ECVD55: 4 louvers • ECVD72: 5 louvers • Instructions 1. Position the fan upright to begin. 2. During assembly, ensure both side panels match on each side of the fan. - Page 11 7. Attach the louver to the pivot point using hardware. 8. Adjust the angle of the louver according to the recommended louver angles below, or ask a VES-Artex representative to determine the optimal louver angle based on your building’s design.
-
Page 12: Mounting Installation
1. Be sure to follow all dimensions listed in the manual or the warranty will be void. Contact VES-Artex if you are unsure of the dimensions listed. 2. The 4 chains must be rated to hold the fan. Chain length depends on roof pitch, building height, and other factors. -
Page 13: Mounting Dimensions
8 (2.4) 2 (0.6) 60' (18.2 m) 510 (232) ECVCS55 25° 8 (2.4) 2 (0.6) 45' (12 m) 250 (115) ECVD55 25° 8 (2.4) 2 (0.6) 45' (13.7 m) 280 (125) ECVV36 25° 8 (2.4) 2 (0.6) 30' (9.1 m) 115 (52) Adjust chains so the bottom fan edge is parallel to the ground. -
Page 14: Recommended Fan Mounting Diagram
ECVD-ECVV Direct Drive Recommended Fan Mounting Diagram ECVV36 & ECVD55: ECVD72: 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL... -
Page 15: Electrical Installation
Mount the VFD motor on the fan or a maximum of 20 ft (6 m) away from the fan when using the correct shielded VFD Cable. MOTOR LABEL ECVV36 ECVD55 (200/230V) 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL... - Page 16 ECVD-ECVV Direct Drive ECVD55 (400/460V) ECVD72 (400/460V) 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL...
-
Page 17: Motor Wiring
ECVD-ECVV Direct Drive MOTOR WIRING VES-Artex does not supply the motor-to-control interconnecting wires. These must be supplied by the installer. All Electrical work must be completed by a licensed electrician in accordance with all Local and National electrical and safety codes, as well as the National Fire Protection Agency (NFPA) where applicable. - Page 18 SMV terminal 2 to Protec GND o SMV terminal 5 to Protec AI1 o SMV terminal 1 to Protec DI1 o SMV terminal 4 to Protec 24V (one VFD per group) 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL...
-
Page 19: Keypad Functions
ECVD-ECVV Direct Drive KEYPAD FUNCTIONS PARAMETER LIST - SET THESE PARAMETERS FOR STANDARD VES-ARTEX APPLICATIONS: OTICE To save the parameter, press and hold the entry key for 3 seconds until the screen displays “P.SAVED.” GROUP 0 - FAVORITES Parameter Description... - Page 20 Change P411.01 to 1 to invert then hit enter, and then change back to 0 and hit enter. • LOAD DEFAULT SETTINGS: Change P700.01 to 1, after the task is executed successfully, the value 0 is shown. • 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL...
-
Page 21: Maintenance Schedule
6 Months General cleaning: Wipe blade surfaces. ARNING To avoid shock injury or catastrophic electrical damage to VES-Artex products, do not use pressurized water on the motor or control. Introducing pressurized water will void the warranty. Inspect blades for any irregularities. -
Page 22: Maintenance Guidelines
High temperatures are harmful to motor • performance. For this reason, avoid tight-fitting mounting and safety guards that may obstruct the ventilation openings. Prevent obstructions from fan inlets and outlets that haven’t been designed by VES-Artex. • REPAIR GUIDELINES Replacement Parts Replace necessary parts if a part defaults or breaks. -
Page 23: Troubleshooting
Damaged blades Run the fan without the blade, if the motor does not wobble, Debris then the motor is not defective, but the blades may be damaged. 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL... -
Page 24: Replacement Parts
ECD55 TURBO CONE Item NetSuite Part Number Description 104467 Cone, ECV 55", 1/4 PC 101327 HARDWARE PACK - ECV TURBO CONE ECVD55 DEFLECTOR Item NetSuite Part Number Description 100259 DEFLECTOR, 55" SIDE PANEL, WHITE 101602 LOUVER, ECV 55, WHITE 101603 HARDWARE KIT, 55"... -
Page 25: Ecvd72 Turbo Cone
HARDWARE PACK - ECV TURBO CONE ECVD72 DEFLECTOR Item NetSuite Part Number Description 101113 LOUVER, ECVCS72, 80" LG, WHITE 101963 DEFLECTOR, 72" SIDE PANEL, WHITE 101114 HARDWARE KIT, 72" ECVCS, IDK 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com CONFIDENTIAL... -
Page 26: Glossary
LIMITED WARRANTY & RETURN POLICY THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. See any updated warranty and policy information on the VES-Artex website: www.ves- artex.com/ves-artex-warranty/. 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com...
