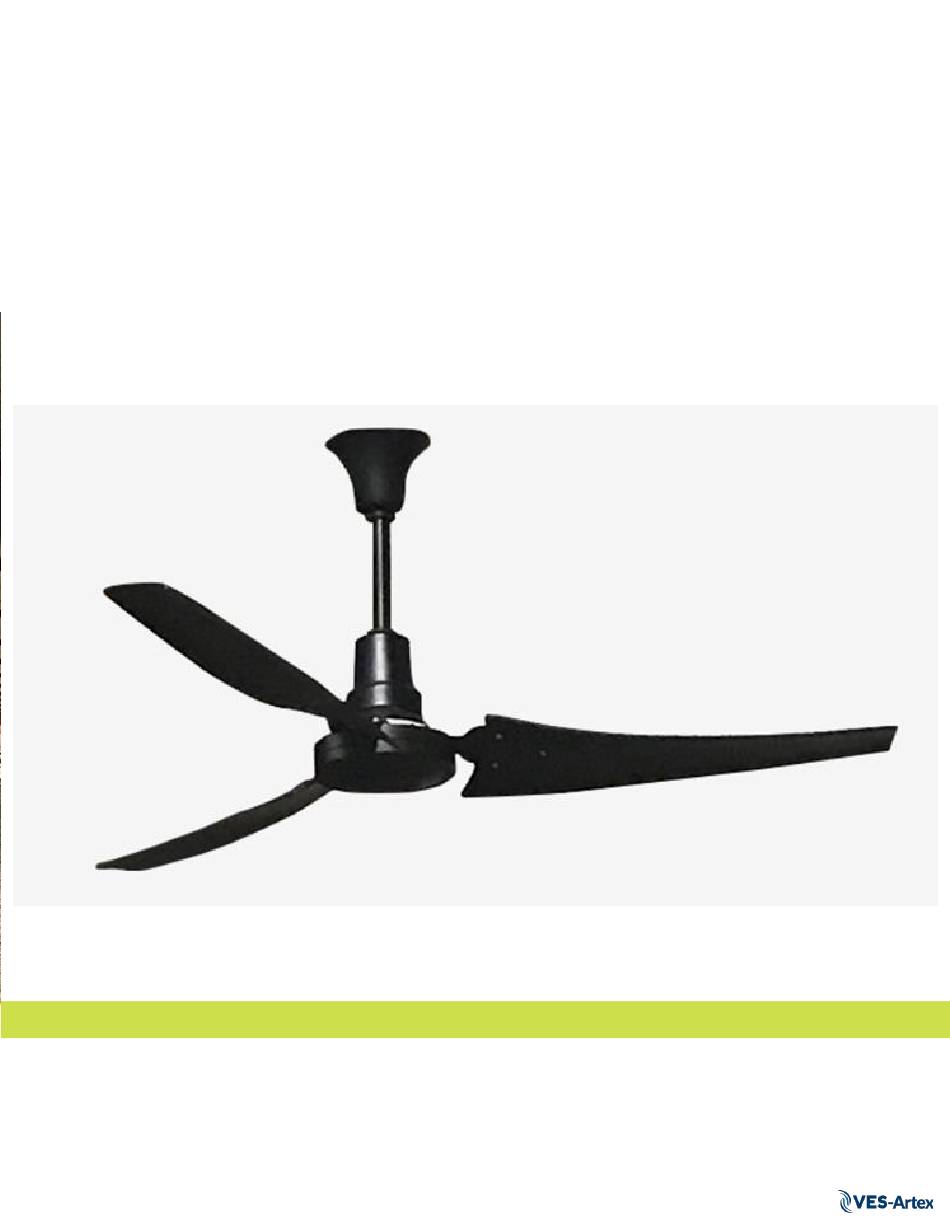

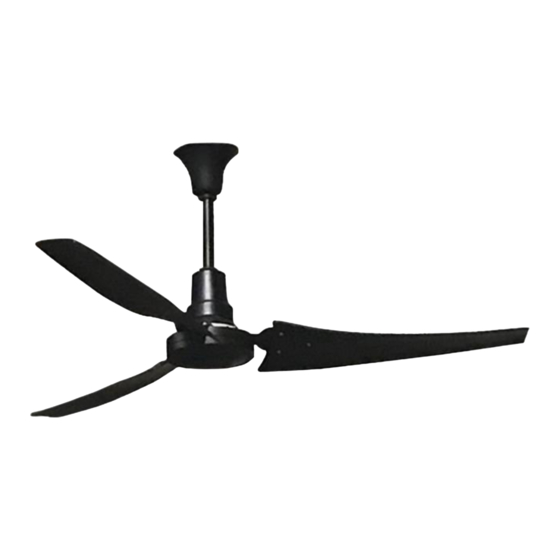

- Page 1 CEILING FAN INDB-DC Product Manual www.ves-artex.com 1.888.622.2999 SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Ceiling Fan INDB-DC TABLE OF CONTENTS PRODUCT NUMBERS ..........................4 FAN HIGHLIGHTS ............................4 FAN FEATURES & CERTIFICATIONS ......................4 ............................4 PECIFICATIONS TARGET AUDIENCE ............................ 5 SAFETY PRECAUTIONS ..........................5 ............................5 AFETY LERT ............................6 ENERAL AFETY UNPACKING ..............................7 ................................ - Page 3 Ceiling Fan INDB-DC PART OVERVIEW ............................18 REPLACEMENT PARTS ..........................20 GLOSSARY ..............................20 WARRANTY ............................... 20 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800 www.ves-artex.com...
-
Page 4: Product Numbers
F/R, 5 Speed, 4 Fans FAN HIGHLIGHTS VES-Artex offers commercial and industrial-grade ceiling fans. Our moisture-resistant fan is designed for damp locations with a certified GFI electrical branch. This style is available in both 56″ and 60″ sizes in white and matte black and utilizes a J-hook for installation. -
Page 5: Target Audience
Read and understand this manual before installing or servicing your VES-Artex product. For the safe handling of VES-Artex products, you will find the following safety words: DANGER, WARNING, CAUTION, and NOTICE throughout this manual. These will identify safety levels as described below. -
Page 6: General Safety
Ceiling Fan INDB-DC GENERAL SAFETY ANGER AUTION 1. Disconnect electrical power 1. Follow all maintenance before installing, inspecting, or procedures enclosed. servicing equipment to prevent 2. Follow all federal, state, and possible electric shock or local safety codes as it relates to damage to equipment. -
Page 7: Unpacking
Ceiling Fan INDB-DC UNPACKING GENERAL AUTION OTICE 1. Use extreme care when 1. Once a VES-Artex product is unpacking the fan. received, inspect the product 2. Do not remove zip ties (if for any damage. It is present) during transportation... -
Page 8: Handling
Ceiling Fan INDB-DC HANDLING GENERAL ANGER OTICE 1. Ensure the fan and chains are 1. Be sure zip ties (if present) are secure to prevent falling. removed before operation to 2. Verify lifting equipment is safe prevent equipment damage. before fan handling. -
Page 9: Mechanical Installation
Be sure to follow all dimensions listed in injury, do not bend the blade the manual or the warranty will be void. brackets when installing the Contact VES-Artex if you are unsure of brackets, balancing the blades, the dimensions listed. or cleaning the fan. -
Page 10: Changing The Down Rod Length
Ceiling Fan INDB-DC 14. Wire the fan according to NEC, CEC, and local electrical codes. 15. After making the wire connections, the wire should be spread apart with the grounded conductor and the equipment- grounding conductor on one side of the outlet box and the ungrounded conductor on the other side of the outlet box. - Page 11 Ceiling Fan INDB-DC 10. Slide the top canopy (19) over the wires, safety cable, and down rod. Do not tighten the set screw (18). 11. Attach the rubber grommet (14) and support bracket (15) to the top of the down rod using the bolt, cotter, and nut (16).
-
Page 12: Electrical Installation
Ceiling Fan INDB-DC ELECTRICAL INSTALLATION ANGER OTICE Failure to properly ground the unit could 1. Disconnect the power supply result in severe electrical shock or before wiring connections are death. made to prevent possible electric shock or damage to the equipment. -
Page 13: Motor Wiring
Ceiling Fan INDB-DC MOTOR WIRING VES-Artex does not supply the motor-to-control interconnecting wires. These must be supplied by the installer. All Electrical work must be completed by a licensed electrician in accordance with all Local and National electrical and safety codes, as well as the National Fire Protection Agency (NFPA) where applicable. -
Page 14: Operation
Ceiling Fan INDB-DC 3 Wires Without Wall Control Circuit Diagram ANGER ARNING Any work on the device must only be Be sure to create a drip loop in the power line to prevent water from being carried out in a de-energized state and introduced to the controller from the by qualified and skilled personnel. -
Page 15: Maintenance Schedule
Blades 6 Months General cleaning: Wipe blade surfaces. WARNING To avoid shock injury or catastrophic electrical damage to VES-Artex products, do not use pressurized water on the motor. Introducing pressurized water will void the warranty. Motor Hub 6 Months General cleaning: Wipe motor hub surfaces. -
Page 16: Maintenance Guidelines
For this reason, avoid tight-fitting mounting and safety guards that may obstruct the ventilation openings. • Prevent obstructions from fan inlets and outlets that haven’t been designed by VES-Artex. REPAIR GUIDELINES Replace the fan if a part defaults or breaks. Be sure to review the warranty information to determine warranty qualifications. -
Page 17: Troubleshooting
Ceiling Fan INDB-DC TROUBLESHOOTING Symptom Cause Solution FAN WILL NOT START Blown/bad fuse or Check fuses and circuit breakers. circuit breaker Bad connection Check wire connections to the motor. Over or under-voltage Check the voltage at the fan connection. FAN TOO FAST/SLOW Over or under-voltage Check the voltage at the motor. - Page 18 Ceiling Fan INDB-DC PART OVERVIEW Item Number Description Quantity Rubber Wheel Rubber Wheel Bracket M8X38mm Bolt M4X8 Screw Wire Clip M8 Nut Cotter Pin ɸ10 Rubber Washer Down Rod Screwcap 1313 Lakeland Drive, Chippewa Falls, WI 54729, United States | 715.720.0800...
- Page 19 Ceiling Fan INDB-DC ɸ23 Rubber Washer Washer 1 Rubber Cap Washer 2 ɸ26.5 Down Rod M6 45mm Bolt M6 Nut ɸ6 Spring Washer Upper Canopy M4X10 Bolt Rubber Ring Waterproof Rubber Ring Lower Canopy Driver York Cover Rubber Ring Steel Plate...
- Page 20 Ceiling Fan INDB-DC REPLACEMENT PARTS Replace the fan if a part defaults or breaks. Be sure to review the warranty information to determine warranty qualifications. Purchase new parts from a VES-Artex supplier by reviewing our list of certified dealers. GLOSSARY Abbreviation/Term Meaning "...
