Summary of Contents for Varytec PAR 16

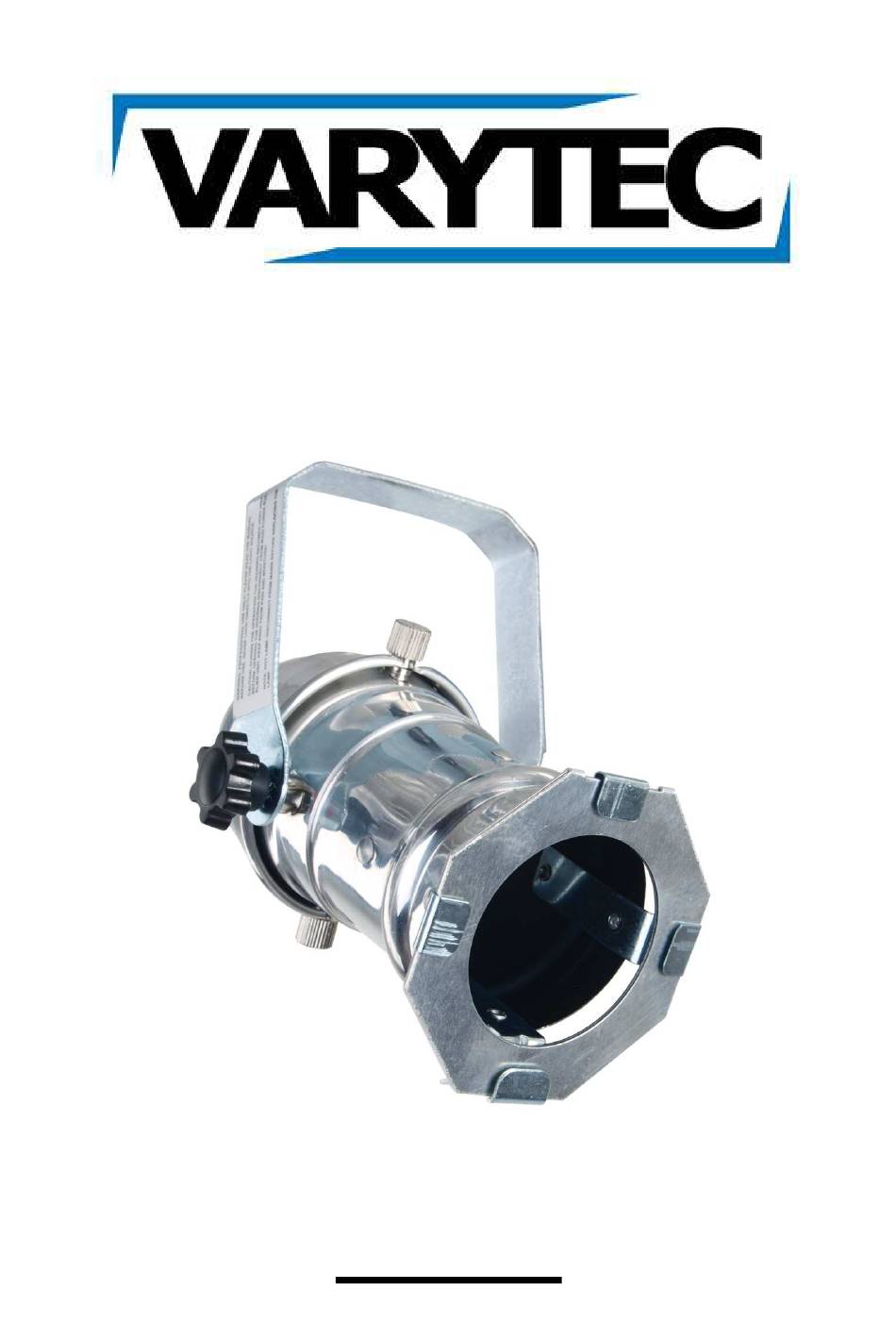

- Page 1 Manual PAR 16...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. For safe and efficient operation ....................3 Designated use ..........................4 2.1. Overhead installation ....................... 5 Introduction ............................6 3.1. Product overview ........................6 Connections ............................. 7 4.1. Electrical connections ......................7 Replacing the lamp ........................... -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use (not outdoors) only device is suitable for indoor use (not outdoors) only. • All modifications to the device will void the warranty. All modifications to the device will void the warranty. •... -
Page 4: Designated Use
2. Designated use This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230V 50/60 Hz AC voltage and only for indoor use. Regular breaks during operation increase the lifetime of your device. Avoid convulsions or any form of forceful impact during the installation or the start-up of the device. -
Page 5: Overhead Installation
2.1. Overhead installation Overhead installation Danger of life! Danger of life! You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and EN60598-2-17 17 Installations are to carry out by skilled personnel only. -
Page 6: Introduction
A safety rope once exposed to failing load or damaged may not be used furthermore. Adjust the desired inclination angle via the mounting bracket and tighten the screw. 3. Introduction Thank you for buying the PAR 16. It is a powerful device. For a successful installation and operation, please read this manual carefully. -
Page 7: Connections
4. Connections 4.1. Electrical connections Electrical connections If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the If you wish to change the power supply settings, see the chapter Appendix. -
Page 8: Technical Data
6. Technical data Power supply Energy efficiency A++ up to F Power consumption max. 50 W Light source LM type Halogen Socket G5.3 Connections Power in Schutzko Hardware Protection class IP20 Suitability Indoor Dimensions (L/B/H) 160 x 105 x 80 mm Material Aluminum Weight...
