SyncMaster 173P plus/193P plus

Need help?

Do you have a question about the SyncMaster 193P plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung SyncMaster 193P plus

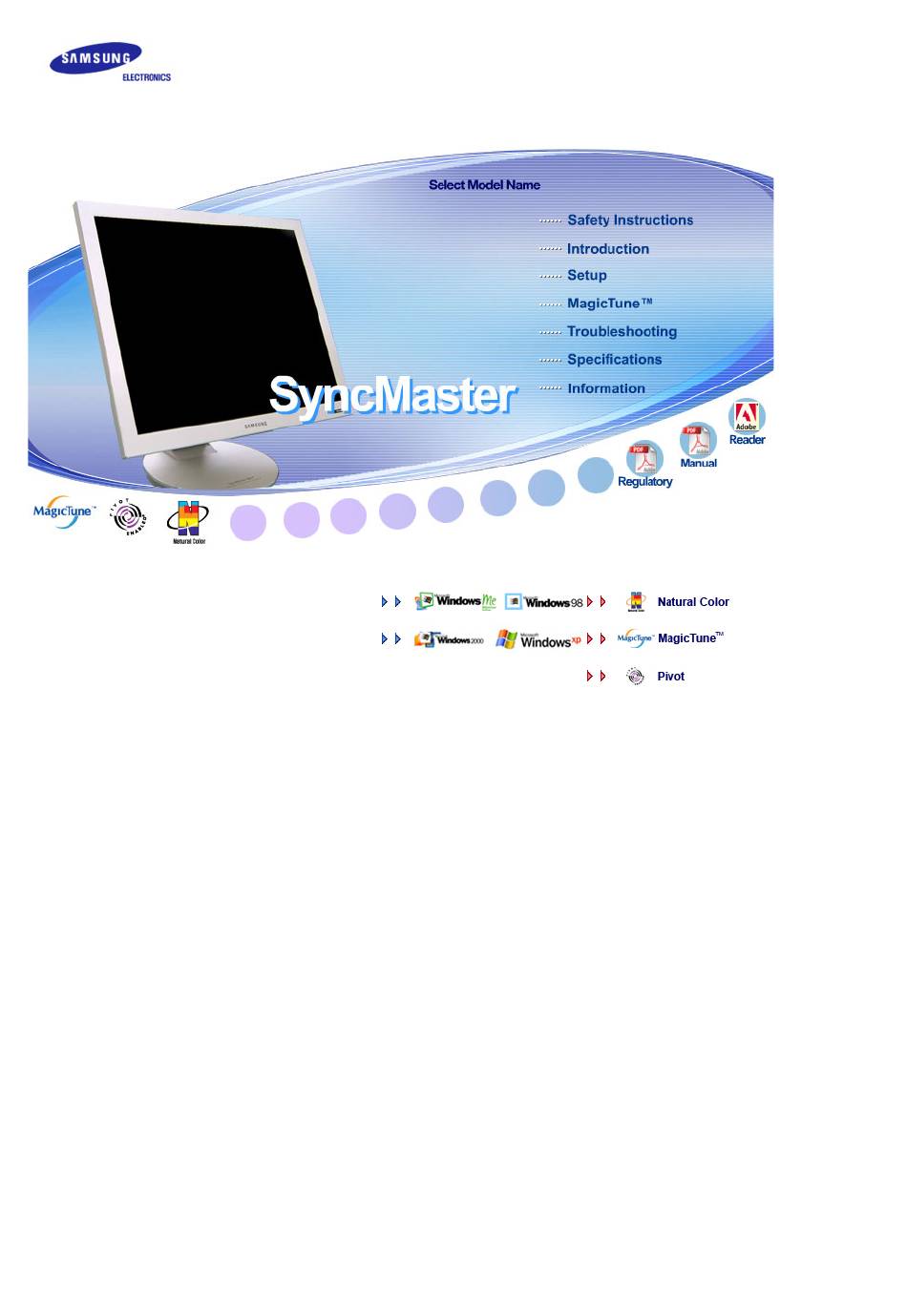

Page 1 Install drivers Install programs SyncMaster 173P plus/193P plus...
Page 2 Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Important to read and understand at all times Do not disassemble Disconnect the plug from the outlet Do not touch Grounding to prevent an electric shock Power When not used for extended period of time, set your computer to DPMS.
Page 3 Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.
Page 4 Install the monitor base in a showcase or shelf so that the end of the base does not project beyond the showcase or shelf. Dropping the product may cause damage to the product or personal injury. Set down the monitor carefully. The monitor could be damaged or broken.
Page 5 If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth. A dirty connector can cause an electric shock or fire. Contact the Service Center or Customer Center for interior cleaning once a year.
Page 6 Do not try to move the monitor by pulling only the wire or the signal cable. This may cause a breakdown, electric shock or fire due to damage to the cable. Do not move the monitor right or left by pulling only the wire or the signal cable.
Page 7 Adjust the resolution and frequency to the levels appropriate for the model. Inappropriate resolution may cause undesirable picture quality. 17 inch - 1280 X 1024 Be careful that adapter should not be in contact with water and therefore not be wet. This may cause malfunction, an electric shock or fire.
Page 8 Do not install the product on an unstable, uneven surface or a location prone to vibrations. Dropping the product may cause damage to the product or personal injury. Using the product in a location prone to vibrations may shorten the lifetime of the product or may catch fire. When moving the monitor, turn off and unplug the power cord.
Page 9 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor Manual User's Guide, Warranty Card Monitor Driver, (Not available in all Quick Setup Guide Natural Color software, locations)
Page 10 D-Sub Cable Power Cord DC-Adapter Bracket Bracket VESA Mounting Bracket Sold separately DVI Cable Front Power indicator This light glows blue during normal operation, and blinks blue once as the monitor saves your adjustments. Use this button for power the monitor on and off, change the input Power button source, or perform Auto Adjustment.
Page 11 PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed or when leaving it unattended for long periods. Rear (The configuration at the back of the monitor may vary from product to product.) Power port Connect the DC adapter for your monitor to the power port on the back of the monitor.
Page 12 Connect the DC adapter for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor. 2-2.
Page 13 Pivot Stand Pivot Pro Installation (When pivoting the monitor, rotation angle is displayed on screen of the monitor.) 0° 90° 180° Caution : When pivoting the monitor, the corner of the monitor may reach to the floor. Tilt the monitor backward more than 45 degrees and then pivot it. Failure to do so may damage the monitor.
Page 14 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ (Worldwide) http://www.samsungusa.com/monitor (USA) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/...
Page 15 4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/.
Page 16 http://www.samsungusa.com/monitor (USA) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China) ® ® Microsoft Windows XP Operating System 1. Insert CD into the CD-ROM driver. 2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" icon. 3. Click "Display" icon and choose the "Settings" tab then click "Advanced..". 4.
Page 17 8. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/ 9. Click the "Close" button then click "OK" button continually.
Page 18 10. Monitor driver installation is completed. ® ® Microsoft Windows 2000 Operating System When you can see "Digital Signature Not Found" on your monitor, follow these steps. 1. Choose "OK" button on the "Insert disk" window. 2. Click the "Browse" button on the "File Needed" window. 3.
Page 19 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
Page 20 How to delete the Natural Color software program Select "Setting/Control Panel" on the "Start" menu and then double-click "Add/Delete a program". Select Natural Color from the list and then click the "Add/Delete" button.
Page 21 Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Overview What is MagicTune™? Monitor performance can vary due to the graphics card, host computer lighting conditions and other environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique setting.
Page 22 Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Installation 1. Insert the installation CD into the CD-ROM drive. 2. Click the MagicTune™ installation file. 3. Select installation Language, Click "Next". 4. When the InstallationShield Wizard window appears, click "Next." 5. Select "I agree to the terms of the license agreement" to accept the terms of use.
Page 23 6. Choose a folder to install the MagicTune program. 7. Click "Install." 8. The "Installationation Status" window appears.
Page 24 9. Click "Finish." 10. When the installation is complete, the MagicTune executable icon appears on your desktop. Double-click the icon to start the program. Magictune execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key. Installationation Problems The installation of MagicTune™...
Page 25 Windows 98 SE Windows Me Windows 2000 Windows XP Home Edition Windows XP Professional Hardware 32MB Memory above 25MB Hard disk space above website * For more information, visit the MagicTune...
Page 26 Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration MagicTune allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you. OSD mode may appear inconsistent with the explanation in guidance book depending on specification of each monitor.
Page 27 in the control window, clicking "Cancel" does not cause any actions. Picture Tab Definition Allows the user to adjust the screen settings to the desired values. Brightness Contrast Resolution MagicBright Makes the entire screen brighter or darker. The detailed data of the images in the dark areas can be lost Brightness if the brightness is not adjusted to the proper level.
Page 28 - including web images and ones produced by a digital camera or scanner. MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.
Page 29 The MagicZone ensures the clear and sharp display of animated multimedia or photo images by enhancing the brightness, sharpness, saturation, Hue of a certain area on the screen. This offers an easy-to-use interface that highlights the video-playing portion of your multimedia program by automatically detecting and highlight the desired area by dragging.
Page 30 Image Tab Definition Adjusts the Fine , Coarse and Position values. Image Setup Position Sharpness Fine : Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed). Image Setup Coarse : Removes noise such as vertical stripes.
Page 31 Loads the Preferences Dialog Box. Preferences in use will have an "V" in the check box. To turn on or off any Preference, position the cursor over the box and click. Preferences Enable task tray menu . - To access the MagicTune menus, click the icon on the [task tray menu]. The menus are not displayed if the [Enable System Tray] is deselected in [Options] ' [Basic Settings].
Page 32 User Name Shows the user name that is registered in PC. User ID Shows the user ID that is register in PC. Server IP Write down the server IP . Department Write down the department. Location Write down the location. Version Displays the version of MagicTune.
Page 33 Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Color Calibration 1. Color Calibration Color Calibration guides you to get optimal color condition for your monitor. Proceed following 5steps for getting optimal monitor color condition . 1. Control "Brightness control bar" for matching the brightness of control patch and the brightness of background pattern 2.
Page 34 Press "Preview" button on the Color Calibration. The above picture will be shown. 1. Press "View Calibrated" button to see the calibration effect which you adjusted. 2. Press "View Uncalibrated" button to see the original image.
Page 35 Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Uninstall The MagicTune program can be removed only by using the "Add or Remove Programs" option of the Windows Control Panel. Perform the following steps remove MagicTune. 1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows XP, go to [Control Panel] in the [Start] menu.
Page 36 Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Troubleshooting Check when MagicTune does not function properly. * MagicTune feature is found only on PC (VGA) with Window OS that supports Plug and Play. * To check whether your PC is available for MagicTune feature, follow the steps below (When Windows is XP);...
Page 37 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer. Symptom Check List Solutions No images on the Is the power cord connected...
Page 38 The program can be downloaded from the http://www.samsung.com/. Check the following items if there is trouble with the monitor. 1. Check if the power cord and the video cables are properly connected to the computer.
Page 39 remove the Display Adapter at the "Control Panel→System→Device Administrator" and then reboot the computer to reinstall the adapter (video) driver. If problems repeatedly occur, contact an authorized service center. Q & A Question Answer How can I change the Frequency can be changed by reconfiguring the video card. frequency? Note that video card support can vary, depending on the version of the driver used.
Page 40 Warning Messages If there is something wrong with the input signal, the message below appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is out of scan range or that you need to check the signal cable. Environment The location and the position of the monitor may influence the quality and other features of the monitor.
Page 41 SyncMaster 173P plus General General Model Name SyncMaster 173P plus LCD Panel Size 17" Diagonal Display area 337.92 (H) x 270.336 (V) Pixel Pitch 0.264mm (H) x 0.264mm (V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color...
Page 42 ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality. ® As an ENERGY STAR Partner, SAMSUNG has determined that this ® product meets the ENERGY STAR guidelines for energy efficiency. Preset Timing Modes If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically (Exception : 640 x 480/60Hz, 720 x 400/70Hz, 800 x 600/60Hz) However, if the signal differs, the screen may go blank while the power LED is on.
Page 43 Table 1. Preset Timing Modes Horizontal Vertical Pixel Clock Sync Polarity Display Mode Frequency Frequency (MHz) (H/V) (kHz) (Hz) IBM, 640 x 350 31.469 70.086 25.175 IBM, 640 x 480 31.469 59.940 25.175 IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667...
Page 44 SyncMaster 193P plus General General Model Name SyncMaster 193P plus LCD Panel Size 19" Diagonal Display area 376.32 (H) x 301.056 (V) Pixel Pitch 0.294mm (H) x 0.294mm (V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz...
Page 45 ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality. ® As an ENERGY STAR Partner, SAMSUNG has determined that this ® product meets the ENERGY STAR guidelines for energy efficiency. Preset Timing Modes If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically (Exception : 640 x 480/60Hz, 720 x 400/70Hz, 800 x 600/60Hz) However, if the signal differs, the screen may go blank while the power LED is on.
Page 46 Table 1. Preset Timing Modes Horizontal Vertical Pixel Clock Sync Polarity Display Mode Frequency Frequency (MHz) (H/V) (kHz) (Hz) IBM, 640 x 350 31.469 70.086 25.175 IBM, 640 x 480 31.469 59.940 25.175 IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667...
Page 47 Service The address and phone number of the company can be changed without prior notice. AUSTRALIA : Samsung Electronics Australia Pty Ltd. Customer Response Centre 7 Parkview Drive, Homebush Bay NSW 2127 Tel : 1300 362 603 http://www.samsung.com.au/ BRAZIL : Samsung Eletronica da Amazonia Ltda.
Page 48 Tel: 01-55-5747-5100 / 01-800-726-7864 Fax: 01-55-5747-5202 / 01-800-849-1743 RFC: SEM950215S98 http://www.samsung.com.mx/ IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V. Vía Lopez Portillo No. 6, Col. San Fco. Chilpan Tultitlán, Estado de México, C.P. 54940 Tel: 01-55-5747-5100 / 01-800-726-7864 EXPORTADO POR: Samsung Electronics CO.,LTD.
Page 49 Tel. 214 148 114/100 Fax. 214 148 133/128 Free Line 800 220 120 http://www.samsung.pt/ SOUTH AFRICA : Samsung Electronics,5 Libertas Road, Somerset Office Park, Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa Tel : 0027-11-549-1621 Fax : 0027-11-549-1629 http://www.samsung.co.za/...
Page 50 < European Service Center & National Service > Stafford Park 12 Telford, Shropshire, TF3 3BJ Tel. : (0870) 242 0303 Fax. : (01952) 292 033 http://samsungservice.co.uk/ U.S.A. : Samsung Electronics America Service Division 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) http://samsungusa.com/monitor/...
Page 51 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
Page 52 Federal Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4. The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD America QA Lab of Samsung 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA Tel) 949-975-7310...
Page 53 MPR II Compliance This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields. European Notice(Europe Only) Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Page 54 climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic equipment in offices consumes an enormous amount of energy, since it is often routinely left running continuously. What does labelling involve? This product meets the requirements for the TCO'95 scheme, which provides for international environmental labelling of monitors.
Page 55 CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
Page 56 Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.
Page 57 For recycling information for TCO'03 certified monitors, for the residents in the following countries, please contact the company corresponding to your region of residence. For those who reside in other countries, please contact a nearest local Samsung dealer for recycling information for the products to be treated in environmentally acceptable way.
Page 58 Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only) LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS For details see lamprecycle.org, eiae.org, or call 1-800-Samsung...
Page 59 PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
Page 60 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.
