Outdoor Pyramid Heater
Item no# S-FT1367PST
SKU# 810405351
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
R
or servicing this equipment.
US
s-Fired Outdoor Infrared Patio Heaters
1
DAN ER
WARNIN
WARNIN :
For Outdoor Use Only
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or
home.
WARNIN
Owner's
Manual
OUTDOOR
PATIO HEATER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-FT1367PST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy S-FT1367PST

Summary of Contents for Sunjoy S-FT1367PST

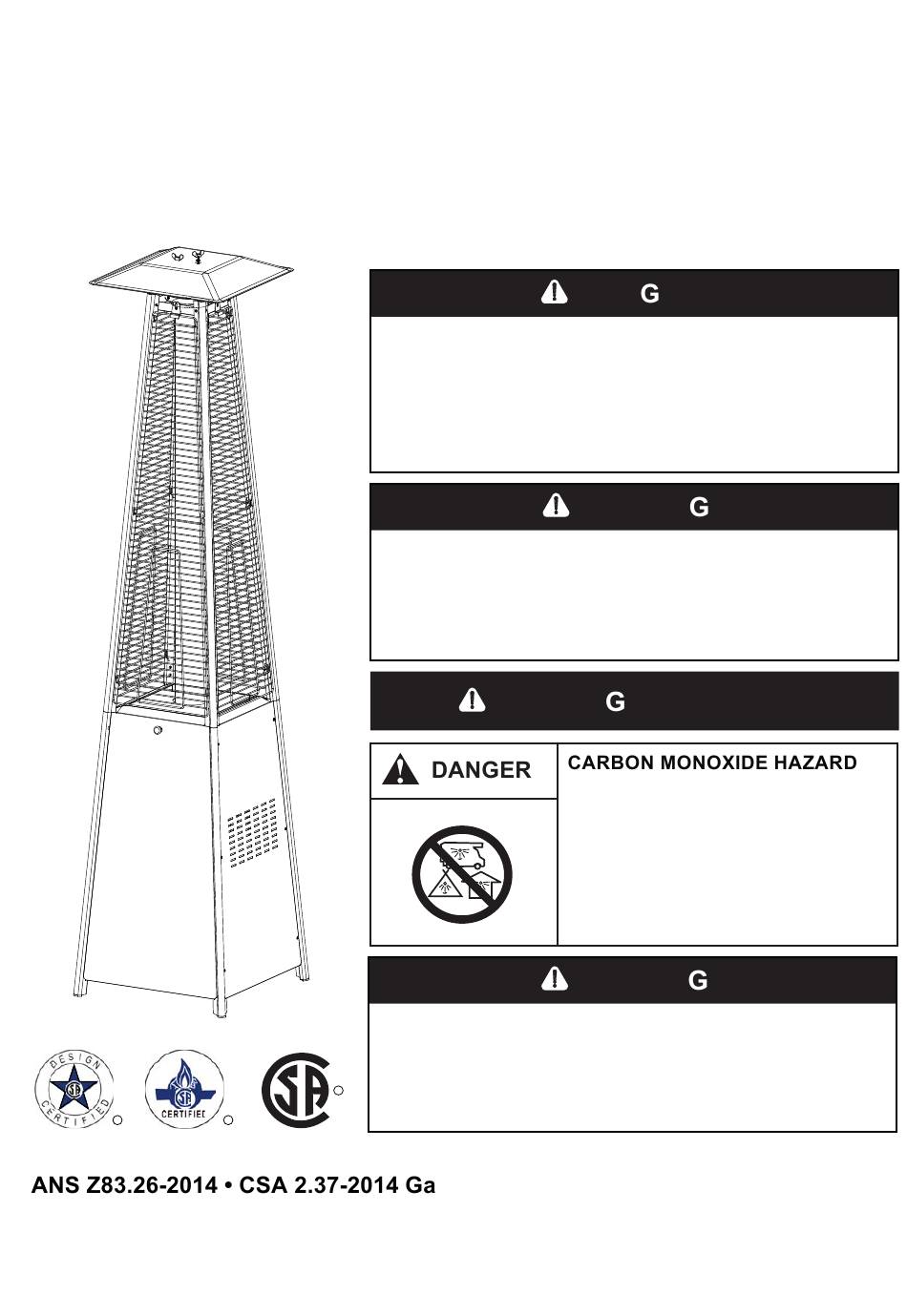

  • Page 1 Owner’s Manual Outdoor Pyramid Heater Item no# S-FT1367PST OUTDOOR SKU# 810405351 PATIO HEATER DAN ER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
  • Page 2 For further assistance, please write to us at biglots@sunjoygroup.com Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory‐sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.

  • Page 3: Package Contents

    PACKAGE CONTENTS Reflector Flame Screen Glass Tube Upper Support Protective Guard Black Silicone Ring Control Box Assy Side Panel Lower Support Front Panel Block Belt Wheel Assembly Gas Hose Bottom Plate QUANTITY QUANTITY Reflector Block Belt Flame Screen Wheel Assembly Glass Tube Bottom Plate Upper Support...

  • Page 4: Safety Information

    HARDWARE CONTENTS (shown actual size) Wing nut Stud Flange Small flat Qty. 3 Qty. 3 Qty. 42 Qty. 4 Qty. 4 Qty. Wrench Philips Screw Screw Knob Qty. 1 screwdriver Fixing Bracket Qty. 1 Qty. 1 Qty.1 Qty. 4 Qty. Chain Long Stem Lighter AA Battery (1.5 V)
  • Page 5 SAFETY INFORMATION DANGER DANGER DANGER DANGER...

  • Page 6: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
  • Page 7 ASSEMBLY INSTRUCTIONS In order to prevent any injuriers, please put on the gloves before installation. 1. Assemble the wheel assembly to the bottom plate. Fix the wheel assembly to the bottom plate using 4pcs bolt M6X12 and 4pcs flange nut Hardware Used Bolt M6 X 12 M6 Flange nut...
  • Page 8 ASSEMBLY INSTRUCTIONS 3.Assemble block belt. Fix the block belt to the 2pcs of lower support behind the front door,using 2pcs screw M5X12. Hardware Used Screw M5 X 12 Philips screwdriver 4. Assemble the middle support. Insert the 4pcs upper support to the lower support.
  • Page 9 ASSEMBLY INSTRUCTIONS 5. Assebmle the flame screen to the upper support. Secure the flame screen to the upper support using 8pcs screw 3/16”. Hardware Used 3/16” Screw Philips screwdriver 6. Assemble the reflector onto the flame screen. Screw the 3pcs stud on the flame screen, then put the reflector onto the stud, secure nut.
  • Page 10 ASSEMBLY INSTRUCTIONS 7. Carefully install the glass tube by lifting up and inserting through the center hole in the upper plate. Ensure the black silicone ring is attached to the lower edge of the glass tube as illustrated. Slide the glass tube through the hole of the lower plate cover and onto the To aid in installation middle plate.
  • Page 11 ASSEMBLY INSTRUCTIONS 9. Attach the three side panels to the heater using 18pcs screw 3/16”. Note : Do not cover the front side where the control knob is. Hardware Used 3/16” Screw x 18 Philips screwdriver 10. Install the knob to M4x10 screw. Hang the chain to the hole on the control box assy and put the pothook of front panel to the holes of bottom plate.
  • Page 12 ASSEMBLY INSTRUCTIONS 11. Screw gas hose and regulator to propane cylinder (not included). Do not cross-thread. Use a standard 20 lb. propane cylinder only. (approximately 12.2 in. / 31cm. in diameter and 17.9 in. / 45.5cm high). Use this heater only with a propane vapor withdrawal supply system.
  • Page 13 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
  • Page 14 OPERATION INSTRUCTIONS Leak Check WARNING leak tested and do not leak. Hose / Regulator connection Regulator / Cylinder connection 1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water). 2. Apply several drops of solution where hose attaches to regulator. 3.
  • Page 15 OPERATION INSTRUCTIONS DANGER Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed. Note: This heater is equipped with a pilot light that allows for safer startups and shutdowns. Pilot must be lit before main burner can be started.
  • Page 16 OPERATION INSTRUCTIONS 4. Push and release the igniter button until pilot flame is visible through the glass tube. 5. Once the pilot is lit, continue to depress the control knob for 30 seconds. 6. If the pilot does not stay lit, repeat steps 4 to 6. 7.

  • Page 17: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: The flame should be blue with straight yellow tops.

  • Page 18: Care And Maintenance

    OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapors. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. 12.
  • Page 19 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.

  • Page 20: Troubleshooting

    TROUBLESHOOTING n i l Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it Pilot won’t light Air in gas line (pressing control knob in) for not more than 1 - 2 minutes or until you smell gas Low gas pressure with cylinder valve Turn cylinder valve OFF and replace...

  • Page 21: One-Year Limited Warranty

    ONE-YEAR LIMITED WARRANTY This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment. If a part within one year from the date of purchase proves to be defective in material or fabrication under normal use, the part will be repaired or replaced. The Company's obligation under the warranty is to replace or repair defective parts at our discretion.

  • Page 22: Replacement Parts List

    REPLACEMENT PARTS LIST Reflector Flame Screen Glass Tube Upper Support Protective Guard Black Silicone Ring Control Box Assy Side Panel Lower Support Front Panel Block Belt Wheel Assembly Gas Hose Bottom Plate QUANTITY QUANTITY Reflector Block Belt Flame Screen Wheel Assembly Glass Tube Bottom Plate Upper Support...
