Sunjoy L-PH004PCA Owner's Manual
Sunjoy L-PH004PCA Owner's Manual

Sunjoy L-PH004PCA Owner's Manual

Dual head standing
Hide thumbs Also See for L-PH004PCA:

Advertisement

WARNING: FOR YOUR SAFETY
State of California Proposition 65
Warning: Propane and byproducts of
combustion of propane contain chemicals
known to the State of California to cause
cancer, birth defects, or other reproductive
harm.
Propane cylinder required (not included)
1 AA 1.5V battery required (not included)
DANGER
appliance
This
complies with "ANSI Z83.26-2014/CSA 2.37-2014, Gas Fired Outdoor Infrared Patio Heater.
May 2016`

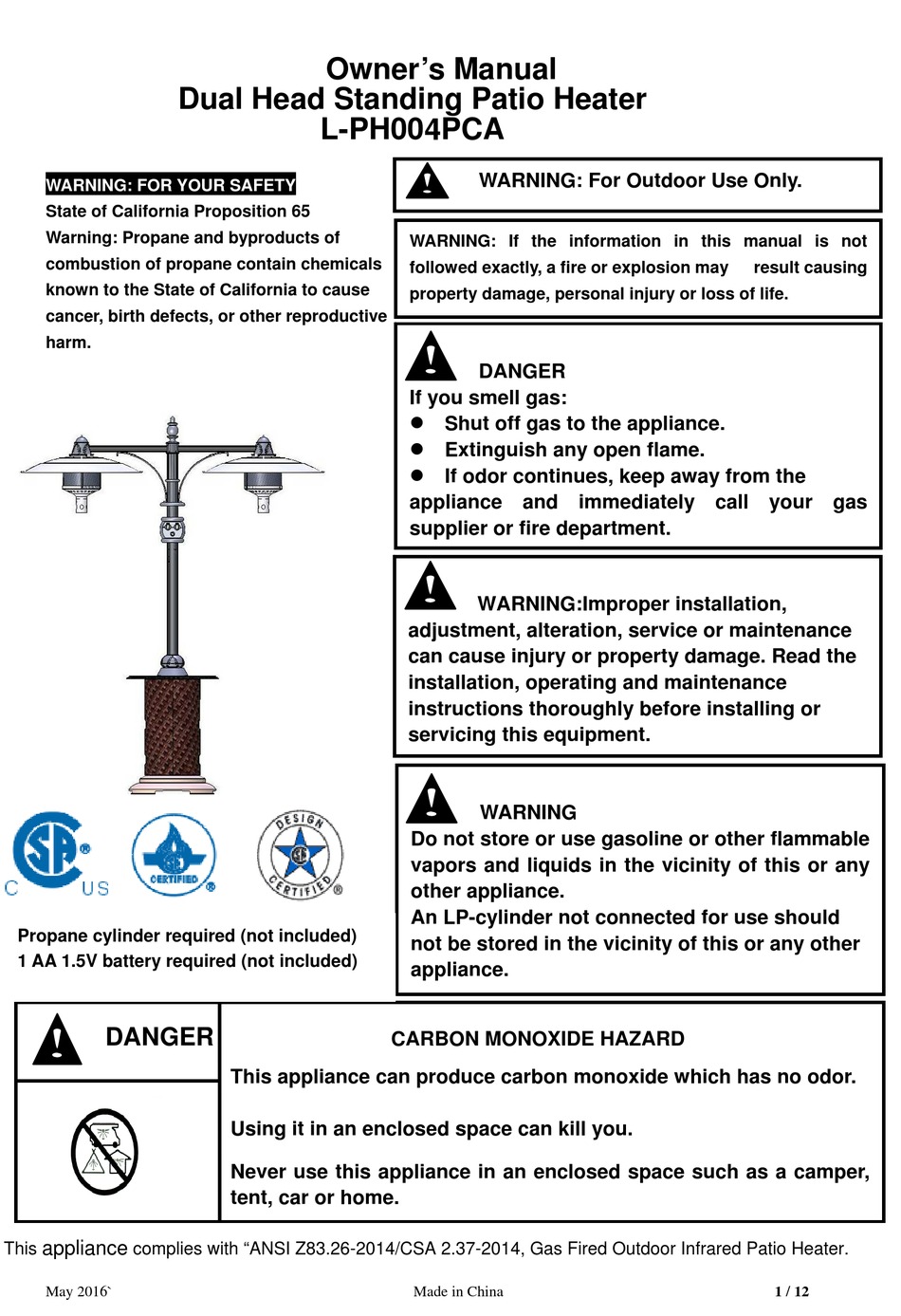

Owner's Manual
Dual Head Standing Patio Heater
L-PH004PCA
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, car or home.
WARNING: For Outdoor Use Only.

WARNING: If the information in this manual is not
followed exactly, a fire or explosion may
property damage, personal injury or loss of life.
DANGER
If you smell gas:
 Shut off gas to the appliance.
 Extinguish any open flame.
 If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:Improper installation,
adjustment, alteration, service or maintenance
can cause injury or property damage. Read the
installation, operating and maintenance
instructions thoroughly before installing or
servicing this equipment.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use should
not be stored in the vicinity of this or any other
appliance.
CARBON MONOXIDE HAZARD
Made in China

result causing
1 / 12
