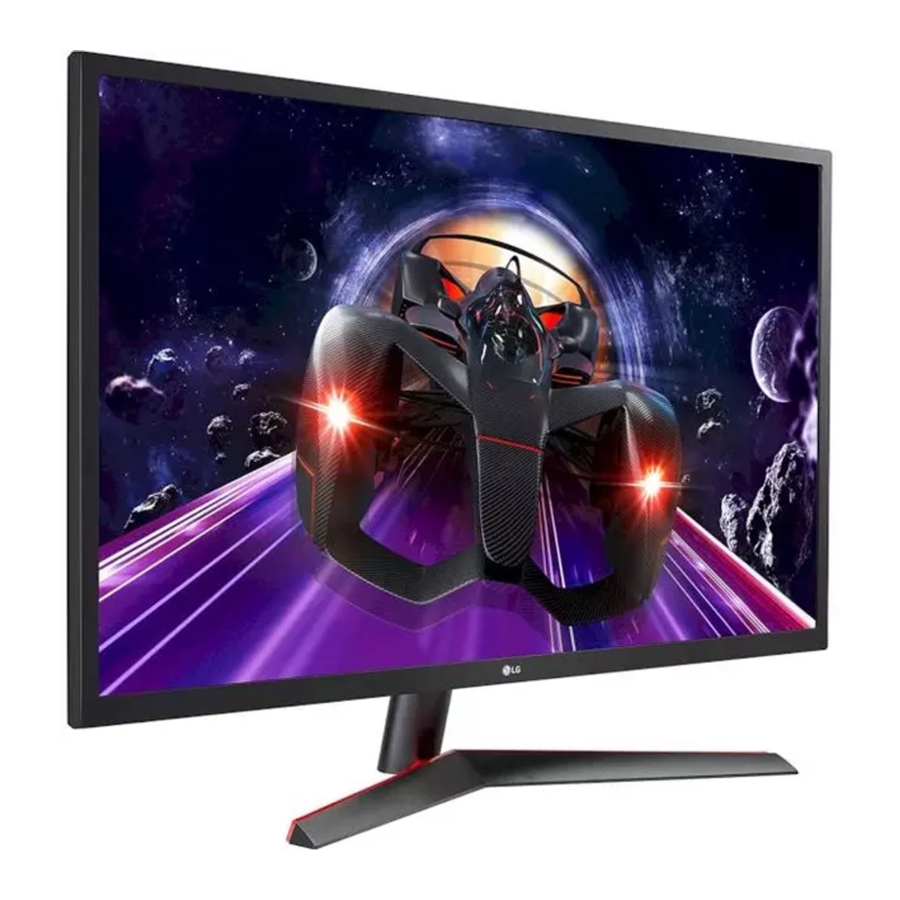

LG 24MP60G, 24MP60GP, 27MP60G, 32MP60G - LED Monitor Manual

LG 24MP60G, 24MP60GP, 27MP60G, 32MP60G - LED Monitor Manual

Also See for 24MP60G:

Advertisement

LG 24MP60G, 24MP60GP, 27MP60G, 32MP60G - LED Monitor Manual

ASSEMBLING AND PREPARING

  • Always use genuine LG components to ensure safety and product performance.
  • The product warranty will not cover damage or injury caused by the use of unauthorized components.
  • It is recommended that use the supplied components.
  • If you use generic cables not certified by LG, the screen may not display or there may be image noises.
  • Illustrations in this document represent typical procedures, so they may look different from the actual product.
  • Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
  • Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
  • Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
  • When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
  • For wave pattern on appearance, unlike the general method of coating, it's applied to added glittering material in raw material.with no peeled-off appearance, it has good durability. Please use it with confidence because there is no problem in using the product at all.

information NOTE

  • The components may look different from those illustrated here.
  • without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
  • To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
  • The power cord provided may differ depending upon the region.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority
Monitor Driver Recommended
OnScreen Control Recommended

Product and Button Description

How to Use the Joystick button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/down with your finger.

Basic Functions
Power on Press the joystick button once with your finger to turn on the monitor.
Power off Press and hold the joystick button once with your finger to turn off the monitor.
Volume control You can control the volume by moving the joystick button left/right.
Controls screen brightness You can control the screen' s brightness by moving the joystick button up/down.

information NOTE

  • The joystick button is located at the bottom of the monitor.

Moving and Lifting the Unit

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

  • Place the monitor in the original box or packing material before attempting to move it.
  • Before moving or lifting the monitor, disconnect the power cord and all other cables.
  • Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
    Moving and Lifting the Unit
  • When holding the monitor, the screen should face away from you to prevent it from being scratched.
  • When transporting the monitor, do not expose the monitor to shock or excessive vibration.
  • When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

  • Avoid touching the monitor screen as much as possible.
    • This may result in damage to the screen or some of the pixels used to create images.
  • If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.

Installing on a Table

  • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from the wall to ensure sufficient ventilation.

  • Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
  • Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
  • If you need another power cord, please contact your local dealer or the nearest retail store.

Adjusting the Angle

  1. Place the monitor mounted on the stand base in an upright position.
  2. Adjust the angle of the screen.

The angle of the screen can be adjusted forward or backward from -5° to 15° for a comfortable viewing experience.

  • To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.
  • Be careful not to touch or press the screen area when adjusting the angle of the monitor.

Using the Kensington Lock

The connector for the Kensington security system is located at the bottom of the monitor.
For more information on installation and usage, refer to the Kensington lock owner's manual or visit the website at http://www.kensington.com.

Using the Kensington Lock
Connect the monitor to a table using the Kensington security system cable.

information NOTE

  • The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

Installing the Wall Mount Plate

This monitor meets the specifications for the wall mount plate or other compatible devices.

information NOTE

  • The wall mount plate is sold separately.
  • For more information on installation, refer to the wall mount plate's installation guide.
  • Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the screen.
  • Remove the stand before installing the monitor on a wall mount by performing the stand attachment in reverse.

Installing on the Wall


Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

Wall Mount (mm)
75 x 75 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate (optional)
LSW 149

information NOTE

  • A non-VEsa standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws.
  • The wall mount kit includes the installation guide and all necessary parts.
  • The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
  • The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard length, it may damage the inside of the product.
  • For more information, please refer to the user manual for the wall mounting bracket.

  • Unplug the power cord before moving or installing the monitor to avoid electric shock.
  • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. use an authorized LG wall mount and contact the local dealer or qualified personnel.
  • Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
  • Use the wall mounting bracket and screws that conform to VEsa standards. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
  • When measured from the back of the monitor, the length of each installed screw must be 8 mm or less.

USING THE DEVICE

  • Illustrations in this manual may differ from the actual product.

Press the joystick button, go to SettingsInput, and then select the input option.

  • Do not press the screen for a prolonged time. This may cause image distortion.
  • Do not display a still image on the screen for a prolonged time. This may cause image retention. use a PC screensaver if possible.
  • When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
  • The monitor may flicker when turned on in an area where the temperature is low. This is normal.
  • Sometimes red, green, or blue spots may appear on the screen. This is normal.

Connecting to a PC

  • This monitor supports the *Plug and Play feature.

* Plug and Play: a feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.

HDMI Connection

Transmits digital video and audio signals from your PC to the monitor.

  • Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
  • Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
  • Recommended HDMI cable types
    • High-speed HDMI cable
    • High-speed HDMI cable with Ethernet

DisplayPort Connection

Transmits digital video and audio signals from your PC to the monitor.

information NOTE

  • There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
  • If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort) cable or gender that supports DisplayPort 1.4. (sold separately)

D-SUB connection

Transmits analog video from your PC to the Monitor set.

information NOTE

  • When using a D-SUB signal input cable connector for Macintosh
  • Mac adapter

For apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

Connecting AV Devices

HDMI Connection
HDMI transmits digital video and audio signals from your aV device to the monitor.

information NOTE

  • Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
  • Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
  • Recommended HDMI cable types
    • High-speed HDMI cable
    • High-speed HDMI cable with Ethernet

Connecting Peripherals

Headphones Connection
Connect peripherals to the monitor via the headphones port.

information NOTE

  • Peripheral devices are sold separately.
  • Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.
  • If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.

USER SETTINGS

information NOTE

  • Your monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.

Activating the Main Menu

  1. Press the joystick button on the bottom of the monitor.
  2. Move the joystick up/down and left/right to set the options.
  3. Press the joystick button once more to exit the main menu.
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input features.
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Settings feature.
Main menu disabled Adjusts the monitor brightness level.
Main menu enabled Turns off the monitor.
Main menu disabled Adjusts the monitor brightness level.
Main menu enabled Enters the Game Mode feature.

Main Menu Description
Input Sets input mode.
Power off Turns off the monitor.
Settings Configures the screen settings.
Game Mode Sets the game mode for gaming.
Exit Exits the main menu.
  1. To view the OSD menu, press the joystick button at the bottom of the monitor and then enter theSettings.
  2. Move the joystick up/down and left/right to set the options.
    Menu Settings
  3. To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it.
  4. If you want to exit the OSD menu, move the joystick to until you exit.

Quick Settings

Settings > Quick Settings Description
Brightness Adjusts the contrast and brightness of the screen.
Contrast
Volume

Adjusts the volume level.(for HDMI, DisplayPort only )

information NOTE

  • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu.
Color Temp Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color to between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Auto Configuration (D-SUB only) Do you want to auto Configuration? No Cancel the select.
Yes Operate the auto configuration for optimal display in D-SUB.

Input

Settings > Input Description
Input List Selects the input mode.
Aspect Ratio Adjusts the aspect ratio of the screen.
Full Wide Displays the video in widescreen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.


information NOTE

  • The Picture Mode that can be set depends on the Input signal.
Settings > Picture Description
Picture Mode Gamer 1 In this mode, users can customize elements including game-related options.
Gamer 1 and Gamer 2 picture modes allow you to save two sets of customized display settings, including game-related setup options.
Gamer 2
FPS This mode is optimized for FPS games.
RtS This mode is optimized for RTS Game.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Color Weakness This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors.
information NOTE
  • If the picture mode is changed, the screen may flicker or the resolution of your PC screen may be affected.
Picture Adjust Brightness Adjusts the color contrast and brightness of the screen.
Contrast
Sharpness Adjusts the sharpness of the screen.
SUPER RESOLUTION+ Off Displays in the most common setting. Disables SUPER RESOLUTION+
High Optimizes the screen for crystal clear images. Best for high-definition video or games.
Middle Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes. Best for UCC or SD videos.
Low Optimizes the screen for smooth and natural images. Best for still images or images with less movement.
information NOTE
  • Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
Black Level Sets the offset level (for HDMI, DisplayPort only).
  • Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
DFC On Adjusts the brightness automatically according to the screen.
Off Disables the DFC feature.
Game Adjust Response Time Sets a response time for displayed pictures based on the movement of the picture on the screen.
For a normal environment, it is recommended that you use Fast. When there is a lot of motion, it is recommended that you use Faster.
Setting to Faster may cause image sticking.
Faster Sets the response time to Faster.
Fast Sets the response time to Fast.
Normal Sets the response time to Normal.
Off Does not use the response time improvement feature.
FreeSync

Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal.

  • Supported Interface: DisplayPort, HDMI
  • Supported Graphic Card: a graphic card that supports AMD's Freesync is necessary.
  • Supported Version: Make sure to update the graphic card to the latest driver.
  • For more information and requirement, refer to AMD website at http://www.amd.com/FreeSync.
On FreeSync function on.
Off FreeSync function off.
Black Stabilizer You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
1ms Motion Blur Reduction On This mode minimizes motion blur in fast-moving videos.

This function is available for the following vertical frequency. (75Hz)
Off Turns 1ms Motion Blur Reduction Mode off.
information NOTE
  • To reduce motion blur, brightness is reduced with backlight control.
  • 1ms Motion Blur Reduction and FreeSync feature can not used at the same time.
  • This function is game-optimized.
  • It is recommended to turn off when you are not using the gaming function.
  • Flicker may occur during 1ms Motion Blur Reduction operation.
Crosshair Cross Hair provides a mark on the center of the screen for First Person shooter (FPS) games. users can select the Crosshair that fits their gaming environment among four different Crosshair.
  • When the monitor is off or enters energy saving mode, the Crosshair feature is automatically turned Off.
Color Adjust Gamma Mode 1, Mode 2, Mode 3 The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Color Temp Set your own color temperature.
Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color to between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Red, Green, Blue You can customize the picture color using Red, Green, and Blue colors.
Configuration Adjust (D-SUB only) Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.
Phase To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.
Resolution (D-SUB only) User can set the desired resolution. This option is enabled only when the screen resolution on your computer is set to the following(D-SUB only).
information NOTE
  • The function is enabled only when the screen resolution on your computer is set to the following, except that the PC output wrong resolution.
    1024x768, 1280x768, 1360x768, 1366x768,Off
    1280x960, 1600x900,Off
    1440x900, 1600x900,Off
Picture Reset Do you want to reset your picture settings? No Cancel the select.
Yes Returns to the default settings.

General

Settings > General Description
Language Sets the menu screen to the desired language.
SMART ENERGY SAVING Conserve energy by using luminance compensation algorithm.
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Off Disables the feature.
information NOTE
  • The value of energy saving data may differ depending on panel and panel suppliers.
  • If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.
Automatic Standby Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (4H, 6H, 8H and Off)
OSD Lock This feature disables the configuration and adjustment of menus.
On Enables OSD Lock.
Off Disables OSD Lock.
information NOTE
  • All features are disabled except Brightness, Contrast, Volume, Input List, aspect ratio, OSD Lock and Information.
Information The following display information will be shown; Total Power on Time, Resolution.
Reset Do you want to reset your settings? No Cancel the reset.
Yes Returns to the default settings.

TROUBLESHOOTING

Nothing is displayed on the screen

Is the monitor's power cord plugged in?
  • Check if the power cord is correctly plugged into the power outlet.
Is the No Signal message being displayed?
  • This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
Is the Out of Range message being displayed?
  • This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product specification section of this manual to set the appropriate frequency.

Screen display is unstable and shaky

Images displayed on the screen leave shadow trails

Did you select the appropriate resolution?
  • If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.
  • Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
  • The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.
Does image sticking occur even when the monitor is turned off?
  • Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
  • To extend the lifetime of the monitor, use a screensaver.
Are there spots on the screen?
  • When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.

Some features are disabled

Are some functions not available when you press the Menu button?
  • The OSD is locked. Disable OSD Lock in General.
Do you see an "Unrecognized monitor, Plug and Play (VESA DDC) monitor found" message?
Have you installed the display driver?
  • Be sure to install the display driver from our web site:http://www.lg.com.
  • Make sure to check if the graphics card supports Plug and Play function.

No sound from the headphone port

Are images displayed without sound?
  • Make sure that the headphone port connections are made properly.
  • Try increasing the volume with the joystick.
  • Set the audio output of the PC to the monitor you are using. (The settings may differ depending on the operating system (OS) you use.)

PRODUCT SPECIFICATION

24MP60G 24MP60GP
Color Depth 8-bit color is supported
Resolution Max Resolution 1920 x 1080 @ 60 Hz (D-sub)
1920 x 1080 @ 75 Hz (HDMI,DisplayPort)
Recommended Resolution 1920 x 1080 @ 60 Hz
Power Sources Power Rating 19 V 1.3 A
Power Consumption
(Typical)
On mode: 16 W Typ. (Outgoing condition) *
Sleep Mode (standby Mode) ≤ 0.3 W **
Off Mode ≤ 0.3 W
AC/DC Adapter ADS-25SFA-19-3 1902SE, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPB-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or AD10560LF, manufactured by PI Electronics (H.K.) Ltd.
Or AD2139S20, manufactured by PI Electronics (H.K.) Ltd.
Or AD2139620, manufactured by PI Electronics (H.K.) Ltd.
Output: 19 V 1.3 A
Environmental Conditions Operating Conditions Temperature 0°C to 40°C
Humidity Less than 80 %
Storing Conditions Temperature -20°C to 60°C
Humidity Less than 85 %
Dimensions Monitor Size (Width x Height x Depth)
With Stand (mm) 539.1 x 414.3 x 211.7
Without Stand (mm) 539.1 x 321.5 x 39.1
Weight (Without Packaging) With Stand (kg) 3.3
Without Stand (kg) 2.7
27MP60G
27MP60GP
Color Depth 8-bit color is supported
Resolution Max resolution 1920 x 1080 @ 60 Hz (D-sub)
1920 x 1080 @ 75 Hz (HDMI,DisplayPort)
Recommended Resolution 1920 x 1080 @ 60 Hz
Power Sources Power Rating 19 V 1.6 A Or 19 V 1.3 A
Power Consumption
(Typical)
On mode: 20 W Typ. (Outgoing condition) *
Sleep Mode (standby Mode) ≤ 0.3 W **
Off Mode ≤ 0.3 W
AC/DC Adapter ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45SQ-19-3 19032E, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or AD10550LF, manufactured by PI Electronics (H.K.) Ltd.
Or AD2138S20, manufactured by PI Electronics (H.K.) Ltd.
Or AD2138620, manufactured by PI Electronics (H.K.) Ltd.
Or AD2138U20, manufactured by PI Electronics (H.K.) Ltd. (For India only)
Output: 19 V 1.7 A
DADS-25SFA-19-3 19025E, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-25FSF-19 19025EPB-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or AD10560LF, manufactured by PI Electronics (H.K.) Ltd.
Or AD2139520, manufactured by PI Electronics (H.K.) Ltd.
Or AD2139620, manufactured by PI Electronics (H.K.) Ltd.
Output: 19 V 1.3 A
Environmental Conditions Operating Conditions Temperature 0°C to 40°C
Humidity Less than 80 %
Storing Conditions Temperature -20°C to 60°C
Humidity Less than 85 %
Dimensions Monitor size (Width x Height x Depth)
With Stand (mm) 611.1 x 455.1 x 211.7
Without Stand (mm) 611.1 x 362.6 x 39.5
Weight (Without Packaging) With Stand (kg) 4.4
Without Stand (kg) 3.8
32MP60G 32MP60GP
Color Depth 8-bit color is supported
Resolution
Max Resolution 1920 x 1080 @ 60 Hz (D-sub)
1920 x 1080 @ 75 Hz (HDMI,DisplayPort)
Recommended Resolution 1920 x 1080 @ 60 Hz
Power Sources
Power Rating 19 V 1.6 A
Power Consumption
(Typical)
On mode: 25 W Typ. (Outgoing condition) *
Sleep Mode (standby Mode) ≤ 0.3 W **
Off Mode ≤ 0.3 W
AC/DC Adapter ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45SQ-19-3 19032E, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or ADS-45FSQ-19 19032EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
Or LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
Or AD10550LF, manufactured by PI Electronics (H.K.) Ltd.
Or AD2138S20, manufactured by PI Electronics (H.K.) Ltd.
Or AD2138620, manufactured by PI Electronics (H.K.) Ltd.
Output: 19 V 1.7 A
Environmental Conditions Operating Conditions Temperature 0°C to 40°C
Humidity Less than 80 %
Storing Conditions Temperature -20°C to 60°C
Humidity Less than 85 %
Dimensions Monitor Size (Width x Height x Depth)
With Stand (mm) 729.4 x 513.3 x 224.8
Without Stand (mm) 729.4 x 430.3 x 45.0
Weight (Without Packaging) With Stand (kg) 6.9
Without Stand (kg) 6.2

The specifications are subject to change without notice.
The ~ symbol means alternating current, and the symbol means direct current.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full white pattern, Maximum resolution).
** The monitor goes to the sleep Mode in a couple of minutes(Max 5 minutes).

Factory Support Mode

(Preset Mode, PC)

24MP60G 24MP60GP 27MP60G 27MP60GP
Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75.029 +/+
1152 x 864 67.5 75 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1680 x 1050 65.29 59.954 -/+
1920 x 1080 67.5 60 +/+ Recommend
1920 x 1080 83.89 74.97 +/+ (for HDMI / DisplayPort only)
32MP60G 32MP60GP
D-Sub/HDMI
Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75.029 +/+
1280 x 720 45 60 +/+
1280 x 800 49.702 59.81 -/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.29 59.954 -/+
1920 x 1080 67.5 60 +/+
1920 x 1080 83.894 74.973 +/- (for HDMI only)
DisplayPort
Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1280 x 720 45 60 +/+
1280 x 800 49.702 59.81 -/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.29 59.954 -/+
1920 x 1080 67.5 60 +/+
1920 x 1080 83.894 74.973 +/-

HDMI Timing (Video)

Factory support mode (Preset Mode) Horizontal frequency (kHz) Vertical frequency (Hz) Remarks
480p 31.5 60
576P 31.25 50
720p 37.5 50
720p 45.0 60
1080p 56.25 50
1080p 67.5 60 Recommend Mode

The model and serial number of the product are located on the back and on one side of the product. Record them in case you ever need service.

www.lg.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download LG 24MP60G, 24MP60GP, 27MP60G, 32MP60G - LED Monitor Manual

Advertisement

Need help?

Need help?

Do you have a question about the 24MP60G and is the answer not in the manual?

Questions and answers

Table of Contents
