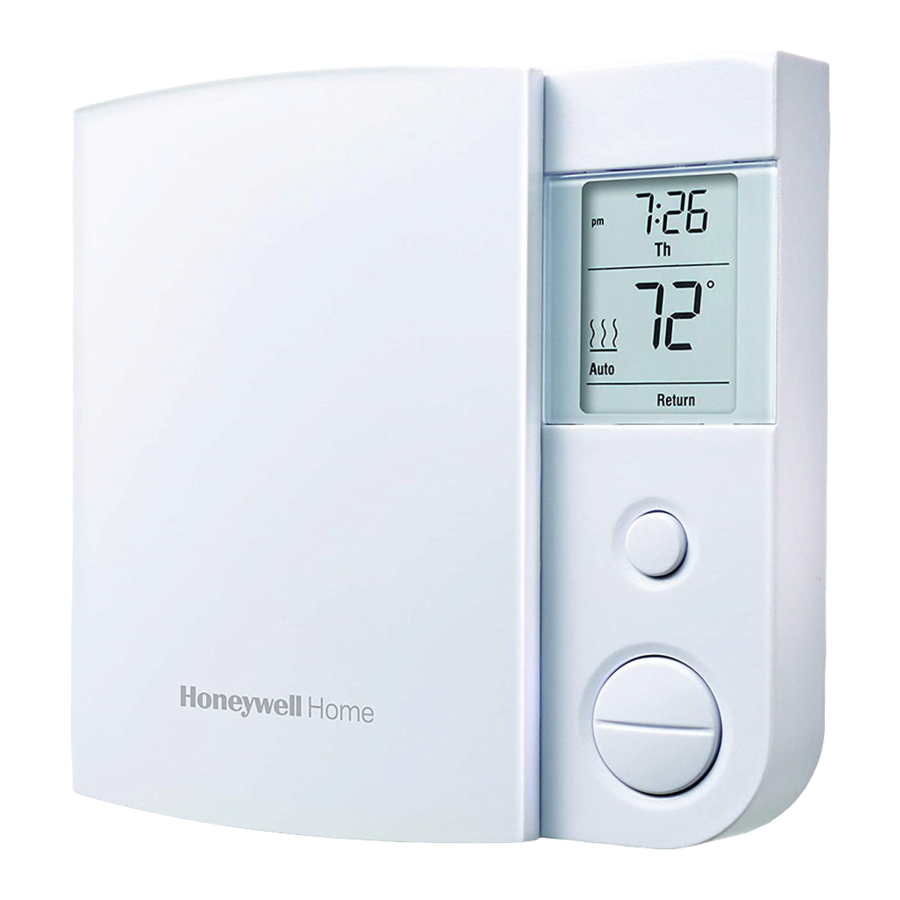

Aube Technologies RLV4305 Manual

Application

This thermostat is designed to control an electric heating system such as a baseboard heater, a radiant ceiling, a convector or a fan-forced heater.
The thermostat CANNOT be used with:

• a resistive load under 0.83 A
• a resistive load over 14.6 A
• a system driven by a contactor or a relay (inductive load)
• a central heating system.

Electrical Shock Hazard.
This thermostat is a line voltage control (120–240 Volts). Do not install it if you are not completely familiar with house wiring. If handled improperly, there is risk of electric shock hazard, which may cause serious injury or death.

Do you need assistance? We are here to help.
Call 1-800-831-2823 for wiring assistance before returning the thermostat to the store.

SUPPLIED PARTS

• One (1) thermostat
• Two (2) 6-32 mounting screws
• Two (2) solderless connectors

Installation

TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN POWER PANEL TO AVOID ELECTRICAL SHOCK.

• All cables and connections must comply with local electrical codes.
• This thermostat has tinned copper wires for line and load connections.
• Special CO/ALR solderless connectors must be used if these wires will be connected to aluminium conductors.
• Install the thermostat onto an electrical box.
• Install the thermostat about 5 ft. (1.5 m) high, on an inside wall facing the heater.
• Avoid locations where there are air drafts (such as the top of a staircase or an air outlet), dead air spots (such as behind a door), or direct sunlight.
• Do not install the thermostat on a wall that conceals chimney or stove pipes.
• The thermostat wires are not polarized; either wire can be connected to the load or to the power supply.

Wiring

Connect the thermostat wires to the power and to the load using solderless connectors for copper wires.

Thermostat mounting

1. Push the excess wires back inside the electrical box.
2. Secure the thermostat to the electrical box using the provided screws.
3. Insert the screws through either the right or left pair of mounting holes on the thermostat.
   NOTE: If there is a protective film or sticker on the thermostat's screen, peel it off.
4. Apply power to the heating system. Verify the installation by checking that the heater can be turned on by raising the setpoint using the Up button and off by lowering the setpoint using the Down button.

Keep the thermostat's air vents clean and free from obstructions.

Clock and day setting

1. Press the Day button to set the day.
2. Use the Hour and Min buttons to set the clock.
3. Press the button to exit.

Controls

* The screen is backlit for 12 seconds when you press any button.

Display

* To display the set temperature (setpoint), press the Up or Down button once. The thermostat will display the setpoint instead of the clock for 5 seconds.

Automatic mode

In Automatic mode, the thermostat adjusts its temperature setpoint according to the period of the day. To place the thermostat in this mode, press the Mode button until Auto appears on the screen. The current period name also appears (unless the thermostat has not been programmed with a schedule).
You can program up to 4 periods (Wake, Leave, Return or Sleep) in a day. You can set 2 different programs: one for the weekdays (Monday to Friday) and another one for the weekend (Saturday and Sunday).
The thermostat uses the following default schedule:

Temporary Override
You can temporarily modify the setpoint temperature while the thermostat is in Automatic mode using the Up or Down button. The new setpoint will be used until the beginning of the next period. During the override, Auto flashes on the screen. You can cancel the override by pressing the button.
To modify the schedule:

1. Press thePgm button. Each time you press the Pgm button, the thermostat displays one of the periods of the schedule in the following order:

   Weekdays (MO TU WE TH FR)				Weekend (SA SU)
   1	2	3	4	1	2	3	4

2. Press the Hour and Min buttons to set the start time of the displayed period.
   NOTE: To cancel the period, press the Mode button. Instead of displaying the start time of the period, the thermostat will display --:--. During operation, the thermostat will skip over that period.
3. Press the Up or Down button to set the temperature.
4. To set another period, press the Pgm button and repeat steps 2 and 3.
5. Press the button to return to normal display.

Manual (Man) mode

To place the thermostat in Manual mode, press the Mode button until Man appears on the screen. In this mode, any modification to the temperature setpoint must be done manually. To set the temperature, press the Up or Down button. The default setting is 70°F (21.0°C).

Away mode

To place the thermostat in Away mode, press the Mode button until Away appears on the screen. This mode is a quick way to lower the temperature to a predetermined setting before you go away for an extended length of time. The temperature is 59°F (15.0°C) by default and can be modified using the setup menu.

Standby mode

To disable heating, press the Mode button until Standby appears on the screen. In this mode, the setpoint temperature cannot be displayed or modified. For frost protection, heating will turn on only to prevent the room temperature from dropping below 41°F (5°C).

Advanced settings

1. Press the Pgm button for 3 seconds.
2. To display the next parameter, press the Pgm button.
3. To modify the displayed parameter, press the Up or Down button.
4. To exit the menu, press the button or do not press any button for 1 minute.

Display	Parameter	Options	Default Setting
	Temperature unit	°F / °C	°F
	Time format	12 hr / 24 hr	12 hr
	Fan[1]	No / Yes	No
	Away temperature2	41°F - 86°F (5.0°C - 30.0°C)	59°F (15.0°C)
	Daylight saving time3	On / Off	Off
	Year4	00 - 99	09
	Month4	01 - 12	01
	Day4	01 - 31	01
	Early start5	On / Off	Off
	Minimum setpoint	41°F - 86°F (5.0°C - 30.0°C)	41°F (5.0°C)
	Maximum setpoint	41°F - 86°F (5.0°C - 30.0°C)	86°F (30.0°C)
	Keypad lock6	On / Off	Off

¹Fan
Place at Yes if you have a fan-forced heater (to prevent premature burnout of the motor). Leave at No for better temperature regulation if you do not have a fan-forced heater.

² Away temperature
Set the temperature you wish to use when the thermostat is in Away mode.

³ Daylight Saving Time
When the Daylight Saving Time function is enabled (On), the thermostat automatically switches to Daylight Saving Time on the second Sunday of March and to normal time on the first Sunday of November.

⁴ Year, Month, Day
These parameters are available only if the Daylight Saving Time function is enabled (On).

⁵ Early Start
Early Start is used in Automatic mode only. When Early Start is enabled (On), the thermostat determines when to start heating so the desired temperature is attained at the beginning of Wake and Return periods. When Early Start is disabled (Off), heating starts only at the beginning of Wake and Return periods; thus there is a delay before you reach the desired temperature.

⁶ Keypad lock
The settings are locked. The temperature adjustment buttons only allow you to view the temperature setpoint.

Troubleshooting

Your thermostat requires little or no attention. Most problems can generally be traced to the following:

Resetting the thermostat (default settings)

NOTE: All parameters, except the clock (time and day), return to their default settings when the thermostat is reset.

1. Press the Mode button until Standby appears on the screen.
2. Press the button for 6 seconds.
3. The thermostat will displayr St (reset) for 2 seconds to indicate it is reset and will then return to normal display.

Power outage

During a power outage, the thermostat display remains lit for the first 2 minutes. During this time, the LP (low power) indicator appears and all buttons are disabled. Then the screen turns blank. The settings are stored in memory. When power returns, the thermostat returns to the mode of operation preceding the power outage. If the power failure has exceeded 5 hours, the clock and date must be re-adjusted.

Specifications

Supply: 120/240 VAC, 60 Hz
Minimum load: 0.83 A (resistive only)
200 W @ 240 V AC
100 W @ 120 V AC
Maximum load: 14.6 A (resistive only)
3500 W @ 240 V AC
1750 W @ 120 V AC
Display range: 32°F to 99°F (0°C to 50.0°C)
Setpoint range: 41°F to 86°F (5.0°C to 30.0°C)
Resolution: 1°F (0.5°C)
Storage temperature: -4°F to 120°F (-20°C to 50°C)
