Mode button
Up/Down buttons
Reset opening
Description

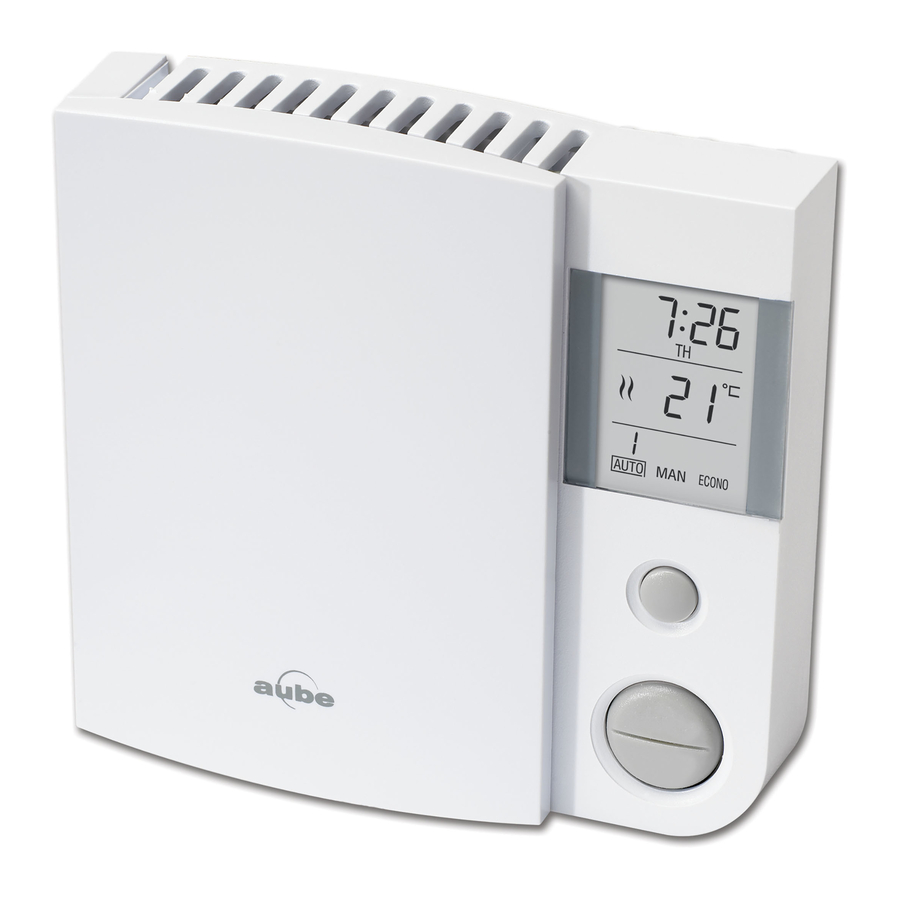

The TH104PLUS thermostat can be used to control an electric
heating system such as a baseboard heater, a radiant floor, a radiant
ceiling, a convector or a fan-forced heater.
The thermostat cannot be used with the following:
•
a resistive load under 2 A
•
a resistive load over 14.6 A
•
systems driven by a contactor or a relay (inductive load)
•
central heating systems
SUPPLIED PARTS
•
One (1) thermostat
•
Two (2) 6-32 mounting screws
•
Two (2) solderless connectors
Installation
TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN
POWER PANEL TO AVOID ELECTRICAL SHOCK.
All cables and connections must comply with local electrical
codes.
This thermostat has tinned copper wires for line and load con-
nections. Special CO/ALR solderless connectors must be used if
these wires will be connected to aluminium conductors.
Install the thermostat onto an electrical box.
Install the thermostat about 5 feet high, on an inside wall facing
the heater.
Avoid locations where there are air drafts (such as the top of a
staircase or an air outlet), dead air spots (such as behind a
door), or direct sunlight.
Do not install the thermostat on a wall that conceals chimney or
stove pipes.
The thermostat wires are not polarized; either wire can be con-
nected to the load or to the power supply.
TH104PLUS
Day button
Hour button
Minute button
Program button
Return button
1.
2.
Time and day
Appears if the
thermostat is configured
for a fan-forced heater
Appears when the
setpoint is displayed
Heating power
indicator
Period no. in
Automatic mode
Automatic
mode

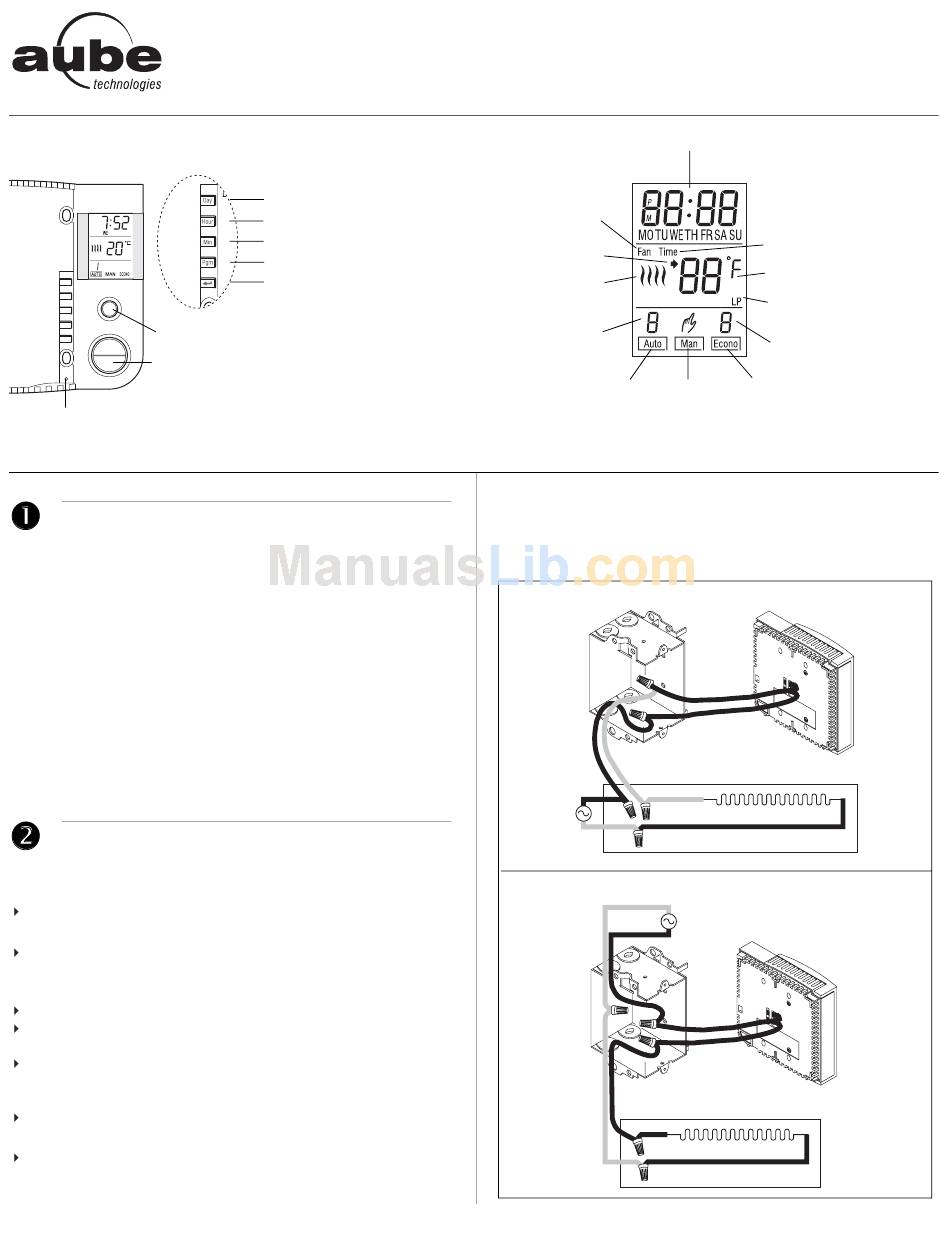

1) Connect the thermostat
Connect the thermostat wires to the power and to the load using
solderless connectors for copper wires.
2-wire installation
4-wire installation
TH104PLUS
User Guide
Programmable Thermostat
Flashes when the
clock has been reset
Temperature
Appears during
a power failure
Setting no. in
Economy mode
Economy
Manual
mode
mode
400-104-004-D
2008-01-29
1/4
