Description

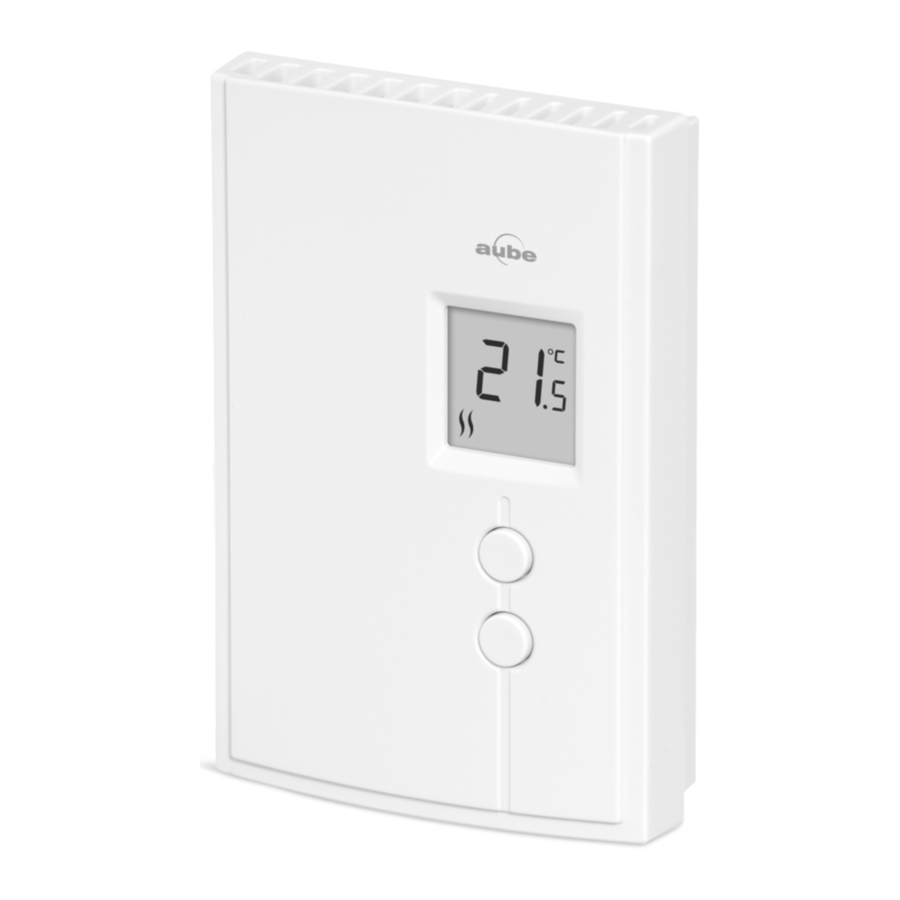

This thermostat can be used to control an electric heating system such as a baseboard heater, a radiant floor, a radiant ceiling, or a convector. The thermostat CANNOT be used with:
- a resistive load under 0.83 A
- a resistive load over 8.3 A
- a system driven by a contactor or a relay (inductive load)
- a fan-forced heating system (e.g. : fan-forced convector)
- a central heating system
SUPPLIED PARTS
- One (1) thermostat
- Two (2) 6-32 mounting screws
- Two (2) solderless connectors
Installation
TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN POWER PANEL TO AVOID ELECTRIC SHOCK.
Loosen the screw holding the faceplate to the base. The screw cannot be completely removed and remains captive on the base. Remove the faceplate from the base by pulling the bottom half.
Connect any one of thermostat wires to the heater (load) wire and the other one to the power supply wire using solderless connectors for copper wires. (The thermostat wires are non-polarized; either wire can be connected to the load or to the power supply.)
NOTE: All cables and connections must conform to the local electrical code. Special CO/ALR solderless connectors must be used when connecting with aluminium conductors.
Install the base onto an electrical box.
Reinstall the faceplate on the base and secure it in place with the screw.
NOTE: Keep the air vents of thermostat clean and unobstructed at all times.
Selecting the Temperature Format
To select the temperature display format:
- Press the Up and Down buttons for three seconds. The format currently used will be indicated on the screen.
- Press the Up or Down button to change the format.
- Press the Up and Down buttons for one second (or wait for one minute) to return to the normal display.
Temperature Display and Setting
The thermostat normally displays the actual (ambient) temperature.
- To view the setpoint temperature, press once on either temperature adjustment button. The setpoint will be displayed for 5 seconds. The icon
![]()
appears during the setpoint display. - To change the setpoint temperature, press the appropriate button until the desired value is displayed.
appears during the setpoint display.Power Outage
During a power outage, the setpoint is saved in memory. You do not need to adjust the temperature when power returns.
Specifications
- Supply: 120/240 VAC, 50/60 Hz
- Minimum load:
0.83 A (resistive only)
200 W @ 240 VAC
100 W @ 120 VAC - Maximum load:
8.3 A (resistive only)
2000 W @ 240 VAC
1000 W @ 120 VAC - Display range: 0°C to 50°C (32°F to 122°F)
- Setpoint range: 5°C to 30°C (40°F to 85°F)
- Storage: -20°C to 50°C (-4°F to 120°F)
- Heating cycle length: 15 seconds
- Approval:
![]()
Troubleshooting
| PROBLEM | SOLUTIONS |
Thermostat is hot | This is normal. Under normal operation, the thermostat housing can reach a temperature between 35°C (95°F) and 40°C (104°F). |
Displayed temperature is wrong | Remediate if any the following conditions applies:
|
Display disappears and reappears after a few minutes | The thermal protection device on the heater has temporarily opened. This can happen if the heater is obstructed by furniture or curtain and has overheated, or if the heater's thermal protection device is too sensitive. |
Technical assistance
705 Montrichard
Saint-Jean-sur-Richelieu, Quebec
J2X 5K8
Canada
Tel.: (450) 358-4600
Toll-free: 1-800-831-AUBE
Fax: (450) 358-4650
Email: aube.service@honeywell.com
For more information on our products, go to www.aubetech.com
